R3527 Rivet Studs

material: Steel

Download product datasheet

Alternative products you may wish to consider

Ball Joint - Housing Only

Threaded ball studs

Rivet studs

Stainless threaded ball studs

DMG ball joints

DMG ball joints

Male Ball Joints

Male DMG Ball and Socket Joints

DMG ball joints - inch
Steel

Quick Release Ball Joints Imperial

Quick Release Ball Joint (PI)
light duty

Quick release ball joint

Rivet ball studs 8mm ball

R3527.080-040

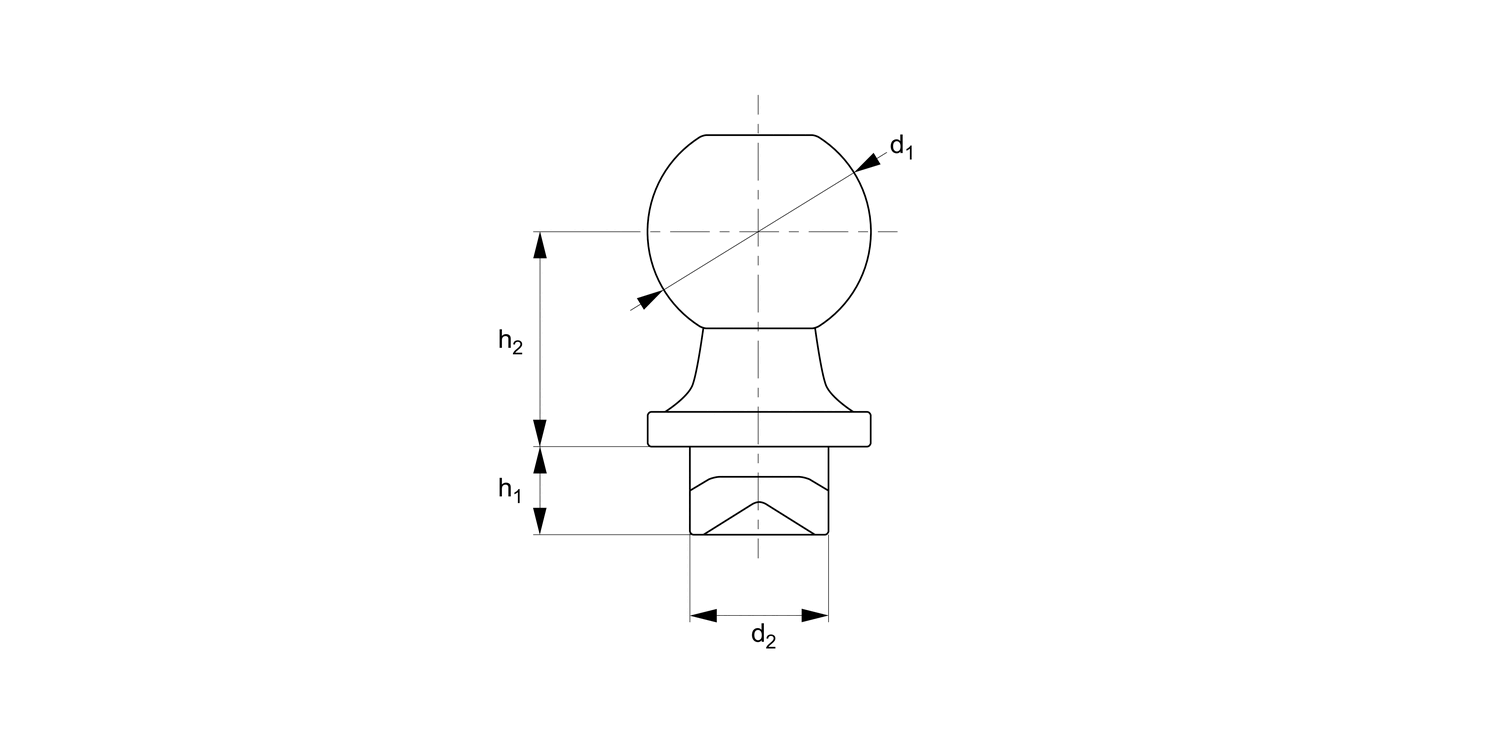

d₁

8.0

d₂ tol. h11

5.0

h₁ ±0.2

4.0

h₂ ±0.3

9.0

£ 1.54 per unit (click for quantity discounts)

Rivet ball studs 8mm ball

R3527.080-075

d₁

8.0

d₂ tol. h11

5.0

h₁ ±0.2

7.5

h₂ ±0.3

9.0

£ 1.59 per unit (click for quantity discounts)

Rivet ball studs 10mm ball ball diameter 10mm rivet diameter 6mm length 4.5mm

R3527.100-045

d₁

10.0

d₂ tol. h11

6.0

h₁ ±0.2

4.5

h₂ ±0.3

11.0

£ 1.83 per unit (click for quantity discounts)

Rivet ball studs 10mm ball

R3527.100-080

d₁

10.0

d₂ tol. h11

6.0

h₁ ±0.2

8.0

h₂ ±0.3

11.0

£ 1.92 per unit (click for quantity discounts)

Rivet ball studs 13X5

R3527.130-050

d₁

13.0

d₂ tol. h11

8.0

h₁ ±0.2

5.0

h₂ ±0.3

13.0

£ 2.06 per unit (click for quantity discounts)

Rivet ball studs 13mm ball

R3527.130-100

d₁

13.0

d₂ tol. h11

8.0

h₁ ±0.2

10.0

h₂ ±0.3

13.0

£ 2.26 per unit (click for quantity discounts)

Rivet ball studs 16mm ball

R3527.160-060

d₁

16.0

d₂ tol. h11

10.0

h₁ ±0.2

6.0

h₂ ±0.3

16.0

£ 3.30 per unit (click for quantity discounts)

Rivet ball studs 16mm ball

R3527.160-130

d₁

16.0

d₂ tol. h11

10.0

h₁ ±0.2

13.0

h₂ ±0.3

16.0

£ 3.50 per unit (click for quantity discounts)

Rivet ball studs 8mm ball

R3527.080-040

d₁

8.0

d₂ tol. h11

5.0

h₁ ±0.2

4.0

h₂ ±0.3

9.0

£ 1.54 per unit (click for quantity discounts)

Rivet ball studs 8mm ball

R3527.080-075

d₁

8.0

d₂ tol. h11

5.0

h₁ ±0.2

7.5

h₂ ±0.3

9.0

£ 1.59 per unit (click for quantity discounts)

Rivet ball studs 10mm ball ball diameter 10mm rivet diameter 6mm length 4.5mm

R3527.100-045

d₁

10.0

d₂ tol. h11

6.0

h₁ ±0.2

4.5

h₂ ±0.3

11.0

£ 1.83 per unit (click for quantity discounts)

Rivet ball studs 10mm ball

R3527.100-080

d₁

10.0

d₂ tol. h11

6.0

h₁ ±0.2

8.0

h₂ ±0.3

11.0

£ 1.92 per unit (click for quantity discounts)

Rivet ball studs 13X5

R3527.130-050

d₁

13.0

d₂ tol. h11

8.0

h₁ ±0.2

5.0

h₂ ±0.3

13.0

£ 2.06 per unit (click for quantity discounts)

Rivet ball studs 13mm ball

R3527.130-100

d₁

13.0

d₂ tol. h11

8.0

h₁ ±0.2

10.0

h₂ ±0.3

13.0

£ 2.26 per unit (click for quantity discounts)

Rivet ball studs 16mm ball

R3527.160-060

d₁

16.0

d₂ tol. h11

10.0

h₁ ±0.2

6.0

h₂ ±0.3

16.0

£ 3.30 per unit (click for quantity discounts)

Rivet ball studs 16mm ball

R3527.160-130

d₁

16.0

d₂ tol. h11

10.0

h₁ ±0.2

13.0

h₂ ±0.3

16.0

£ 3.50 per unit (click for quantity discounts)



Select all

d₁

d₂ tol. h11

h₁ ±0.2

h₂ ±0.3

Price & Availability	Article	d1	d2 tol. h11	h1 ±0.2	h2 ±0.3
	R3527.080-040	8.0	5.0	4.0	9.0
£ 1.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 1.54 0% 20-49 £ 1.39 10% 50-99 £ 1.23 20% 100-199 £ 1.08 30% 200-499 £ 1.00 35% 500-999 £ 0.92 40% 1000+ £ 0.77 50% d1 8.0 d2 tol. h11 5.0 h1 ±0.2 4.0 h2 ±0.3 9.0 more info »
	R3527.080-075	8.0	5.0	7.5	9.0
£ 1.59 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 1.59 0% 20-49 £ 1.43 10% 50-99 £ 1.27 20% 100-199 £ 1.11 30% 200-499 £ 1.03 35% 500-999 £ 0.95 40% 1000+ £ 0.80 50% d1 8.0 d2 tol. h11 5.0 h1 ±0.2 7.5 h2 ±0.3 9.0 more info »
	R3527.100-045	10.0	6.0	4.5	11.0
£ 1.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 1.83 0% 20-49 £ 1.65 10% 50-99 £ 1.46 20% 100-199 £ 1.28 30% 200-499 £ 1.19 35% 500-999 £ 1.10 40% 1000+ £ 0.92 50% d1 10.0 d2 tol. h11 6.0 h1 ±0.2 4.5 h2 ±0.3 11.0 more info »
	R3527.100-080	10.0	6.0	8.0	11.0
£ 1.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 1.92 0% 20-49 £ 1.73 10% 50-99 £ 1.54 20% 100-199 £ 1.34 30% 200-499 £ 1.25 35% 500-999 £ 1.15 40% 1000+ £ 0.96 50% d1 10.0 d2 tol. h11 6.0 h1 ±0.2 8.0 h2 ±0.3 11.0 more info »
	R3527.130-050	13.0	8.0	5.0	13.0
£ 2.06 per unit (click for quantity discounts) Ready to despatch 150 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 2.06 0% 20-49 £ 1.85 10% 50-99 £ 1.65 20% 100-199 £ 1.44 30% 200-499 £ 1.34 35% 500-999 £ 1.24 40% 1000+ £ 1.03 50% d1 13.0 d2 tol. h11 8.0 h1 ±0.2 5.0 h2 ±0.3 13.0 more info »
	R3527.130-100	13.0	8.0	10.0	13.0
£ 2.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 2.26 0% 20-49 £ 2.03 10% 50-99 £ 1.81 20% 100-199 £ 1.58 30% 200-499 £ 1.47 35% 500-999 £ 1.36 40% 1000+ £ 1.13 50% d1 13.0 d2 tol. h11 8.0 h1 ±0.2 10.0 h2 ±0.3 13.0 more info »
	R3527.160-060	16.0	10.0	6.0	16.0
£ 3.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 3.30 0% 20-49 £ 2.97 10% 50-99 £ 2.64 20% 100-199 £ 2.31 30% 200-499 £ 2.15 35% 500-999 £ 1.98 40% 1000+ £ 1.65 50% d1 16.0 d2 tol. h11 10.0 h1 ±0.2 6.0 h2 ±0.3 16.0 more info »
	R3527.160-130	16.0	10.0	13.0	16.0
£ 3.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 3.50 0% 20-49 £ 3.15 10% 50-99 £ 2.80 20% 100-199 £ 2.45 30% 200-499 £ 2.28 35% 500-999 £ 2.10 40% 1000+ £ 1.75 50% d1 16.0 d2 tol. h11 10.0 h1 ±0.2 13.0 h2 ±0.3 16.0 more info »
