Ball Joint - Housing Only
R3535 Quick Release Ball Joints
A2 stainless and steel, zinc-plated, material: Stainless steel
Alternative products you may wish to consider
Thread hand
Right
d1
6.35
d2
M 5
l1
23.0
l2
28
d3
7.9
d4
11.1
d5
4.35
h1
11.1
h2
11.9
h3
28.6
l3
11.1
A/F
8
Weight
g
17
£ 1.76 per unit (click for quantity discounts)
Thread hand
Right
d1
7.9
d2
M 6
l1
24.6
l2
30
d3
9.4
d4
13.0
d5
4.95
h1
12.6
h2
12.6
h3
33.4
l3
13.0
A/F
10
Weight
g
25
£ 3.04 per unit (click for quantity discounts)
Thread hand
Right
d1
8.6
d2
M 8
l1
31.7
l2
40
d3
11.1
d4
16.0
d5
5.8
h1
15.2
h2
15.2
h3
40.6
l3
14.3
A/F
11
Weight
g
48
£ 5.20 per unit (click for quantity discounts)
Thread hand
Right
d1
10.7
d2
M10
l1
39.7
l2
49
d3
14.1
d4
19.0
d5
6.85
h1
19.8
h2
19.8
h3
51.4
l3
27.0
A/F
13
Weight
g
78
£ 3.02 per unit (click for quantity discounts)
Thread hand
Right
d1
10.7
d2
M10
l1
39.7
l2
49
d3
14.1
d4
19.0
d5
6.85
h1
19.8
h2
19.8
h3
51.4
l3
20.0
A/F
13
Weight
g
78
£ 2.86 per unit (click for quantity discounts)
Thread hand
Right
d1
6.35
d2
M 5
l1
23.0
l2
28
d3
7.9
d4
11.1
d5
4.35
h1
11.1
h2
11.9
h3
28.6
l3
11.1
A/F
8
Weight
g
17
£ 4.58 per unit (click for quantity discounts)
Thread hand
Right
d1
7.9
d2
M 6
l1
24.6
l2
30
d3
9.4
d4
13.0
d5
4.95
h1
12.6
h2
12.6
h3
33.4
l3
13.0
A/F
10
Weight
g
25
£ 5.92 per unit (click for quantity discounts)
Thread hand
Right
d1
8.6
d2
M 8
l1
31.7
l2
40
d3
11.1
d4
16.0
d5
5.8
h1
15.2
h2
15.2
h3
40.6
l3
14.3
A/F
11
Weight
g
48
£ 7.73 per unit (click for quantity discounts)
Thread hand
Right
d1
10.7
d2
M10
l1
39.7
l2
49
d3
14.1
d4
19.0
d5
6.85
h1
19.8
h2
19.8
h3
51.4
l3
27.0
A/F
13
Weight
g
78
£ 9.28 per unit (click for quantity discounts)
Thread hand
Right
d1
10.7
d2
M10
l1
39.7
l2
49
d3
14.1
d4
19.0
d5
6.85
h1
19.8
h2
19.8
h3
51.4
l3
20.0
A/F
13
Weight
g
78
£ 9.22 per unit (click for quantity discounts)
Thread hand
d1
d2
l1
l2
d3
d4
d5
h1
h2
h3
l3
A/F
Weight
g
| Price & Availability | Article | Thread hand | d1 | d2 | l1 | l2 | d3 | d4 | d5 | h1 | h2 | h3 | l3 | A/F | Weight g | ||||||||||||||||||||||||
| R3535.005-ZP | Right | 6.35 | M 5 | 23.0 | 28 | 7.9 | 11.1 | 4.35 | 11.1 | 11.9 | 28.6 | 11.1 | 8 | 17 | |||||||||||||||||||||||||
£ 1.76 per unit (click for quantity discounts) Ready to despatch 192 Need more? Please call us.
Thread hand Right d1 6.35 d2 M 5 l1 23.0 l2 28 d3 7.9 d4 11.1 d5 4.35 h1 11.1 h2 11.9 h3 28.6 l3 11.1 A/F 8 Weight
g 17 | |||||||||||||||||||||||||||||||||||||||
| R3535.006-ZP | Right | 7.9 | M 6 | 24.6 | 30 | 9.4 | 13.0 | 4.95 | 12.6 | 12.6 | 33.4 | 13.0 | 10 | 25 | |||||||||||||||||||||||||
£ 3.04 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread hand Right d1 7.9 d2 M 6 l1 24.6 l2 30 d3 9.4 d4 13.0 d5 4.95 h1 12.6 h2 12.6 h3 33.4 l3 13.0 A/F 10 Weight
g 25 | |||||||||||||||||||||||||||||||||||||||
| R3535.008-ZP | Right | 8.6 | M 8 | 31.7 | 40 | 11.1 | 16.0 | 5.8 | 15.2 | 15.2 | 40.6 | 14.3 | 11 | 48 | |||||||||||||||||||||||||
£ 5.20 per unit (click for quantity discounts) Ready to despatch 90 Need more? Please call us.
Thread hand Right d1 8.6 d2 M 8 l1 31.7 l2 40 d3 11.1 d4 16.0 d5 5.8 h1 15.2 h2 15.2 h3 40.6 l3 14.3 A/F 11 Weight
g 48 | |||||||||||||||||||||||||||||||||||||||
| R3535.010-ZP | Right | 10.7 | M10 | 39.7 | 49 | 14.1 | 19.0 | 6.85 | 19.8 | 19.8 | 51.4 | 27.0 | 13 | 78 | |||||||||||||||||||||||||
£ 3.02 per unit (click for quantity discounts) Ready to despatch 2456 Need more? Please call us.
Thread hand Right d1 10.7 d2 M10 l1 39.7 l2 49 d3 14.1 d4 19.0 d5 6.85 h1 19.8 h2 19.8 h3 51.4 l3 27.0 A/F 13 Weight
g 78 | |||||||||||||||||||||||||||||||||||||||
| R3535.011-ZP | Right | 10.7 | M10 | 39.7 | 49 | 14.1 | 19.0 | 6.85 | 19.8 | 19.8 | 51.4 | 20.0 | 13 | 78 | |||||||||||||||||||||||||
£ 2.86 per unit (click for quantity discounts) Ready to despatch 87 Need more? Please call us.
Thread hand Right d1 10.7 d2 M10 l1 39.7 l2 49 d3 14.1 d4 19.0 d5 6.85 h1 19.8 h2 19.8 h3 51.4 l3 20.0 A/F 13 Weight
g 78 | |||||||||||||||||||||||||||||||||||||||
| R3535.005-A2 | Right | 6.35 | M 5 | 23.0 | 28 | 7.9 | 11.1 | 4.35 | 11.1 | 11.9 | 28.6 | 11.1 | 8 | 17 | |||||||||||||||||||||||||
£ 4.58 per unit (click for quantity discounts) Ready to despatch 1155 Need more? Please call us.
Thread hand Right d1 6.35 d2 M 5 l1 23.0 l2 28 d3 7.9 d4 11.1 d5 4.35 h1 11.1 h2 11.9 h3 28.6 l3 11.1 A/F 8 Weight
g 17 | |||||||||||||||||||||||||||||||||||||||
| R3535.006-A2 | Right | 7.9 | M 6 | 24.6 | 30 | 9.4 | 13.0 | 4.95 | 12.6 | 12.6 | 33.4 | 13.0 | 10 | 25 | |||||||||||||||||||||||||
£ 5.92 per unit (click for quantity discounts) Ready to despatch 184 Need more? Please call us.
Thread hand Right d1 7.9 d2 M 6 l1 24.6 l2 30 d3 9.4 d4 13.0 d5 4.95 h1 12.6 h2 12.6 h3 33.4 l3 13.0 A/F 10 Weight
g 25 | |||||||||||||||||||||||||||||||||||||||
| R3535.008-A2 | Right | 8.6 | M 8 | 31.7 | 40 | 11.1 | 16.0 | 5.8 | 15.2 | 15.2 | 40.6 | 14.3 | 11 | 48 | |||||||||||||||||||||||||
£ 7.73 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Thread hand Right d1 8.6 d2 M 8 l1 31.7 l2 40 d3 11.1 d4 16.0 d5 5.8 h1 15.2 h2 15.2 h3 40.6 l3 14.3 A/F 11 Weight
g 48 | |||||||||||||||||||||||||||||||||||||||
| R3535.010-A2 | Right | 10.7 | M10 | 39.7 | 49 | 14.1 | 19.0 | 6.85 | 19.8 | 19.8 | 51.4 | 27.0 | 13 | 78 | |||||||||||||||||||||||||
£ 9.28 per unit (click for quantity discounts) Ready to despatch 234 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread hand Right d1 10.7 d2 M10 l1 39.7 l2 49 d3 14.1 d4 19.0 d5 6.85 h1 19.8 h2 19.8 h3 51.4 l3 27.0 A/F 13 Weight
g 78 | |||||||||||||||||||||||||||||||||||||||
| R3535.011-A2 | Right | 10.7 | M10 | 39.7 | 49 | 14.1 | 19.0 | 6.85 | 19.8 | 19.8 | 51.4 | 20.0 | 13 | 78 | |||||||||||||||||||||||||
£ 9.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Thread hand Right d1 10.7 d2 M10 l1 39.7 l2 49 d3 14.1 d4 19.0 d5 6.85 h1 19.8 h2 19.8 h3 51.4 l3 20.0 A/F 13 Weight
g 78 | |||||||||||||||||||||||||||||||||||||||
Technical & Application
Material
Body: stainless steel (A2, AISI 303) or steel zinc-plated.
Shield and ball stud: carbon steel.
Body and ball stud: case hardened.
Spring: (302 S26) stainless steel or equivalent, zinc plated.
Technical Notes

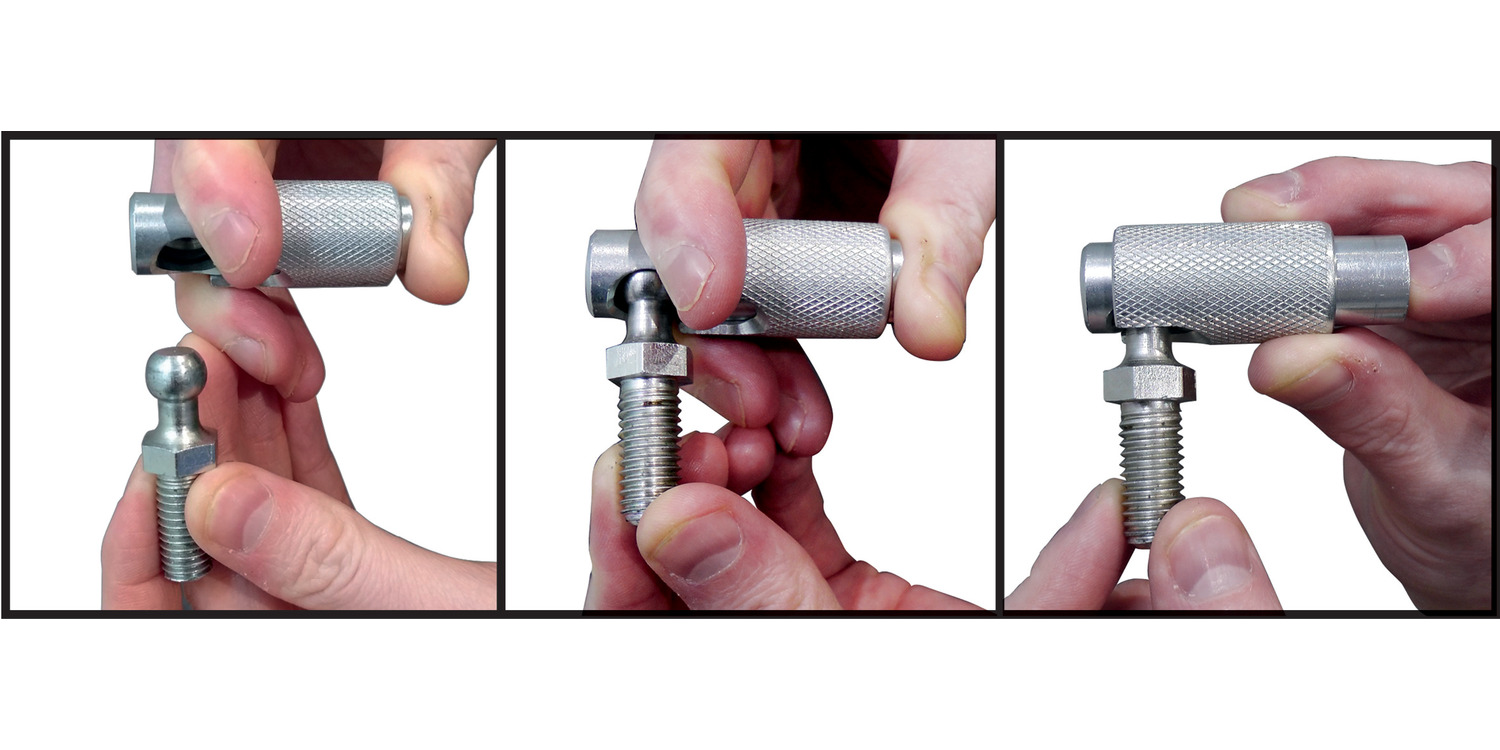

The spring loaded outer shield allows both rapid release and reconnection of the ball stud.
Linkage assemblies can be installed or removed without disturbing pre-set centres.
These are metric equivalents to SAE J 490 Style 1 quick release detachable ball joints.
Tips
Standard thread is a right hand thread.
