Ball Joint - Housing Only
R3535.i Quick Release Ball Joints Imperial
material: Steel
Alternative products you may wish to consider
d1
0.250
d2
10-32
l1
0.906
l2
1.094
d3
0.310
d4
0.438
d5
0.171
h1
0.438
h2
0.438
h3
1.125
l3
0.438
A/F
0.312
£ 11.90 per unit (click for quantity discounts)
d1
0.311
d2
1/4-28
l1
0.969
l2
1.250
d3
0.370
d4
0.562
d5
0.194
h1
0.562
h2
0.469
h3
1.312
l3
0.531
A/F
0.375
£ 4.60 per unit (click for quantity discounts)
d1
0.339
d2
5/16-24
l1
1.125
l2
1.453
d3
0.439
d4
0.687
d5
0.228
h1
0.625
h2
0.531
h3
1.594
l3
0.605
A/F
0.437
£ 3.77 per unit (click for quantity discounts)
d1
0.421
d2
3/8-24
l1
1.375
l2
1.750
d3
0.556
d4
0.875
d5
0.269
h1
0.750
h2
0.687
h3
1.969
l3
0.812
A/F
0.500
£ 6.35 per unit (click for quantity discounts)
d1
d2
l1
l2
d3
d4
d5
h1
h2
h3
l3
A/F
| Price & Availability | Article | d1 | d2 | l1 | l2 | d3 | d4 | d5 | h1 | h2 | h3 | l3 | A/F | ||||||
| R3535.I187 | 0.250 | 10-32 | 0.906 | 1.094 | 0.310 | 0.438 | 0.171 | 0.438 | 0.438 | 1.125 | 0.438 | 0.312 | |||||||
£ 11.90 per unit (click for quantity discounts) Ready to despatch 13 Need more? Please call us.
d1 0.250 d2 10-32 l1 0.906 l2 1.094 d3 0.310 d4 0.438 d5 0.171 h1 0.438 h2 0.438 h3 1.125 l3 0.438 A/F 0.312 | |||||||||||||||||||
| R3535.I250 | 0.311 | 1/4-28 | 0.969 | 1.250 | 0.370 | 0.562 | 0.194 | 0.562 | 0.469 | 1.312 | 0.531 | 0.375 | |||||||
£ 4.60 per unit (click for quantity discounts) Ready to despatch 30 Need more? Please call us.
d1 0.311 d2 1/4-28 l1 0.969 l2 1.250 d3 0.370 d4 0.562 d5 0.194 h1 0.562 h2 0.469 h3 1.312 l3 0.531 A/F 0.375 | |||||||||||||||||||
| R3535.I312 | 0.339 | 5/16-24 | 1.125 | 1.453 | 0.439 | 0.687 | 0.228 | 0.625 | 0.531 | 1.594 | 0.605 | 0.437 | |||||||
£ 3.77 per unit (click for quantity discounts) Ready to despatch 68 Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 0.339 d2 5/16-24 l1 1.125 l2 1.453 d3 0.439 d4 0.687 d5 0.228 h1 0.625 h2 0.531 h3 1.594 l3 0.605 A/F 0.437 | |||||||||||||||||||
| R3535.I375 | 0.421 | 3/8-24 | 1.375 | 1.750 | 0.556 | 0.875 | 0.269 | 0.750 | 0.687 | 1.969 | 0.812 | 0.500 | |||||||
£ 6.35 per unit (click for quantity discounts) Ready to despatch 17 Need more? Please call us.
d1 0.421 d2 3/8-24 l1 1.375 l2 1.750 d3 0.556 d4 0.875 d5 0.269 h1 0.750 h2 0.687 h3 1.969 l3 0.812 A/F 0.500 | |||||||||||||||||||
Technical & Application
Material
Silver/Clear zinc plated steel
Technical Notes

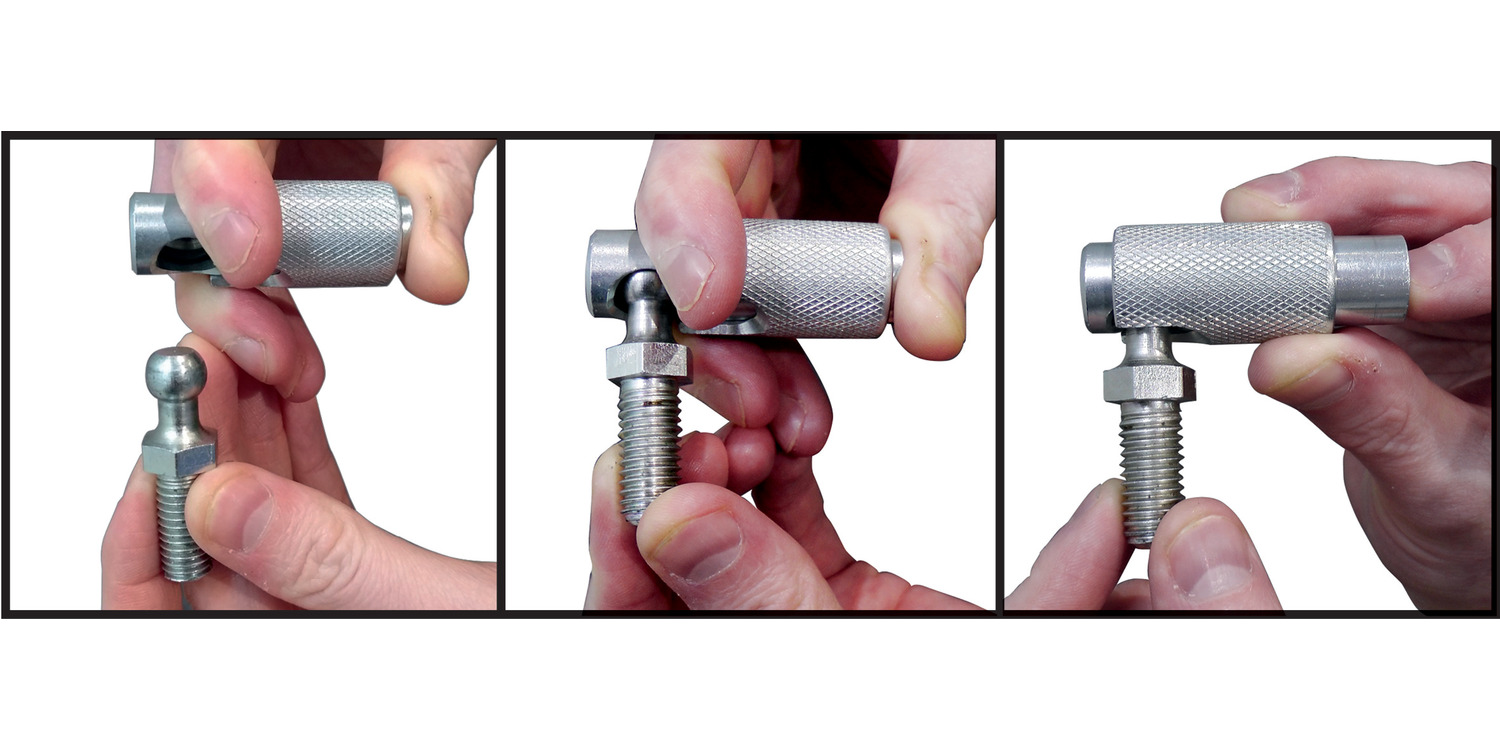

The spring loaded outer shield allows both rapid release and reconnection of the ball stud.
Linkage assemblies can be installed or removed without disturbing pre-set centres.
Tips
Equivalent to Springfix QI ball joints
Product Datasheets
Application images
