Ball Joint - Housing Only

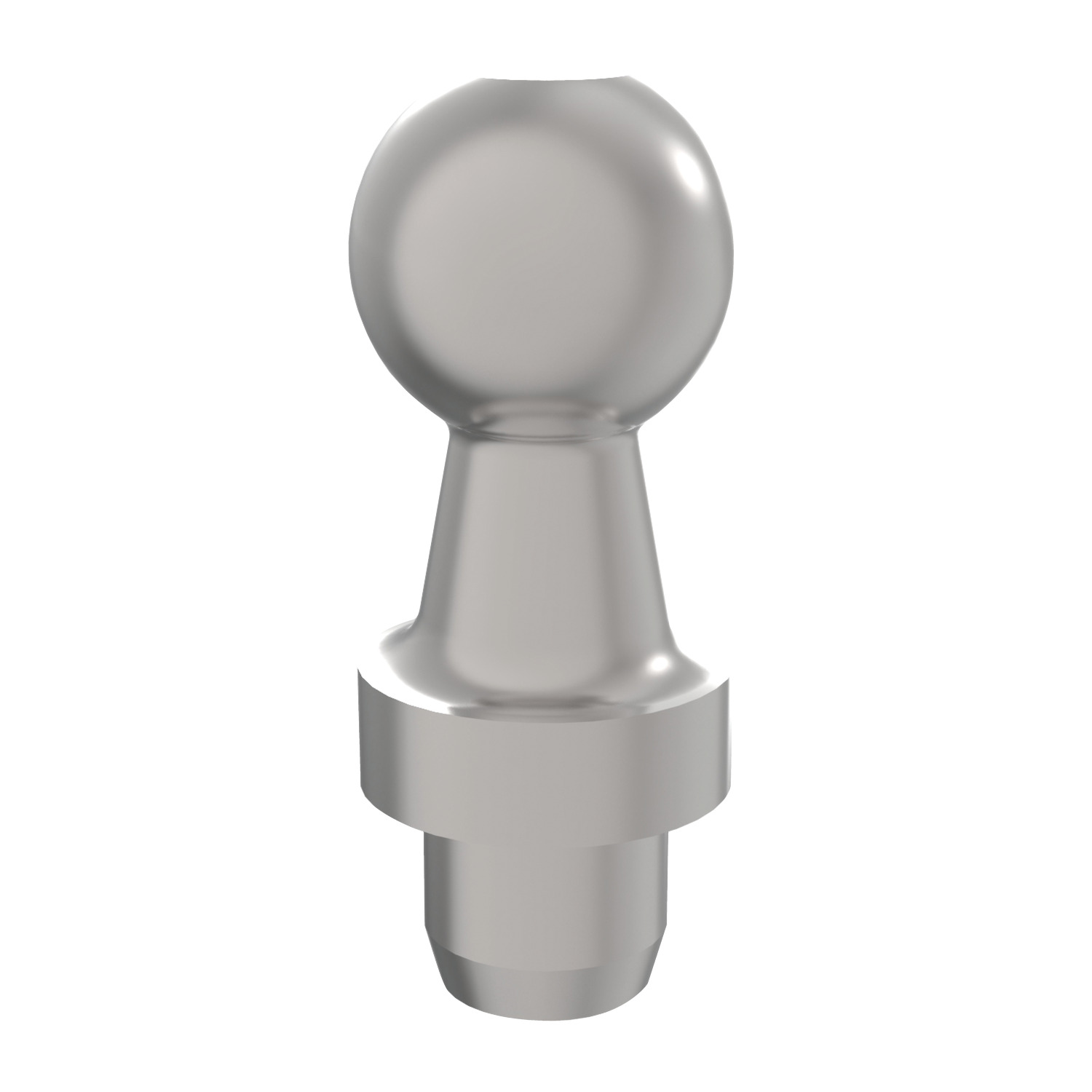

R3527 Rivet Studs
material: Steel
Order No.
R3527.130-050

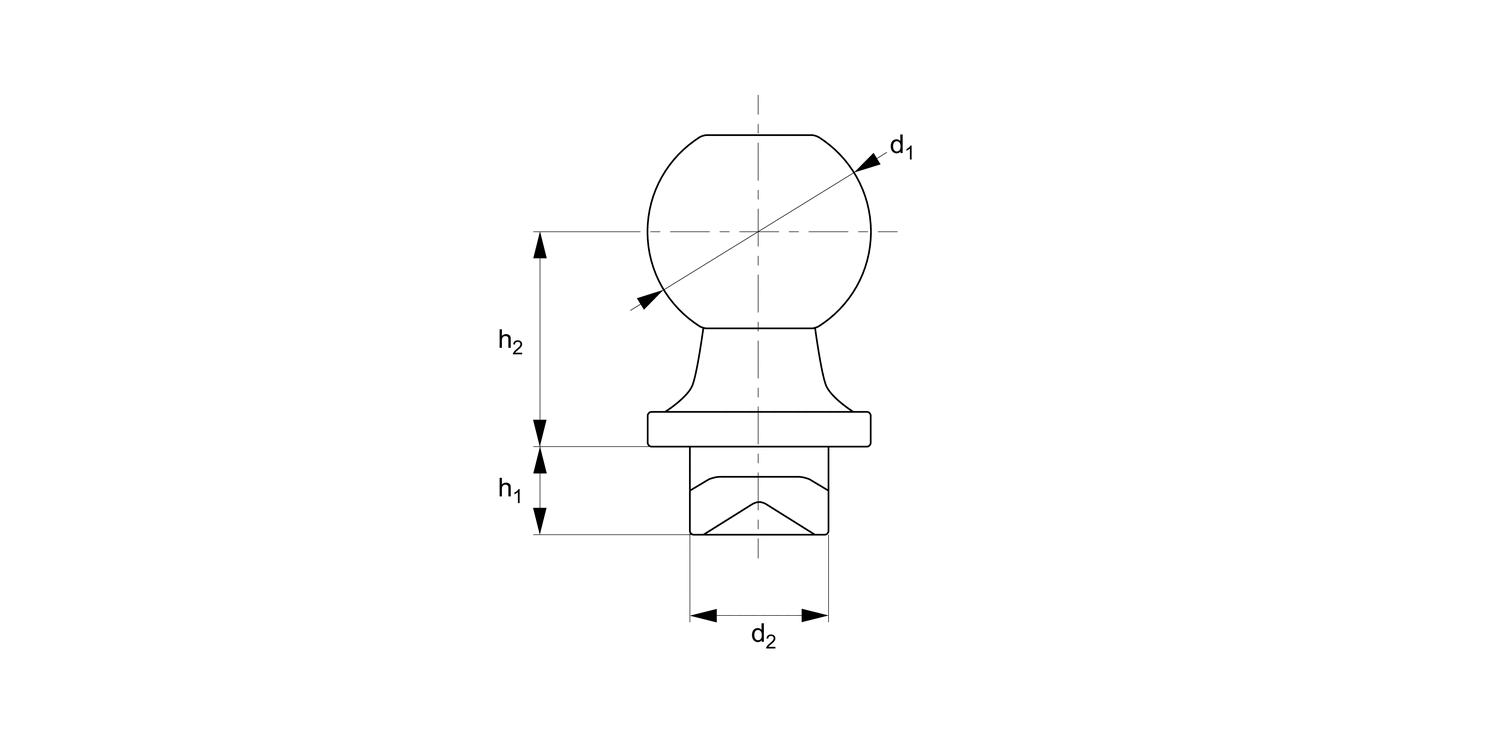

d1
13.0
d2
tol. h11
8.0
h1
±0.2
5.0
h2
±0.3
13.0
£ 2.06 per unit (click for quantity discounts)
Ready to despatch 150
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 2.06 | 0% |
| 20-49 | £ 1.85 | 10% |
| 50-99 | £ 1.65 | 20% |
| 100-199 | £ 1.44 | 30% |
| 200-499 | £ 1.34 | 35% |
| 500-999 | £ 1.24 | 40% |
| 1000+ | £ 1.03 | 50% |
Technical & Application
Material
Low carbon steel (1018), silver zinc plated.
Technical Notes
To DIN 71803 Form B
*M14x1.5 is a fine pitch thread.
