Steel Lead Screws
right hand thread

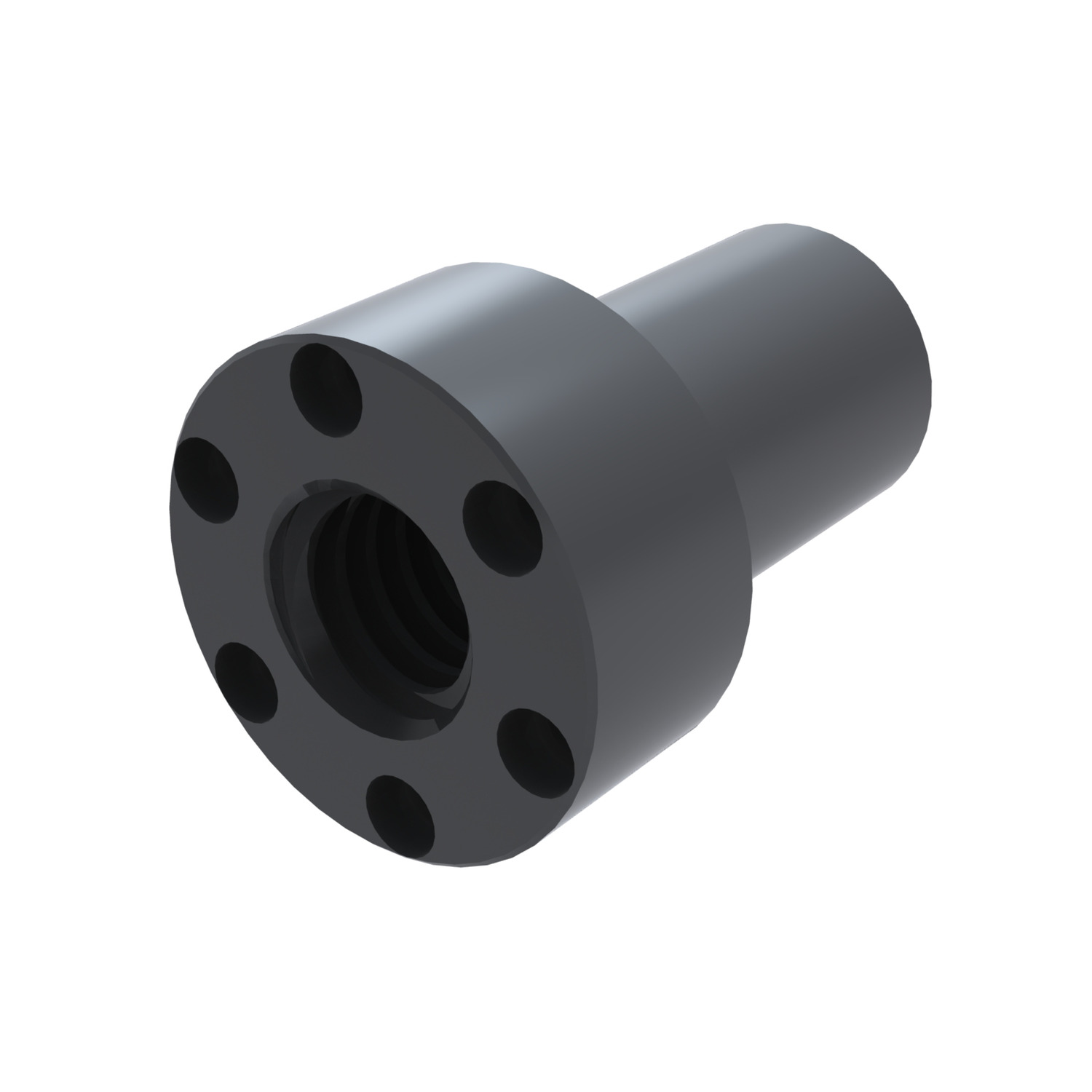

L1342 Flanged Self-Lubricating Plastic Nut
for lead screws, material: Plastic
Order No.
L1342.R20-08
Size
TR20x 8
No. of starts
2

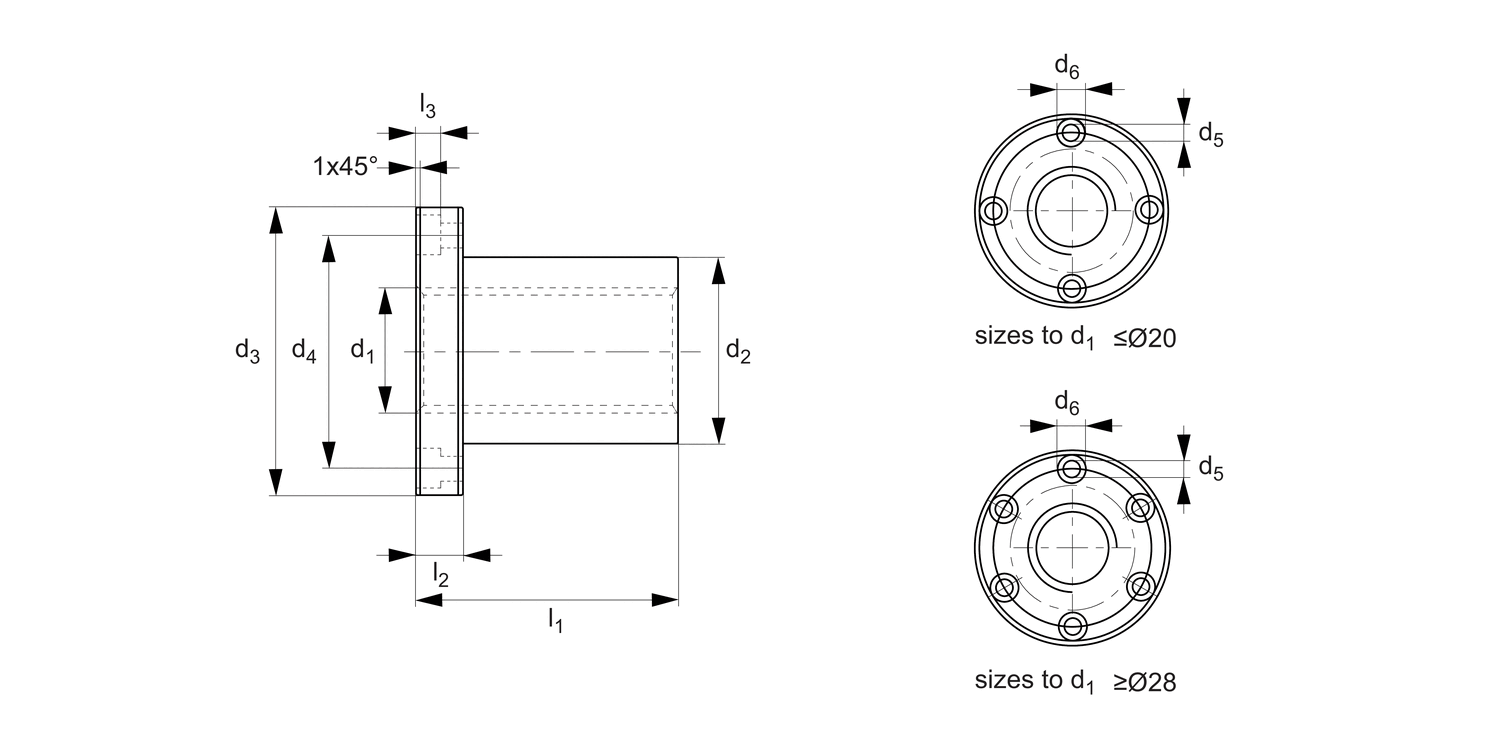

d1
tol. 7H
20
Lead
8
Thread hand
Right
Contact surface
mm²
1696
d2
+0.0|-0.3
30
d3
+0.0|-0.1
52
d4
40
d5
5.5
d6
9.5
l1
60
l2
20
l3
5.2
Weight
kg
0.06
£ 121.95 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 121.95 | 0% |
| 10-19 | £ 109.76 | 10% |
| 20-39 | £ 103.66 | 15% |
| 40-49 | £ 91.46 | 25% |
| 50-99 | £ 85.37 | 30% |
| 100+ | £ 73.17 | 40% |
Technical & Application
Material
Plastic (PA6.6 & MoS2).
Technical Notes
This nut type is made of a very wear resistant, self-lubricating plastic.
The extra length of these lead screw nuts (three x nominal thread Ø) greatly reduces wear.
Tips
Standard nuts are right hand thread.
For use with steel or stainless steel lead screws, L1320, L1321, L1322, and L1323.
