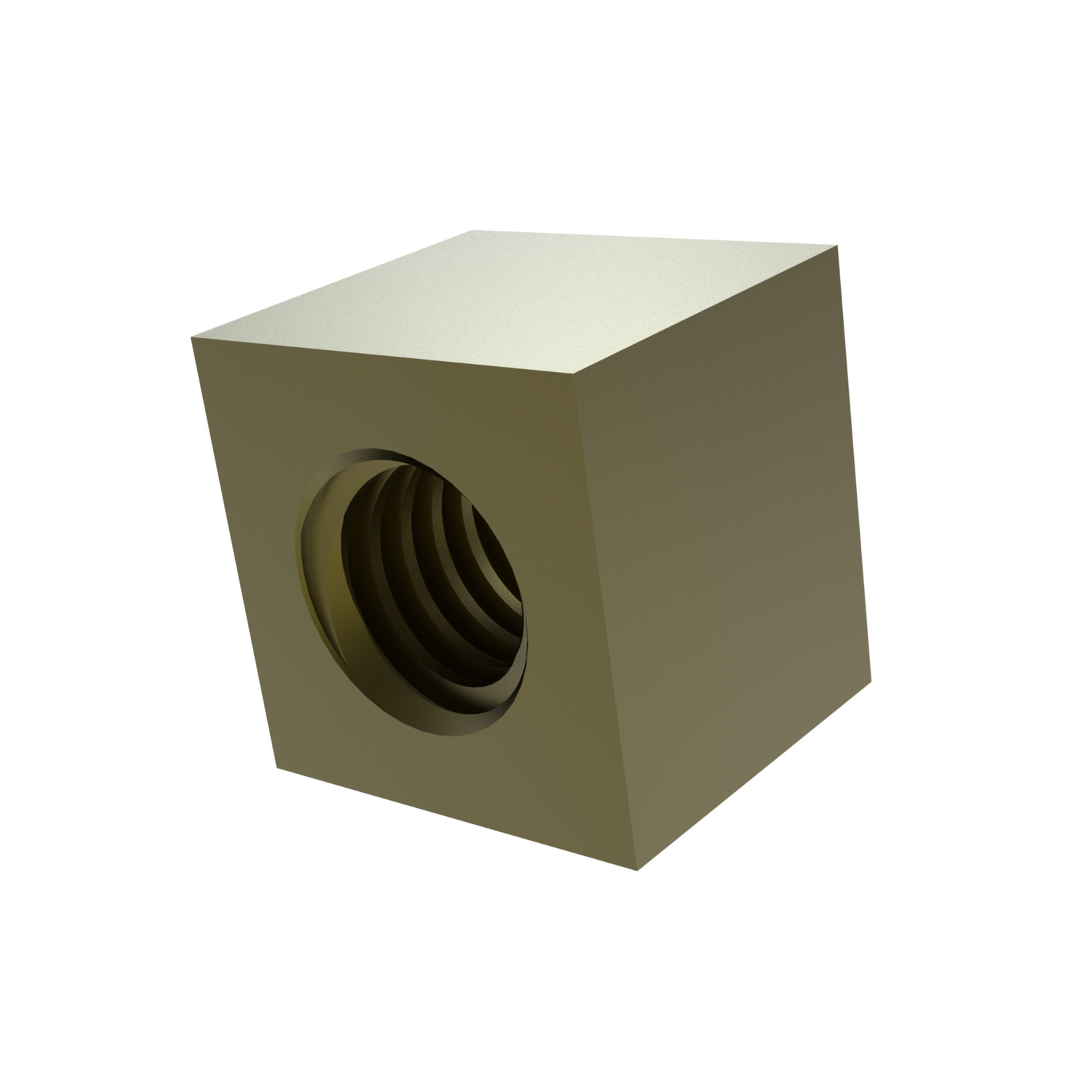

L1335 Square Brass Nuts

Name: L1335.L20-04
Brand: WC
SKU: L1335.L20-04
Price: 52.96 EUR
Availability: InStock

for lead screws, material: Brass

Article properties

Order No.

L1335.L20-04

Size

TR20x4

No. of starts

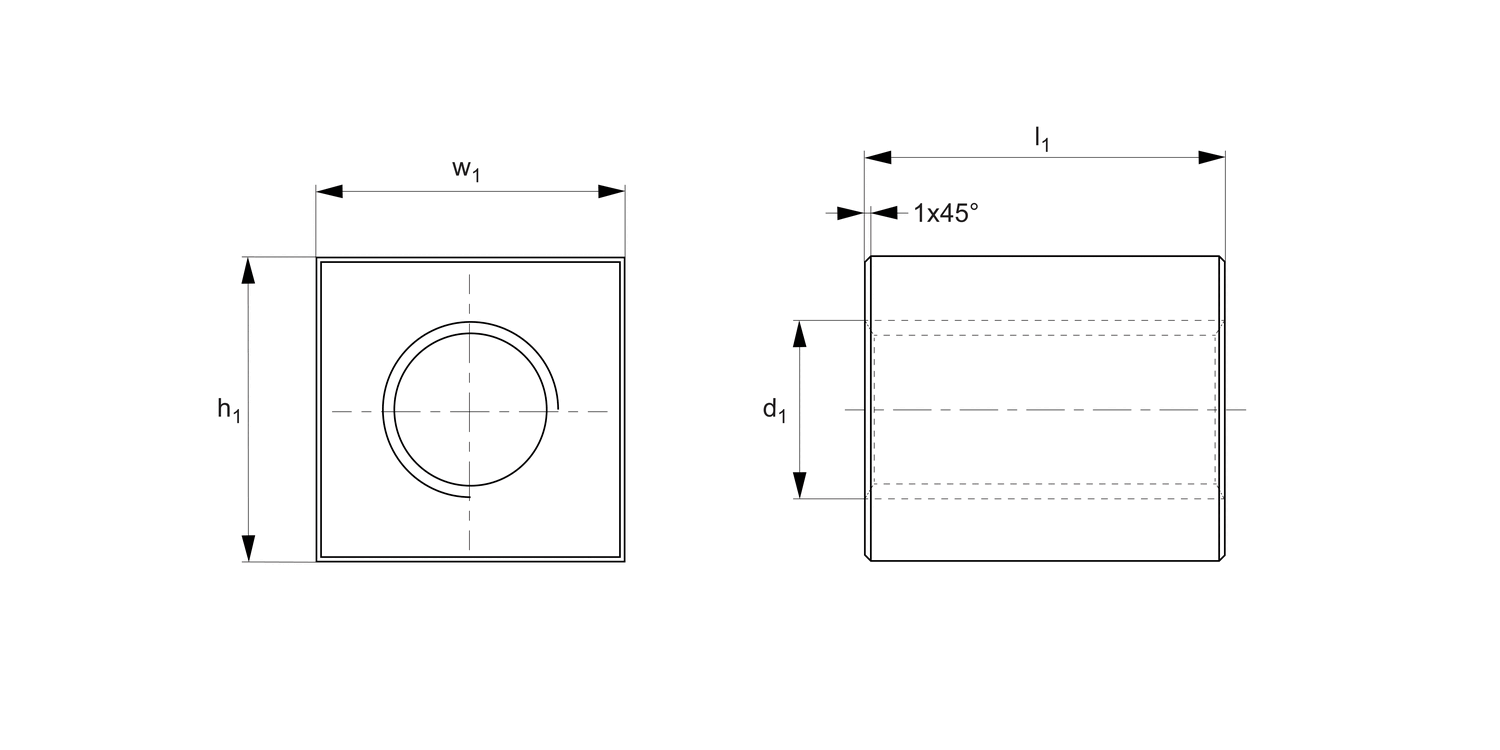

d₁ tol. 7H

Lead

Thread direction

Left

Contact surface mm²

1412

h₁ & w₁ tol. h11

l₁ +0.0|-0.2

Weight kg

0.55

See full product selection

£ 52.96 per unit (click for quantity discounts)

Ready to despatch 5
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 52.96	0%
10-19	£ 47.66	10%
20-39	£ 45.02	15%
40-49	£ 39.72	25%
50-99	£ 37.07	30%
100+	£ 31.78	40%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Brass (EN 12164, CW614N-M).

Technical Notes

Used for fairly light loads.

Tips

Standard nuts are right hand thread.
For use with steel or stainless steel lead screws, L1320, L1321, L1322, and L1323.

Product Datasheets

L1335 Square Brass NutsJune 19, 2025, 4:39 PM / 179.09 kB

Commercial Lead Screws & NutsJune 19, 2025, 4:55 PM / 10.57 MB

Lead Screws & NutsJune 19, 2025, 4:49 PM / 14.04 MB

Lead Screws & Ball ScrewsJune 19, 2025, 4:44 PM / 26.09 MB

Linear ComponentsJune 19, 2025, 4:38 PM / 38.25 MB

CAD files

L1335 AcisJune 9, 2023, 12:08 PM / 43.13 kB

L1335 IGESJune 9, 2023, 12:08 PM / 114.63 kB

L1335 ParasolidJune 9, 2023, 12:08 PM / 49.36 kB

L1335 ProEJune 9, 2023, 12:08 PM / 345.47 kB

L1335 SolidWorksJune 9, 2023, 12:08 PM / 2.61 MB

L1335 StepJune 9, 2023, 12:08 PM / 74.00 kB
