R3428 Clevis Pin With Thread

To DIN 1445. 303 stainless steel

Download product datasheet

Alternative products you may wish to consider

Clevis Joints
Steel

RH Clevis Joints with Retention Clip S/S
Stainless Steel

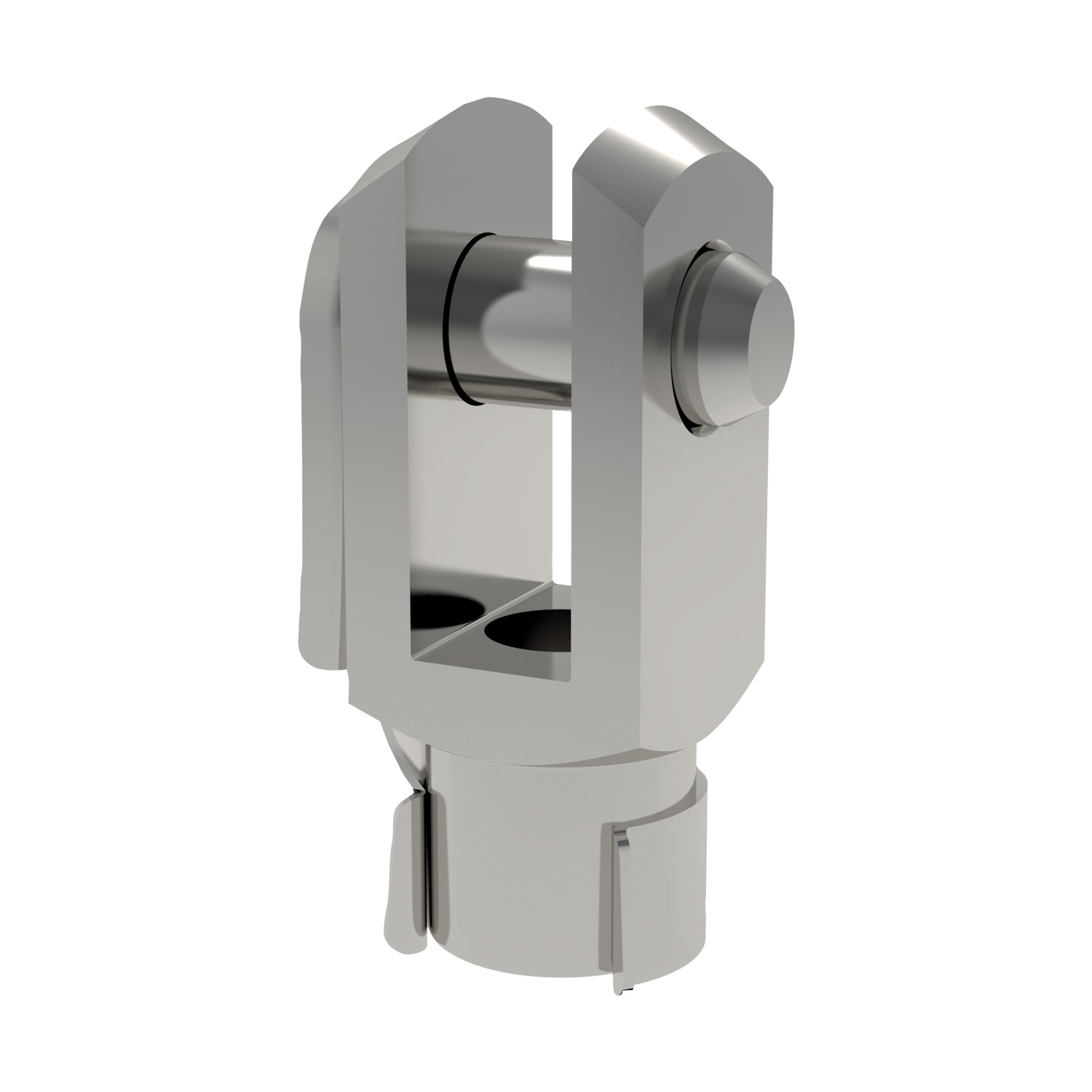

LH Clevis Joints with Retention Clip S/S
Stainless Steel

Steel Clevis Joint
left hand

Steel Clevis Joint
with retention clip

Steel Clevis Joint
left hand w. retention clip

Steel Clevis Joint
with pin

Steel Clevis Joint with Pin
left hand

Stainless Clevis Joint

Stainless Clevis Joint
A4 stainless steel

Stainless Clevis Joint
left hand

Stainless Clevis Joint
with pin

Stainless Clevis Joint
with pin left hand

Stainless Clevis Joint
with pin

Stainless Clevis Joint
with pin left hand

Plastic Clevis Joints

Steel Male Clevis Joint
Steel

Steel Male Clevis
left hand

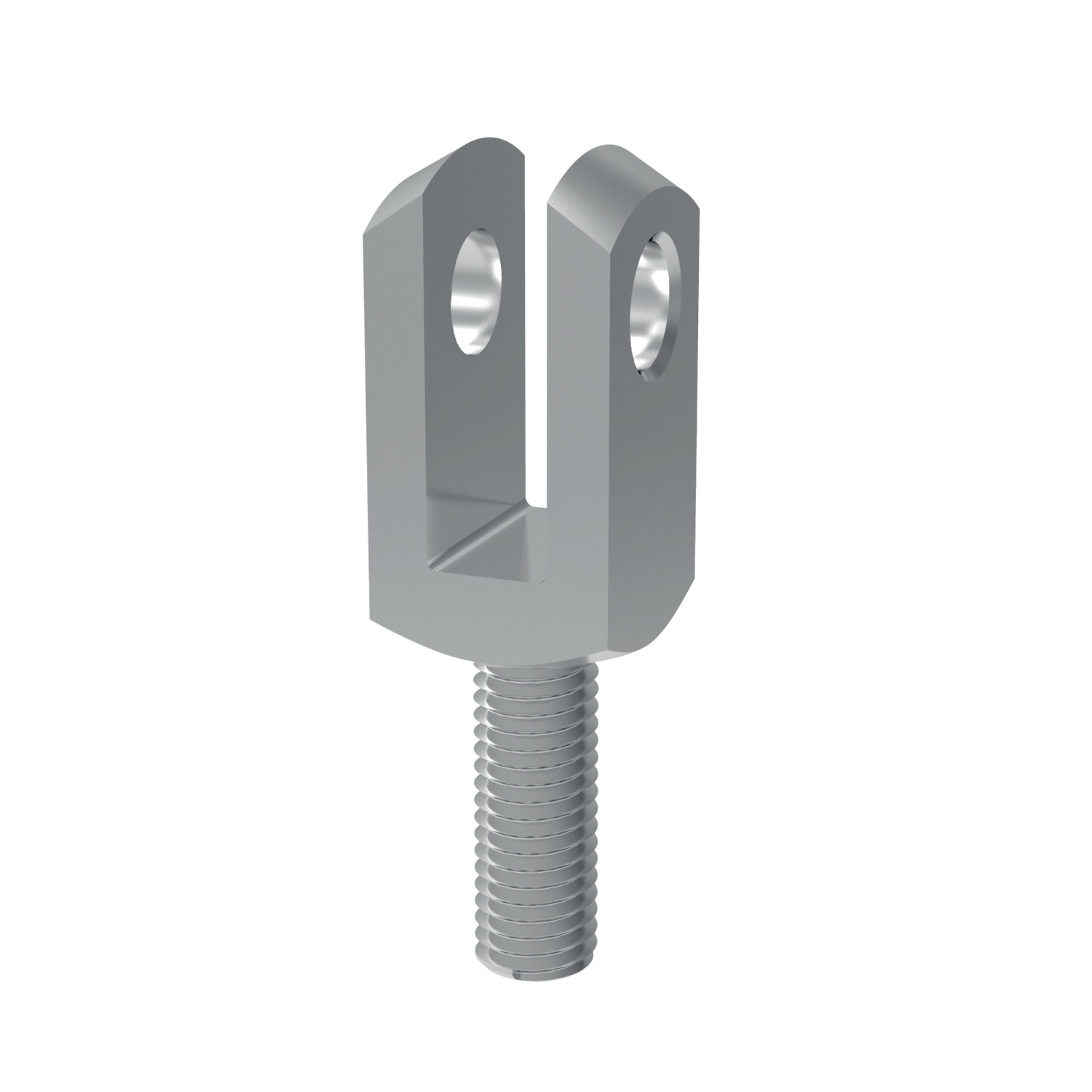

Stainless Male Clevis Joint

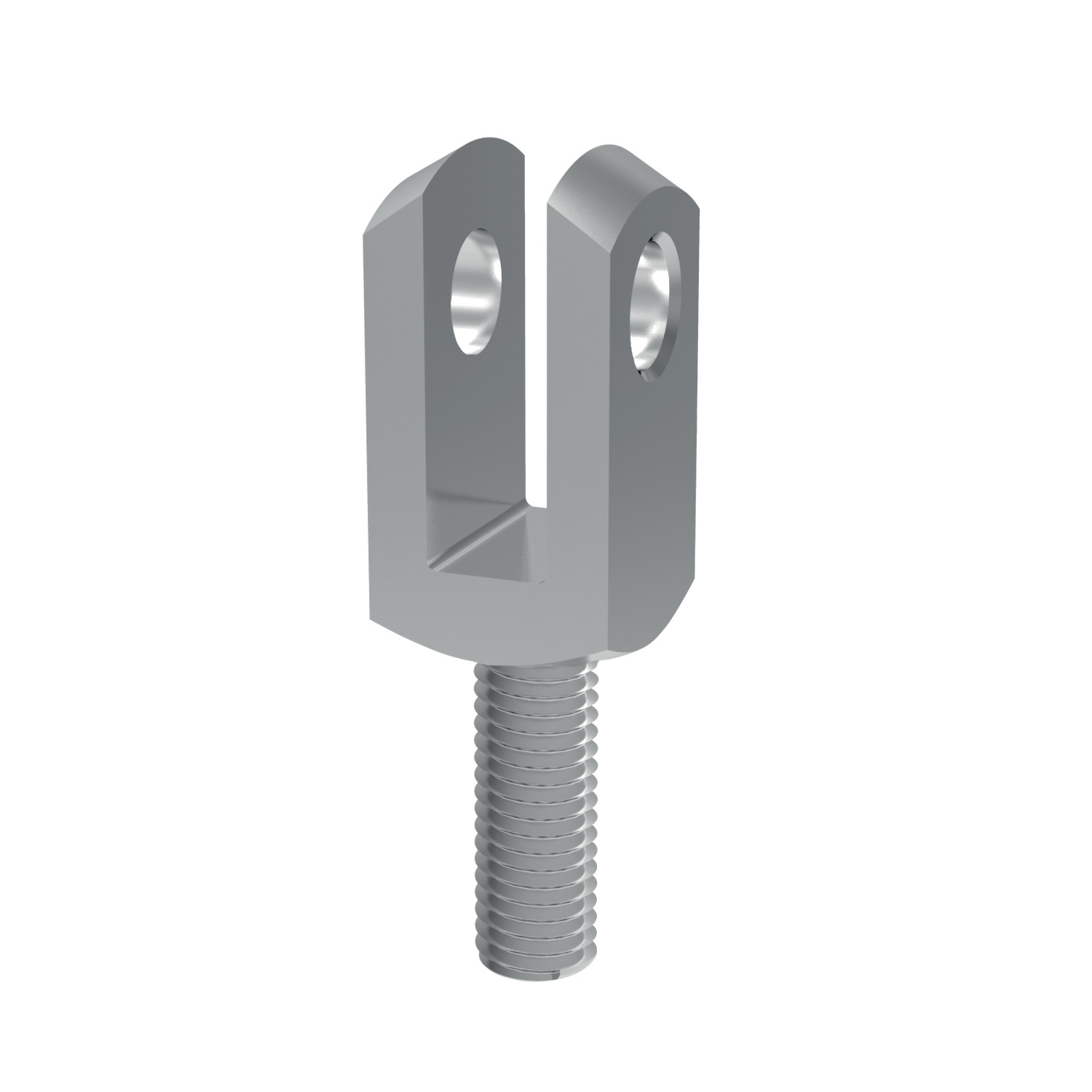

Stainless Male Clevis Joint
left hand

Clevis Pin With Thread

Clevis Pin With Thread

R3428.080-016-A2

d₁ h11

8

d₂

M6

d₃ h13

14

h₁ js14

3.0

l₁

16

l₂

11

w₁

11

£ 1.66 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.080-020-A2

d₁ h11

8

d₂

M6

d₃ h13

14

h₁ js14

3.0

l₁

20

l₂

11

w₁

11

£ 1.72 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.080-025-A2

d₁ h11

8

d₂

M6

d₃ h13

14

h₁ js14

3.0

l₁

25

l₂

11

w₁

11

£ 1.80 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.080-030-A2

d₁ h11

8

d₂

M6

d₃ h13

14

h₁ js14

3.0

l₁

30

l₂

11

w₁

11

£ 1.92 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.100-020-A2

d₁ h11

10

d₂

M8

d₃ h13

18

h₁ js14

4.0

l₁

20

l₂

14

w₁

13

£ 2.35 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.100-025-A2

d₁ h11

10

d₂

M8

d₃ h13

18

h₁ js14

4.0

l₁

25

l₂

14

w₁

13

£ 2.53 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.100-030-A2

d₁ h11

10

d₂

M8

d₃ h13

18

h₁ js14

4.0

l₁

30

l₂

14

w₁

13

£ 2.70 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.100-035-A2

d₁ h11

10

d₂

M8

d₃ h13

18

h₁ js14

4.0

l₁

35

l₂

14

w₁

13

£ 2.88 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.120-024-A2

d₁ h11

12

d₂

M10

d₃ h13

20

h₁ js14

4.0

l₁

24

l₂

17

w₁

17

£ 4.56 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.120-030-A2

d₁ h11

12

d₂

M10

d₃ h13

20

h₁ js14

4.0

l₁

30

l₂

17

w₁

17

£ 4.56 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.120-035-A2

d₁ h11

12

d₂

M10

d₃ h13

20

h₁ js14

4.0

l₁

35

l₂

17

w₁

17

£ 4.88 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.120-040-A2

d₁ h11

12

d₂

M10

d₃ h13

20

h₁ js14

4.0

l₁

40

l₂

17

w₁

17

£ 5.20 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.140-027-A2

d₁ h11

14

d₂

M12

d₃ h13

22

h₁ js14

4.0

l₁

27

l₂

20

w₁

19

£ 6.12 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.140-030-A2

d₁ h11

14

d₂

M12

d₃ h13

22

h₁ js14

4.0

l₁

30

l₂

20

w₁

19

£ 6.12 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.140-035-A2

d₁ h11

14

d₂

M12

d₃ h13

22

h₁ js14

4.0

l₁

35

l₂

20

w₁

19

£ 6.12 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.140-040-A2

d₁ h11

14

d₂

M12

d₃ h13

22

h₁ js14

4.0

l₁

40

l₂

20

w₁

19

£ 6.38 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.160-032-A2

d₁ h11

16

d₂

M12

d₃ h13

25

h₁ js14

4.5

l₁

32

l₂

20

w₁

22

£ 6.76 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.160-035-A2

d₁ h11

16

d₂

M12

d₃ h13

25

h₁ js14

4.5

l₁

35

l₂

20

w₁

22

£ 6.76 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.160-040-A2

d₁ h11

16

d₂

M12

d₃ h13

25

h₁ js14

4.5

l₁

40

l₂

20

w₁

22

£ 8.81 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.160-045-A2

d₁ h11

16

d₂

M12

d₃ h13

25

h₁ js14

4.5

l₁

45

l₂

20

w₁

22

£ 7.54 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.080-016-A2

d₁ h11

8

d₂

M6

d₃ h13

14

h₁ js14

3.0

l₁

16

l₂

11

w₁

11

£ 1.66 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.080-020-A2

d₁ h11

8

d₂

M6

d₃ h13

14

h₁ js14

3.0

l₁

20

l₂

11

w₁

11

£ 1.72 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.080-025-A2

d₁ h11

8

d₂

M6

d₃ h13

14

h₁ js14

3.0

l₁

25

l₂

11

w₁

11

£ 1.80 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.080-030-A2

d₁ h11

8

d₂

M6

d₃ h13

14

h₁ js14

3.0

l₁

30

l₂

11

w₁

11

£ 1.92 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.100-020-A2

d₁ h11

10

d₂

M8

d₃ h13

18

h₁ js14

4.0

l₁

20

l₂

14

w₁

13

£ 2.35 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.100-025-A2

d₁ h11

10

d₂

M8

d₃ h13

18

h₁ js14

4.0

l₁

25

l₂

14

w₁

13

£ 2.53 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.100-030-A2

d₁ h11

10

d₂

M8

d₃ h13

18

h₁ js14

4.0

l₁

30

l₂

14

w₁

13

£ 2.70 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.100-035-A2

d₁ h11

10

d₂

M8

d₃ h13

18

h₁ js14

4.0

l₁

35

l₂

14

w₁

13

£ 2.88 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.120-024-A2

d₁ h11

12

d₂

M10

d₃ h13

20

h₁ js14

4.0

l₁

24

l₂

17

w₁

17

£ 4.56 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.120-030-A2

d₁ h11

12

d₂

M10

d₃ h13

20

h₁ js14

4.0

l₁

30

l₂

17

w₁

17

£ 4.56 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.120-035-A2

d₁ h11

12

d₂

M10

d₃ h13

20

h₁ js14

4.0

l₁

35

l₂

17

w₁

17

£ 4.88 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.120-040-A2

d₁ h11

12

d₂

M10

d₃ h13

20

h₁ js14

4.0

l₁

40

l₂

17

w₁

17

£ 5.20 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.140-027-A2

d₁ h11

14

d₂

M12

d₃ h13

22

h₁ js14

4.0

l₁

27

l₂

20

w₁

19

£ 6.12 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.140-030-A2

d₁ h11

14

d₂

M12

d₃ h13

22

h₁ js14

4.0

l₁

30

l₂

20

w₁

19

£ 6.12 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.140-035-A2

d₁ h11

14

d₂

M12

d₃ h13

22

h₁ js14

4.0

l₁

35

l₂

20

w₁

19

£ 6.12 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.140-040-A2

d₁ h11

14

d₂

M12

d₃ h13

22

h₁ js14

4.0

l₁

40

l₂

20

w₁

19

£ 6.38 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.160-032-A2

d₁ h11

16

d₂

M12

d₃ h13

25

h₁ js14

4.5

l₁

32

l₂

20

w₁

22

£ 6.76 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.160-035-A2

d₁ h11

16

d₂

M12

d₃ h13

25

h₁ js14

4.5

l₁

35

l₂

20

w₁

22

£ 6.76 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.160-040-A2

d₁ h11

16

d₂

M12

d₃ h13

25

h₁ js14

4.5

l₁

40

l₂

20

w₁

22

£ 8.81 per unit (click for quantity discounts)

Clevis Pin With Thread

R3428.160-045-A2

d₁ h11

16

d₂

M12

d₃ h13

25

h₁ js14

4.5

l₁

45

l₂

20

w₁

22

£ 7.54 per unit (click for quantity discounts)



Select all

d₁ h11

d₂

d₃ h13

h₁ js14

l₁

l₂

w₁

Price & Availability	Article	d1 h11	d2	d3 h13	h1 js14	l1	l2	w1
	R3428.080-016-A2	8	M6	14	3.0	16	11	11
£ 1.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 1.66 0% 50-99 £ 1.33 20% 100-199 £ 1.25 25% 200-499 £ 1.16 30% 500-999 £ 1.08 35% 1000+ £ 1.00 40% d1 h11 8 d2 M6 d3 h13 14 h1 js14 3.0 l1 16 l2 11 w1 11 more info »
	R3428.080-020-A2	8	M6	14	3.0	20	11	11
£ 1.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 1.72 0% 50-99 £ 1.38 20% 100-199 £ 1.29 25% 200-499 £ 1.20 30% 500-999 £ 1.12 35% 1000+ £ 1.03 40% d1 h11 8 d2 M6 d3 h13 14 h1 js14 3.0 l1 20 l2 11 w1 11 more info »
	R3428.080-025-A2	8	M6	14	3.0	25	11	11
£ 1.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 1.80 0% 50-99 £ 1.44 20% 100-199 £ 1.35 25% 200-499 £ 1.26 30% 500-999 £ 1.17 35% 1000+ £ 1.08 40% d1 h11 8 d2 M6 d3 h13 14 h1 js14 3.0 l1 25 l2 11 w1 11 more info »
	R3428.080-030-A2	8	M6	14	3.0	30	11	11
£ 1.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 1.92 0% 50-99 £ 1.54 20% 100-199 £ 1.44 25% 200-499 £ 1.34 30% 500-999 £ 1.25 35% 1000+ £ 1.15 40% d1 h11 8 d2 M6 d3 h13 14 h1 js14 3.0 l1 30 l2 11 w1 11 more info »
	R3428.100-020-A2	10	M8	18	4.0	20	14	13
£ 2.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 2.35 0% 50-99 £ 1.88 20% 100-199 £ 1.76 25% 200-499 £ 1.65 30% 500-999 £ 1.53 35% 1000+ £ 1.41 40% d1 h11 10 d2 M8 d3 h13 18 h1 js14 4.0 l1 20 l2 14 w1 13 more info »
	R3428.100-025-A2	10	M8	18	4.0	25	14	13
£ 2.53 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 2.53 0% 50-99 £ 2.02 20% 100-199 £ 1.90 25% 200-499 £ 1.77 30% 500-999 £ 1.64 35% 1000+ £ 1.52 40% d1 h11 10 d2 M8 d3 h13 18 h1 js14 4.0 l1 25 l2 14 w1 13 more info »
	R3428.100-030-A2	10	M8	18	4.0	30	14	13
£ 2.70 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 2.70 0% 50-99 £ 2.16 20% 100-199 £ 2.03 25% 200-499 £ 1.89 30% 500-999 £ 1.76 35% 1000+ £ 1.62 40% d1 h11 10 d2 M8 d3 h13 18 h1 js14 4.0 l1 30 l2 14 w1 13 more info »
	R3428.100-035-A2	10	M8	18	4.0	35	14	13
£ 2.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 2.88 0% 50-99 £ 2.30 20% 100-199 £ 2.16 25% 200-499 £ 2.02 30% 500-999 £ 1.87 35% 1000+ £ 1.73 40% d1 h11 10 d2 M8 d3 h13 18 h1 js14 4.0 l1 35 l2 14 w1 13 more info »
	R3428.120-024-A2	12	M10	20	4.0	24	17	17
£ 4.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 4.56 0% 50-99 £ 3.65 20% 100-199 £ 3.42 25% 200-499 £ 3.19 30% 500-999 £ 2.96 35% 1000+ £ 2.74 40% d1 h11 12 d2 M10 d3 h13 20 h1 js14 4.0 l1 24 l2 17 w1 17 more info »
	R3428.120-030-A2	12	M10	20	4.0	30	17	17
£ 4.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 4.56 0% 50-99 £ 3.65 20% 100-199 £ 3.42 25% 200-499 £ 3.19 30% 500-999 £ 2.96 35% 1000+ £ 2.74 40% d1 h11 12 d2 M10 d3 h13 20 h1 js14 4.0 l1 30 l2 17 w1 17 more info »
	R3428.120-035-A2	12	M10	20	4.0	35	17	17
£ 4.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 4.88 0% 50-99 £ 3.90 20% 100-199 £ 3.66 25% 200-499 £ 3.42 30% 500-999 £ 3.17 35% 1000+ £ 2.93 40% d1 h11 12 d2 M10 d3 h13 20 h1 js14 4.0 l1 35 l2 17 w1 17 more info »
	R3428.120-040-A2	12	M10	20	4.0	40	17	17
£ 5.20 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 5.20 0% 50-99 £ 4.16 20% 100-199 £ 3.90 25% 200-499 £ 3.64 30% 500-999 £ 3.38 35% 1000+ £ 3.12 40% d1 h11 12 d2 M10 d3 h13 20 h1 js14 4.0 l1 40 l2 17 w1 17 more info »
	R3428.140-027-A2	14	M12	22	4.0	27	20	19
£ 6.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 6.12 0% 50-99 £ 4.90 20% 100-199 £ 4.59 25% 200-499 £ 4.28 30% 500-999 £ 3.98 35% 1000+ £ 3.67 40% d1 h11 14 d2 M12 d3 h13 22 h1 js14 4.0 l1 27 l2 20 w1 19 more info »
	R3428.140-030-A2	14	M12	22	4.0	30	20	19
£ 6.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 6.12 0% 50-99 £ 4.90 20% 100-199 £ 4.59 25% 200-499 £ 4.28 30% 500-999 £ 3.98 35% 1000+ £ 3.67 40% d1 h11 14 d2 M12 d3 h13 22 h1 js14 4.0 l1 30 l2 20 w1 19 more info »
	R3428.140-035-A2	14	M12	22	4.0	35	20	19
£ 6.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 6.12 0% 50-99 £ 4.90 20% 100-199 £ 4.59 25% 200-499 £ 4.28 30% 500-999 £ 3.98 35% 1000+ £ 3.67 40% d1 h11 14 d2 M12 d3 h13 22 h1 js14 4.0 l1 35 l2 20 w1 19 more info »
	R3428.140-040-A2	14	M12	22	4.0	40	20	19
£ 6.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 6.38 0% 50-99 £ 5.10 20% 100-199 £ 4.79 25% 200-499 £ 4.47 30% 500-999 £ 4.15 35% 1000+ £ 3.83 40% d1 h11 14 d2 M12 d3 h13 22 h1 js14 4.0 l1 40 l2 20 w1 19 more info »
	R3428.160-032-A2	16	M12	25	4.5	32	20	22
£ 6.76 per unit (click for quantity discounts) Ready to despatch 54 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 6.76 0% 50-99 £ 5.41 20% 100-199 £ 5.07 25% 200-499 £ 4.73 30% 500-999 £ 4.39 35% 1000+ £ 4.06 40% d1 h11 16 d2 M12 d3 h13 25 h1 js14 4.5 l1 32 l2 20 w1 22 more info »
	R3428.160-035-A2	16	M12	25	4.5	35	20	22
£ 6.76 per unit (click for quantity discounts) Ready to despatch 55 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 6.76 0% 50-99 £ 5.41 20% 100-199 £ 5.07 25% 200-499 £ 4.73 30% 500-999 £ 4.39 35% 1000+ £ 4.06 40% d1 h11 16 d2 M12 d3 h13 25 h1 js14 4.5 l1 35 l2 20 w1 22 more info »
	R3428.160-040-A2	16	M12	25	4.5	40	20	22
£ 8.81 per unit (click for quantity discounts) Ready to despatch 55 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 8.81 0% 50-99 £ 7.05 20% 100-199 £ 6.61 25% 200-499 £ 6.17 30% 500-999 £ 5.73 35% 1000+ £ 5.29 40% d1 h11 16 d2 M12 d3 h13 25 h1 js14 4.5 l1 40 l2 20 w1 22 more info »
	R3428.160-045-A2	16	M12	25	4.5	45	20	22
£ 7.54 per unit (click for quantity discounts) Ready to despatch 28 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 7.54 0% 50-99 £ 6.03 20% 100-199 £ 5.66 25% 200-499 £ 5.28 30% 500-999 £ 4.90 35% 1000+ £ 4.52 40% d1 h11 16 d2 M12 d3 h13 25 h1 js14 4.5 l1 45 l2 20 w1 22 more info »
