R3405 Stainless Clevis Joints with Pin

left hand thread, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Clevis Joints
Steel

RH Clevis Joints with Retention Clip S/S
Stainless Steel

LH Clevis Joints with Retention Clip S/S
Stainless Steel

Steel Clevis Joint
left hand

Steel Clevis Joint
with retention clip

Steel Clevis Joint
left hand w. retention clip

Steel Clevis Joint
with pin

Steel Clevis Joint with Pin
left hand

Stainless Clevis Joint

Stainless Clevis Joint
A4 stainless steel

Stainless Clevis Joint
left hand

Stainless Clevis Joint
with pin

Stainless Clevis Joint
with pin left hand

Stainless Clevis Joint
with pin

Stainless Clevis Joint
with pin left hand

Plastic Clevis Joints

Steel Male Clevis Joint
Steel

Steel Male Clevis
left hand

Stainless Male Clevis Joint

Stainless Male Clevis Joint
left hand

Clevis Pin With Thread

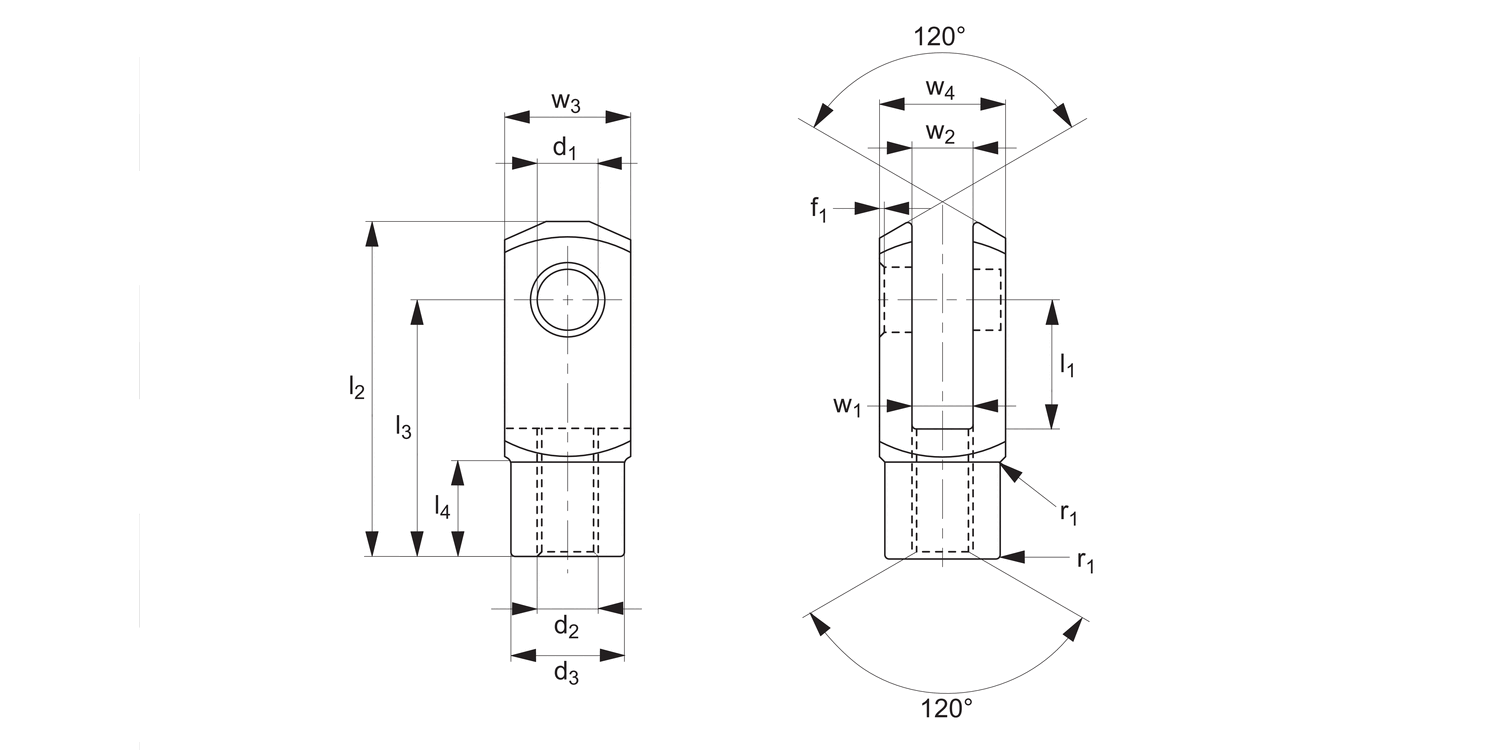

Clevis Joint+Pin LH Coarse Ø5x10 A2s/s EC:20194055 WG:05063055216364

R3405.L051

Size

5x10

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

5

l₁ ±0.5

10

d₂

M5

d₃

9

l₂ ±0.5

26

l₃

20

l₄

7.5

w₁ tol. B13

5

w₂

5

w₃ tol. h11

10

w₄

10

Weight g

9

£ 8.72 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø5x20 A2s/s EC:20194062 WG:05063055216371

R3405.L052

Size

5x20

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

5

l₁ ±0.5

20

d₂

M5

d₃

9

l₂ ±0.5

36

l₃

30

l₄

7.5

w₁ tol. B13

5

w₂

5

w₃ tol. h11

10

w₄

10

Weight g

13

£ 11.36 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø6x12 A2s/s EC:20194079 WG:05063055216388

R3405.L061

Size

6x12

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

6

l₁ ±0.5

12

d₂

M6

d₃

10

l₂ ±0.5

31

l₃

24

l₄

9.0

w₁ tol. B13

6

w₂

6

w₃ tol. h11

12

w₄

12

Weight g

15

£ 13.30 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø6x24 A2s/s EC:20194086 WG:05063055216395

R3405.L062

Size

6x24

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

6

l₁ ±0.5

24

d₂

M6

d₃

10

l₂ ±0.5

43

l₃

36

l₄

9.0

w₁ tol. B13

6

w₂

6

w₃ tol. h11

12

w₄

12

Weight g

21

£ 13.87 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø8x16 A2s/s EC:20194093 WG:05063055216401

R3405.L081

Size

8x16

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

8

l₁ ±0.5

16

d₂

M8

d₃

14

l₂ ±0.5

42

l₃

32

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

37

£ 18.58 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø8x16 A2s/s EC:20194109 WG:05063055216418

R3405.L082

Size

8x16

Thread hand

Left

Thread type

Fine

d₁ tol. H9

8

l₁ ±0.5

16

d₂

M8x1

d₃

14

l₂ ±0.5

42

l₃

32

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

37

£ 18.58 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø8x32 A2s/s EC:20194116 WG:05063055216425

R3405.L083

Size

8x32

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

8

l₁ ±0.5

32

d₂

M8

d₃

14

l₂ ±0.5

58

l₃

48

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

54

£ 24.10 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø8x32 A2s/s EC:20194123 WG:05063055216432

R3405.L084

Size

8x32

Thread hand

Left

Thread type

Fine

d₁ tol. H9

8

l₁ ±0.5

32

d₂

M8x1

d₃

14

l₂ ±0.5

58

l₃

48

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

54

£ 24.10 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø10x20 A2s/s EC:20194130 WG:05063055216449

R3405.L102

Size

10x20

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

10

l₁ ±0.5

20

d₂

M10

d₃

18

l₂ ±0.5

52

l₃

40

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

74

£ 25.85 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø10x20 A2s/s EC:20194147 WG:05063055216456

R3405.L103

Size

10x20

Thread hand

Left

Thread type

Fine

d₁ tol. H9

10

l₁ ±0.5

20

d₂

M10x1,25

d₃

18

l₂ ±0.5

52

l₃

40

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

74

£ 25.85 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø10x40 A2s/s EC:20194154 WG:05063055216463

R3405.L104

Size

10x40

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

10

l₁ ±0.5

40

d₂

M10

d₃

18

l₂ ±0.5

72

l₃

60

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

116

£ 34.42 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø10x40 A2s/s EC:20194161 WG:05063055216470

R3405.L105

Size

10x40

Thread hand

Left

Thread type

Fine

d₁ tol. H9

10

l₁ ±0.5

40

d₂

M10x1,25

d₃

18

l₂ ±0.5

72

l₃

60

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

116

£ 34.42 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø12x24 A2s/s EC:20194178 WG:05063055216487

R3405.L122

Size

12x24

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

12

l₁ ±0.5

24

d₂

M12

d₃

20

l₂ ±0.5

62

l₃

48

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

121

£ 36.18 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø12x24 A2s/s EC:20194185 WG:05063055216494

R3405.L123

Size

12x24

Thread hand

Left

Thread type

Fine

d₁ tol. H9

12

l₁ ±0.5

24

d₂

M12x1,25

d₃

20

l₂ ±0.5

62

l₃

48

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

121

£ 36.18 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø12x48 A2s/s EC:20194192 WG:05063055216500

R3405.L124

Size

12x48

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

12

l₁ ±0.5

48

d₂

M12

d₃

20

l₂ ±0.5

86

l₃

72

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

175

£ 44.21 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø12x48 A2s/s EC:20194208 WG:05063055216517

R3405.L125

Size

12x48

Thread hand

Left

Thread type

Fine

d₁ tol. H9

12

l₁ ±0.5

48

d₂

M12x1,25

d₃

20

l₂ ±0.5

86

l₃

72

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

175

£ 44.21 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø14x28 A2s/s EC:20194215 WG:05063055216524

R3405.L142

Size

14x28

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

14

l₁ ±0.5

28

d₂

M14

d₃

24

l₂ ±0.5

72

l₃

56

l₄

22.5

w₁ tol. B13

14

w₂

14

w₃ tol. h11

27

w₄

27

Weight g

178

£ 54.18 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø14x28 A2s/s EC:20194222 WG:05063055216531

R3405.L143

Size

14x28

Thread hand

Left

Thread type

Fine

d₁ tol. H9

14

l₁ ±0.5

28

d₂

M14x1,5

d₃

24

l₂ ±0.5

72

l₃

56

l₄

22.5

w₁ tol. B13

14

w₂

14

w₃ tol. h11

27

w₄

27

Weight g

178

£ 54.18 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø14x56 A2s/s EC:20194239 WG:05063055216548

R3405.L145

Size

14x56

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

14

l₁ ±0.5

56

d₂

M14

d₃

24

l₂ ±0.5

101

l₃

85

l₄

22.5

w₁ tol. B13

14

w₂

14

w₃ tol. h11

27

w₄

27

Weight g

258

£ 76.78 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø14x56 A2s/s EC:20194246 WG:05063055216555

R3405.L146

Size

14x56

Thread hand

Left

Thread type

Fine

d₁ tol. H9

14

l₁ ±0.5

56

d₂

M14x1,5

d₃

24

l₂ ±0.5

101

l₃

85

l₄

22.5

w₁ tol. B13

14

w₂

14

w₃ tol. h11

27

w₄

27

Weight g

258

£ 76.78 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø16x32 A2s/s EC:20194253 WG:05063055216562

R3405.L163

Size

16x32

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

16

l₁ ±0.5

32

d₂

M16

d₃

26

l₂ ±0.5

83

l₃

64

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

282

£ 70.64 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø16x32 A2s/s EC:20194260 WG:05063055216579

R3405.L164

Size

16x32

Thread hand

Left

Thread type

Fine

d₁ tol. H9

16

l₁ ±0.5

32

d₂

M16x1,5

d₃

26

l₂ ±0.5

83

l₃

64

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

282

£ 70.49 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø16x64 A2s/s EC:20194277 WG:05063055216586

R3405.L166

Size

16x64

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

16

l₁ ±0.5

64

d₂

M16

d₃

26

l₂ ±0.5

115

l₃

96

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

411

£ 117.55 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø16x64 A2s/s EC:20194284 WG:05063055216593

R3405.L167

Size

16x64

Thread hand

Left

Thread type

Fine

d₁ tol. H9

16

l₁ ±0.5

64

d₂

M16x1,5

d₃

26

l₂ ±0.5

115

l₃

96

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

411

£ 117.55 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø20x40 A2s/s EC:20194291 WG:05063055216609

R3405.L204

Size

20x40

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

20

l₁ ±0.5

40

d₂

M20

d₃

34

l₂ ±0.5

105

l₃

80

l₄

30.0

w₁ tol. B13

20

w₂

20

w₃ tol. h11

40

w₄

40

Weight g

550

£ 116.56 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø20x40 A2s/s EC:20194307 WG:05063055216616

R3405.L205

Size

20x40

Thread hand

Left

Thread type

Fine

d₁ tol. H9

20

l₁ ±0.5

40

d₂

M20x1,5

d₃

34

l₂ ±0.5

105

l₃

80

l₄

30.0

w₁ tol. B13

20

w₂

20

w₃ tol. h11

40

w₄

40

Weight g

550

£ 116.56 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø25x50 A2s/s EC:20194314 WG:05063055216623

R3405.L255

Size

25x50

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

25

l₁ ±0.5

50

d₂

M24

d₃

42

l₂ ±0.5

132

l₃

100

l₄

36.0

w₁ tol. B13

25

w₂

25

w₃ tol. h11

50

w₄

50

Weight g

1100

£ 233.13 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø25x50 A2s/s EC:20194321 WG:05063055216630

R3405.L256

Size

25x50

Thread hand

Left

Thread type

Fine

d₁ tol. H9

25

l₁ ±0.5

50

d₂

M24x2

d₃

42

l₂ ±0.5

132

l₃

100

l₄

36.0

w₁ tol. B13

25

w₂

25

w₃ tol. h11

50

w₄

50

Weight g

1100

£ 233.13 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø5x10 A2s/s EC:20194055 WG:05063055216364

R3405.L051

Size

5x10

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

5

l₁ ±0.5

10

d₂

M5

d₃

9

l₂ ±0.5

26

l₃

20

l₄

7.5

w₁ tol. B13

5

w₂

5

w₃ tol. h11

10

w₄

10

Weight g

9

£ 8.72 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø5x20 A2s/s EC:20194062 WG:05063055216371

R3405.L052

Size

5x20

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

5

l₁ ±0.5

20

d₂

M5

d₃

9

l₂ ±0.5

36

l₃

30

l₄

7.5

w₁ tol. B13

5

w₂

5

w₃ tol. h11

10

w₄

10

Weight g

13

£ 11.36 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø6x12 A2s/s EC:20194079 WG:05063055216388

R3405.L061

Size

6x12

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

6

l₁ ±0.5

12

d₂

M6

d₃

10

l₂ ±0.5

31

l₃

24

l₄

9.0

w₁ tol. B13

6

w₂

6

w₃ tol. h11

12

w₄

12

Weight g

15

£ 13.30 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø6x24 A2s/s EC:20194086 WG:05063055216395

R3405.L062

Size

6x24

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

6

l₁ ±0.5

24

d₂

M6

d₃

10

l₂ ±0.5

43

l₃

36

l₄

9.0

w₁ tol. B13

6

w₂

6

w₃ tol. h11

12

w₄

12

Weight g

21

£ 13.87 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø8x16 A2s/s EC:20194093 WG:05063055216401

R3405.L081

Size

8x16

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

8

l₁ ±0.5

16

d₂

M8

d₃

14

l₂ ±0.5

42

l₃

32

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

37

£ 18.58 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø8x16 A2s/s EC:20194109 WG:05063055216418

R3405.L082

Size

8x16

Thread hand

Left

Thread type

Fine

d₁ tol. H9

8

l₁ ±0.5

16

d₂

M8x1

d₃

14

l₂ ±0.5

42

l₃

32

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

37

£ 18.58 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø8x32 A2s/s EC:20194116 WG:05063055216425

R3405.L083

Size

8x32

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

8

l₁ ±0.5

32

d₂

M8

d₃

14

l₂ ±0.5

58

l₃

48

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

54

£ 24.10 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø8x32 A2s/s EC:20194123 WG:05063055216432

R3405.L084

Size

8x32

Thread hand

Left

Thread type

Fine

d₁ tol. H9

8

l₁ ±0.5

32

d₂

M8x1

d₃

14

l₂ ±0.5

58

l₃

48

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

54

£ 24.10 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø10x20 A2s/s EC:20194130 WG:05063055216449

R3405.L102

Size

10x20

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

10

l₁ ±0.5

20

d₂

M10

d₃

18

l₂ ±0.5

52

l₃

40

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

74

£ 25.85 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø10x20 A2s/s EC:20194147 WG:05063055216456

R3405.L103

Size

10x20

Thread hand

Left

Thread type

Fine

d₁ tol. H9

10

l₁ ±0.5

20

d₂

M10x1,25

d₃

18

l₂ ±0.5

52

l₃

40

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

74

£ 25.85 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø10x40 A2s/s EC:20194154 WG:05063055216463

R3405.L104

Size

10x40

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

10

l₁ ±0.5

40

d₂

M10

d₃

18

l₂ ±0.5

72

l₃

60

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

116

£ 34.42 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø10x40 A2s/s EC:20194161 WG:05063055216470

R3405.L105

Size

10x40

Thread hand

Left

Thread type

Fine

d₁ tol. H9

10

l₁ ±0.5

40

d₂

M10x1,25

d₃

18

l₂ ±0.5

72

l₃

60

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

116

£ 34.42 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø12x24 A2s/s EC:20194178 WG:05063055216487

R3405.L122

Size

12x24

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

12

l₁ ±0.5

24

d₂

M12

d₃

20

l₂ ±0.5

62

l₃

48

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

121

£ 36.18 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø12x24 A2s/s EC:20194185 WG:05063055216494

R3405.L123

Size

12x24

Thread hand

Left

Thread type

Fine

d₁ tol. H9

12

l₁ ±0.5

24

d₂

M12x1,25

d₃

20

l₂ ±0.5

62

l₃

48

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

121

£ 36.18 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø12x48 A2s/s EC:20194192 WG:05063055216500

R3405.L124

Size

12x48

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

12

l₁ ±0.5

48

d₂

M12

d₃

20

l₂ ±0.5

86

l₃

72

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

175

£ 44.21 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø12x48 A2s/s EC:20194208 WG:05063055216517

R3405.L125

Size

12x48

Thread hand

Left

Thread type

Fine

d₁ tol. H9

12

l₁ ±0.5

48

d₂

M12x1,25

d₃

20

l₂ ±0.5

86

l₃

72

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

175

£ 44.21 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø14x28 A2s/s EC:20194215 WG:05063055216524

R3405.L142

Size

14x28

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

14

l₁ ±0.5

28

d₂

M14

d₃

24

l₂ ±0.5

72

l₃

56

l₄

22.5

w₁ tol. B13

14

w₂

14

w₃ tol. h11

27

w₄

27

Weight g

178

£ 54.18 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø14x28 A2s/s EC:20194222 WG:05063055216531

R3405.L143

Size

14x28

Thread hand

Left

Thread type

Fine

d₁ tol. H9

14

l₁ ±0.5

28

d₂

M14x1,5

d₃

24

l₂ ±0.5

72

l₃

56

l₄

22.5

w₁ tol. B13

14

w₂

14

w₃ tol. h11

27

w₄

27

Weight g

178

£ 54.18 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø14x56 A2s/s EC:20194239 WG:05063055216548

R3405.L145

Size

14x56

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

14

l₁ ±0.5

56

d₂

M14

d₃

24

l₂ ±0.5

101

l₃

85

l₄

22.5

w₁ tol. B13

14

w₂

14

w₃ tol. h11

27

w₄

27

Weight g

258

£ 76.78 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø14x56 A2s/s EC:20194246 WG:05063055216555

R3405.L146

Size

14x56

Thread hand

Left

Thread type

Fine

d₁ tol. H9

14

l₁ ±0.5

56

d₂

M14x1,5

d₃

24

l₂ ±0.5

101

l₃

85

l₄

22.5

w₁ tol. B13

14

w₂

14

w₃ tol. h11

27

w₄

27

Weight g

258

£ 76.78 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø16x32 A2s/s EC:20194253 WG:05063055216562

R3405.L163

Size

16x32

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

16

l₁ ±0.5

32

d₂

M16

d₃

26

l₂ ±0.5

83

l₃

64

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

282

£ 70.64 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø16x32 A2s/s EC:20194260 WG:05063055216579

R3405.L164

Size

16x32

Thread hand

Left

Thread type

Fine

d₁ tol. H9

16

l₁ ±0.5

32

d₂

M16x1,5

d₃

26

l₂ ±0.5

83

l₃

64

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

282

£ 70.49 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø16x64 A2s/s EC:20194277 WG:05063055216586

R3405.L166

Size

16x64

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

16

l₁ ±0.5

64

d₂

M16

d₃

26

l₂ ±0.5

115

l₃

96

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

411

£ 117.55 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø16x64 A2s/s EC:20194284 WG:05063055216593

R3405.L167

Size

16x64

Thread hand

Left

Thread type

Fine

d₁ tol. H9

16

l₁ ±0.5

64

d₂

M16x1,5

d₃

26

l₂ ±0.5

115

l₃

96

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

411

£ 117.55 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø20x40 A2s/s EC:20194291 WG:05063055216609

R3405.L204

Size

20x40

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

20

l₁ ±0.5

40

d₂

M20

d₃

34

l₂ ±0.5

105

l₃

80

l₄

30.0

w₁ tol. B13

20

w₂

20

w₃ tol. h11

40

w₄

40

Weight g

550

£ 116.56 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø20x40 A2s/s EC:20194307 WG:05063055216616

R3405.L205

Size

20x40

Thread hand

Left

Thread type

Fine

d₁ tol. H9

20

l₁ ±0.5

40

d₂

M20x1,5

d₃

34

l₂ ±0.5

105

l₃

80

l₄

30.0

w₁ tol. B13

20

w₂

20

w₃ tol. h11

40

w₄

40

Weight g

550

£ 116.56 per unit (click for quantity discounts)

Clevis Joint+Pin LH Coarse Ø25x50 A2s/s EC:20194314 WG:05063055216623

R3405.L255

Size

25x50

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

25

l₁ ±0.5

50

d₂

M24

d₃

42

l₂ ±0.5

132

l₃

100

l₄

36.0

w₁ tol. B13

25

w₂

25

w₃ tol. h11

50

w₄

50

Weight g

1100

£ 233.13 per unit (click for quantity discounts)

Clevis Joint+Pin LH Fine Ø25x50 A2s/s EC:20194321 WG:05063055216630

R3405.L256

Size

25x50

Thread hand

Left

Thread type

Fine

d₁ tol. H9

25

l₁ ±0.5

50

d₂

M24x2

d₃

42

l₂ ±0.5

132

l₃

100

l₄

36.0

w₁ tol. B13

25

w₂

25

w₃ tol. h11

50

w₄

50

Weight g

1100

£ 233.13 per unit (click for quantity discounts)



Select all

Size

Thread hand

Thread type

d₁ tol. H9

l₁ ±0.5

d₂

d₃

l₂ ±0.5

l₃

l₄

w₁ tol. B13

w₂

w₃ tol. h11

w₄

Weight g

Price & Availability	Article	Size	Thread hand	Thread type	d1 tol. H9	l1 ±0.5	d2	d3	l2 ±0.5	l3	l4	w1 tol. B13	w2	w3 tol. h11	w4	Weight g
	R3405.L051	5x10	Left	Coarse	5	10	M5	9	26	20	7.5	5	5	10	10	9
£ 8.72 per unit (click for quantity discounts) Ready to despatch 32 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 8.72 0% 5-19 £ 7.85 10% 20-39 £ 6.98 20% 40-99 £ 6.10 30% 100+ £ 5.23 40% Size 5x10 Thread hand Left Thread type Coarse d1 tol. H9 5 l1 ±0.5 10 d2 M5 d3 9 l2 ±0.5 26 l3 20 l4 7.5 w1 tol. B13 5 w2 5 w3 tol. h11 10 w4 10 Weight g 9 more info »
	R3405.L052	5x20	Left	Coarse	5	20	M5	9	36	30	7.5	5	5	10	10	13
£ 11.36 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 11.36 0% 5-19 £ 10.22 10% 20-39 £ 9.09 20% 40-99 £ 7.95 30% 100+ £ 6.82 40% Size 5x20 Thread hand Left Thread type Coarse d1 tol. H9 5 l1 ±0.5 20 d2 M5 d3 9 l2 ±0.5 36 l3 30 l4 7.5 w1 tol. B13 5 w2 5 w3 tol. h11 10 w4 10 Weight g 13 more info »
	R3405.L061	6x12	Left	Coarse	6	12	M6	10	31	24	9.0	6	6	12	12	15
£ 13.30 per unit (click for quantity discounts) Ready to despatch 63 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 13.30 0% 5-19 £ 11.97 10% 20-39 £ 10.64 20% 40-99 £ 9.31 30% 100+ £ 7.98 40% Size 6x12 Thread hand Left Thread type Coarse d1 tol. H9 6 l1 ±0.5 12 d2 M6 d3 10 l2 ±0.5 31 l3 24 l4 9.0 w1 tol. B13 6 w2 6 w3 tol. h11 12 w4 12 Weight g 15 more info »
	R3405.L062	6x24	Left	Coarse	6	24	M6	10	43	36	9.0	6	6	12	12	21
£ 13.87 per unit (click for quantity discounts) Ready to despatch 42 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 13.87 0% 5-19 £ 12.48 10% 20-39 £ 11.10 20% 40-99 £ 9.71 30% 100+ £ 8.32 40% Size 6x24 Thread hand Left Thread type Coarse d1 tol. H9 6 l1 ±0.5 24 d2 M6 d3 10 l2 ±0.5 43 l3 36 l4 9.0 w1 tol. B13 6 w2 6 w3 tol. h11 12 w4 12 Weight g 21 more info »
	R3405.L081	8x16	Left	Coarse	8	16	M8	14	42	32	12.0	8	8	16	16	37
£ 18.58 per unit (click for quantity discounts) Ready to despatch 7 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 18.58 0% 5-19 £ 16.72 10% 20-39 £ 14.86 20% 40-99 £ 13.01 30% 100+ £ 11.15 40% Size 8x16 Thread hand Left Thread type Coarse d1 tol. H9 8 l1 ±0.5 16 d2 M8 d3 14 l2 ±0.5 42 l3 32 l4 12.0 w1 tol. B13 8 w2 8 w3 tol. h11 16 w4 16 Weight g 37 more info »
	R3405.L082	8x16	Left	Fine	8	16	M8x1	14	42	32	12.0	8	8	16	16	37
£ 18.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 18.58 0% 5-19 £ 16.72 10% 20-39 £ 14.86 20% 40-99 £ 13.01 30% 100+ £ 11.15 40% Size 8x16 Thread hand Left Thread type Fine d1 tol. H9 8 l1 ±0.5 16 d2 M8x1 d3 14 l2 ±0.5 42 l3 32 l4 12.0 w1 tol. B13 8 w2 8 w3 tol. h11 16 w4 16 Weight g 37 more info »
	R3405.L083	8x32	Left	Coarse	8	32	M8	14	58	48	12.0	8	8	16	16	54
£ 24.10 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 24.10 0% 5-19 £ 21.69 10% 20-39 £ 19.28 20% 40-99 £ 16.87 30% 100+ £ 14.46 40% Size 8x32 Thread hand Left Thread type Coarse d1 tol. H9 8 l1 ±0.5 32 d2 M8 d3 14 l2 ±0.5 58 l3 48 l4 12.0 w1 tol. B13 8 w2 8 w3 tol. h11 16 w4 16 Weight g 54 more info »
	R3405.L084	8x32	Left	Fine	8	32	M8x1	14	58	48	12.0	8	8	16	16	54
£ 24.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 24.10 0% 5-19 £ 21.69 10% 20-39 £ 19.28 20% 40-99 £ 16.87 30% 100+ £ 14.46 40% Size 8x32 Thread hand Left Thread type Fine d1 tol. H9 8 l1 ±0.5 32 d2 M8x1 d3 14 l2 ±0.5 58 l3 48 l4 12.0 w1 tol. B13 8 w2 8 w3 tol. h11 16 w4 16 Weight g 54 more info »
	R3405.L102	10x20	Left	Coarse	10	20	M10	18	52	40	15.0	10	10	20	20	74
£ 25.85 per unit (click for quantity discounts) Ready to despatch 21 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 25.85 0% 5-19 £ 23.27 10% 20-39 £ 20.68 20% 40-99 £ 18.10 30% 100+ £ 15.51 40% Size 10x20 Thread hand Left Thread type Coarse d1 tol. H9 10 l1 ±0.5 20 d2 M10 d3 18 l2 ±0.5 52 l3 40 l4 15.0 w1 tol. B13 10 w2 10 w3 tol. h11 20 w4 20 Weight g 74 more info »
	R3405.L103	10x20	Left	Fine	10	20	M10x1,25	18	52	40	15.0	10	10	20	20	74
£ 25.85 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 25.85 0% 5-19 £ 23.27 10% 20-39 £ 20.68 20% 40-99 £ 18.10 30% 100+ £ 15.51 40% Size 10x20 Thread hand Left Thread type Fine d1 tol. H9 10 l1 ±0.5 20 d2 M10x1,25 d3 18 l2 ±0.5 52 l3 40 l4 15.0 w1 tol. B13 10 w2 10 w3 tol. h11 20 w4 20 Weight g 74 more info »
	R3405.L104	10x40	Left	Coarse	10	40	M10	18	72	60	15.0	10	10	20	20	116
£ 34.42 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 34.42 0% 5-19 £ 30.98 10% 20-39 £ 27.54 20% 40-99 £ 24.09 30% 100+ £ 20.65 40% Size 10x40 Thread hand Left Thread type Coarse d1 tol. H9 10 l1 ±0.5 40 d2 M10 d3 18 l2 ±0.5 72 l3 60 l4 15.0 w1 tol. B13 10 w2 10 w3 tol. h11 20 w4 20 Weight g 116 more info »
	R3405.L105	10x40	Left	Fine	10	40	M10x1,25	18	72	60	15.0	10	10	20	20	116
£ 34.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 34.42 0% 5-19 £ 30.98 10% 20-39 £ 27.54 20% 40-99 £ 24.09 30% 100+ £ 20.65 40% Size 10x40 Thread hand Left Thread type Fine d1 tol. H9 10 l1 ±0.5 40 d2 M10x1,25 d3 18 l2 ±0.5 72 l3 60 l4 15.0 w1 tol. B13 10 w2 10 w3 tol. h11 20 w4 20 Weight g 116 more info »
	R3405.L122	12x24	Left	Coarse	12	24	M12	20	62	48	18.0	12	12	24	24	121
£ 36.18 per unit (click for quantity discounts) Ready to despatch 13 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 36.18 0% 5-19 £ 32.56 10% 20-39 £ 28.94 20% 40-99 £ 25.33 30% 100+ £ 21.71 40% Size 12x24 Thread hand Left Thread type Coarse d1 tol. H9 12 l1 ±0.5 24 d2 M12 d3 20 l2 ±0.5 62 l3 48 l4 18.0 w1 tol. B13 12 w2 12 w3 tol. h11 24 w4 24 Weight g 121 more info »
	R3405.L123	12x24	Left	Fine	12	24	M12x1,25	20	62	48	18.0	12	12	24	24	121
£ 36.18 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 36.18 0% 5-19 £ 32.56 10% 20-39 £ 28.94 20% 40-99 £ 25.33 30% 100+ £ 21.71 40% Size 12x24 Thread hand Left Thread type Fine d1 tol. H9 12 l1 ±0.5 24 d2 M12x1,25 d3 20 l2 ±0.5 62 l3 48 l4 18.0 w1 tol. B13 12 w2 12 w3 tol. h11 24 w4 24 Weight g 121 more info »
	R3405.L124	12x48	Left	Coarse	12	48	M12	20	86	72	18.0	12	12	24	24	175
£ 44.21 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 44.21 0% 5-19 £ 39.79 10% 20-39 £ 35.37 20% 40-99 £ 30.95 30% 100+ £ 26.53 40% Size 12x48 Thread hand Left Thread type Coarse d1 tol. H9 12 l1 ±0.5 48 d2 M12 d3 20 l2 ±0.5 86 l3 72 l4 18.0 w1 tol. B13 12 w2 12 w3 tol. h11 24 w4 24 Weight g 175 more info »
	R3405.L125	12x48	Left	Fine	12	48	M12x1,25	20	86	72	18.0	12	12	24	24	175
£ 44.21 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 44.21 0% 5-19 £ 39.79 10% 20-39 £ 35.37 20% 40-99 £ 30.95 30% 100+ £ 26.53 40% Size 12x48 Thread hand Left Thread type Fine d1 tol. H9 12 l1 ±0.5 48 d2 M12x1,25 d3 20 l2 ±0.5 86 l3 72 l4 18.0 w1 tol. B13 12 w2 12 w3 tol. h11 24 w4 24 Weight g 175 more info »
	R3405.L142	14x28	Left	Coarse	14	28	M14	24	72	56	22.5	14	14	27	27	178
£ 54.18 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 54.18 0% 5-19 £ 48.76 10% 20-39 £ 43.34 20% 40-99 £ 37.93 30% 100+ £ 32.51 40% Size 14x28 Thread hand Left Thread type Coarse d1 tol. H9 14 l1 ±0.5 28 d2 M14 d3 24 l2 ±0.5 72 l3 56 l4 22.5 w1 tol. B13 14 w2 14 w3 tol. h11 27 w4 27 Weight g 178 more info »
	R3405.L143	14x28	Left	Fine	14	28	M14x1,5	24	72	56	22.5	14	14	27	27	178
£ 54.18 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 54.18 0% 5-19 £ 48.76 10% 20-39 £ 43.34 20% 40-99 £ 37.93 30% 100+ £ 32.51 40% Size 14x28 Thread hand Left Thread type Fine d1 tol. H9 14 l1 ±0.5 28 d2 M14x1,5 d3 24 l2 ±0.5 72 l3 56 l4 22.5 w1 tol. B13 14 w2 14 w3 tol. h11 27 w4 27 Weight g 178 more info »
	R3405.L145	14x56	Left	Coarse	14	56	M14	24	101	85	22.5	14	14	27	27	258
£ 76.78 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 76.78 0% 5-19 £ 69.10 10% 20-39 £ 61.42 20% 40-99 £ 53.75 30% 100+ £ 46.07 40% Size 14x56 Thread hand Left Thread type Coarse d1 tol. H9 14 l1 ±0.5 56 d2 M14 d3 24 l2 ±0.5 101 l3 85 l4 22.5 w1 tol. B13 14 w2 14 w3 tol. h11 27 w4 27 Weight g 258 more info »
	R3405.L146	14x56	Left	Fine	14	56	M14x1,5	24	101	85	22.5	14	14	27	27	258
£ 76.78 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 76.78 0% 5-19 £ 69.10 10% 20-39 £ 61.42 20% 40-99 £ 53.75 30% 100+ £ 46.07 40% Size 14x56 Thread hand Left Thread type Fine d1 tol. H9 14 l1 ±0.5 56 d2 M14x1,5 d3 24 l2 ±0.5 101 l3 85 l4 22.5 w1 tol. B13 14 w2 14 w3 tol. h11 27 w4 27 Weight g 258 more info »
	R3405.L163	16x32	Left	Coarse	16	32	M16	26	83	64	24.0	16	16	32	32	282
£ 70.64 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 70.64 0% 5-19 £ 63.58 10% 20-39 £ 56.51 20% 40-99 £ 49.45 30% 100+ £ 42.38 40% Size 16x32 Thread hand Left Thread type Coarse d1 tol. H9 16 l1 ±0.5 32 d2 M16 d3 26 l2 ±0.5 83 l3 64 l4 24.0 w1 tol. B13 16 w2 16 w3 tol. h11 32 w4 32 Weight g 282 more info »
	R3405.L164	16x32	Left	Fine	16	32	M16x1,5	26	83	64	24.0	16	16	32	32	282
£ 70.49 per unit (click for quantity discounts) Ready to despatch 12 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 70.49 0% 5-19 £ 63.44 10% 20-39 £ 56.39 20% 40-99 £ 49.34 30% 100+ £ 42.29 40% Size 16x32 Thread hand Left Thread type Fine d1 tol. H9 16 l1 ±0.5 32 d2 M16x1,5 d3 26 l2 ±0.5 83 l3 64 l4 24.0 w1 tol. B13 16 w2 16 w3 tol. h11 32 w4 32 Weight g 282 more info »
	R3405.L166	16x64	Left	Coarse	16	64	M16	26	115	96	24.0	16	16	32	32	411
£ 117.55 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 117.55 0% 5-19 £ 105.80 10% 20-39 £ 94.04 20% 40-99 £ 82.29 30% 100+ £ 70.53 40% Size 16x64 Thread hand Left Thread type Coarse d1 tol. H9 16 l1 ±0.5 64 d2 M16 d3 26 l2 ±0.5 115 l3 96 l4 24.0 w1 tol. B13 16 w2 16 w3 tol. h11 32 w4 32 Weight g 411 more info »
	R3405.L167	16x64	Left	Fine	16	64	M16x1,5	26	115	96	24.0	16	16	32	32	411
£ 117.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 117.55 0% 5-19 £ 105.80 10% 20-39 £ 94.04 20% 40-99 £ 82.29 30% 100+ £ 70.53 40% Size 16x64 Thread hand Left Thread type Fine d1 tol. H9 16 l1 ±0.5 64 d2 M16x1,5 d3 26 l2 ±0.5 115 l3 96 l4 24.0 w1 tol. B13 16 w2 16 w3 tol. h11 32 w4 32 Weight g 411 more info »
	R3405.L204	20x40	Left	Coarse	20	40	M20	34	105	80	30.0	20	20	40	40	550
£ 116.56 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 116.56 0% 5-19 £ 104.90 10% 20-39 £ 93.25 20% 40-99 £ 81.59 30% 100+ £ 69.94 40% Size 20x40 Thread hand Left Thread type Coarse d1 tol. H9 20 l1 ±0.5 40 d2 M20 d3 34 l2 ±0.5 105 l3 80 l4 30.0 w1 tol. B13 20 w2 20 w3 tol. h11 40 w4 40 Weight g 550 more info »
	R3405.L205	20x40	Left	Fine	20	40	M20x1,5	34	105	80	30.0	20	20	40	40	550
£ 116.56 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 116.56 0% 5-19 £ 104.90 10% 20-39 £ 93.25 20% 40-99 £ 81.59 30% 100+ £ 69.94 40% Size 20x40 Thread hand Left Thread type Fine d1 tol. H9 20 l1 ±0.5 40 d2 M20x1,5 d3 34 l2 ±0.5 105 l3 80 l4 30.0 w1 tol. B13 20 w2 20 w3 tol. h11 40 w4 40 Weight g 550 more info »
	R3405.L255	25x50	Left	Coarse	25	50	M24	42	132	100	36.0	25	25	50	50	1100
£ 233.13 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 233.13 0% 5-19 £ 209.82 10% 20-39 £ 186.50 20% 40-99 £ 163.19 30% 100+ £ 139.88 40% Size 25x50 Thread hand Left Thread type Coarse d1 tol. H9 25 l1 ±0.5 50 d2 M24 d3 42 l2 ±0.5 132 l3 100 l4 36.0 w1 tol. B13 25 w2 25 w3 tol. h11 50 w4 50 Weight g 1100 more info »
	R3405.L256	25x50	Left	Fine	25	50	M24x2	42	132	100	36.0	25	25	50	50	1100
£ 233.13 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 233.13 0% 5-19 £ 209.82 10% 20-39 £ 186.50 20% 40-99 £ 163.19 30% 100+ £ 139.88 40% Size 25x50 Thread hand Left Thread type Fine d1 tol. H9 25 l1 ±0.5 50 d2 M24x2 d3 42 l2 ±0.5 132 l3 100 l4 36.0 w1 tol. B13 25 w2 25 w3 tol. h11 50 w4 50 Weight g 1100 more info »
