R3390 Steel Clevis Joints with Pin

left hand thread - silver zinc plated, material: Steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Clevis Joints
Steel

RH Clevis Joints with Retention Clip S/S
Stainless Steel

LH Clevis Joints with Retention Clip S/S
Stainless Steel

Steel Clevis Joint
left hand

Steel Clevis Joint
with retention clip

Steel Clevis Joint
left hand w. retention clip

Steel Clevis Joint
with pin

Steel Clevis Joint with Pin
left hand

Stainless Clevis Joint

Stainless Clevis Joint
A4 stainless steel

Stainless Clevis Joint
left hand

Stainless Clevis Joint
with pin

Stainless Clevis Joint
with pin left hand

Stainless Clevis Joint
with pin

Stainless Clevis Joint
with pin left hand

Plastic Clevis Joints

Steel Male Clevis Joint
Steel

Steel Male Clevis
left hand

Stainless Male Clevis Joint

Stainless Male Clevis Joint
left hand

Clevis Pin With Thread

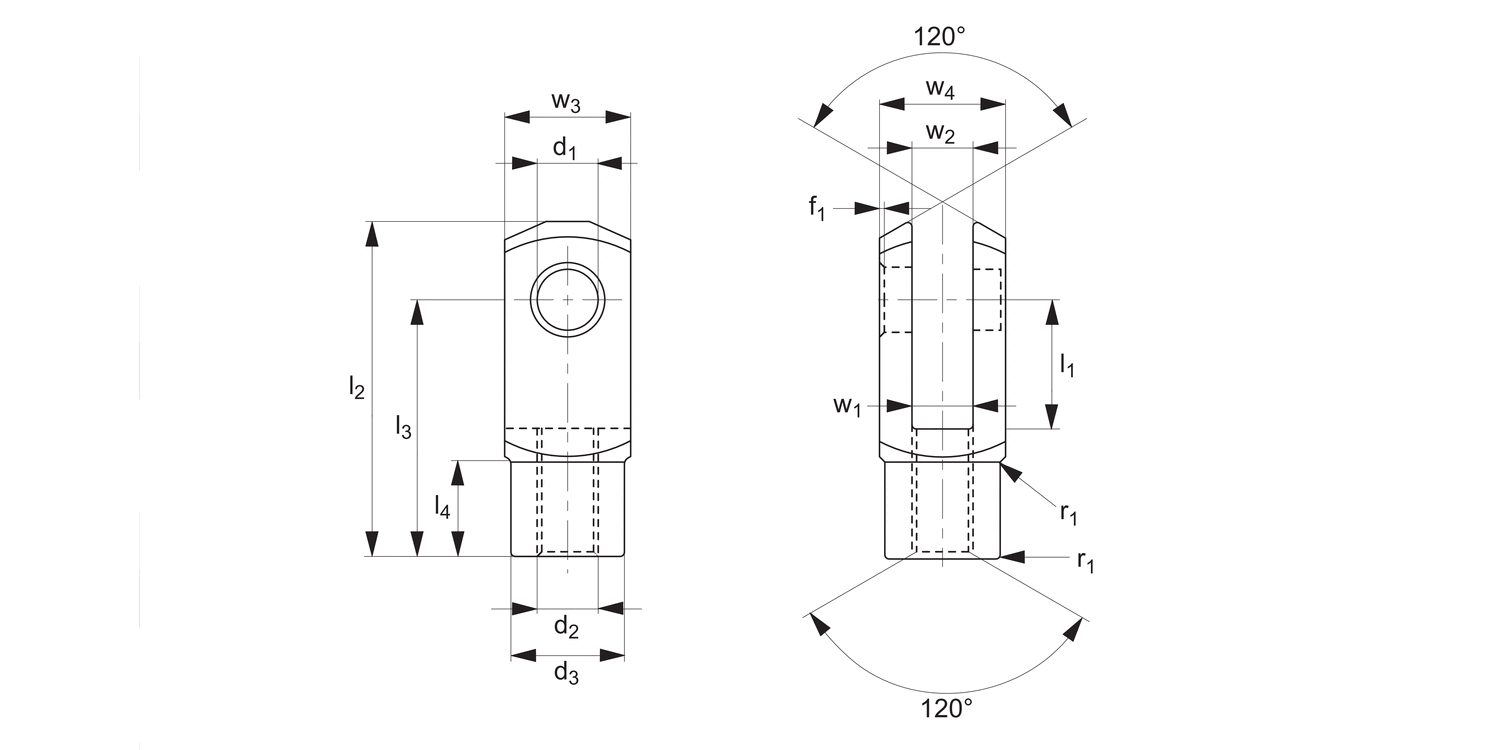

Clevis Joint with Pin LH Coarse Ø5x10 EC:20193317 WG:05063055215084

R3390.L051

Size

5x10

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

5

l₁ ±0.5

10

d₂

M5

d₃

9

l₂ ±0.5

26

l₃

20

l₄

7.5

w₁ tol. B13

5

w₂

5

w₃ tol. h11

10

w₄

10

Weight g

9

£ 3.47 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø5x20 EC:20193324 WG:05063055215091

R3390.L052

Size

5x20

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

5

l₁ ±0.5

20

d₂

M5

d₃

9

l₂ ±0.5

36

l₃

30

l₄

7.5

w₁ tol. B13

5

w₂

5

w₃ tol. h11

10

w₄

10

Weight g

13

£ 3.61 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø6x12 EC:20193331 WG:05063055215107

R3390.L061

Size

6x12

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

6

l₁ ±0.5

12

d₂

M6

d₃

10

l₂ ±0.5

31

l₃

24

l₄

9.0

w₁ tol. B13

6

w₂

6

w₃ tol. h11

12

w₄

12

Weight g

15

£ 2.81 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø6x24 EC:20193348 WG:05063055215114

R3390.L062

Size

6x24

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

6

l₁ ±0.5

24

d₂

M6

d₃

10

l₂ ±0.5

43

l₃

36

l₄

9.0

w₁ tol. B13

6

w₂

6

w₃ tol. h11

12

w₄

12

Weight g

21

£ 2.91 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø8x16 EC:20193355 WG:05063055215121

R3390.L081

Size

8x16

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

8

l₁ ±0.5

16

d₂

M8

d₃

14

l₂ ±0.5

42

l₃

32

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

37

£ 3.42 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø8x16 EC:20193362 WG:05063055215138

R3390.L082

Size

8x16

Thread hand

Left

Thread type

Fine

d₁ tol. H9

8

l₁ ±0.5

16

d₂

M8x1

d₃

14

l₂ ±0.5

42

l₃

32

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

37

£ 3.42 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø8x32 EC:20193379 WG:05063055215145

R3390.L083

Size

8x32

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

8

l₁ ±0.5

32

d₂

M8

d₃

14

l₂ ±0.5

58

l₃

48

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

54

£ 3.80 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø8x32 EC:20193386 WG:05063055215152

R3390.L084

Size

8x32

Thread hand

Left

Thread type

Fine

d₁ tol. H9

8

l₁ ±0.5

32

d₂

M8x1

d₃

14

l₂ ±0.5

58

l₃

48

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

54

£ 3.80 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø10x20 EC:20193393 WG:05063055215169

R3390.L102

Size

10x20

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

10

l₁ ±0.5

20

d₂

M10

d₃

18

l₂ ±0.5

52

l₃

40

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

74

£ 4.30 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø10x20 EC:20193409 WG:05063055215176

R3390.L103

Size

10x20

Thread hand

Left

Thread type

Fine

d₁ tol. H9

10

l₁ ±0.5

20

d₂

M10x1,25

d₃

18

l₂ ±0.5

52

l₃

40

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

74

£ 4.30 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø10x40 EC:20193416 WG:05063055215183

R3390.L104

Size

10x40

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

10

l₁ ±0.5

40

d₂

M10

d₃

18

l₂ ±0.5

72

l₃

60

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

116

£ 6.15 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø10x40 EC:20193423 WG:05063055215190

R3390.L105

Size

10x40

Thread hand

Left

Thread type

Fine

d₁ tol. H9

10

l₁ ±0.5

40

d₂

M10x1,25

d₃

18

l₂ ±0.5

72

l₃

60

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

116

£ 6.15 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø12x24 EC:20193430 WG:05063055215206

R3390.L122

Size

12x24

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

12

l₁ ±0.5

24

d₂

M12

d₃

20

l₂ ±0.5

62

l₃

48

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

121

£ 7.70 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø12x24 EC:20193447 WG:05063055215213

R3390.L123

Size

12x24

Thread hand

Left

Thread type

Fine

d₁ tol. H9

12

l₁ ±0.5

24

d₂

M12x1,25

d₃

20

l₂ ±0.5

62

l₃

48

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

121

£ 7.70 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø12x48 EC:20193454 WG:05063055215220

R3390.L124

Size

12x48

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

12

l₁ ±0.5

48

d₂

M12

d₃

20

l₂ ±0.5

86

l₃

72

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

175

£ 12.99 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø12x48 EC:20193461 WG:05063055215237

R3390.L125

Size

12x48

Thread hand

Left

Thread type

Fine

d₁ tol. H9

12

l₁ ±0.5

48

d₂

M12x1,25

d₃

20

l₂ ±0.5

86

l₃

72

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

175

£ 12.99 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø14X28 EC:20193478 WG:05063055215244

R3390.L142

Size

14x28

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

14

l₁ ±0.5

28

d₂

M14

d₃

24

l₂ ±0.5

72

l₃

56

l₄

22.5

w₁ tol. B13

14

w₂

14

w₃ tol. h11

27

w₄

27

Weight g

178

£ 13.43 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø14x28 EC:20193485 WG:05063055215251

R3390.L143

Size

14x28

Thread hand

Left

Thread type

Fine

d₁ tol. H9

14

l₁ ±0.5

28

d₂

M14x1,5

d₃

24

l₂ ±0.5

72

l₃

56

l₄

22.5

w₁ tol. B13

14

w₂

14

w₃ tol. h11

27

w₄

27

Weight g

178

£ 13.43 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø14x56 EC:20193492 WG:05063055215268

R3390.L145

Size

14x56

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

14

l₁ ±0.5

56

d₂

M14

d₃

24

l₂ ±0.5

101

l₃

85

l₄

22.5

w₁ tol. B13

14

w₂

14

w₃ tol. h11

27

w₄

27

Weight g

258

£ 13.61 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø14x56 EC:20193508 WG:05063055215275

R3390.L146

Size

14x56

Thread hand

Left

Thread type

Fine

d₁ tol. H9

14

l₁ ±0.5

56

d₂

M14x1,5

d₃

24

l₂ ±0.5

101

l₃

85

l₄

22.5

w₁ tol. B13

14

w₂

4

w₃ tol. h11

27

w₄

27

Weight g

258

£ 13.61 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø16x32 EC:20193515 WG:05063055215282

R3390.L163

Size

16x32

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

16

l₁ ±0.5

32

d₂

M16

d₃

26

l₂ ±0.5

83

l₃

64

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

282

£ 20.07 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø16X32 EC:20193522 WG:05063055215299

R3390.L164

Size

16x32

Thread hand

Left

Thread type

Fine

d₁ tol. H9

16

l₁ ±0.5

32

d₂

M16x1,5

d₃

26

l₂ ±0.5

83

l₃

64

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

282

£ 20.07 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø16x64 EC:20193539 WG:05063055215305

R3390.L166

Size

16x64

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

16

l₁ ±0.5

64

d₂

M16

d₃

26

l₂ ±0.5

115

l₃

96

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

411

£ 26.05 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø16x64 EC:20193546 WG:05063055215312

R3390.L167

Size

16x64

Thread hand

Left

Thread type

Fine

d₁ tol. H9

16

l₁ ±0.5

64

d₂

M16x1,5

d₃

26

l₂ ±0.5

115

l₃

96

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

411

£ 26.05 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø18x36 EC:20193553 WG:05063055215329

R3390.L183

Size

18x36

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

18

l₁ ±0.5

36

d₂

M18

d₃

30

l₂ ±0.5

94

l₃

72

l₄

27.0

w₁ tol. B13

18

w₂

18

w₃ tol. h11

36

w₄

36

Weight g

390

£ 113.08 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø18x36 EC:20193560 WG:05063055215336

R3390.L184

Size

18x36

Thread hand

Left

Thread type

Fine

d₁ tol. H9

18

l₁ ±0.5

36

d₂

M18x1,5

d₃

30

l₂ ±0.5

94

l₃

72

l₄

27.0

w₁ tol. B13

18

w₂

18

w₃ tol. h11

36

w₄

36

Weight g

390

£ 113.08 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø20x40 EC:20193577 WG:05063055215343

R3390.L204

Size

20x40

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

20

l₁ ±0.5

40

d₂

M20

d₃

34

l₂ ±0.5

105

l₃

80

l₄

30.0

w₁ tol. B13

20

w₂

20

w₃ tol. h11

40

w₄

40

Weight g

550

£ 29.37 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø20x40 EC:20193584 WG:05063055215350

R3390.L205

Size

20x40

Thread hand

Left

Thread type

Fine

d₁ tol. H9

20

l₁ ±0.5

40

d₂

M20x1,5

d₃

34

l₂ ±0.5

105

l₃

80

l₄

30.0

w₁ tol. B13

20

w₂

20

w₃ tol. h11

40

w₄

40

Weight g

550

£ 29.37 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø20x80 EC:20193591 WG:05063055215367

R3390.L208

Size

20x80

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

20

l₁ ±0.5

80

d₂

M20

d₃

34

l₂ ±0.5

145

l₃

120

l₄

30.0

w₁ tol. B13

20

w₂

20

w₃ tol. h11

40

w₄

40

Weight g

800

£ 71.76 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø20x80 EC:20193607 WG:05063055215374

R3390.L209

Size

20x80

Thread hand

Left

Thread type

Fine

d₁ tol. H9

20

l₁ ±0.5

80

d₂

M20x1,5

d₃

34

l₂ ±0.5

145

l₃

120

l₄

30.0

w₁ tol. B13

20

w₂

20

w₃ tol. h11

40

w₄

40

Weight g

800

£ 71.76 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø25x50 EC:20193614 WG:05063055215381

R3390.L255

Size

25x50

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

25

l₁ ±0.5

50

d₂

M24

d₃

42

l₂ ±0.5

132

l₃

100

l₄

36.0

w₁ tol. B13

25

w₂

25

w₃ tol. h11

50

w₄

50

Weight g

1100

£ 91.82 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø25x50 EC:20193621 WG:05063055215398

R3390.L256

Size

25x50

Thread hand

Left

Thread type

Fine

d₁ tol. H9

25

l₁ ±0.5

50

d₂

M24x2

d₃

42

l₂ ±0.5

132

l₃

100

l₄

36.0

w₁ tol. B13

25

w₂

25

w₃ tol. h11

50

w₄

50

Weight g

1100

£ 103.92 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø28x56 EC:20193638 WG:05063055215404

R3390.L285

Size

28x56

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

28

l₁ ±0.5

56

d₂

M27

d₃

48

l₂ ±0.5

148

l₃

112

l₄

40.0

w₁ tol. B13

28

w₂

28

w₃ tol. h11

55

w₄

55

Weight g

1500

£ 185.08 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø28x56 EC:20193645 WG:05063055215411

R3390.L286

Size

28x56

Thread hand

Left

Thread type

Fine

d₁ tol. H9

28

l₁ ±0.5

56

d₂

M27x2

d₃

48

l₂ ±0.5

148

l₃

112

l₄

40.0

w₁ tol. B13

28

w₂

28

w₃ tol. h11

55

w₄

55

Weight g

1500

£ 185.08 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø30x54 EC:20193652 WG:05063055215428

R3390.L305

Size

30x54

Thread hand

Left

Thread type

Fine

d₁ tol. H9

30

l₁ ±0.5

54

d₂

M27x2

d₃

48

l₂ ±0.5

148

l₃

110

l₄

40.0

w₁ tol. B13

30

w₂

30

w₃ tol. h11

55

w₄

55

Weight g

1440

£ 187.11 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø30x60 EC:20193669 WG:05063055215435

R3390.L306

Size

30x60

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

30

l₁ ±0.5

60

d₂

M30

d₃

52

l₂ ±0.5

160

l₃

120

l₄

42.0

w₁ tol. B13

30

w₂

30

w₃ tol. h11

60

w₄

60

Weight g

1970

£ 187.11 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø30x60 EC:20193676 WG:05063055215442

R3390.L307

Size

30x60

Thread hand

Left

Thread type

Fine

d₁ tol. H9

30

l₁ ±0.5

60

d₂

M30x2

d₃

52

l₂ ±0.5

160

l₃

120

l₄

42.0

w₁ tol. B13

30

w₂

30

w₃ tol. h11

60

w₄

60

Weight g

1970

£ 187.11 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø35x54 EC:20193683 WG:05063055215459

R3390.L355

Size

35x54

Thread hand

Left

Thread type

Fine

d₁ tol. H9

35

l₁ ±0.5

54

d₂

M36x2

d₃

60

l₂ ±0.5

188

l₃

144

l₄

54.0

w₁ tol. B13

35

w₂

35

w₃ tol. h11

70

w₄

70

Weight g

2930

£ 193.05 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø35x72 EC:20193690 WG:05063055215466

R3390.L357

Size

35x72

Thread hand

Left

Thread type

Course

d₁ tol. H9

35

l₁ ±0.5

72

d₂

M36

d₃

60

l₂ ±0.5

188

l₃

144

l₄

54.0

w₁ tol. B13

35

w₂

35

w₃ tol. h11

70

w₄

70

Weight g

2930

£ 193.05 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø35x72 EC:20193706 WG:05063055215473

R3390.L358

Size

35x72

Thread hand

Left

Thread type

Fine

d₁ tol. H9

35

l₁ ±0.5

72

d₂

M36x2

d₃

60

l₂ ±0.5

188

l₃

144

l₄

54.0

w₁ tol. B13

35

w₂

35

w₃ tol. h11

70

w₄

70

Weight g

2930

£ 193.05 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø36x72 EC:20193713 WG:05063055215480

R3390.L367

Size

36x72

Thread hand

Left

Thread type

Course

d₁ tol. H9

35

l₁ ±0.5

72

d₂

M36

d₃

60

l₂ ±0.5

188

l₃

144

l₄

54.0

w₁ tol. B13

36

w₂

36

w₃ tol. h11

70

w₄

70

Weight g

2930

£ 193.05 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø36x72 EC:20193720 WG:05063055215497

R3390.L368

Size

36x72

Thread hand

Left

Thread type

Fine

d₁ tol. H9

35

l₁ ±0.5

72

d₂

M36x2

d₃

60

l₂ ±0.5

188

l₃

144

l₄

54.0

w₁ tol. B13

36

w₂

36

w₃ tol. h11

70

w₄

70

Weight g

2930

£ 193.05 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø40x84 EC:20193737 WG:05063055215503

R3390.L408

Size

40x84

Thread hand

Left

Thread type

Fine

d₁ tol. H9

40

l₁ ±0.5

84

d₂

M42x2

d₃

70

l₂ ±0.5

232

l₃

168

l₄

63.5

w₁ tol. B13

40

w₂

40

w₃ tol. h11

85

w₄

85

Weight g

5640

£ 242.77 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø42x84 EC:20193744 WG:05063055215510

R3390.L428

Size

42x84

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

42

l₁ ±0.5

84

d₂

M42

d₃

70

l₂ ±0.5

232

l₃

168

l₄

63.5

w₁ tol. B13

42

w₂

42

w₃ tol. h11

85

w₄

85

Weight g

5340

£ 245.14 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø42x84 EC:20193751 WG:05063055215527

R3390.L429

Size

42x84

Thread hand

Left

Thread type

Fine

d₁ tol. H9

42

l₁ ±0.5

84

d₂

M42x2

d₃

70

l₂ ±0.5

232

l₃

168

l₄

63.5

w₁ tol. B13

42

w₂

42

w₃ tol. h11

85

w₄

85

Weight g

5340

£ 245.14 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø50x96 EC:20193768 WG:05063055215534

R3390.L509

Size

50x96

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

50

l₁ ±0.5

96

d₂

M48

d₃

82

l₂ ±0.5

265

l₃

192

l₄

73.0

w₁ tol. B13

50

w₂

50

w₃ tol. h11

96

w₄

96

Weight g

7860

£ 360.46 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø50x96 EC:20193775 WG:05063055215541

R3390.L510

Size

50x96

Thread hand

Left

Thread type

Fine

d₁ tol. H9

50

l₁ ±0.5

96

d₂

M48x2

d₃

82

l₂ ±0.5

265

l₃

192

l₄

73.0

w₁ tol. B13

50

w₂

50

w₃ tol. h11

96

w₄

96

Weight g

7860

£ 360.46 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø5x10 EC:20193317 WG:05063055215084

R3390.L051

Size

5x10

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

5

l₁ ±0.5

10

d₂

M5

d₃

9

l₂ ±0.5

26

l₃

20

l₄

7.5

w₁ tol. B13

5

w₂

5

w₃ tol. h11

10

w₄

10

Weight g

9

£ 3.47 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø5x20 EC:20193324 WG:05063055215091

R3390.L052

Size

5x20

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

5

l₁ ±0.5

20

d₂

M5

d₃

9

l₂ ±0.5

36

l₃

30

l₄

7.5

w₁ tol. B13

5

w₂

5

w₃ tol. h11

10

w₄

10

Weight g

13

£ 3.61 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø6x12 EC:20193331 WG:05063055215107

R3390.L061

Size

6x12

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

6

l₁ ±0.5

12

d₂

M6

d₃

10

l₂ ±0.5

31

l₃

24

l₄

9.0

w₁ tol. B13

6

w₂

6

w₃ tol. h11

12

w₄

12

Weight g

15

£ 2.81 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø6x24 EC:20193348 WG:05063055215114

R3390.L062

Size

6x24

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

6

l₁ ±0.5

24

d₂

M6

d₃

10

l₂ ±0.5

43

l₃

36

l₄

9.0

w₁ tol. B13

6

w₂

6

w₃ tol. h11

12

w₄

12

Weight g

21

£ 2.91 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø8x16 EC:20193355 WG:05063055215121

R3390.L081

Size

8x16

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

8

l₁ ±0.5

16

d₂

M8

d₃

14

l₂ ±0.5

42

l₃

32

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

37

£ 3.42 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø8x16 EC:20193362 WG:05063055215138

R3390.L082

Size

8x16

Thread hand

Left

Thread type

Fine

d₁ tol. H9

8

l₁ ±0.5

16

d₂

M8x1

d₃

14

l₂ ±0.5

42

l₃

32

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

37

£ 3.42 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø8x32 EC:20193379 WG:05063055215145

R3390.L083

Size

8x32

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

8

l₁ ±0.5

32

d₂

M8

d₃

14

l₂ ±0.5

58

l₃

48

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

54

£ 3.80 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø8x32 EC:20193386 WG:05063055215152

R3390.L084

Size

8x32

Thread hand

Left

Thread type

Fine

d₁ tol. H9

8

l₁ ±0.5

32

d₂

M8x1

d₃

14

l₂ ±0.5

58

l₃

48

l₄

12.0

w₁ tol. B13

8

w₂

8

w₃ tol. h11

16

w₄

16

Weight g

54

£ 3.80 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø10x20 EC:20193393 WG:05063055215169

R3390.L102

Size

10x20

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

10

l₁ ±0.5

20

d₂

M10

d₃

18

l₂ ±0.5

52

l₃

40

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

74

£ 4.30 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø10x20 EC:20193409 WG:05063055215176

R3390.L103

Size

10x20

Thread hand

Left

Thread type

Fine

d₁ tol. H9

10

l₁ ±0.5

20

d₂

M10x1,25

d₃

18

l₂ ±0.5

52

l₃

40

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

74

£ 4.30 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø10x40 EC:20193416 WG:05063055215183

R3390.L104

Size

10x40

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

10

l₁ ±0.5

40

d₂

M10

d₃

18

l₂ ±0.5

72

l₃

60

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

116

£ 6.15 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø10x40 EC:20193423 WG:05063055215190

R3390.L105

Size

10x40

Thread hand

Left

Thread type

Fine

d₁ tol. H9

10

l₁ ±0.5

40

d₂

M10x1,25

d₃

18

l₂ ±0.5

72

l₃

60

l₄

15.0

w₁ tol. B13

10

w₂

10

w₃ tol. h11

20

w₄

20

Weight g

116

£ 6.15 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø12x24 EC:20193430 WG:05063055215206

R3390.L122

Size

12x24

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

12

l₁ ±0.5

24

d₂

M12

d₃

20

l₂ ±0.5

62

l₃

48

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

121

£ 7.70 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø12x24 EC:20193447 WG:05063055215213

R3390.L123

Size

12x24

Thread hand

Left

Thread type

Fine

d₁ tol. H9

12

l₁ ±0.5

24

d₂

M12x1,25

d₃

20

l₂ ±0.5

62

l₃

48

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

121

£ 7.70 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø12x48 EC:20193454 WG:05063055215220

R3390.L124

Size

12x48

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

12

l₁ ±0.5

48

d₂

M12

d₃

20

l₂ ±0.5

86

l₃

72

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

175

£ 12.99 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø12x48 EC:20193461 WG:05063055215237

R3390.L125

Size

12x48

Thread hand

Left

Thread type

Fine

d₁ tol. H9

12

l₁ ±0.5

48

d₂

M12x1,25

d₃

20

l₂ ±0.5

86

l₃

72

l₄

18.0

w₁ tol. B13

12

w₂

12

w₃ tol. h11

24

w₄

24

Weight g

175

£ 12.99 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø14X28 EC:20193478 WG:05063055215244

R3390.L142

Size

14x28

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

14

l₁ ±0.5

28

d₂

M14

d₃

24

l₂ ±0.5

72

l₃

56

l₄

22.5

w₁ tol. B13

14

w₂

14

w₃ tol. h11

27

w₄

27

Weight g

178

£ 13.43 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø14x28 EC:20193485 WG:05063055215251

R3390.L143

Size

14x28

Thread hand

Left

Thread type

Fine

d₁ tol. H9

14

l₁ ±0.5

28

d₂

M14x1,5

d₃

24

l₂ ±0.5

72

l₃

56

l₄

22.5

w₁ tol. B13

14

w₂

14

w₃ tol. h11

27

w₄

27

Weight g

178

£ 13.43 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø14x56 EC:20193492 WG:05063055215268

R3390.L145

Size

14x56

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

14

l₁ ±0.5

56

d₂

M14

d₃

24

l₂ ±0.5

101

l₃

85

l₄

22.5

w₁ tol. B13

14

w₂

14

w₃ tol. h11

27

w₄

27

Weight g

258

£ 13.61 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø14x56 EC:20193508 WG:05063055215275

R3390.L146

Size

14x56

Thread hand

Left

Thread type

Fine

d₁ tol. H9

14

l₁ ±0.5

56

d₂

M14x1,5

d₃

24

l₂ ±0.5

101

l₃

85

l₄

22.5

w₁ tol. B13

14

w₂

4

w₃ tol. h11

27

w₄

27

Weight g

258

£ 13.61 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø16x32 EC:20193515 WG:05063055215282

R3390.L163

Size

16x32

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

16

l₁ ±0.5

32

d₂

M16

d₃

26

l₂ ±0.5

83

l₃

64

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

282

£ 20.07 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø16X32 EC:20193522 WG:05063055215299

R3390.L164

Size

16x32

Thread hand

Left

Thread type

Fine

d₁ tol. H9

16

l₁ ±0.5

32

d₂

M16x1,5

d₃

26

l₂ ±0.5

83

l₃

64

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

282

£ 20.07 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø16x64 EC:20193539 WG:05063055215305

R3390.L166

Size

16x64

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

16

l₁ ±0.5

64

d₂

M16

d₃

26

l₂ ±0.5

115

l₃

96

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

411

£ 26.05 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø16x64 EC:20193546 WG:05063055215312

R3390.L167

Size

16x64

Thread hand

Left

Thread type

Fine

d₁ tol. H9

16

l₁ ±0.5

64

d₂

M16x1,5

d₃

26

l₂ ±0.5

115

l₃

96

l₄

24.0

w₁ tol. B13

16

w₂

16

w₃ tol. h11

32

w₄

32

Weight g

411

£ 26.05 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø18x36 EC:20193553 WG:05063055215329

R3390.L183

Size

18x36

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

18

l₁ ±0.5

36

d₂

M18

d₃

30

l₂ ±0.5

94

l₃

72

l₄

27.0

w₁ tol. B13

18

w₂

18

w₃ tol. h11

36

w₄

36

Weight g

390

£ 113.08 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø18x36 EC:20193560 WG:05063055215336

R3390.L184

Size

18x36

Thread hand

Left

Thread type

Fine

d₁ tol. H9

18

l₁ ±0.5

36

d₂

M18x1,5

d₃

30

l₂ ±0.5

94

l₃

72

l₄

27.0

w₁ tol. B13

18

w₂

18

w₃ tol. h11

36

w₄

36

Weight g

390

£ 113.08 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø20x40 EC:20193577 WG:05063055215343

R3390.L204

Size

20x40

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

20

l₁ ±0.5

40

d₂

M20

d₃

34

l₂ ±0.5

105

l₃

80

l₄

30.0

w₁ tol. B13

20

w₂

20

w₃ tol. h11

40

w₄

40

Weight g

550

£ 29.37 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø20x40 EC:20193584 WG:05063055215350

R3390.L205

Size

20x40

Thread hand

Left

Thread type

Fine

d₁ tol. H9

20

l₁ ±0.5

40

d₂

M20x1,5

d₃

34

l₂ ±0.5

105

l₃

80

l₄

30.0

w₁ tol. B13

20

w₂

20

w₃ tol. h11

40

w₄

40

Weight g

550

£ 29.37 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø20x80 EC:20193591 WG:05063055215367

R3390.L208

Size

20x80

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

20

l₁ ±0.5

80

d₂

M20

d₃

34

l₂ ±0.5

145

l₃

120

l₄

30.0

w₁ tol. B13

20

w₂

20

w₃ tol. h11

40

w₄

40

Weight g

800

£ 71.76 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø20x80 EC:20193607 WG:05063055215374

R3390.L209

Size

20x80

Thread hand

Left

Thread type

Fine

d₁ tol. H9

20

l₁ ±0.5

80

d₂

M20x1,5

d₃

34

l₂ ±0.5

145

l₃

120

l₄

30.0

w₁ tol. B13

20

w₂

20

w₃ tol. h11

40

w₄

40

Weight g

800

£ 71.76 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø25x50 EC:20193614 WG:05063055215381

R3390.L255

Size

25x50

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

25

l₁ ±0.5

50

d₂

M24

d₃

42

l₂ ±0.5

132

l₃

100

l₄

36.0

w₁ tol. B13

25

w₂

25

w₃ tol. h11

50

w₄

50

Weight g

1100

£ 91.82 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø25x50 EC:20193621 WG:05063055215398

R3390.L256

Size

25x50

Thread hand

Left

Thread type

Fine

d₁ tol. H9

25

l₁ ±0.5

50

d₂

M24x2

d₃

42

l₂ ±0.5

132

l₃

100

l₄

36.0

w₁ tol. B13

25

w₂

25

w₃ tol. h11

50

w₄

50

Weight g

1100

£ 103.92 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø28x56 EC:20193638 WG:05063055215404

R3390.L285

Size

28x56

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

28

l₁ ±0.5

56

d₂

M27

d₃

48

l₂ ±0.5

148

l₃

112

l₄

40.0

w₁ tol. B13

28

w₂

28

w₃ tol. h11

55

w₄

55

Weight g

1500

£ 185.08 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø28x56 EC:20193645 WG:05063055215411

R3390.L286

Size

28x56

Thread hand

Left

Thread type

Fine

d₁ tol. H9

28

l₁ ±0.5

56

d₂

M27x2

d₃

48

l₂ ±0.5

148

l₃

112

l₄

40.0

w₁ tol. B13

28

w₂

28

w₃ tol. h11

55

w₄

55

Weight g

1500

£ 185.08 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø30x54 EC:20193652 WG:05063055215428

R3390.L305

Size

30x54

Thread hand

Left

Thread type

Fine

d₁ tol. H9

30

l₁ ±0.5

54

d₂

M27x2

d₃

48

l₂ ±0.5

148

l₃

110

l₄

40.0

w₁ tol. B13

30

w₂

30

w₃ tol. h11

55

w₄

55

Weight g

1440

£ 187.11 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø30x60 EC:20193669 WG:05063055215435

R3390.L306

Size

30x60

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

30

l₁ ±0.5

60

d₂

M30

d₃

52

l₂ ±0.5

160

l₃

120

l₄

42.0

w₁ tol. B13

30

w₂

30

w₃ tol. h11

60

w₄

60

Weight g

1970

£ 187.11 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø30x60 EC:20193676 WG:05063055215442

R3390.L307

Size

30x60

Thread hand

Left

Thread type

Fine

d₁ tol. H9

30

l₁ ±0.5

60

d₂

M30x2

d₃

52

l₂ ±0.5

160

l₃

120

l₄

42.0

w₁ tol. B13

30

w₂

30

w₃ tol. h11

60

w₄

60

Weight g

1970

£ 187.11 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø35x54 EC:20193683 WG:05063055215459

R3390.L355

Size

35x54

Thread hand

Left

Thread type

Fine

d₁ tol. H9

35

l₁ ±0.5

54

d₂

M36x2

d₃

60

l₂ ±0.5

188

l₃

144

l₄

54.0

w₁ tol. B13

35

w₂

35

w₃ tol. h11

70

w₄

70

Weight g

2930

£ 193.05 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø35x72 EC:20193690 WG:05063055215466

R3390.L357

Size

35x72

Thread hand

Left

Thread type

Course

d₁ tol. H9

35

l₁ ±0.5

72

d₂

M36

d₃

60

l₂ ±0.5

188

l₃

144

l₄

54.0

w₁ tol. B13

35

w₂

35

w₃ tol. h11

70

w₄

70

Weight g

2930

£ 193.05 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø35x72 EC:20193706 WG:05063055215473

R3390.L358

Size

35x72

Thread hand

Left

Thread type

Fine

d₁ tol. H9

35

l₁ ±0.5

72

d₂

M36x2

d₃

60

l₂ ±0.5

188

l₃

144

l₄

54.0

w₁ tol. B13

35

w₂

35

w₃ tol. h11

70

w₄

70

Weight g

2930

£ 193.05 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø36x72 EC:20193713 WG:05063055215480

R3390.L367

Size

36x72

Thread hand

Left

Thread type

Course

d₁ tol. H9

35

l₁ ±0.5

72

d₂

M36

d₃

60

l₂ ±0.5

188

l₃

144

l₄

54.0

w₁ tol. B13

36

w₂

36

w₃ tol. h11

70

w₄

70

Weight g

2930

£ 193.05 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø36x72 EC:20193720 WG:05063055215497

R3390.L368

Size

36x72

Thread hand

Left

Thread type

Fine

d₁ tol. H9

35

l₁ ±0.5

72

d₂

M36x2

d₃

60

l₂ ±0.5

188

l₃

144

l₄

54.0

w₁ tol. B13

36

w₂

36

w₃ tol. h11

70

w₄

70

Weight g

2930

£ 193.05 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø40x84 EC:20193737 WG:05063055215503

R3390.L408

Size

40x84

Thread hand

Left

Thread type

Fine

d₁ tol. H9

40

l₁ ±0.5

84

d₂

M42x2

d₃

70

l₂ ±0.5

232

l₃

168

l₄

63.5

w₁ tol. B13

40

w₂

40

w₃ tol. h11

85

w₄

85

Weight g

5640

£ 242.77 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø42x84 EC:20193744 WG:05063055215510

R3390.L428

Size

42x84

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

42

l₁ ±0.5

84

d₂

M42

d₃

70

l₂ ±0.5

232

l₃

168

l₄

63.5

w₁ tol. B13

42

w₂

42

w₃ tol. h11

85

w₄

85

Weight g

5340

£ 245.14 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø42x84 EC:20193751 WG:05063055215527

R3390.L429

Size

42x84

Thread hand

Left

Thread type

Fine

d₁ tol. H9

42

l₁ ±0.5

84

d₂

M42x2

d₃

70

l₂ ±0.5

232

l₃

168

l₄

63.5

w₁ tol. B13

42

w₂

42

w₃ tol. h11

85

w₄

85

Weight g

5340

£ 245.14 per unit (click for quantity discounts)

Clevis Joint with Pin LH Coarse Ø50x96 EC:20193768 WG:05063055215534

R3390.L509

Size

50x96

Thread hand

Left

Thread type

Coarse

d₁ tol. H9

50

l₁ ±0.5

96

d₂

M48

d₃

82

l₂ ±0.5

265

l₃

192

l₄

73.0

w₁ tol. B13

50

w₂

50

w₃ tol. h11

96

w₄

96

Weight g

7860

£ 360.46 per unit (click for quantity discounts)

Clevis Joint with Pin LH Fine Ø50x96 EC:20193775 WG:05063055215541

R3390.L510

Size

50x96

Thread hand

Left

Thread type

Fine

d₁ tol. H9

50

l₁ ±0.5

96

d₂

M48x2

d₃

82

l₂ ±0.5

265

l₃

192

l₄

73.0

w₁ tol. B13

50

w₂

50

w₃ tol. h11

96

w₄

96

Weight g

7860

£ 360.46 per unit (click for quantity discounts)



Select all

Size

Thread hand

Thread type

d₁ tol. H9

l₁ ±0.5

d₂

d₃

l₂ ±0.5

l₃

l₄

w₁ tol. B13

w₂

w₃ tol. h11

w₄

Weight g

Price & Availability	Article	Size	Thread hand	Thread type	d1 tol. H9	l1 ±0.5	d2	d3	l2 ±0.5	l3	l4	w1 tol. B13	w2	w3 tol. h11	w4	Weight g
	R3390.L051	5x10	Left	Coarse	5	10	M5	9	26	20	7.5	5	5	10	10	9
£ 3.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 3.47 0% 50-99 £ 2.78 20% 100-199 £ 2.60 25% 200-499 £ 2.43 30% 500-999 £ 2.26 35% 1000+ £ 2.08 40% Size 5x10 Thread hand Left Thread type Coarse d1 tol. H9 5 l1 ±0.5 10 d2 M5 d3 9 l2 ±0.5 26 l3 20 l4 7.5 w1 tol. B13 5 w2 5 w3 tol. h11 10 w4 10 Weight g 9 more info »
	R3390.L052	5x20	Left	Coarse	5	20	M5	9	36	30	7.5	5	5	10	10	13
£ 3.61 per unit (click for quantity discounts) Ready to despatch 57 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 3.61 0% 50-99 £ 2.89 20% 100-199 £ 2.71 25% 200-499 £ 2.53 30% 500-999 £ 2.35 35% 1000+ £ 2.17 40% Size 5x20 Thread hand Left Thread type Coarse d1 tol. H9 5 l1 ±0.5 20 d2 M5 d3 9 l2 ±0.5 36 l3 30 l4 7.5 w1 tol. B13 5 w2 5 w3 tol. h11 10 w4 10 Weight g 13 more info »
	R3390.L061	6x12	Left	Coarse	6	12	M6	10	31	24	9.0	6	6	12	12	15
£ 2.81 per unit (click for quantity discounts) Ready to despatch 2 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 2.81 0% 50-99 £ 2.25 20% 100-199 £ 2.11 25% 200-499 £ 1.97 30% 500-999 £ 1.83 35% 1000+ £ 1.69 40% Size 6x12 Thread hand Left Thread type Coarse d1 tol. H9 6 l1 ±0.5 12 d2 M6 d3 10 l2 ±0.5 31 l3 24 l4 9.0 w1 tol. B13 6 w2 6 w3 tol. h11 12 w4 12 Weight g 15 more info »
	R3390.L062	6x24	Left	Coarse	6	24	M6	10	43	36	9.0	6	6	12	12	21
£ 2.91 per unit (click for quantity discounts) Ready to despatch 67 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 2.91 0% 50-99 £ 2.33 20% 100-199 £ 2.18 25% 200-499 £ 2.04 30% 500-999 £ 1.89 35% 1000+ £ 1.75 40% Size 6x24 Thread hand Left Thread type Coarse d1 tol. H9 6 l1 ±0.5 24 d2 M6 d3 10 l2 ±0.5 43 l3 36 l4 9.0 w1 tol. B13 6 w2 6 w3 tol. h11 12 w4 12 Weight g 21 more info »
	R3390.L081	8x16	Left	Coarse	8	16	M8	14	42	32	12.0	8	8	16	16	37
£ 3.42 per unit (click for quantity discounts) Ready to despatch 167 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 3.42 0% 50-99 £ 2.74 20% 100-199 £ 2.57 25% 200-499 £ 2.39 30% 500-999 £ 2.22 35% 1000+ £ 2.05 40% Size 8x16 Thread hand Left Thread type Coarse d1 tol. H9 8 l1 ±0.5 16 d2 M8 d3 14 l2 ±0.5 42 l3 32 l4 12.0 w1 tol. B13 8 w2 8 w3 tol. h11 16 w4 16 Weight g 37 more info »
	R3390.L082	8x16	Left	Fine	8	16	M8x1	14	42	32	12.0	8	8	16	16	37
£ 3.42 per unit (click for quantity discounts) Ready to despatch 167 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 3.42 0% 50-99 £ 2.74 20% 100-199 £ 2.57 25% 200-499 £ 2.39 30% 500-999 £ 2.22 35% 1000+ £ 2.05 40% Size 8x16 Thread hand Left Thread type Fine d1 tol. H9 8 l1 ±0.5 16 d2 M8x1 d3 14 l2 ±0.5 42 l3 32 l4 12.0 w1 tol. B13 8 w2 8 w3 tol. h11 16 w4 16 Weight g 37 more info »
	R3390.L083	8x32	Left	Coarse	8	32	M8	14	58	48	12.0	8	8	16	16	54
£ 3.80 per unit (click for quantity discounts) Ready to despatch 112 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 3.80 0% 50-99 £ 3.04 20% 100-199 £ 2.85 25% 200-499 £ 2.66 30% 500-999 £ 2.47 35% 1000+ £ 2.28 40% Size 8x32 Thread hand Left Thread type Coarse d1 tol. H9 8 l1 ±0.5 32 d2 M8 d3 14 l2 ±0.5 58 l3 48 l4 12.0 w1 tol. B13 8 w2 8 w3 tol. h11 16 w4 16 Weight g 54 more info »
	R3390.L084	8x32	Left	Fine	8	32	M8x1	14	58	48	12.0	8	8	16	16	54
£ 3.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 3.80 0% 50-99 £ 3.04 20% 100-199 £ 2.85 25% 200-499 £ 2.66 30% 500-999 £ 2.47 35% 1000+ £ 2.28 40% Size 8x32 Thread hand Left Thread type Fine d1 tol. H9 8 l1 ±0.5 32 d2 M8x1 d3 14 l2 ±0.5 58 l3 48 l4 12.0 w1 tol. B13 8 w2 8 w3 tol. h11 16 w4 16 Weight g 54 more info »
	R3390.L102	10x20	Left	Coarse	10	20	M10	18	52	40	15.0	10	10	20	20	74
£ 4.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 4.30 0% 50-99 £ 3.44 20% 100-199 £ 3.23 25% 200-499 £ 3.01 30% 500-999 £ 2.80 35% 1000+ £ 2.58 40% Size 10x20 Thread hand Left Thread type Coarse d1 tol. H9 10 l1 ±0.5 20 d2 M10 d3 18 l2 ±0.5 52 l3 40 l4 15.0 w1 tol. B13 10 w2 10 w3 tol. h11 20 w4 20 Weight g 74 more info »
	R3390.L103	10x20	Left	Fine	10	20	M10x1,25	18	52	40	15.0	10	10	20	20	74
£ 4.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 4.30 0% 50-99 £ 3.44 20% 100-199 £ 3.23 25% 200-499 £ 3.01 30% 500-999 £ 2.80 35% 1000+ £ 2.58 40% Size 10x20 Thread hand Left Thread type Fine d1 tol. H9 10 l1 ±0.5 20 d2 M10x1,25 d3 18 l2 ±0.5 52 l3 40 l4 15.0 w1 tol. B13 10 w2 10 w3 tol. h11 20 w4 20 Weight g 74 more info »
	R3390.L104	10x40	Left	Coarse	10	40	M10	18	72	60	15.0	10	10	20	20	116
£ 6.15 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 6.15 0% 50-99 £ 4.92 20% 100-199 £ 4.61 25% 200-499 £ 4.31 30% 500-999 £ 4.00 35% 1000+ £ 3.69 40% Size 10x40 Thread hand Left Thread type Coarse d1 tol. H9 10 l1 ±0.5 40 d2 M10 d3 18 l2 ±0.5 72 l3 60 l4 15.0 w1 tol. B13 10 w2 10 w3 tol. h11 20 w4 20 Weight g 116 more info »
	R3390.L105	10x40	Left	Fine	10	40	M10x1,25	18	72	60	15.0	10	10	20	20	116
£ 6.15 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 6.15 0% 50-99 £ 4.92 20% 100-199 £ 4.61 25% 200-499 £ 4.31 30% 500-999 £ 4.00 35% 1000+ £ 3.69 40% Size 10x40 Thread hand Left Thread type Fine d1 tol. H9 10 l1 ±0.5 40 d2 M10x1,25 d3 18 l2 ±0.5 72 l3 60 l4 15.0 w1 tol. B13 10 w2 10 w3 tol. h11 20 w4 20 Weight g 116 more info »
	R3390.L122	12x24	Left	Coarse	12	24	M12	20	62	48	18.0	12	12	24	24	121
£ 7.70 per unit (click for quantity discounts) Ready to despatch 99 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 7.70 0% 50-99 £ 6.16 20% 100-199 £ 5.78 25% 200-499 £ 5.39 30% 500-999 £ 5.01 35% 1000+ £ 4.62 40% Size 12x24 Thread hand Left Thread type Coarse d1 tol. H9 12 l1 ±0.5 24 d2 M12 d3 20 l2 ±0.5 62 l3 48 l4 18.0 w1 tol. B13 12 w2 12 w3 tol. h11 24 w4 24 Weight g 121 more info »
	R3390.L123	12x24	Left	Fine	12	24	M12x1,25	20	62	48	18.0	12	12	24	24	121
£ 7.70 per unit (click for quantity discounts) Ready to despatch 92 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 7.70 0% 50-99 £ 6.16 20% 100-199 £ 5.78 25% 200-499 £ 5.39 30% 500-999 £ 5.01 35% 1000+ £ 4.62 40% Size 12x24 Thread hand Left Thread type Fine d1 tol. H9 12 l1 ±0.5 24 d2 M12x1,25 d3 20 l2 ±0.5 62 l3 48 l4 18.0 w1 tol. B13 12 w2 12 w3 tol. h11 24 w4 24 Weight g 121 more info »
	R3390.L124	12x48	Left	Coarse	12	48	M12	20	86	72	18.0	12	12	24	24	175
£ 12.99 per unit (click for quantity discounts) Ready to despatch 99 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 12.99 0% 50-99 £ 10.39 20% 100-199 £ 9.74 25% 200-499 £ 9.09 30% 500-999 £ 8.44 35% 1000+ £ 7.79 40% Size 12x48 Thread hand Left Thread type Coarse d1 tol. H9 12 l1 ±0.5 48 d2 M12 d3 20 l2 ±0.5 86 l3 72 l4 18.0 w1 tol. B13 12 w2 12 w3 tol. h11 24 w4 24 Weight g 175 more info »
	R3390.L125	12x48	Left	Fine	12	48	M12x1,25	20	86	72	18.0	12	12	24	24	175
£ 12.99 per unit (click for quantity discounts) Ready to despatch 191 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 12.99 0% 50-99 £ 10.39 20% 100-199 £ 9.74 25% 200-499 £ 9.09 30% 500-999 £ 8.44 35% 1000+ £ 7.79 40% Size 12x48 Thread hand Left Thread type Fine d1 tol. H9 12 l1 ±0.5 48 d2 M12x1,25 d3 20 l2 ±0.5 86 l3 72 l4 18.0 w1 tol. B13 12 w2 12 w3 tol. h11 24 w4 24 Weight g 175 more info »
	R3390.L142	14x28	Left	Coarse	14	28	M14	24	72	56	22.5	14	14	27	27	178
£ 13.43 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 13.43 0% 50-99 £ 10.74 20% 100-199 £ 10.07 25% 200-499 £ 9.40 30% 500-999 £ 8.73 35% 1000+ £ 8.06 40% Size 14x28 Thread hand Left Thread type Coarse d1 tol. H9 14 l1 ±0.5 28 d2 M14 d3 24 l2 ±0.5 72 l3 56 l4 22.5 w1 tol. B13 14 w2 14 w3 tol. h11 27 w4 27 Weight g 178 more info »
	R3390.L143	14x28	Left	Fine	14	28	M14x1,5	24	72	56	22.5	14	14	27	27	178
£ 13.43 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 13.43 0% 50-99 £ 10.74 20% 100-199 £ 10.07 25% 200-499 £ 9.40 30% 500-999 £ 8.73 35% 1000+ £ 8.06 40% Size 14x28 Thread hand Left Thread type Fine d1 tol. H9 14 l1 ±0.5 28 d2 M14x1,5 d3 24 l2 ±0.5 72 l3 56 l4 22.5 w1 tol. B13 14 w2 14 w3 tol. h11 27 w4 27 Weight g 178 more info »
	R3390.L145	14x56	Left	Coarse	14	56	M14	24	101	85	22.5	14	14	27	27	258
£ 13.61 per unit (click for quantity discounts) Ready to despatch 16 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 13.61 0% 50-99 £ 10.89 20% 100-199 £ 10.21 25% 200-499 £ 9.53 30% 500-999 £ 8.85 35% 1000+ £ 8.17 40% Size 14x56 Thread hand Left Thread type Coarse d1 tol. H9 14 l1 ±0.5 56 d2 M14 d3 24 l2 ±0.5 101 l3 85 l4 22.5 w1 tol. B13 14 w2 14 w3 tol. h11 27 w4 27 Weight g 258 more info »
	R3390.L146	14x56	Left	Fine	14	56	M14x1,5	24	101	85	22.5	14	4	27	27	258
£ 13.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 13.61 0% 50-99 £ 10.89 20% 100-199 £ 10.21 25% 200-499 £ 9.53 30% 500-999 £ 8.85 35% 1000+ £ 8.17 40% Size 14x56 Thread hand Left Thread type Fine d1 tol. H9 14 l1 ±0.5 56 d2 M14x1,5 d3 24 l2 ±0.5 101 l3 85 l4 22.5 w1 tol. B13 14 w2 4 w3 tol. h11 27 w4 27 Weight g 258 more info »
	R3390.L163	16x32	Left	Coarse	16	32	M16	26	83	64	24.0	16	16	32	32	282
£ 20.07 per unit (click for quantity discounts) Ready to despatch 82 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 20.07 0% 50-99 £ 16.06 20% 100-199 £ 15.05 25% 200-499 £ 14.05 30% 500-999 £ 13.05 35% 1000+ £ 12.04 40% Size 16x32 Thread hand Left Thread type Coarse d1 tol. H9 16 l1 ±0.5 32 d2 M16 d3 26 l2 ±0.5 83 l3 64 l4 24.0 w1 tol. B13 16 w2 16 w3 tol. h11 32 w4 32 Weight g 282 more info »
	R3390.L164	16x32	Left	Fine	16	32	M16x1,5	26	83	64	24.0	16	16	32	32	282
£ 20.07 per unit (click for quantity discounts) Ready to despatch 18 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 20.07 0% 50-99 £ 16.06 20% 100-199 £ 15.05 25% 200-499 £ 14.05 30% 500-999 £ 13.05 35% 1000+ £ 12.04 40% Size 16x32 Thread hand Left Thread type Fine d1 tol. H9 16 l1 ±0.5 32 d2 M16x1,5 d3 26 l2 ±0.5 83 l3 64 l4 24.0 w1 tol. B13 16 w2 16 w3 tol. h11 32 w4 32 Weight g 282 more info »
	R3390.L166	16x64	Left	Coarse	16	64	M16	26	115	96	24.0	16	16	32	32	411
£ 26.05 per unit (click for quantity discounts) Ready to despatch 25 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 26.05 0% 50-99 £ 20.84 20% 100-199 £ 19.54 25% 200-499 £ 18.24 30% 500-999 £ 16.93 35% 1000+ £ 15.63 40% Size 16x64 Thread hand Left Thread type Coarse d1 tol. H9 16 l1 ±0.5 64 d2 M16 d3 26 l2 ±0.5 115 l3 96 l4 24.0 w1 tol. B13 16 w2 16 w3 tol. h11 32 w4 32 Weight g 411 more info »
	R3390.L167	16x64	Left	Fine	16	64	M16x1,5	26	115	96	24.0	16	16	32	32	411
£ 26.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 26.05 0% 50-99 £ 20.84 20% 100-199 £ 19.54 25% 200-499 £ 18.24 30% 500-999 £ 16.93 35% 1000+ £ 15.63 40% Size 16x64 Thread hand Left Thread type Fine d1 tol. H9 16 l1 ±0.5 64 d2 M16x1,5 d3 26 l2 ±0.5 115 l3 96 l4 24.0 w1 tol. B13 16 w2 16 w3 tol. h11 32 w4 32 Weight g 411 more info »
	R3390.L183	18x36	Left	Coarse	18	36	M18	30	94	72	27.0	18	18	36	36	390
£ 113.08 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 113.08 0% 50-99 £ 90.46 20% 100-199 £ 84.81 25% 200-499 £ 79.16 30% 500-999 £ 73.50 35% 1000+ £ 67.85 40% Size 18x36 Thread hand Left Thread type Coarse d1 tol. H9 18 l1 ±0.5 36 d2 M18 d3 30 l2 ±0.5 94 l3 72 l4 27.0 w1 tol. B13 18 w2 18 w3 tol. h11 36 w4 36 Weight g 390 more info »
	R3390.L184	18x36	Left	Fine	18	36	M18x1,5	30	94	72	27.0	18	18	36	36	390
£ 113.08 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 113.08 0% 50-99 £ 90.46 20% 100-199 £ 84.81 25% 200-499 £ 79.16 30% 500-999 £ 73.50 35% 1000+ £ 67.85 40% Size 18x36 Thread hand Left Thread type Fine d1 tol. H9 18 l1 ±0.5 36 d2 M18x1,5 d3 30 l2 ±0.5 94 l3 72 l4 27.0 w1 tol. B13 18 w2 18 w3 tol. h11 36 w4 36 Weight g 390 more info »
	R3390.L204	20x40	Left	Coarse	20	40	M20	34	105	80	30.0	20	20	40	40	550
£ 29.37 per unit (click for quantity discounts) Ready to despatch 23 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 29.37 0% 50-99 £ 23.50 20% 100-199 £ 22.03 25% 200-499 £ 20.56 30% 500-999 £ 19.09 35% 1000+ £ 17.62 40% Size 20x40 Thread hand Left Thread type Coarse d1 tol. H9 20 l1 ±0.5 40 d2 M20 d3 34 l2 ±0.5 105 l3 80 l4 30.0 w1 tol. B13 20 w2 20 w3 tol. h11 40 w4 40 Weight g 550 more info »
	R3390.L205	20x40	Left	Fine	20	40	M20x1,5	34	105	80	30.0	20	20	40	40	550
£ 29.37 per unit (click for quantity discounts) Ready to despatch 14 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 29.37 0% 50-99 £ 23.50 20% 100-199 £ 22.03 25% 200-499 £ 20.56 30% 500-999 £ 19.09 35% 1000+ £ 17.62 40% Size 20x40 Thread hand Left Thread type Fine d1 tol. H9 20 l1 ±0.5 40 d2 M20x1,5 d3 34 l2 ±0.5 105 l3 80 l4 30.0 w1 tol. B13 20 w2 20 w3 tol. h11 40 w4 40 Weight g 550 more info »
	R3390.L208	20x80	Left	Coarse	20	80	M20	34	145	120	30.0	20	20	40	40	800
£ 71.76 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 71.76 0% 50-99 £ 57.41 20% 100-199 £ 53.82 25% 200-499 £ 50.23 30% 500-999 £ 46.64 35% 1000+ £ 43.06 40% Size 20x80 Thread hand Left Thread type Coarse d1 tol. H9 20 l1 ±0.5 80 d2 M20 d3 34 l2 ±0.5 145 l3 120 l4 30.0 w1 tol. B13 20 w2 20 w3 tol. h11 40 w4 40 Weight g 800 more info »
	R3390.L209	20x80	Left	Fine	20	80	M20x1,5	34	145	120	30.0	20	20	40	40	800
£ 71.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 71.76 0% 50-99 £ 57.41 20% 100-199 £ 53.82 25% 200-499 £ 50.23 30% 500-999 £ 46.64 35% 1000+ £ 43.06 40% Size 20x80 Thread hand Left Thread type Fine d1 tol. H9 20 l1 ±0.5 80 d2 M20x1,5 d3 34 l2 ±0.5 145 l3 120 l4 30.0 w1 tol. B13 20 w2 20 w3 tol. h11 40 w4 40 Weight g 800 more info »
	R3390.L255	25x50	Left	Coarse	25	50	M24	42	132	100	36.0	25	25	50	50	1100
£ 91.82 per unit (click for quantity discounts) Ready to despatch 7 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 91.82 0% 50-99 £ 73.46 20% 100-199 £ 68.87 25% 200-499 £ 64.27 30% 500-999 £ 59.68 35% 1000+ £ 55.09 40% Size 25x50 Thread hand Left Thread type Coarse d1 tol. H9 25 l1 ±0.5 50 d2 M24 d3 42 l2 ±0.5 132 l3 100 l4 36.0 w1 tol. B13 25 w2 25 w3 tol. h11 50 w4 50 Weight g 1100 more info »
	R3390.L256	25x50	Left	Fine	25	50	M24x2	42	132	100	36.0	25	25	50	50	1100
£ 103.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 103.92 0% 50-99 £ 83.14 20% 100-199 £ 77.94 25% 200-499 £ 72.74 30% 500-999 £ 67.55 35% 1000+ £ 62.35 40% Size 25x50 Thread hand Left Thread type Fine d1 tol. H9 25 l1 ±0.5 50 d2 M24x2 d3 42 l2 ±0.5 132 l3 100 l4 36.0 w1 tol. B13 25 w2 25 w3 tol. h11 50 w4 50 Weight g 1100 more info »
	R3390.L285	28x56	Left	Coarse	28	56	M27	48	148	112	40.0	28	28	55	55	1500
£ 185.08 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 185.08 0% 50-99 £ 148.06 20% 100-199 £ 138.81 25% 200-499 £ 129.56 30% 500-999 £ 120.30 35% 1000+ £ 111.05 40% Size 28x56 Thread hand Left Thread type Coarse d1 tol. H9 28 l1 ±0.5 56 d2 M27 d3 48 l2 ±0.5 148 l3 112 l4 40.0 w1 tol. B13 28 w2 28 w3 tol. h11 55 w4 55 Weight g 1500 more info »
	R3390.L286	28x56	Left	Fine	28	56	M27x2	48	148	112	40.0	28	28	55	55	1500
£ 185.08 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 185.08 0% 50-99 £ 148.06 20% 100-199 £ 138.81 25% 200-499 £ 129.56 30% 500-999 £ 120.30 35% 1000+ £ 111.05 40% Size 28x56 Thread hand Left Thread type Fine d1 tol. H9 28 l1 ±0.5 56 d2 M27x2 d3 48 l2 ±0.5 148 l3 112 l4 40.0 w1 tol. B13 28 w2 28 w3 tol. h11 55 w4 55 Weight g 1500 more info »
	R3390.L305	30x54	Left	Fine	30	54	M27x2	48	148	110	40.0	30	30	55	55	1440
£ 187.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 187.11 0% 50-99 £ 149.69 20% 100-199 £ 140.33 25% 200-499 £ 130.98 30% 500-999 £ 121.62 35% 1000+ £ 112.27 40% Size 30x54 Thread hand Left Thread type Fine d1 tol. H9 30 l1 ±0.5 54 d2 M27x2 d3 48 l2 ±0.5 148 l3 110 l4 40.0 w1 tol. B13 30 w2 30 w3 tol. h11 55 w4 55 Weight g 1440 more info »
	R3390.L306	30x60	Left	Coarse	30	60	M30	52	160	120	42.0	30	30	60	60	1970
£ 187.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 187.11 0% 50-99 £ 149.69 20% 100-199 £ 140.33 25% 200-499 £ 130.98 30% 500-999 £ 121.62 35% 1000+ £ 112.27 40% Size 30x60 Thread hand Left Thread type Coarse d1 tol. H9 30 l1 ±0.5 60 d2 M30 d3 52 l2 ±0.5 160 l3 120 l4 42.0 w1 tol. B13 30 w2 30 w3 tol. h11 60 w4 60 Weight g 1970 more info »
	R3390.L307	30x60	Left	Fine	30	60	M30x2	52	160	120	42.0	30	30	60	60	1970
£ 187.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 187.11 0% 50-99 £ 149.69 20% 100-199 £ 140.33 25% 200-499 £ 130.98 30% 500-999 £ 121.62 35% 1000+ £ 112.27 40% Size 30x60 Thread hand Left Thread type Fine d1 tol. H9 30 l1 ±0.5 60 d2 M30x2 d3 52 l2 ±0.5 160 l3 120 l4 42.0 w1 tol. B13 30 w2 30 w3 tol. h11 60 w4 60 Weight g 1970 more info »
	R3390.L355	35x54	Left	Fine	35	54	M36x2	60	188	144	54.0	35	35	70	70	2930
£ 193.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 193.05 0% 50-99 £ 154.44 20% 100-199 £ 144.79 25% 200-499 £ 135.14 30% 500-999 £ 125.48 35% 1000+ £ 115.83 40% Size 35x54 Thread hand Left Thread type Fine d1 tol. H9 35 l1 ±0.5 54 d2 M36x2 d3 60 l2 ±0.5 188 l3 144 l4 54.0 w1 tol. B13 35 w2 35 w3 tol. h11 70 w4 70 Weight g 2930 more info »
	R3390.L357	35x72	Left	Course	35	72	M36	60	188	144	54.0	35	35	70	70	2930
£ 193.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 193.05 0% 50-99 £ 154.44 20% 100-199 £ 144.79 25% 200-499 £ 135.14 30% 500-999 £ 125.48 35% 1000+ £ 115.83 40% Size 35x72 Thread hand Left Thread type Course d1 tol. H9 35 l1 ±0.5 72 d2 M36 d3 60 l2 ±0.5 188 l3 144 l4 54.0 w1 tol. B13 35 w2 35 w3 tol. h11 70 w4 70 Weight g 2930 more info »
	R3390.L358	35x72	Left	Fine	35	72	M36x2	60	188	144	54.0	35	35	70	70	2930
£ 193.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 193.05 0% 50-99 £ 154.44 20% 100-199 £ 144.79 25% 200-499 £ 135.14 30% 500-999 £ 125.48 35% 1000+ £ 115.83 40% Size 35x72 Thread hand Left Thread type Fine d1 tol. H9 35 l1 ±0.5 72 d2 M36x2 d3 60 l2 ±0.5 188 l3 144 l4 54.0 w1 tol. B13 35 w2 35 w3 tol. h11 70 w4 70 Weight g 2930 more info »
	R3390.L367	36x72	Left	Course	35	72	M36	60	188	144	54.0	36	36	70	70	2930
£ 193.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 193.05 0% 50-99 £ 154.44 20% 100-199 £ 144.79 25% 200-499 £ 135.14 30% 500-999 £ 125.48 35% 1000+ £ 115.83 40% Size 36x72 Thread hand Left Thread type Course d1 tol. H9 35 l1 ±0.5 72 d2 M36 d3 60 l2 ±0.5 188 l3 144 l4 54.0 w1 tol. B13 36 w2 36 w3 tol. h11 70 w4 70 Weight g 2930 more info »
	R3390.L368	36x72	Left	Fine	35	72	M36x2	60	188	144	54.0	36	36	70	70	2930
£ 193.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 193.05 0% 50-99 £ 154.44 20% 100-199 £ 144.79 25% 200-499 £ 135.14 30% 500-999 £ 125.48 35% 1000+ £ 115.83 40% Size 36x72 Thread hand Left Thread type Fine d1 tol. H9 35 l1 ±0.5 72 d2 M36x2 d3 60 l2 ±0.5 188 l3 144 l4 54.0 w1 tol. B13 36 w2 36 w3 tol. h11 70 w4 70 Weight g 2930 more info »
	R3390.L408	40x84	Left	Fine	40	84	M42x2	70	232	168	63.5	40	40	85	85	5640
£ 242.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 242.77 0% 50-99 £ 194.22 20% 100-199 £ 182.08 25% 200-499 £ 169.94 30% 500-999 £ 157.80 35% 1000+ £ 145.66 40% Size 40x84 Thread hand Left Thread type Fine d1 tol. H9 40 l1 ±0.5 84 d2 M42x2 d3 70 l2 ±0.5 232 l3 168 l4 63.5 w1 tol. B13 40 w2 40 w3 tol. h11 85 w4 85 Weight g 5640 more info »
	R3390.L428	42x84	Left	Coarse	42	84	M42	70	232	168	63.5	42	42	85	85	5340
£ 245.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 245.14 0% 50-99 £ 196.11 20% 100-199 £ 183.86 25% 200-499 £ 171.60 30% 500-999 £ 159.34 35% 1000+ £ 147.08 40% Size 42x84 Thread hand Left Thread type Coarse d1 tol. H9 42 l1 ±0.5 84 d2 M42 d3 70 l2 ±0.5 232 l3 168 l4 63.5 w1 tol. B13 42 w2 42 w3 tol. h11 85 w4 85 Weight g 5340 more info »
	R3390.L429	42x84	Left	Fine	42	84	M42x2	70	232	168	63.5	42	42	85	85	5340
£ 245.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 245.14 0% 50-99 £ 196.11 20% 100-199 £ 183.86 25% 200-499 £ 171.60 30% 500-999 £ 159.34 35% 1000+ £ 147.08 40% Size 42x84 Thread hand Left Thread type Fine d1 tol. H9 42 l1 ±0.5 84 d2 M42x2 d3 70 l2 ±0.5 232 l3 168 l4 63.5 w1 tol. B13 42 w2 42 w3 tol. h11 85 w4 85 Weight g 5340 more info »
	R3390.L509	50x96	Left	Coarse	50	96	M48	82	265	192	73.0	50	50	96	96	7860
£ 360.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 360.46 0% 50-99 £ 288.37 20% 100-199 £ 270.35 25% 200-499 £ 252.32 30% 500-999 £ 234.30 35% 1000+ £ 216.28 40% Size 50x96 Thread hand Left Thread type Coarse d1 tol. H9 50 l1 ±0.5 96 d2 M48 d3 82 l2 ±0.5 265 l3 192 l4 73.0 w1 tol. B13 50 w2 50 w3 tol. h11 96 w4 96 Weight g 7860 more info »
	R3390.L510	50x96	Left	Fine	50	96	M48x2	82	265	192	73.0	50	50	96	96	7860
£ 360.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 360.46 0% 50-99 £ 288.37 20% 100-199 £ 270.35 25% 200-499 £ 252.32 30% 500-999 £ 234.30 35% 1000+ £ 216.28 40% Size 50x96 Thread hand Left Thread type Fine d1 tol. H9 50 l1 ±0.5 96 d2 M48x2 d3 82 l2 ±0.5 265 l3 192 l4 73.0 w1 tol. B13 50 w2 50 w3 tol. h11 96 w4 96 Weight g 7860 more info »
