Clevis Joints
Steel

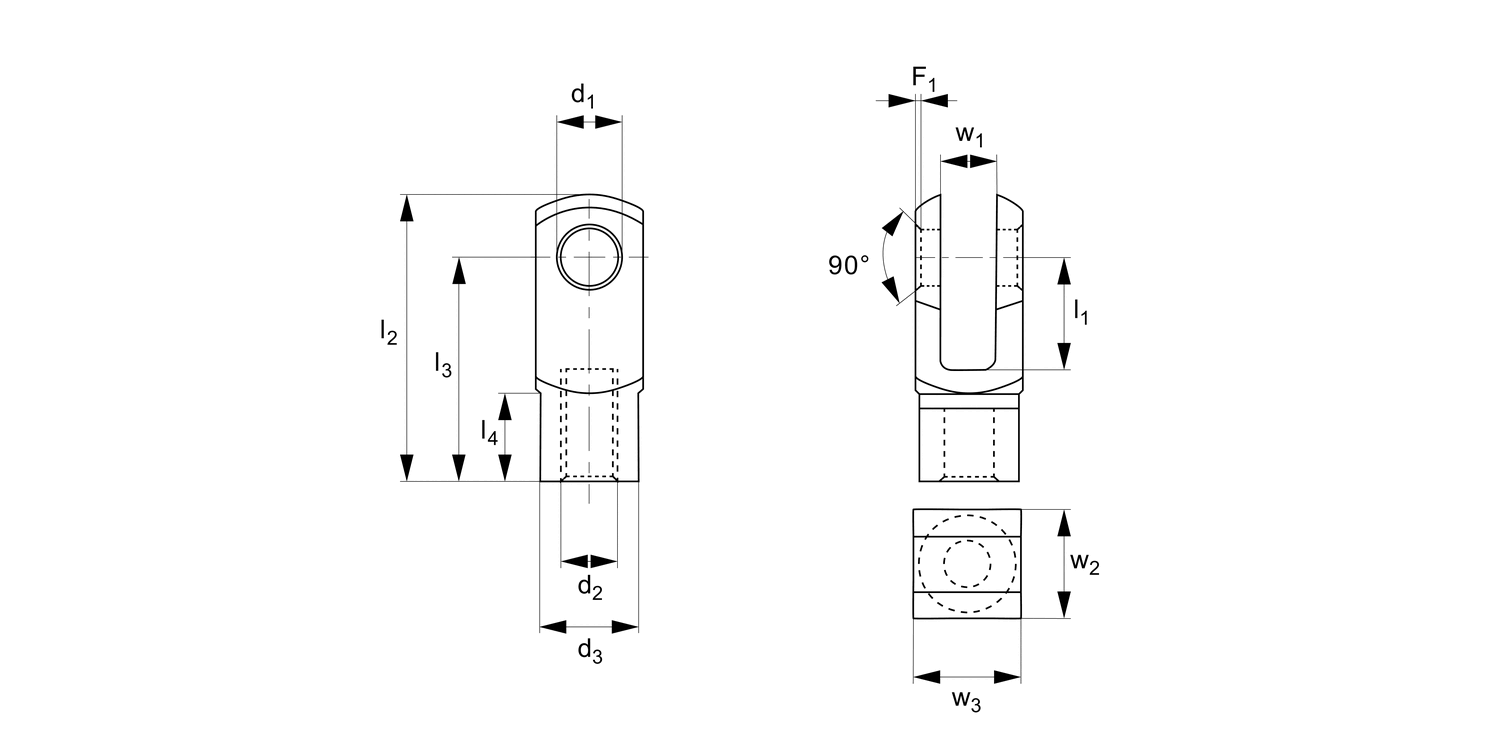

Price & Availability | Article | Size | Thread hand | Thread type | d1 tol. h9 | l1 tol. h11 | d2 tol. 6H | d3 +0.3|-0.3 | f +0.3|-0.3 | l2 ±0.5 | l3 +0.3|-0.3 | |||||||||||||||||||||
R3409.R040 | 4x8 | Right | Coarse | 4 | 8 | M3,5 | 8.0 | 0.5 | 21.0 | 16.0 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 4x8 Thread hand Right Thread type Coarse d1
tol. h9 4 l1
tol. h11 8 d2
tol. 6H M3,5 d3
+0.3|-0.3 8.0 f
+0.3|-0.3 0.5 l2
±0.5 21.0 l3
+0.3|-0.3 16.0 | ||||||||||||||||||||||||||||||||
R3409.R041 | 4x8 | Right | Coarse | 4 | 8 | M4 | 8.0 | 0.5 | 21.0 | 16.0 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 4x8 Thread hand Right Thread type Coarse d1
tol. h9 4 l1
tol. h11 8 d2
tol. 6H M4 d3
+0.3|-0.3 8.0 f
+0.3|-0.3 0.5 l2
±0.5 21.0 l3
+0.3|-0.3 16.0 | ||||||||||||||||||||||||||||||||
R3409.R042 | 5x10 | Right | Coarse | 5 | 10 | M4 | 9.0 | 0.5 | 25.5 | 20.0 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 25 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 5x10 Thread hand Right Thread type Coarse d1
tol. h9 5 l1
tol. h11 10 d2
tol. 6H M4 d3
+0.3|-0.3 9.0 f
+0.3|-0.3 0.5 l2
±0.5 25.5 l3
+0.3|-0.3 20.0 | ||||||||||||||||||||||||||||||||
R3409.R051 | 5x10 | Right | Coarse | 5 | 10 | M5 | 9.0 | 0.5 | 25.5 | 20.0 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 5x10 Thread hand Right Thread type Coarse d1
tol. h9 5 l1
tol. h11 10 d2
tol. 6H M5 d3
+0.3|-0.3 9.0 f
+0.3|-0.3 0.5 l2
±0.5 25.5 l3
+0.3|-0.3 20.0 | ||||||||||||||||||||||||||||||||
R3409.R052 | 5x12 | Right | Coarse | 5 | 12 | M5 | 10.0 | 0.5 | 30.6 | 24.0 | ||||||||||||||||||||||
£ 10.08 per unit (click for quantity discounts) Ready to despatch 39 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 5x12 Thread hand Right Thread type Coarse d1
tol. h9 5 l1
tol. h11 12 d2
tol. 6H M5 d3
+0.3|-0.3 10.0 f
+0.3|-0.3 0.5 l2
±0.5 30.6 l3
+0.3|-0.3 24.0 | ||||||||||||||||||||||||||||||||
R3409.R061 | 6x12 | Right | Coarse | 6 | 12 | M6 | 10.0 | 0.5 | 30.6 | 24.0 | ||||||||||||||||||||||
£ 8.44 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 6x12 Thread hand Right Thread type Coarse d1
tol. h9 6 l1
tol. h11 12 d2
tol. 6H M6 d3
+0.3|-0.3 10.0 f
+0.3|-0.3 0.5 l2
±0.5 30.6 l3
+0.3|-0.3 24.0 | ||||||||||||||||||||||||||||||||
R3409.R081 | 8x16 | Right | Coarse | 8 | 16 | M8 | 14.0 | 0.5 | 41.6 | 32.0 | ||||||||||||||||||||||
£ 9.23 per unit (click for quantity discounts) Ready to despatch 28 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 8x16 Thread hand Right Thread type Coarse d1
tol. h9 8 l1
tol. h11 16 d2
tol. 6H M8 d3
+0.3|-0.3 14.0 f
+0.3|-0.3 0.5 l2
±0.5 41.6 l3
+0.3|-0.3 32.0 | ||||||||||||||||||||||||||||||||
R3409.R102 | 10x20 | Right | Coarse | 10 | 20 | M10 | 18.0 | 0.5 | 51.3 | 40.0 | ||||||||||||||||||||||
£ 10.12 per unit (click for quantity discounts) Ready to despatch 13 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 10x20 Thread hand Right Thread type Coarse d1
tol. h9 10 l1
tol. h11 20 d2
tol. 6H M10 d3
+0.3|-0.3 18.0 f
+0.3|-0.3 0.5 l2
±0.5 51.3 l3
+0.3|-0.3 40.0 | ||||||||||||||||||||||||||||||||
R3409.R103 | 10x20 | Right | Fine | 10 | 20 | M10x1,25 | 18.0 | 0.5 | 51.3 | 40.0 | ||||||||||||||||||||||
£ 10.12 per unit (click for quantity discounts) Ready to despatch 26 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 10x20 Thread hand Right Thread type Fine d1
tol. h9 10 l1
tol. h11 20 d2
tol. 6H M10x1,25 d3
+0.3|-0.3 18.0 f
+0.3|-0.3 0.5 l2
±0.5 51.3 l3
+0.3|-0.3 40.0 | ||||||||||||||||||||||||||||||||
R3409.R122 | 12x24 | Right | Coarse | 12 | 24 | M12 | 20.0 | 0.5 | 61.3 | 48.0 | ||||||||||||||||||||||
£ 11.89 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 12x24 Thread hand Right Thread type Coarse d1
tol. h9 12 l1
tol. h11 24 d2
tol. 6H M12 d3
+0.3|-0.3 20.0 f
+0.3|-0.3 0.5 l2
±0.5 61.3 l3
+0.3|-0.3 48.0 | ||||||||||||||||||||||||||||||||
R3409.R123 | 12x24 | Right | Fine | 12 | 24 | M12x1,25 | 20.0 | 0.5 | 61.3 | 48.0 | ||||||||||||||||||||||
£ 11.89 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 12x24 Thread hand Right Thread type Fine d1
tol. h9 12 l1
tol. h11 24 d2
tol. 6H M12x1,25 d3
+0.3|-0.3 20.0 f
+0.3|-0.3 0.5 l2
±0.5 61.3 l3
+0.3|-0.3 48.0 | ||||||||||||||||||||||||||||||||
R3409.R142 | 14x28 | Right | Coarse | 14 | 28 | M14 | 24.0 | 0.5 | 71.3 | 56.0 | ||||||||||||||||||||||
£ 14.35 per unit (click for quantity discounts) Ready to despatch 18 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 14x28 Thread hand Right Thread type Coarse d1
tol. h9 14 l1
tol. h11 28 d2
tol. 6H M14 d3
+0.3|-0.3 24.0 f
+0.3|-0.3 0.5 l2
±0.5 71.3 l3
+0.3|-0.3 56.0 | ||||||||||||||||||||||||||||||||
R3409.R152 | 15x28 | Right | Coarse | 15 | 28 | M14 | 24.0 | 0.5 | 71.3 | 56.0 | ||||||||||||||||||||||
£ 14.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 15x28 Thread hand Right Thread type Coarse d1
tol. h9 15 l1
tol. h11 28 d2
tol. 6H M14 d3
+0.3|-0.3 24.0 f
+0.3|-0.3 0.5 l2
±0.5 71.3 l3
+0.3|-0.3 56.0 | ||||||||||||||||||||||||||||||||
R3409.R163 | 16x32 | Right | Coarse | 16 | 32 | M16 | 26.0 | 1.0 | 81.9 | 64.0 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 16x32 Thread hand Right Thread type Coarse d1
tol. h9 16 l1
tol. h11 32 d2
tol. 6H M16 d3
+0.3|-0.3 26.0 f
+0.3|-0.3 1.0 l2
±0.5 81.9 l3
+0.3|-0.3 64.0 | ||||||||||||||||||||||||||||||||
R3409.R164 | 16x32 | Right | Fine | 16 | 32 | M16x1,5 | 26.0 | 1.0 | 81.9 | 64.0 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 16x32 Thread hand Right Thread type Fine d1
tol. h9 16 l1
tol. h11 32 d2
tol. 6H M16x1,5 d3
+0.3|-0.3 26.0 f
+0.3|-0.3 1.0 l2
±0.5 81.9 l3
+0.3|-0.3 64.0 | ||||||||||||||||||||||||||||||||
R3409.R173 | 17x32 | Right | Coarse | 17 | 32 | M16 | 26.0 | 1.0 | 81.9 | 64.0 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 17x32 Thread hand Right Thread type Coarse d1
tol. h9 17 l1
tol. h11 32 d2
tol. 6H M16 d3
+0.3|-0.3 26.0 f
+0.3|-0.3 1.0 l2
±0.5 81.9 l3
+0.3|-0.3 64.0 | ||||||||||||||||||||||||||||||||
R3409.R174 | 17x32 | Right | Fine | 17 | 32 | M16x1,5 | 26.0 | 1.0 | 83.0 | 64.0 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 17x32 Thread hand Right Thread type Fine d1
tol. h9 17 l1
tol. h11 32 d2
tol. 6H M16x1,5 d3
+0.3|-0.3 26.0 f
+0.3|-0.3 1.0 l2
±0.5 83.0 l3
+0.3|-0.3 64.0 | ||||||||||||||||||||||||||||||||
R3409.R204 | 20x40 | Right | Fine | 20 | 40 | M20x1,5 | 34.0 | 1.0 | 105.0 | 80.0 | ||||||||||||||||||||||
£ 28.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 20x40 Thread hand Right Thread type Fine d1
tol. h9 20 l1
tol. h11 40 d2
tol. 6H M20x1,5 d3
+0.3|-0.3 34.0 f
+0.3|-0.3 1.0 l2
±0.5 105.0 l3
+0.3|-0.3 80.0 | ||||||||||||||||||||||||||||||||
R3409.R205 | 20x40 | Right | - | 20 | 40 | M20x2,5 | 34.0 | 1.0 | 105.0 | 80.0 | ||||||||||||||||||||||
£ 28.48 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 20x40 Thread hand Right Thread type - d1
tol. h9 20 l1
tol. h11 40 d2
tol. 6H M20x2,5 d3
+0.3|-0.3 34.0 f
+0.3|-0.3 1.0 l2
±0.5 105.0 l3
+0.3|-0.3 80.0 | ||||||||||||||||||||||||||||||||
R3409.L040 | 4x8 | Left | Coarse | 4 | 8 | M3,5 | 8.0 | 0.5 | 21.0 | 16.0 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 4x8 Thread hand Left Thread type Coarse d1
tol. h9 4 l1
tol. h11 8 d2
tol. 6H M3,5 d3
+0.3|-0.3 8.0 f
+0.3|-0.3 0.5 l2
±0.5 21.0 l3
+0.3|-0.3 16.0 | ||||||||||||||||||||||||||||||||
R3409.L041 | 4x8 | Left | Coarse | 4 | 8 | M4 | 8.0 | 0.5 | 21.0 | 16.0 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 4x8 Thread hand Left Thread type Coarse d1
tol. h9 4 l1
tol. h11 8 d2
tol. 6H M4 d3
+0.3|-0.3 8.0 f
+0.3|-0.3 0.5 l2
±0.5 21.0 l3
+0.3|-0.3 16.0 | ||||||||||||||||||||||||||||||||
R3409.L042 | 5x10 | Left | Coarse | 5 | 10 | M4 | 9.0 | 0.5 | 25.5 | 20.0 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
Size 5x10 Thread hand Left Thread type Coarse d1
tol. h9 5 l1
tol. h11 10 d2
tol. 6H M4 d3
+0.3|-0.3 9.0 f
+0.3|-0.3 0.5 l2
±0.5 25.5 l3
+0.3|-0.3 20.0 | ||||||||||||||||||||||||||||||||
R3409.L051 | 5x10 | Left | Coarse | 5 | 10 | M5 | 9.0 | 0.5 | 25.5 | 20.0 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 5x10 Thread hand Left Thread type Coarse d1
tol. h9 5 l1
tol. h11 10 d2
tol. 6H M5 d3
+0.3|-0.3 9.0 f
+0.3|-0.3 0.5 l2
±0.5 25.5 l3
+0.3|-0.3 20.0 | ||||||||||||||||||||||||||||||||
R3409.L052 | 5x12 | Left | Coarse | 5 | 12 | M5 | 10.0 | 0.5 | 30.6 | 24.0 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 5x12 Thread hand Left Thread type Coarse d1
tol. h9 5 l1
tol. h11 12 d2
tol. 6H M5 d3
+0.3|-0.3 10.0 f
+0.3|-0.3 0.5 l2
±0.5 30.6 l3
+0.3|-0.3 24.0 | ||||||||||||||||||||||||||||||||
R3409.L061 | 6x12 | Left | Coarse | 6 | 12 | M6 | 10.0 | 0.5 | 30.6 | 24.0 | ||||||||||||||||||||||
£ 8.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 6x12 Thread hand Left Thread type Coarse d1
tol. h9 6 l1
tol. h11 12 d2
tol. 6H M6 d3
+0.3|-0.3 10.0 f
+0.3|-0.3 0.5 l2
±0.5 30.6 l3
+0.3|-0.3 24.0 | ||||||||||||||||||||||||||||||||
R3409.L081 | 8x16 | Left | Coarse | 8 | 16 | M8 | 14.0 | 0.5 | 41.6 | 32.0 | ||||||||||||||||||||||
£ 9.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 8x16 Thread hand Left Thread type Coarse d1
tol. h9 8 l1
tol. h11 16 d2
tol. 6H M8 d3
+0.3|-0.3 14.0 f
+0.3|-0.3 0.5 l2
±0.5 41.6 l3
+0.3|-0.3 32.0 | ||||||||||||||||||||||||||||||||
R3409.L102 | 10x20 | Left | Coarse | 10 | 20 | M10 | 18.0 | 0.5 | 51.3 | 40.0 | ||||||||||||||||||||||
£ 10.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 10x20 Thread hand Left Thread type Coarse d1
tol. h9 10 l1
tol. h11 20 d2
tol. 6H M10 d3
+0.3|-0.3 18.0 f
+0.3|-0.3 0.5 l2
±0.5 51.3 l3
+0.3|-0.3 40.0 | ||||||||||||||||||||||||||||||||
R3409.L103 | 10x20 | Left | Fine | 10 | 20 | M10x1,25 | 18.0 | 0.5 | 51.3 | 40.0 | ||||||||||||||||||||||
£ 10.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 10x20 Thread hand Left Thread type Fine d1
tol. h9 10 l1
tol. h11 20 d2
tol. 6H M10x1,25 d3
+0.3|-0.3 18.0 f
+0.3|-0.3 0.5 l2
±0.5 51.3 l3
+0.3|-0.3 40.0 | ||||||||||||||||||||||||||||||||
R3409.L122 | 12x24 | Left | Coarse | 12 | 24 | M12 | 20.0 | 0.5 | 61.3 | 48.0 | ||||||||||||||||||||||
£ 11.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 12x24 Thread hand Left Thread type Coarse d1
tol. h9 12 l1
tol. h11 24 d2
tol. 6H M12 d3
+0.3|-0.3 20.0 f
+0.3|-0.3 0.5 l2
±0.5 61.3 l3
+0.3|-0.3 48.0 | ||||||||||||||||||||||||||||||||
R3409.L123 | 12x24 | Left | Fine | 12 | 24 | M12x1,25 | 20.0 | 0.5 | 61.3 | 48.0 | ||||||||||||||||||||||
£ 11.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 12x24 Thread hand Left Thread type Fine d1
tol. h9 12 l1
tol. h11 24 d2
tol. 6H M12x1,25 d3
+0.3|-0.3 20.0 f
+0.3|-0.3 0.5 l2
±0.5 61.3 l3
+0.3|-0.3 48.0 | ||||||||||||||||||||||||||||||||
R3409.L142 | 14x28 | Left | Coarse | 14 | 28 | M14 | 24.0 | 0.5 | 71.3 | 56.0 | ||||||||||||||||||||||
£ 14.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 14x28 Thread hand Left Thread type Coarse d1
tol. h9 14 l1
tol. h11 28 d2
tol. 6H M14 d3
+0.3|-0.3 24.0 f
+0.3|-0.3 0.5 l2
±0.5 71.3 l3
+0.3|-0.3 56.0 | ||||||||||||||||||||||||||||||||
R3409.L152 | 15x28 | Left | Coarse | 15 | 28 | M14 | 24.0 | 0.5 | 71.3 | 56.0 | ||||||||||||||||||||||
£ 14.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 15x28 Thread hand Left Thread type Coarse d1
tol. h9 15 l1
tol. h11 28 d2
tol. 6H M14 d3
+0.3|-0.3 24.0 f
+0.3|-0.3 0.5 l2
±0.5 71.3 l3
+0.3|-0.3 56.0 | ||||||||||||||||||||||||||||||||
R3409.L163 | 16x32 | Left | Coarse | 16 | 32 | M16 | 26.0 | 1.0 | 81.9 | 64.0 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 16x32 Thread hand Left Thread type Coarse d1
tol. h9 16 l1
tol. h11 32 d2
tol. 6H M16 d3
+0.3|-0.3 26.0 f
+0.3|-0.3 1.0 l2
±0.5 81.9 l3
+0.3|-0.3 64.0 | ||||||||||||||||||||||||||||||||
R3409.L164 | 16x32 | Left | Fine | 16 | 32 | M16x1,5 | 26.0 | 1.0 | 81.9 | 64.0 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 16x32 Thread hand Left Thread type Fine d1
tol. h9 16 l1
tol. h11 32 d2
tol. 6H M16x1,5 d3
+0.3|-0.3 26.0 f
+0.3|-0.3 1.0 l2
±0.5 81.9 l3
+0.3|-0.3 64.0 | ||||||||||||||||||||||||||||||||
R3409.L173 | 17x32 | Left | Coarse | 17 | 32 | M16 | 26.0 | 1.0 | 83.0 | 64.0 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 17x32 Thread hand Left Thread type Coarse d1
tol. h9 17 l1
tol. h11 32 d2
tol. 6H M16 d3
+0.3|-0.3 26.0 f
+0.3|-0.3 1.0 l2
±0.5 83.0 l3
+0.3|-0.3 64.0 | ||||||||||||||||||||||||||||||||
R3409.L174 | 17x32 | Left | Fine | 17 | 32 | M16x1,5 | 26.0 | 1.0 | 83.0 | 64.0 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 17x32 Thread hand Left Thread type Fine d1
tol. h9 17 l1
tol. h11 32 d2
tol. 6H M16x1,5 d3
+0.3|-0.3 26.0 f
+0.3|-0.3 1.0 l2
±0.5 83.0 l3
+0.3|-0.3 64.0 | ||||||||||||||||||||||||||||||||
R3409.L204 | 20x40 | Left | Fine | 20 | 40 | M20x1,5 | 34.0 | 1.0 | 105.0 | 80.0 | ||||||||||||||||||||||
£ 28.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 20x40 Thread hand Left Thread type Fine d1
tol. h9 20 l1
tol. h11 40 d2
tol. 6H M20x1,5 d3
+0.3|-0.3 34.0 f
+0.3|-0.3 1.0 l2
±0.5 105.0 l3
+0.3|-0.3 80.0 | ||||||||||||||||||||||||||||||||
R3409.L205 | 20x40 | Left | Fine | 20 | 40 | M20x2,5 | 34.0 | 1.0 | 105.0 | 80.0 | ||||||||||||||||||||||
£ 28.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 20x40 Thread hand Left Thread type Fine d1
tol. h9 20 l1
tol. h11 40 d2
tol. 6H M20x2,5 d3
+0.3|-0.3 34.0 f
+0.3|-0.3 1.0 l2
±0.5 105.0 l3
+0.3|-0.3 80.0 |
Price & Availability | Article | Weight g | l4 ±0.2 | w1 tol. B13 | w2 +0.3|-0.16 | w3 tol. B13 | Static axial tensile strength (short term) max. N | Static axial tensile strength (long term) max. N | Torque strength max. Nm | |||||||||||||||||||||
R3409.R040 | 0.8 | 6.0 | 4 | 8 | 8 | 650 | 325 | 0.4 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 0.8 l4
±0.2 6.0 w1
tol. B13 4 w2
+0.3|-0.16 8 w3
tol. B13 8 Static axial tensile strength (short term)
max.
N 650 Static axial tensile strength (long term)
max.
N 325 Torque strength
max.
Nm 0.4 | ||||||||||||||||||||||||||||||
R3409.R041 | 0.8 | 6.0 | 4 | 8 | 8 | 650 | 325 | 0.4 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 0.8 l4
±0.2 6.0 w1
tol. B13 4 w2
+0.3|-0.16 8 w3
tol. B13 8 Static axial tensile strength (short term)
max.
N 650 Static axial tensile strength (long term)
max.
N 325 Torque strength
max.
Nm 0.4 | ||||||||||||||||||||||||||||||
R3409.R042 | 1.5 | 7.5 | 5 | 10 | 10 | 1000 | 500 | 0.4 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 25 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 1.5 l4
±0.2 7.5 w1
tol. B13 5 w2
+0.3|-0.16 10 w3
tol. B13 10 Static axial tensile strength (short term)
max.
N 1000 Static axial tensile strength (long term)
max.
N 500 Torque strength
max.
Nm 0.4 | ||||||||||||||||||||||||||||||
R3409.R051 | 1.5 | 7.5 | 5 | 10 | 10 | 1000 | 500 | 0.5 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 1.5 l4
±0.2 7.5 w1
tol. B13 5 w2
+0.3|-0.16 10 w3
tol. B13 10 Static axial tensile strength (short term)
max.
N 1000 Static axial tensile strength (long term)
max.
N 500 Torque strength
max.
Nm 0.5 | ||||||||||||||||||||||||||||||
R3409.R052 | 2.7 | 9.0 | 6 | 12 | 12 | 1200 | 600 | 0.5 | ||||||||||||||||||||||
£ 10.08 per unit (click for quantity discounts) Ready to despatch 39 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 2.7 l4
±0.2 9.0 w1
tol. B13 6 w2
+0.3|-0.16 12 w3
tol. B13 12 Static axial tensile strength (short term)
max.
N 1200 Static axial tensile strength (long term)
max.
N 600 Torque strength
max.
Nm 0.5 | ||||||||||||||||||||||||||||||
R3409.R061 | 2.7 | 9.0 | 6 | 12 | 12 | 1400 | 700 | 1.5 | ||||||||||||||||||||||
£ 8.44 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 2.7 l4
±0.2 9.0 w1
tol. B13 6 w2
+0.3|-0.16 12 w3
tol. B13 12 Static axial tensile strength (short term)
max.
N 1400 Static axial tensile strength (long term)
max.
N 700 Torque strength
max.
Nm 1.5 | ||||||||||||||||||||||||||||||
R3409.R081 | 6.3 | 12.0 | 8 | 16 | 16 | 2700 | 1350 | 5.0 | ||||||||||||||||||||||
£ 9.23 per unit (click for quantity discounts) Ready to despatch 28 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 6.3 l4
±0.2 12.0 w1
tol. B13 8 w2
+0.3|-0.16 16 w3
tol. B13 16 Static axial tensile strength (short term)
max.
N 2700 Static axial tensile strength (long term)
max.
N 1350 Torque strength
max.
Nm 5.0 | ||||||||||||||||||||||||||||||
R3409.R102 | 13.1 | 15.0 | 10 | 20 | 20 | 4700 | 2350 | 15.0 | ||||||||||||||||||||||
£ 10.12 per unit (click for quantity discounts) Ready to despatch 13 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 13.1 l4
±0.2 15.0 w1
tol. B13 10 w2
+0.3|-0.16 20 w3
tol. B13 20 Static axial tensile strength (short term)
max.
N 4700 Static axial tensile strength (long term)
max.
N 2350 Torque strength
max.
Nm 15.0 | ||||||||||||||||||||||||||||||
R3409.R103 | 13.1 | 15.0 | 10 | 20 | 20 | 4700 | 2350 | 6.0 | ||||||||||||||||||||||
£ 10.12 per unit (click for quantity discounts) Ready to despatch 26 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 13.1 l4
±0.2 15.0 w1
tol. B13 10 w2
+0.3|-0.16 20 w3
tol. B13 20 Static axial tensile strength (short term)
max.
N 4700 Static axial tensile strength (long term)
max.
N 2350 Torque strength
max.
Nm 6.0 | ||||||||||||||||||||||||||||||
R3409.R122 | 20.2 | 18.0 | 12 | 24 | 24 | 5700 | 2850 | 20.0 | ||||||||||||||||||||||
£ 11.89 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 20.2 l4
±0.2 18.0 w1
tol. B13 12 w2
+0.3|-0.16 24 w3
tol. B13 24 Static axial tensile strength (short term)
max.
N 5700 Static axial tensile strength (long term)
max.
N 2850 Torque strength
max.
Nm 20.0 | ||||||||||||||||||||||||||||||
R3409.R123 | 20.2 | 18.0 | 12 | 24 | 24 | 5700 | 2850 | 15.0 | ||||||||||||||||||||||
£ 11.89 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 20.2 l4
±0.2 18.0 w1
tol. B13 12 w2
+0.3|-0.16 24 w3
tol. B13 24 Static axial tensile strength (short term)
max.
N 5700 Static axial tensile strength (long term)
max.
N 2850 Torque strength
max.
Nm 15.0 | ||||||||||||||||||||||||||||||
R3409.R142 | 29.6 | 22.5 | 14 | 27 | 27 | 6600 | 3300 | 25.0 | ||||||||||||||||||||||
£ 14.35 per unit (click for quantity discounts) Ready to despatch 18 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 29.6 l4
±0.2 22.5 w1
tol. B13 14 w2
+0.3|-0.16 27 w3
tol. B13 27 Static axial tensile strength (short term)
max.
N 6600 Static axial tensile strength (long term)
max.
N 3300 Torque strength
max.
Nm 25.0 | ||||||||||||||||||||||||||||||
R3409.R152 | 30.0 | 22.5 | 14 | 27 | 27 | 3200 | 1600 | 25.0 | ||||||||||||||||||||||
£ 14.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 30.0 l4
±0.2 22.5 w1
tol. B13 14 w2
+0.3|-0.16 27 w3
tol. B13 27 Static axial tensile strength (short term)
max.
N 3200 Static axial tensile strength (long term)
max.
N 1600 Torque strength
max.
Nm 25.0 | ||||||||||||||||||||||||||||||
R3409.R163 | 43.3 | 24.0 | 16 | 32 | 32 | 7500 | 3750 | 30.0 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 43.3 l4
±0.2 24.0 w1
tol. B13 16 w2
+0.3|-0.16 32 w3
tol. B13 32 Static axial tensile strength (short term)
max.
N 7500 Static axial tensile strength (long term)
max.
N 3750 Torque strength
max.
Nm 30.0 | ||||||||||||||||||||||||||||||
R3409.R164 | 43.3 | 24.0 | 16 | 32 | 32 | 7500 | 3750 | 27.5 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 43.3 l4
±0.2 24.0 w1
tol. B13 16 w2
+0.3|-0.16 32 w3
tol. B13 32 Static axial tensile strength (short term)
max.
N 7500 Static axial tensile strength (long term)
max.
N 3750 Torque strength
max.
Nm 27.5 | ||||||||||||||||||||||||||||||
R3409.R173 | 43.3 | 24.0 | 16 | 32 | 32 | 3600 | 1800 | 30.0 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 43.3 l4
±0.2 24.0 w1
tol. B13 16 w2
+0.3|-0.16 32 w3
tol. B13 32 Static axial tensile strength (short term)
max.
N 3600 Static axial tensile strength (long term)
max.
N 1800 Torque strength
max.
Nm 30.0 | ||||||||||||||||||||||||||||||
R3409.R174 | 43.3 | 24.0 | 16 | 32 | 32 | 3600 | 1800 | 27.5 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 43.3 l4
±0.2 24.0 w1
tol. B13 16 w2
+0.3|-0.16 32 w3
tol. B13 32 Static axial tensile strength (short term)
max.
N 3600 Static axial tensile strength (long term)
max.
N 1800 Torque strength
max.
Nm 27.5 | ||||||||||||||||||||||||||||||
R3409.R204 | 95.1 | 30.0 | 20 | 40 | 40 | 9500 | 4750 | 60.0 | ||||||||||||||||||||||
£ 28.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 95.1 l4
±0.2 30.0 w1
tol. B13 20 w2
+0.3|-0.16 40 w3
tol. B13 40 Static axial tensile strength (short term)
max.
N 9500 Static axial tensile strength (long term)
max.
N 4750 Torque strength
max.
Nm 60.0 | ||||||||||||||||||||||||||||||
R3409.R205 | 95.1 | 30.0 | 20 | 40 | 40 | 9500 | 4750 | 80.0 | ||||||||||||||||||||||
£ 28.48 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 95.1 l4
±0.2 30.0 w1
tol. B13 20 w2
+0.3|-0.16 40 w3
tol. B13 40 Static axial tensile strength (short term)
max.
N 9500 Static axial tensile strength (long term)
max.
N 4750 Torque strength
max.
Nm 80.0 | ||||||||||||||||||||||||||||||
R3409.L040 | 0.8 | 6.0 | 8 | 8 | 4 | 650 | 325 | 0.4 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 0.8 l4
±0.2 6.0 w1
tol. B13 8 w2
+0.3|-0.16 8 w3
tol. B13 4 Static axial tensile strength (short term)
max.
N 650 Static axial tensile strength (long term)
max.
N 325 Torque strength
max.
Nm 0.4 | ||||||||||||||||||||||||||||||
R3409.L041 | 0.8 | 6.0 | 8 | 8 | 4 | 650 | 325 | 0.4 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 0.8 l4
±0.2 6.0 w1
tol. B13 8 w2
+0.3|-0.16 8 w3
tol. B13 4 Static axial tensile strength (short term)
max.
N 650 Static axial tensile strength (long term)
max.
N 325 Torque strength
max.
Nm 0.4 | ||||||||||||||||||||||||||||||
R3409.L042 | 1.5 | 7.5 | 10 | 10 | 5 | 1000 | 500 | 0.4 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
Weight
g 1.5 l4
±0.2 7.5 w1
tol. B13 10 w2
+0.3|-0.16 10 w3
tol. B13 5 Static axial tensile strength (short term)
max.
N 1000 Static axial tensile strength (long term)
max.
N 500 Torque strength
max.
Nm 0.4 | ||||||||||||||||||||||||||||||
R3409.L051 | 1.5 | 7.5 | 10 | 10 | 5 | 1000 | 500 | 0.5 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 1.5 l4
±0.2 7.5 w1
tol. B13 10 w2
+0.3|-0.16 10 w3
tol. B13 5 Static axial tensile strength (short term)
max.
N 1000 Static axial tensile strength (long term)
max.
N 500 Torque strength
max.
Nm 0.5 | ||||||||||||||||||||||||||||||
R3409.L052 | 2.7 | 9.0 | 12 | 12 | 6 | 1200 | 600 | 0.5 | ||||||||||||||||||||||
£ 7.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 2.7 l4
±0.2 9.0 w1
tol. B13 12 w2
+0.3|-0.16 12 w3
tol. B13 6 Static axial tensile strength (short term)
max.
N 1200 Static axial tensile strength (long term)
max.
N 600 Torque strength
max.
Nm 0.5 | ||||||||||||||||||||||||||||||
R3409.L061 | 2.7 | 9.0 | 12 | 12 | 6 | 1400 | 700 | 1.5 | ||||||||||||||||||||||
£ 8.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 2.7 l4
±0.2 9.0 w1
tol. B13 12 w2
+0.3|-0.16 12 w3
tol. B13 6 Static axial tensile strength (short term)
max.
N 1400 Static axial tensile strength (long term)
max.
N 700 Torque strength
max.
Nm 1.5 | ||||||||||||||||||||||||||||||
R3409.L081 | 6.3 | 12.0 | 16 | 16 | 8 | 2700 | 1350 | 5.0 | ||||||||||||||||||||||
£ 9.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 6.3 l4
±0.2 12.0 w1
tol. B13 16 w2
+0.3|-0.16 16 w3
tol. B13 8 Static axial tensile strength (short term)
max.
N 2700 Static axial tensile strength (long term)
max.
N 1350 Torque strength
max.
Nm 5.0 | ||||||||||||||||||||||||||||||
R3409.L102 | 13.1 | 15.0 | 20 | 20 | 10 | 4700 | 2350 | 15.0 | ||||||||||||||||||||||
£ 10.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 13.1 l4
±0.2 15.0 w1
tol. B13 20 w2
+0.3|-0.16 20 w3
tol. B13 10 Static axial tensile strength (short term)
max.
N 4700 Static axial tensile strength (long term)
max.
N 2350 Torque strength
max.
Nm 15.0 | ||||||||||||||||||||||||||||||
R3409.L103 | 13.1 | 15.0 | 20 | 20 | 10 | 4700 | 2350 | 6.0 | ||||||||||||||||||||||
£ 10.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 13.1 l4
±0.2 15.0 w1
tol. B13 20 w2
+0.3|-0.16 20 w3
tol. B13 10 Static axial tensile strength (short term)
max.
N 4700 Static axial tensile strength (long term)
max.
N 2350 Torque strength
max.
Nm 6.0 | ||||||||||||||||||||||||||||||
R3409.L122 | 20.2 | 18.0 | 24 | 24 | 12 | 5700 | 2850 | 20.0 | ||||||||||||||||||||||
£ 11.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 20.2 l4
±0.2 18.0 w1
tol. B13 24 w2
+0.3|-0.16 24 w3
tol. B13 12 Static axial tensile strength (short term)
max.
N 5700 Static axial tensile strength (long term)
max.
N 2850 Torque strength
max.
Nm 20.0 | ||||||||||||||||||||||||||||||
R3409.L123 | 20.2 | 18.0 | 24 | 24 | 12 | 5700 | 2850 | 15.0 | ||||||||||||||||||||||
£ 11.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 20.2 l4
±0.2 18.0 w1
tol. B13 24 w2
+0.3|-0.16 24 w3
tol. B13 12 Static axial tensile strength (short term)
max.
N 5700 Static axial tensile strength (long term)
max.
N 2850 Torque strength
max.
Nm 15.0 | ||||||||||||||||||||||||||||||
R3409.L142 | 29.6 | 22.5 | 27 | 27 | 14 | 6600 | 3300 | 25.0 | ||||||||||||||||||||||
£ 14.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 29.6 l4
±0.2 22.5 w1
tol. B13 27 w2
+0.3|-0.16 27 w3
tol. B13 14 Static axial tensile strength (short term)
max.
N 6600 Static axial tensile strength (long term)
max.
N 3300 Torque strength
max.
Nm 25.0 | ||||||||||||||||||||||||||||||
R3409.L152 | 30.0 | 22.5 | 27 | 27 | 14 | 3200 | 1600 | 25.0 | ||||||||||||||||||||||
£ 14.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 30.0 l4
±0.2 22.5 w1
tol. B13 27 w2
+0.3|-0.16 27 w3
tol. B13 14 Static axial tensile strength (short term)
max.
N 3200 Static axial tensile strength (long term)
max.
N 1600 Torque strength
max.
Nm 25.0 | ||||||||||||||||||||||||||||||
R3409.L163 | 43.3 | 24.0 | 32 | 32 | 16 | 7500 | 3750 | 30.0 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 43.3 l4
±0.2 24.0 w1
tol. B13 32 w2
+0.3|-0.16 32 w3
tol. B13 16 Static axial tensile strength (short term)
max.
N 7500 Static axial tensile strength (long term)
max.
N 3750 Torque strength
max.
Nm 30.0 | ||||||||||||||||||||||||||||||
R3409.L164 | 43.3 | 24.0 | 32 | 32 | 16 | 7500 | 3750 | 27.5 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 43.3 l4
±0.2 24.0 w1
tol. B13 32 w2
+0.3|-0.16 32 w3
tol. B13 16 Static axial tensile strength (short term)
max.
N 7500 Static axial tensile strength (long term)
max.
N 3750 Torque strength
max.
Nm 27.5 | ||||||||||||||||||||||||||||||
R3409.L173 | 43.3 | 24.0 | 32 | 32 | 16 | 3600 | 1800 | 30.0 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 43.3 l4
±0.2 24.0 w1
tol. B13 32 w2
+0.3|-0.16 32 w3
tol. B13 16 Static axial tensile strength (short term)
max.
N 3600 Static axial tensile strength (long term)
max.
N 1800 Torque strength
max.
Nm 30.0 | ||||||||||||||||||||||||||||||
R3409.L174 | 43.3 | 24.0 | 32 | 32 | 16 | 3600 | 1800 | 27.5 | ||||||||||||||||||||||
£ 19.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 43.3 l4
±0.2 24.0 w1
tol. B13 32 w2
+0.3|-0.16 32 w3
tol. B13 16 Static axial tensile strength (short term)
max.
N 3600 Static axial tensile strength (long term)
max.
N 1800 Torque strength
max.
Nm 27.5 | ||||||||||||||||||||||||||||||
R3409.L204 | 95.1 | 30.0 | 40 | 40 | 20 | 9500 | 4750 | 60.0 | ||||||||||||||||||||||
£ 28.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 95.1 l4
±0.2 30.0 w1
tol. B13 40 w2
+0.3|-0.16 40 w3
tol. B13 20 Static axial tensile strength (short term)
max.
N 9500 Static axial tensile strength (long term)
max.
N 4750 Torque strength
max.
Nm 60.0 | ||||||||||||||||||||||||||||||
R3409.L205 | 95.1 | 30.0 | 40 | 40 | 20 | 9500 | 4750 | 80.0 | ||||||||||||||||||||||
£ 28.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 95.1 l4
±0.2 30.0 w1
tol. B13 40 w2
+0.3|-0.16 40 w3
tol. B13 20 Static axial tensile strength (short term)
max.
N 9500 Static axial tensile strength (long term)
max.
N 4750 Torque strength
max.
Nm 80.0 |
Black Plastic (Igumid G)
Light weight, Universal corrosion resistance.
High tensile strength, vibration and noise dampening.
Can be used in conjunction with rod ends R3582 and R3583.
Standard thread is right hand thread.
For pins and clips, see R3453 and R3446.
Company registration no: 00496138
Company VAT number GB 408154022
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4498
sales@automotioncomponents.co.uk
