L1866 Take-up Units

Name: L1866.060
Brand: WC
SKU: L1866.060
Price: 98.89 EUR
Availability: OutOfStock

set screw type, material: Iron

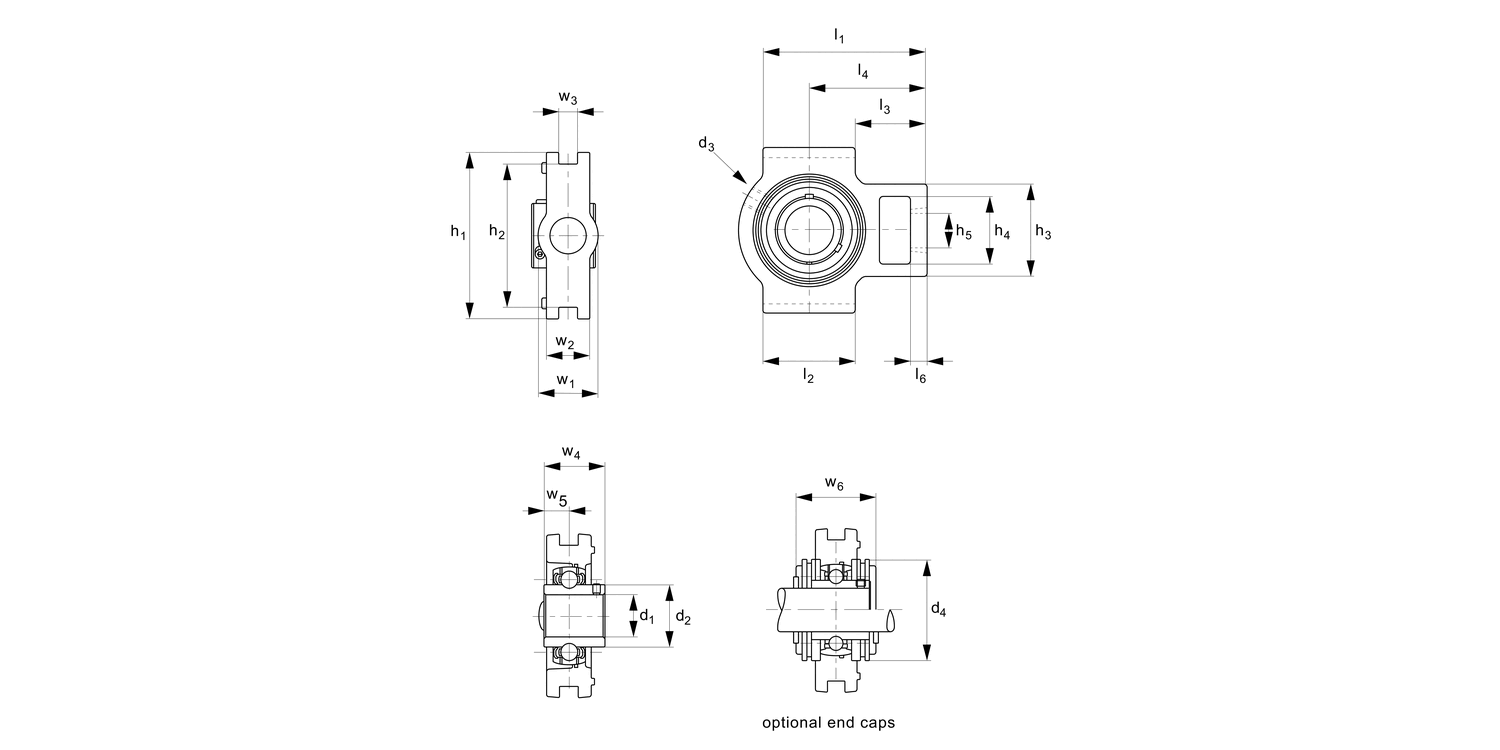

Article properties

Order No.

L1866.060

d₁ for h6

l₁

194

h₁

146

l₂

102

d₂

74.9

d₃

M 6x1

d₄

120

h₂ +0|-0.8

130

h₃

102

h₄

Weight kg

4.7

h₅

l₃

68.0

l₄

119

l₅

w₁

w₂

w₃ +0.3|-0

w₄

65.1

w₅

25.4

w₆

88.6

Dyn. radial load C max. kN

52.50

Static radial load C₀ max. kN

32.80

Speed max. rpm

2500

See full product selection

£ 98.89 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 98.89	0%
5-19	£ 89.00	10%
20-39	£ 79.11	20%
40-99	£ 69.22	30%
100+	£ 59.33	40%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Cast iron (FG20 or FG25), passivated and painted blue (RAL 5010).

Technical Notes

Shaft retention with set screw.
Used with h6 tolerance shafts (see our part no.s L1770-L1776.
For optional shaft end caps add suffixes:
-CO for two open protective caps (with seal) for through shafts.
-CC for one open and one closed protective caps for shaft ends.
