L1868 Stretcher Units

for conveyor belt tensioner, material: Iron

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Pillow Block Bearings
cast iron

Flanged Bearing Units
square

Flanged Bearing Units
oval

Take-up Units
cast iron

Take-up Units
cast iron

Conveyor Belt Tensioners
cast iron

Stretcher Units
cast iron

Take-up Units
cast iron

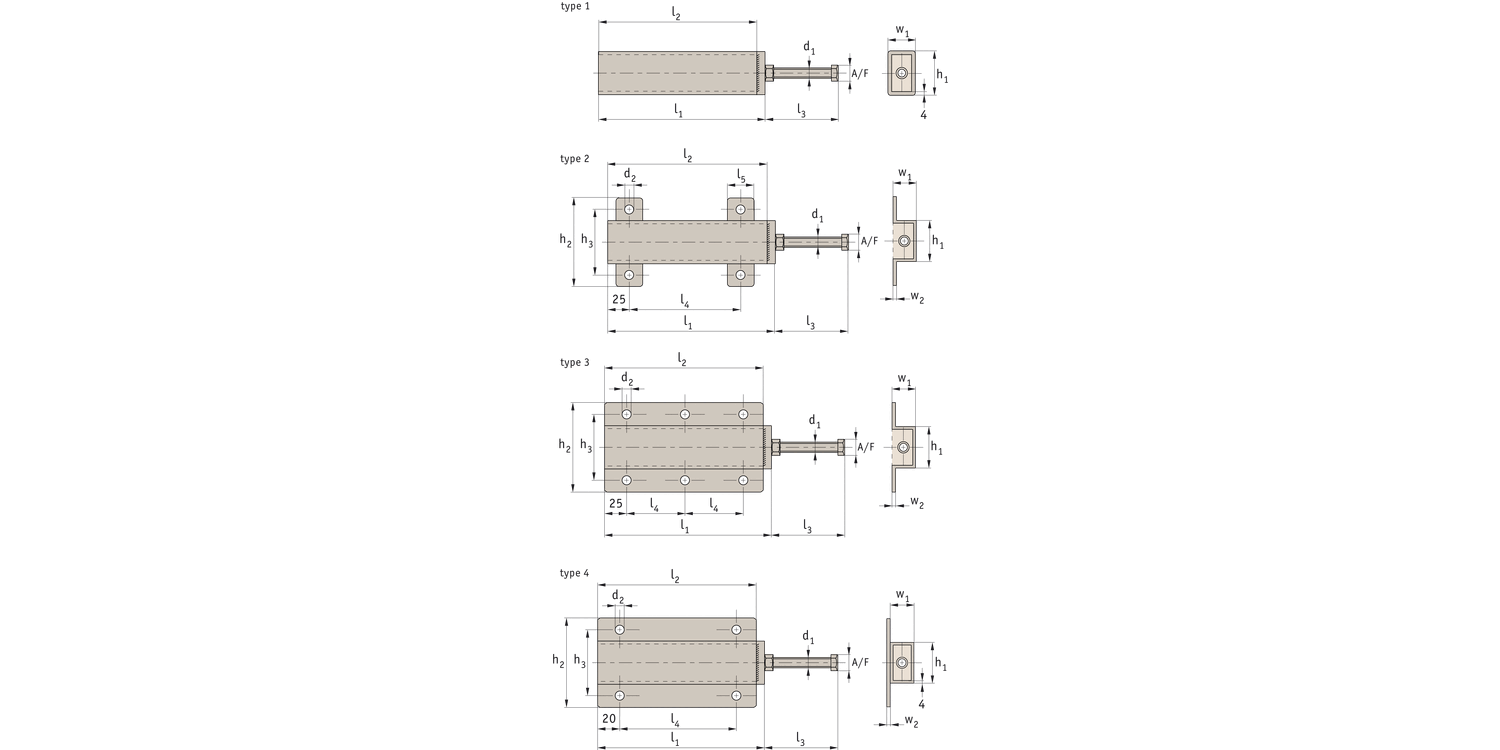

Stretcher unit SPR1

L1868.010

For shaft dia.

12-35

Type

1

d₁

M12x 90

l₁

190

h₁

50

l₂

180

d₂

-

h₂

-

h₃

-

l₃

85

l₄

-

l₅

-

w₁

30

w₂

4

A/F

18

Stretcher unit SPR2

L1868.020

For shaft dia.

40-50

Type

1

d₁

M16x110

l₁

225

h₁

70

l₂

210

d₂

-

h₂

-

h₃

-

l₃

105

l₄

-

l₅

-

w₁

40

w₂

4

A/F

24

Stretcher unit SPR11

L1868.011

For shaft dia.

12-35

Type

2

d₁

M12x 90

l₁

190

h₁

50

l₂

180

d₂

11.0

h₂

100

h₃

80

l₃

85

l₄

130

l₅

30

w₁

30

w₂

5

A/F

18

Stretcher unit SPR21

L1868.021

For shaft dia.

40-50

Type

2

d₁

M16x110

l₁

225

h₁

70

l₂

210

d₂

14.0

h₂

140

h₃

100

l₃

105

l₄

160

l₅

40

w₁

40

w₂

6

A/F

24

Stretcher unit SPR12

L1868.012

For shaft dia.

12-35

Type

3

d₁

M12x 90

l₁

190

h₁

48

l₂

180

d₂

10.0

h₂

100

h₃

75

l₃

85

l₄

65

l₅

-

w₁

25

w₂

3

A/F

18

Stretcher Units

L1868.022

For shaft dia.

40-50

Type

3

d₁

M16x110

l₁

225

h₁

68

l₂

210

d₂

12.0

h₂

130

h₃

100

l₃

105

l₄

80

l₅

-

w₁

35

w₂

3

A/F

24

Stretcher unit SPR14

L1868.014

For shaft dia.

12-35

Type

4

d₁

M12x100

l₁

190

h₁

48

l₂

180

d₂

11.5

h₂

103

h₃

80

l₃

97

l₄

140

l₅

-

w₁

25

w₂

3

A/F

18

Stretcher unit SPR24

L1868.024

For shaft dia.

40-50

Type

4

d₁

M16x120

l₁

235

h₁

68

l₂

220

d₂

14.0

h₂

130

h₃

100

l₃

111

l₄

180

l₅

-

w₁

35

w₂

3

A/F

24

£ 53.77 per unit (click for quantity discounts)

Stretcher unit SPR1

L1868.010

For shaft dia.

12-35

Type

1

d₁

M12x 90

l₁

190

h₁

50

l₂

180

d₂

-

h₂

-

h₃

-

l₃

85

l₄

-

l₅

-

w₁

30

w₂

4

A/F

18

Stretcher unit SPR2

L1868.020

For shaft dia.

40-50

Type

1

d₁

M16x110

l₁

225

h₁

70

l₂

210

d₂

-

h₂

-

h₃

-

l₃

105

l₄

-

l₅

-

w₁

40

w₂

4

A/F

24

Stretcher unit SPR11

L1868.011

For shaft dia.

12-35

Type

2

d₁

M12x 90

l₁

190

h₁

50

l₂

180

d₂

11.0

h₂

100

h₃

80

l₃

85

l₄

130

l₅

30

w₁

30

w₂

5

A/F

18

Stretcher unit SPR21

L1868.021

For shaft dia.

40-50

Type

2

d₁

M16x110

l₁

225

h₁

70

l₂

210

d₂

14.0

h₂

140

h₃

100

l₃

105

l₄

160

l₅

40

w₁

40

w₂

6

A/F

24

Stretcher unit SPR12

L1868.012

For shaft dia.

12-35

Type

3

d₁

M12x 90

l₁

190

h₁

48

l₂

180

d₂

10.0

h₂

100

h₃

75

l₃

85

l₄

65

l₅

-

w₁

25

w₂

3

A/F

18

Stretcher Units

L1868.022

For shaft dia.

40-50

Type

3

d₁

M16x110

l₁

225

h₁

68

l₂

210

d₂

12.0

h₂

130

h₃

100

l₃

105

l₄

80

l₅

-

w₁

35

w₂

3

A/F

24

Stretcher unit SPR14

L1868.014

For shaft dia.

12-35

Type

4

d₁

M12x100

l₁

190

h₁

48

l₂

180

d₂

11.5

h₂

103

h₃

80

l₃

97

l₄

140

l₅

-

w₁

25

w₂

3

A/F

18

Stretcher unit SPR24

L1868.024

For shaft dia.

40-50

Type

4

d₁

M16x120

l₁

235

h₁

68

l₂

220

d₂

14.0

h₂

130

h₃

100

l₃

111

l₄

180

l₅

-

w₁

35

w₂

3

A/F

24

£ 53.77 per unit (click for quantity discounts)



Select all

For shaft dia.

Type

d₁

l₁

h₁

l₂

d₂

h₂

h₃

l₃

l₄

l₅

w₁

w₂

A/F

Price & Availability	Article	For shaft dia.	Type	d1	l1	h1	l2	d2	h2	h3	l3	l4	l5	w1	w2	A/F
	L1868.010	12-35	1	M12x 90	190	50	180	-	-	-	85	-	-	30	4	18
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 - 0% 5-19 - 10% 20-39 - 20% 40-99 - 30% 100+ - 40% For shaft dia. 12-35 Type 1 d1 M12x 90 l1 190 h1 50 l2 180 d2 - h2 - h3 - l3 85 l4 - l5 - w1 30 w2 4 A/F 18 more info »
	L1868.020	40-50	1	M16x110	225	70	210	-	-	-	105	-	-	40	4	24
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 - 0% 5-19 - 10% 20-39 - 20% 40-99 - 30% 100+ - 40% For shaft dia. 40-50 Type 1 d1 M16x110 l1 225 h1 70 l2 210 d2 - h2 - h3 - l3 105 l4 - l5 - w1 40 w2 4 A/F 24 more info »
	L1868.011	12-35	2	M12x 90	190	50	180	11.0	100	80	85	130	30	30	5	18
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 - 0% 5-19 - 10% 20-39 - 20% 40-99 - 30% 100+ - 40% For shaft dia. 12-35 Type 2 d1 M12x 90 l1 190 h1 50 l2 180 d2 11.0 h2 100 h3 80 l3 85 l4 130 l5 30 w1 30 w2 5 A/F 18 more info »
	L1868.021	40-50	2	M16x110	225	70	210	14.0	140	100	105	160	40	40	6	24
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 - 0% 5-19 - 10% 20-39 - 20% 40-99 - 30% 100+ - 40% For shaft dia. 40-50 Type 2 d1 M16x110 l1 225 h1 70 l2 210 d2 14.0 h2 140 h3 100 l3 105 l4 160 l5 40 w1 40 w2 6 A/F 24 more info »
	L1868.012	12-35	3	M12x 90	190	48	180	10.0	100	75	85	65	-	25	3	18
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 - 0% 5-19 - 10% 20-39 - 20% 40-99 - 30% 100+ - 40% For shaft dia. 12-35 Type 3 d1 M12x 90 l1 190 h1 48 l2 180 d2 10.0 h2 100 h3 75 l3 85 l4 65 l5 - w1 25 w2 3 A/F 18 more info »
	L1868.022	40-50	3	M16x110	225	68	210	12.0	130	100	105	80	-	35	3	24
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   For shaft dia. 40-50 Type 3 d1 M16x110 l1 225 h1 68 l2 210 d2 12.0 h2 130 h3 100 l3 105 l4 80 l5 - w1 35 w2 3 A/F 24 more info »
	L1868.014	12-35	4	M12x100	190	48	180	11.5	103	80	97	140	-	25	3	18
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 - 0% 5-19 - 10% 20-39 - 20% 40-99 - 30% 100+ - 40% For shaft dia. 12-35 Type 4 d1 M12x100 l1 190 h1 48 l2 180 d2 11.5 h2 103 h3 80 l3 97 l4 140 l5 - w1 25 w2 3 A/F 18 more info »
	L1868.024	40-50	4	M16x120	235	68	220	14.0	130	100	111	180	-	35	3	24
£ 53.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 53.77 0% 5-19 £ 48.39 10% 20-39 £ 43.02 20% 40-99 £ 37.64 30% 100+ £ 32.26 40% For shaft dia. 40-50 Type 4 d1 M16x120 l1 235 h1 68 l2 220 d2 14.0 h2 130 h3 100 l3 111 l4 180 l5 - w1 35 w2 3 A/F 24 more info »
