L1016.RF15 15mm Linear Guide Rail
rear fixing, material: Steel
Order No.
L1016.RF15-0280

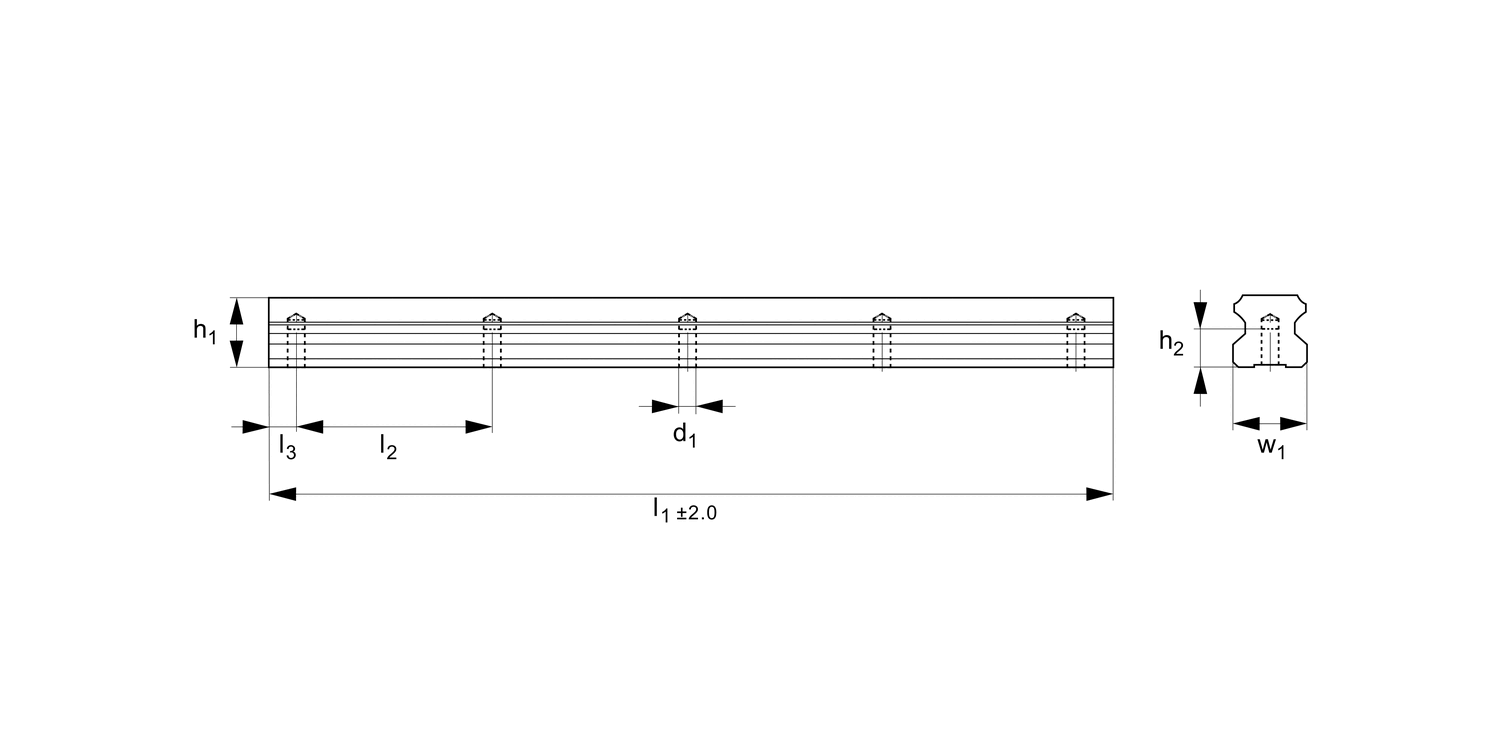

Rail size
15
l1
280
h1
13.0
l2
60
w1
15
l3
20
h2
8
d1
M5
Weight
kg
0.39
£ 37.42 per unit (click for quantity discounts)
Ready to despatch 26
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 37.42 | 0% |
| 10-19 | £ 33.68 | 10% |
| 20-49 | £ 31.81 | 15% |
| 50-99 | £ 29.94 | 20% |
| 100+ | £ 26.19 | 30% |
Technical & Application
Material
Hardened and ground steel (typically 60 HRc).
Technical Notes
For carriages to suit the required load see part nos. L1016.F (flanged) and L1016.U (unflanged).
Other rail lengths on request.
Weight: 1,4 Kg/m.
