Drawer Slides
semi-telescopic, 17kg.
L2011 Soft-Close Drawer Slide
material: Steel
Alternative products you may wish to consider

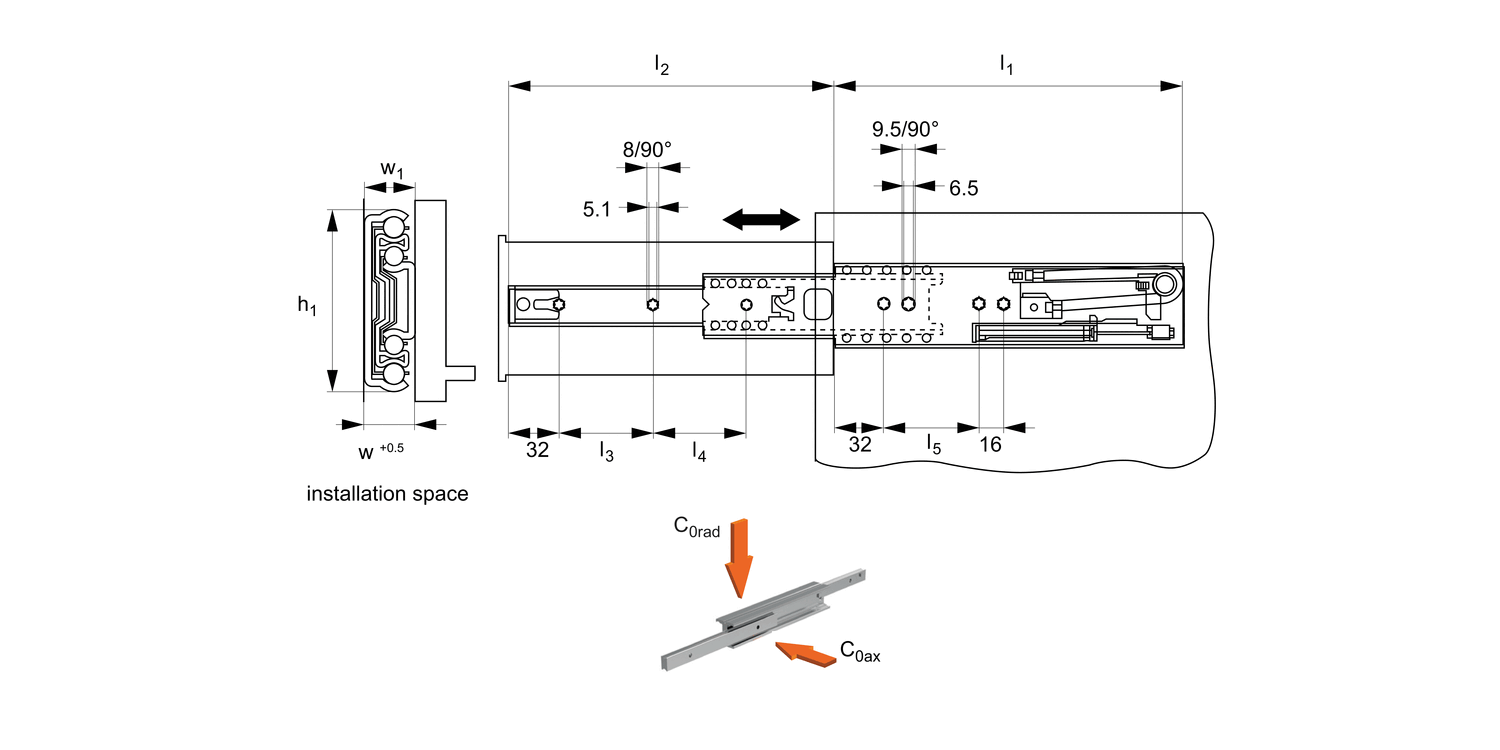

l1
400
l2 stroke
434
h1
57.5
w1
16.0
l3
128
l4
128
l5
224
Load (per rail) C0 rad
max.
N
200
Weight
kg
1.10
£ 69.89 per unit (click for quantity discounts)
l1
450
l2 stroke
484
h1
57.5
w1
16.0
l3
160
l4
160
l5
256
Load (per rail) C0 rad
max.
N
250
Weight
kg
1.25
£ 68.87 per unit (click for quantity discounts)
l1
500
l2 stroke
534
h1
57.5
w1
16.0
l3
160
l4
192
l5
320
Load (per rail) C0 rad
max.
N
275
Weight
kg
1.40
£ 70.42 per unit (click for quantity discounts)
l1
550
l2 stroke
584
h1
57.5
w1
16.0
l3
192
l4
192
l5
320
Load (per rail) C0 rad
max.
N
300
Weight
kg
1.55
£ 72.40 per unit (click for quantity discounts)
l1
l2 stroke
h1
w1
l3
l4
l5
Load (per rail) C0 rad
max.
N
Weight
kg
| Price & Availability | Article | l1 | l2 stroke | h1 | w1 | l3 | l4 | l5 | Load (per rail) C0 rad max. N | Weight kg | |||||||||||||||
| L2011.0400 | 400 | 434 | 57.5 | 16.0 | 128 | 128 | 224 | 200 | 1.10 | ||||||||||||||||
£ 69.89 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 400 l2 stroke 434 h1 57.5 w1 16.0 l3 128 l4 128 l5 224 Load (per rail) C0 rad
max.
N 200 Weight
kg 1.10 | |||||||||||||||||||||||||
| L2011.0450 | 450 | 484 | 57.5 | 16.0 | 160 | 160 | 256 | 250 | 1.25 | ||||||||||||||||
£ 68.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 450 l2 stroke 484 h1 57.5 w1 16.0 l3 160 l4 160 l5 256 Load (per rail) C0 rad
max.
N 250 Weight
kg 1.25 | |||||||||||||||||||||||||
| L2011.0500 | 500 | 534 | 57.5 | 16.0 | 160 | 192 | 320 | 275 | 1.40 | ||||||||||||||||
£ 70.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 500 l2 stroke 534 h1 57.5 w1 16.0 l3 160 l4 192 l5 320 Load (per rail) C0 rad
max.
N 275 Weight
kg 1.40 | |||||||||||||||||||||||||
| L2011.0550 | 550 | 584 | 57.5 | 16.0 | 192 | 192 | 320 | 300 | 1.55 | ||||||||||||||||
£ 72.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 550 l2 stroke 584 h1 57.5 w1 16.0 l3 192 l4 192 l5 320 Load (per rail) C0 rad
max.
N 300 Weight
kg 1.55 | |||||||||||||||||||||||||
Technical & Application
Material
Galvanized steel. Hardened steel balls with zinc-plated cage.
Technical Notes
C0rad is the load rating for a single drawer slide and based on 100,000 cycles, uniform load distribution and use of all fixing holes to mount the slide.
Flat installation not suited due to the soft-close damping system.
Tips
Soft close over last 50mm, for smooth full retraction to closed position.
Fix inner rail with M4 countersunk screws (head height 2,2 mm).
Fix outer rail with M5 countersunk screws (head height 2,5 mm).
