Drawer Slides
semi-telescopic, 17kg.

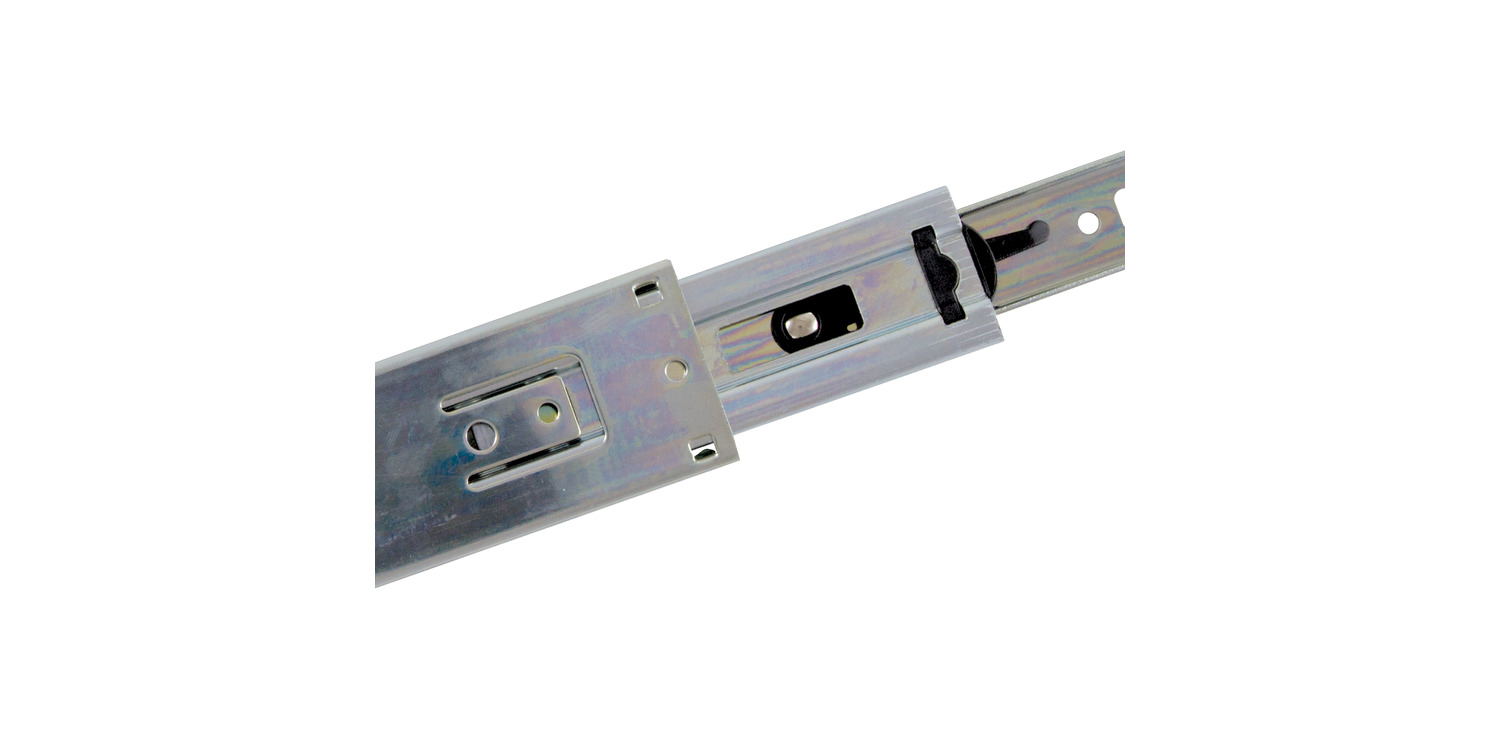

L2066 Drawer Slide - Full Extension
45 Kg load per pair, material: Steel
Alternative products you may wish to consider

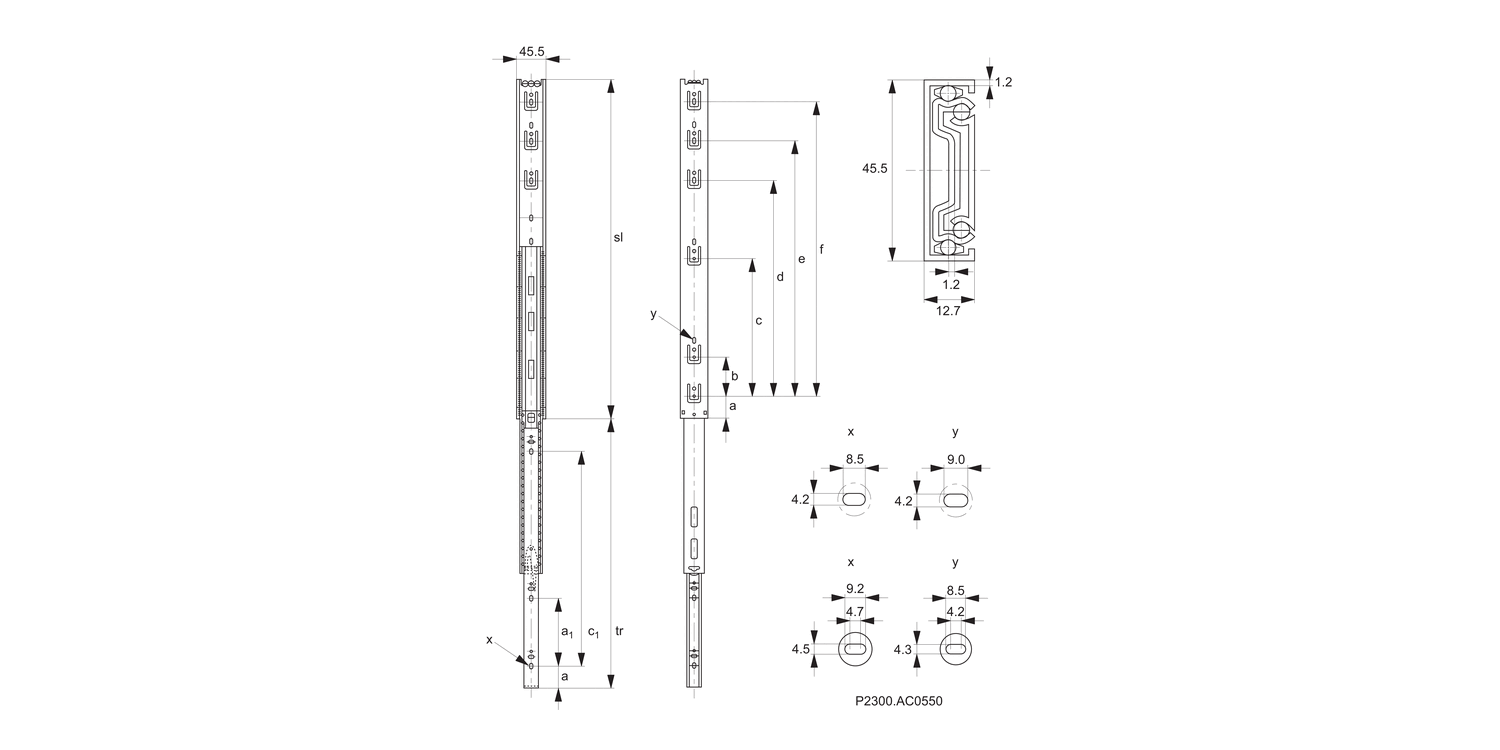

Slide length sl
250
Slide travel tr
250
a
35
b
160
b1
160
c
-
c1
-
d
-
e
-
f
-
Load/pair
max.
kg
45
Weight
g
390
£ 3.79 per unit (click for quantity discounts)
Slide length sl
300
Slide travel tr
300
a
35
b
64
b1
96
c
224
c1
192
d
-
e
-
f
-
Load/pair
max.
kg
45
Weight
g
470
£ 4.40 per unit (click for quantity discounts)
Slide length sl
350
Slide travel tr
350
a
35
b
64
b1
128
c
224
c1
256
d
-
e
-
f
-
Load/pair
max.
kg
45
Weight
g
555
£ 5.13 per unit (click for quantity discounts)
Slide length sl
400
Slide travel tr
400
a
35
b
64
b1
128
c
224
c1
320
d
288
e
-
f
-
Load/pair
max.
kg
45
Weight
g
635
£ 6.59 per unit (click for quantity discounts)
Slide length sl
450
Slide travel tr
450
a
35
b
64
b1
160
c
224
c1
352
d
352
e
-
f
-
Load/pair
max.
kg
45
Weight
g
745
£ 6.59 per unit (click for quantity discounts)
Slide length sl
500
Slide travel tr
500
a
35
b
64
b1
192
c
224
c1
416
d
352
e
416
f
-
Load/pair
max.
kg
45
Weight
g
795
£ 7.72 per unit (click for quantity discounts)
Slide length sl
550
Slide travel tr
550
a
35
b
64
b1
224
c
224
c1
448
d
352
e
416
f
-
Load/pair
max.
kg
45
Weight
g
880
£ 11.80 per unit (click for quantity discounts)
Slide length sl
600
Slide travel tr
600
a
35
b
64
b1
224
c
224
c1
512
d
352
e
480
f
-
Load/pair
max.
kg
45
Weight
g
970
£ 12.80 per unit (click for quantity discounts)
Slide length sl
650
Slide travel tr
650
a
35
b
64
b1
256
c
224
c1
544
d
352
e
512
f
-
Load/pair
max.
kg
45
Weight
g
1050
£ 9.95 per unit (click for quantity discounts)
Slide length sl
700
Slide travel tr
700
a
35
b
64
b1
288
c
224
c1
608
d
352
e
480
f
608
Load/pair
max.
kg
45
Weight
g
1130
£ 10.93 per unit (click for quantity discounts)
Slide length sl
Slide travel tr
a
b
b1
c
c1
d
e
f
Load/pair
max.
kg
Weight
g
| Price & Availability | Article | Slide length sl | Slide travel tr | a | b | b1 | c | c1 | d | e | f | Load/pair max. kg | Weight g | |||||||||||||||
| L2066.AC0250 | 250 | 250 | 35 | 160 | 160 | - | - | - | - | - | 45 | 390 | ||||||||||||||||
£ 3.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 250 Slide travel tr 250 a 35 b 160 b1 160 c - c1 - d - e - f - Load/pair
max.
kg 45 Weight
g 390 | ||||||||||||||||||||||||||||
| L2066.AC0300 | 300 | 300 | 35 | 64 | 96 | 224 | 192 | - | - | - | 45 | 470 | ||||||||||||||||
£ 4.40 per unit (click for quantity discounts) Ready to despatch 30 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 300 Slide travel tr 300 a 35 b 64 b1 96 c 224 c1 192 d - e - f - Load/pair
max.
kg 45 Weight
g 470 | ||||||||||||||||||||||||||||
| L2066.AC0350 | 350 | 350 | 35 | 64 | 128 | 224 | 256 | - | - | - | 45 | 555 | ||||||||||||||||
£ 5.13 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 350 Slide travel tr 350 a 35 b 64 b1 128 c 224 c1 256 d - e - f - Load/pair
max.
kg 45 Weight
g 555 | ||||||||||||||||||||||||||||
| L2066.AC0400 | 400 | 400 | 35 | 64 | 128 | 224 | 320 | 288 | - | - | 45 | 635 | ||||||||||||||||
£ 6.59 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 400 Slide travel tr 400 a 35 b 64 b1 128 c 224 c1 320 d 288 e - f - Load/pair
max.
kg 45 Weight
g 635 | ||||||||||||||||||||||||||||
| L2066.AC0450 | 450 | 450 | 35 | 64 | 160 | 224 | 352 | 352 | - | - | 45 | 745 | ||||||||||||||||
£ 6.59 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 450 Slide travel tr 450 a 35 b 64 b1 160 c 224 c1 352 d 352 e - f - Load/pair
max.
kg 45 Weight
g 745 | ||||||||||||||||||||||||||||
| L2066.AC0500 | 500 | 500 | 35 | 64 | 192 | 224 | 416 | 352 | 416 | - | 45 | 795 | ||||||||||||||||
£ 7.72 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 500 Slide travel tr 500 a 35 b 64 b1 192 c 224 c1 416 d 352 e 416 f - Load/pair
max.
kg 45 Weight
g 795 | ||||||||||||||||||||||||||||
| L2066.AC0550 | 550 | 550 | 35 | 64 | 224 | 224 | 448 | 352 | 416 | - | 45 | 880 | ||||||||||||||||
£ 11.80 per unit (click for quantity discounts) Ready to despatch 86 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 550 Slide travel tr 550 a 35 b 64 b1 224 c 224 c1 448 d 352 e 416 f - Load/pair
max.
kg 45 Weight
g 880 | ||||||||||||||||||||||||||||
| L2066.AC0600 | 600 | 600 | 35 | 64 | 224 | 224 | 512 | 352 | 480 | - | 45 | 970 | ||||||||||||||||
£ 12.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 600 Slide travel tr 600 a 35 b 64 b1 224 c 224 c1 512 d 352 e 480 f - Load/pair
max.
kg 45 Weight
g 970 | ||||||||||||||||||||||||||||
| L2066.AC0650 | 650 | 650 | 35 | 64 | 256 | 224 | 544 | 352 | 512 | - | 45 | 1050 | ||||||||||||||||
£ 9.95 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 650 Slide travel tr 650 a 35 b 64 b1 256 c 224 c1 544 d 352 e 512 f - Load/pair
max.
kg 45 Weight
g 1050 | ||||||||||||||||||||||||||||
| L2066.AC0700 | 700 | 700 | 35 | 64 | 288 | 224 | 608 | 352 | 480 | 608 | 45 | 1130 | ||||||||||||||||
£ 10.93 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 700 Slide travel tr 700 a 35 b 64 b1 288 c 224 c1 608 d 352 e 480 f 608 Load/pair
max.
kg 45 Weight
g 1130 | ||||||||||||||||||||||||||||
Technical & Application
Material
Cold rolled steel, zinc plated.
Technical Notes
Hold-in detent when slide closed. Positive stop. Rails can be disconnected via pressing disconnect lever.
These slides have been tested to 60,000 usage cycles.
Important Notes
Load capacity is static load per pair, at the centre of the rails using all mounting holes. Sold individually as single slides.
