Clevis Joints
Steel

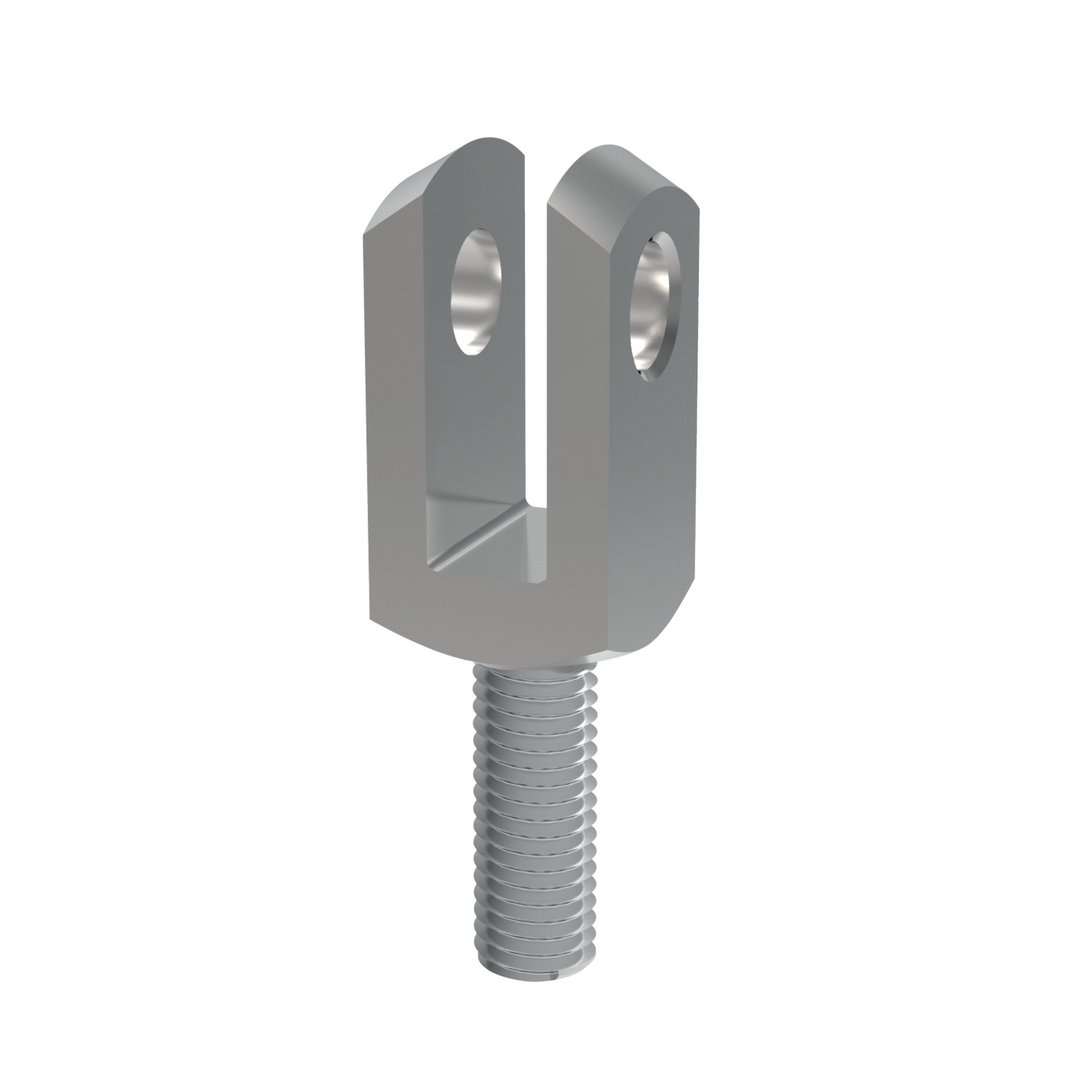

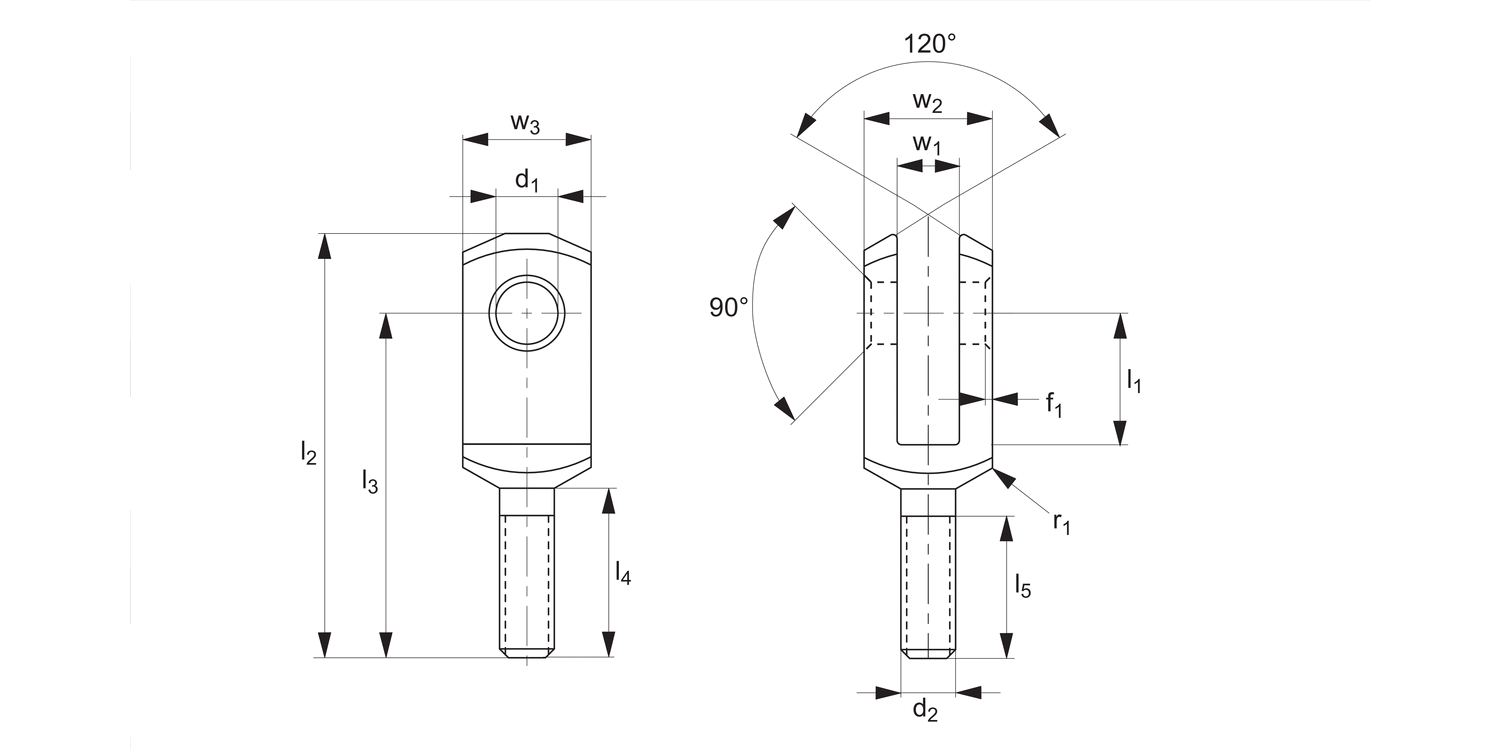

R3411 Male Clevis Joints
left hand thread - silver zinc plated, material: Steel
Order No.
R3411.L014
Size
14x28
Thread hand
Left
d1
tol. H9
14
l1
±0.5
28
d2
M14
l2
±0.2
94
l3
±0.4
78
l4
±0.2
40
l5
35
w1
+0.7|-0.15
14
w2
+0.5|+0.2
27
w3
tol. h11
27
f1
±0.2
1.0
r1
1.2
Weight
g
171
£ 86.82 per unit (click for quantity discounts)
Ready to despatch 1
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 86.82 | 0% |
| 50-99 | £ 69.46 | 20% |
| 100-199 | £ 65.12 | 25% |
| 200-499 | £ 60.77 | 30% |
| 500-999 | £ 56.43 | 35% |
| 1000+ | £ 52.09 | 40% |
Technical & Application
Material
Steel (1.0718) silver zinc plated.
Technical Notes
Similar to DIN 71 752/DIN ISO 8140/CETOP standard.
Tips
Standard thread is right hand, (for left hand, see R3411).
Other Tolerances: for r1, radius or 45° bevelling.
