R3402.A4 Stainless Clevis Joint

Name: R3402.R122-A4
Brand: WC
SKU: R3402.R122-A4
Price: 27.04 EUR
Availability: InStock

A4 stainless steel

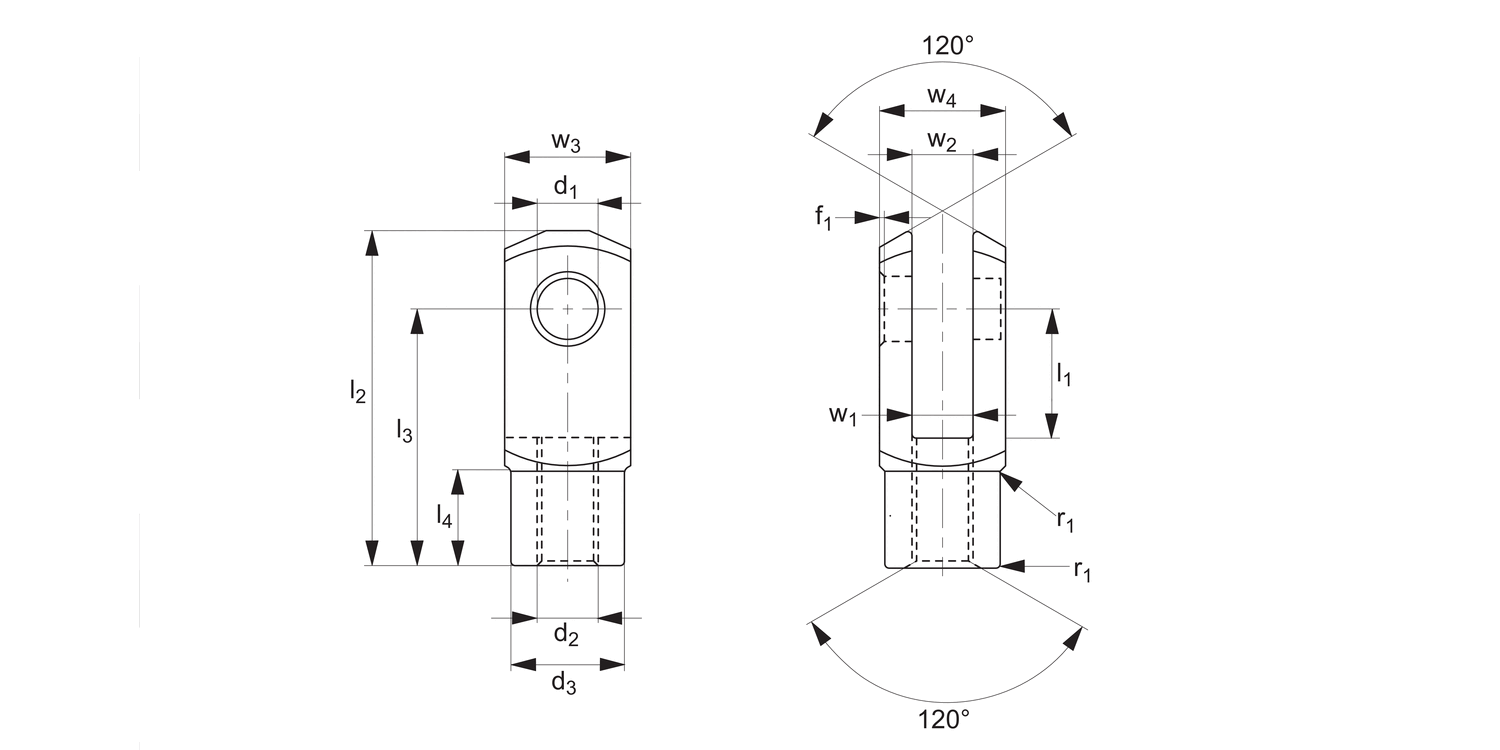

Article properties

Order No.

R3402.R122-A4

Size

12x24

Thread hand

Right

Thread type

Coarse

d₁ tol. h9

l₁ ±0.5

d₂

M12

d₃

l₂ ±0.5

l₃

l₄

18.0

w₁ ±0.5

w₂

w₃ tol. h11

w₄

Weight g

121

See full product selection

£ 27.04 per unit (click for quantity discounts)

Ready to despatch 1
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-49	£ 27.04	0%
50-99	£ 21.63	20%
100-199	£ 20.28	25%
200-499	£ 18.93	30%
500-999	£ 17.58	35%
1000+	£ 16.22	40%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Stainless steel (1,4404, AISI 316).

Technical Notes

M4-M16: DIN 71 752/DIN ISO 8140.
M20: Similar to DIN 71 752 and according to CETOP standard.

Tips

Standard thread is right hand, (for left hand, see R3403).

Important Notes

For sizes M4-M12, f and r = 0,5, for sizes M14-M16, f and r = 1, for size M20, f=1, r = 1,5
Other Tolerances:-
w4: M4-M16 = +0,3 -0,16
M20 = +0,5 - 0,2
w2: Size 4x8-10x20 = B13
Size 10x40-30x54 = +0,7 +0,15
l3: up to size 6x12 = ±0,3
From size 6x24 = ±0,4
