Clevis Joints
Steel

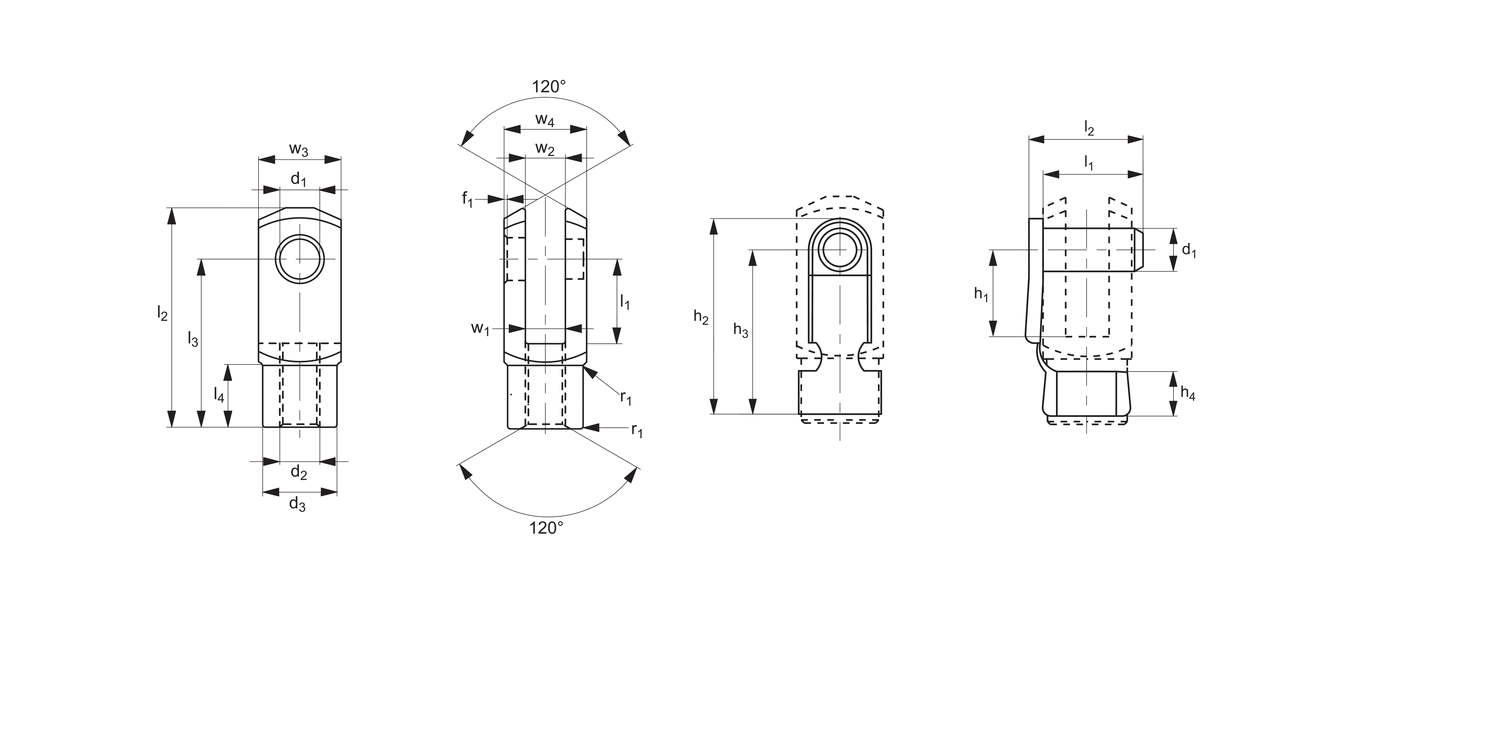

R3401 LH Clevis Joints with Retention Clip S/S
stainless steel
Order No.
R3401.L081
Size
8x16
Thread hand
Left
Thread type
Coarse
d1
8
l1
16
d2
M 8
d3
14
l2
42
Weight
g
48
l3
32
l4
12.0
l5
19
l6
23
h1
16
h2
37
h3
31
h4
8.0
w1
8
w2
8
w3
16
w4
16
£ 14.53 per unit (click for quantity discounts)
Ready to despatch 2
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 14.53 | 0% |
| 50-99 | £ 11.62 | 20% |
| 100-199 | £ 10.90 | 25% |
| 200-499 | £ 10.17 | 30% |
| 500-999 | £ 9.44 | 35% |
| 1000+ | £ 8.72 | 40% |
Technical & Application
Material
Stainless steel 1.4305
Technical Notes
M 4-M 16: DIN 71 752/DIN ISO 8140.
M 20: Similar to DIN 71 752/DIN ISO 8140 and according to CETOP standard.
Tips
For right hand, see R3400. Assembly made up using R3403 clevis joint and R3438 clevis retention clip.
Important Notes
For sizes M 4-M 12, f1 and r1 =0.5, for sizes M 14-M 16, f1 and r1 =1
For sizes M 18-M 20, f1=1, r1 = 1.5
