L1869 Take-up Units

Name: L1869.017
Brand: WC
SKU: L1869.017
Price: 48.11 EUR
Availability: OutOfStock

cast iron, material: Iron

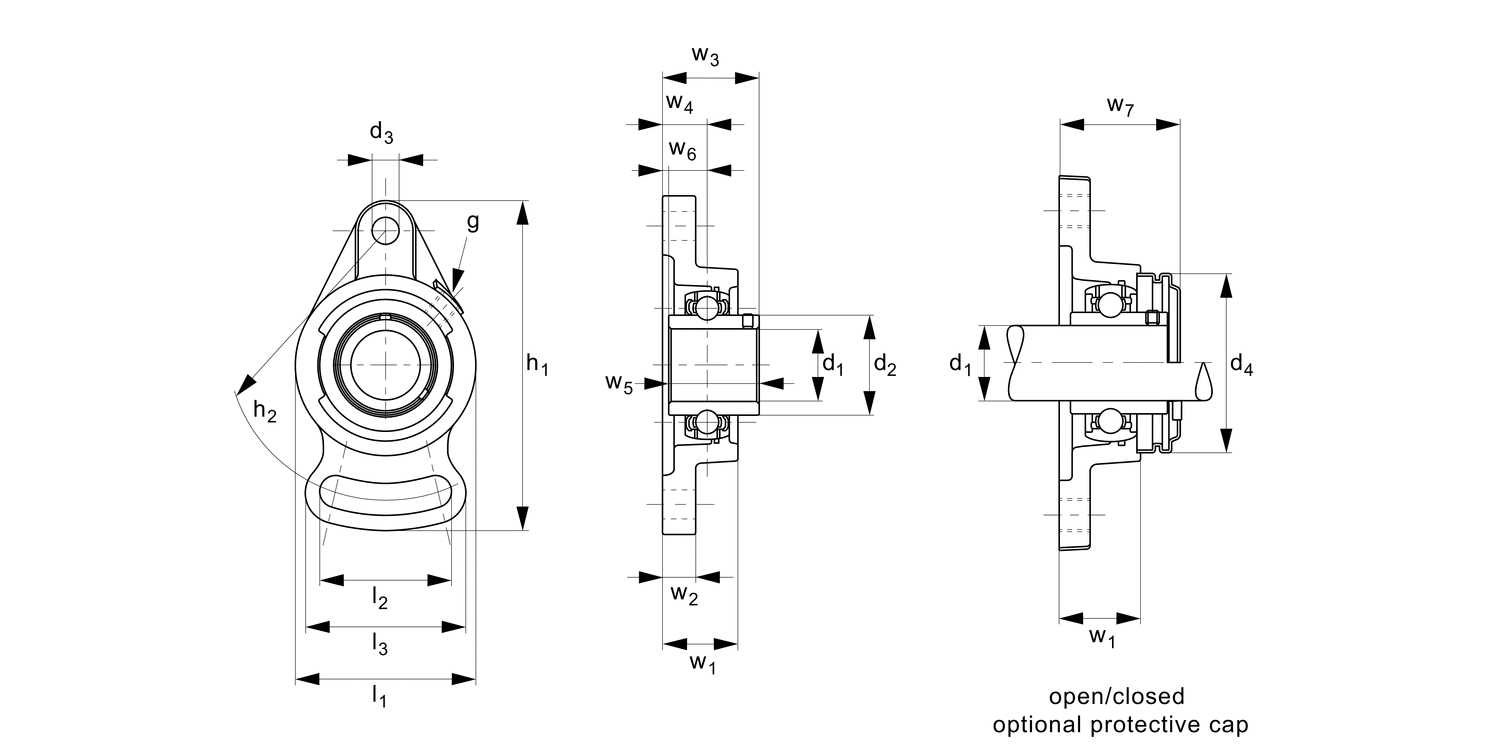

Article properties

Order No.

L1869.017

d₁ for h6

l₁

h₁

102

l₂

d₂

29.0

d₃

d₄

M6x1

d₅

h₂

l₃

Weight kg

0.5

w₁

25.5

w₂

w₃

33.3

w₄

w₅

31.0

w₆

12.7

w₇

33.0

Dyn. radial load C max. kN

12.8

Static radial load C₀ max. kN

6.6

Speed max. rpm

6500

See full product selection

£ 48.11 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 48.11	0%
5-19	£ 43.30	10%
20-39	£ 38.49	20%
40-99	£ 33.68	30%
100+	£ 28.87	40%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Quality grey cast iron (FG20 or FG25), passivated and painted (RAL 5010).

Technical Notes

Self-aligning bearings, relubricatable.
Temperature range: -20°C to +120°C.
The max. axial load is 0.5 x radial static load.
The housings are rated to take the maximum bearing loads.
For optional shaft end caps add suffixes:
-CO for one open protective cap (with seal) for through shafts
-CC for closed protective cap for shaft ends.
