Six beam coupling
set screw
R3013 Bellows Coupling
Aluminium with Phosphor Bronze, material: Aluminium
Order No.
R3013.D-12

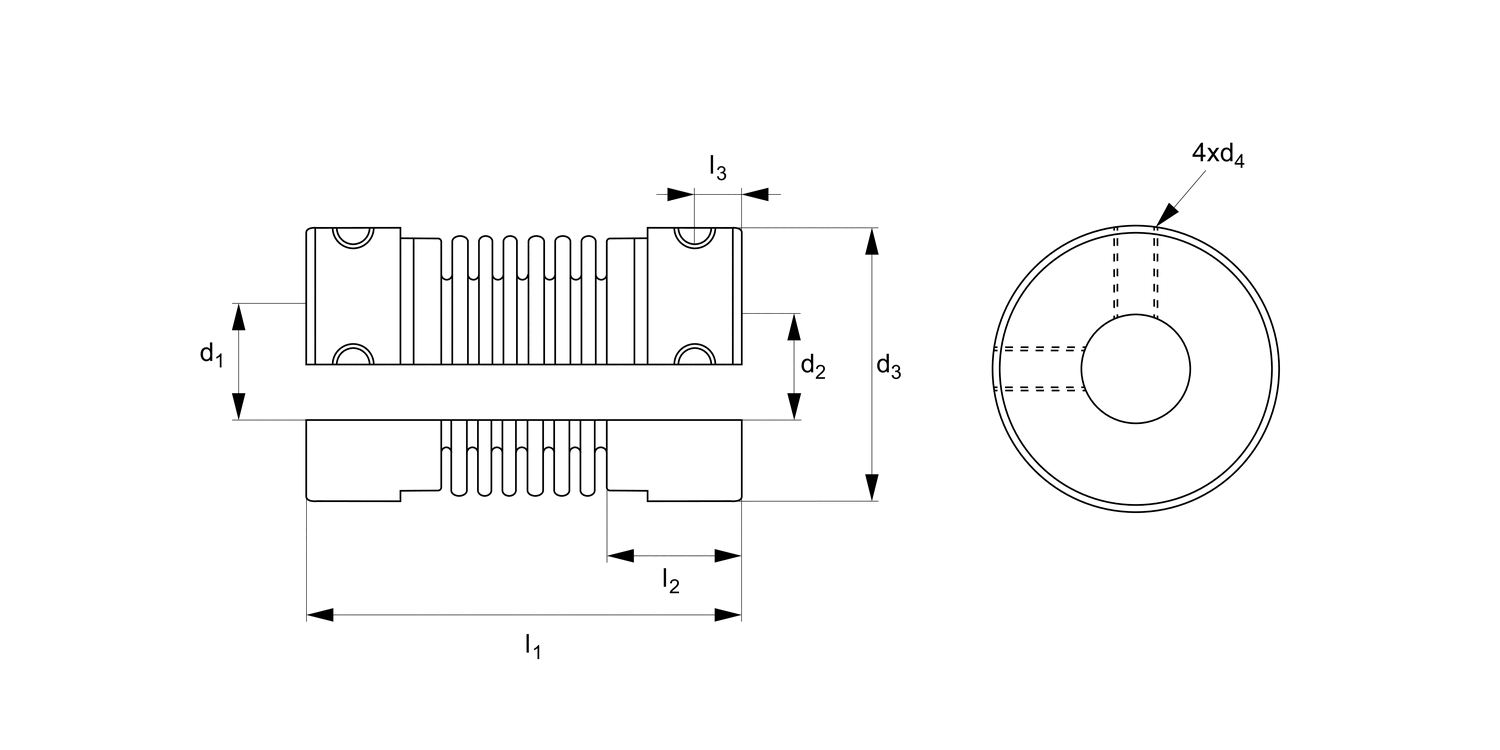

d1 & d2
tol. h8
12
d3
25
d4
M4
l1
36.5
l2
12
l3
4.5
Clamping screw lock torque
Nm
1.7
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1+ | - |
Technical & Application
Material
Mainframe: Anodized aluminium AL 7075
Bellows: Phosphor bronze C5191
Technical Notes
Offset of angular, parallel or axial deviation are individual allowed valure,
so couple reasons of axial offset appearing at same time would reduce the unit allowable value.
