Six beam coupling
set screw
R3011 Full Bellows Coupling - Stainless Steel
set screw, material: Stainless steel
Order No.
R3011.A-6

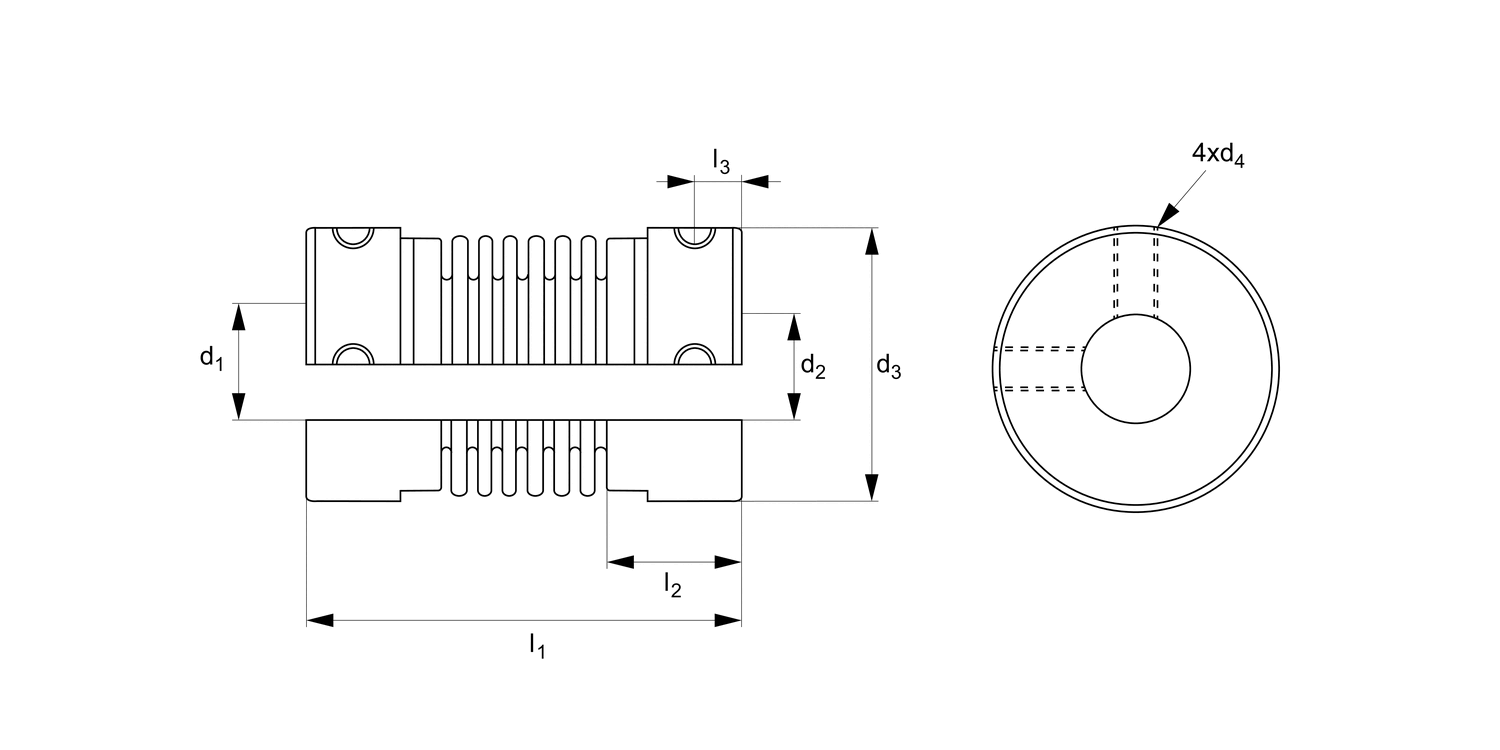

d1 & d2
tol. h8
6
d3
12
d4
M2,5
l1
23.5
l2
7.5
l3
2.5
Clamping screw lock torque
Nm
0.5
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1+ | - |
Technical & Application
Material
Mainframe: Stainless steel SUS303
Bellows: Stainless steel SUS316
Technical Notes
Offset of angular, parallel or axial deviation are individual allowed valure,
so couple reasons of axial offset appearing at same time would reduce the unit allowable value.
