R3010.1 Bellows Coupling - Stainless steel
clamp fixing, material: Stainless steel
Order No.
R3010.016-06-06

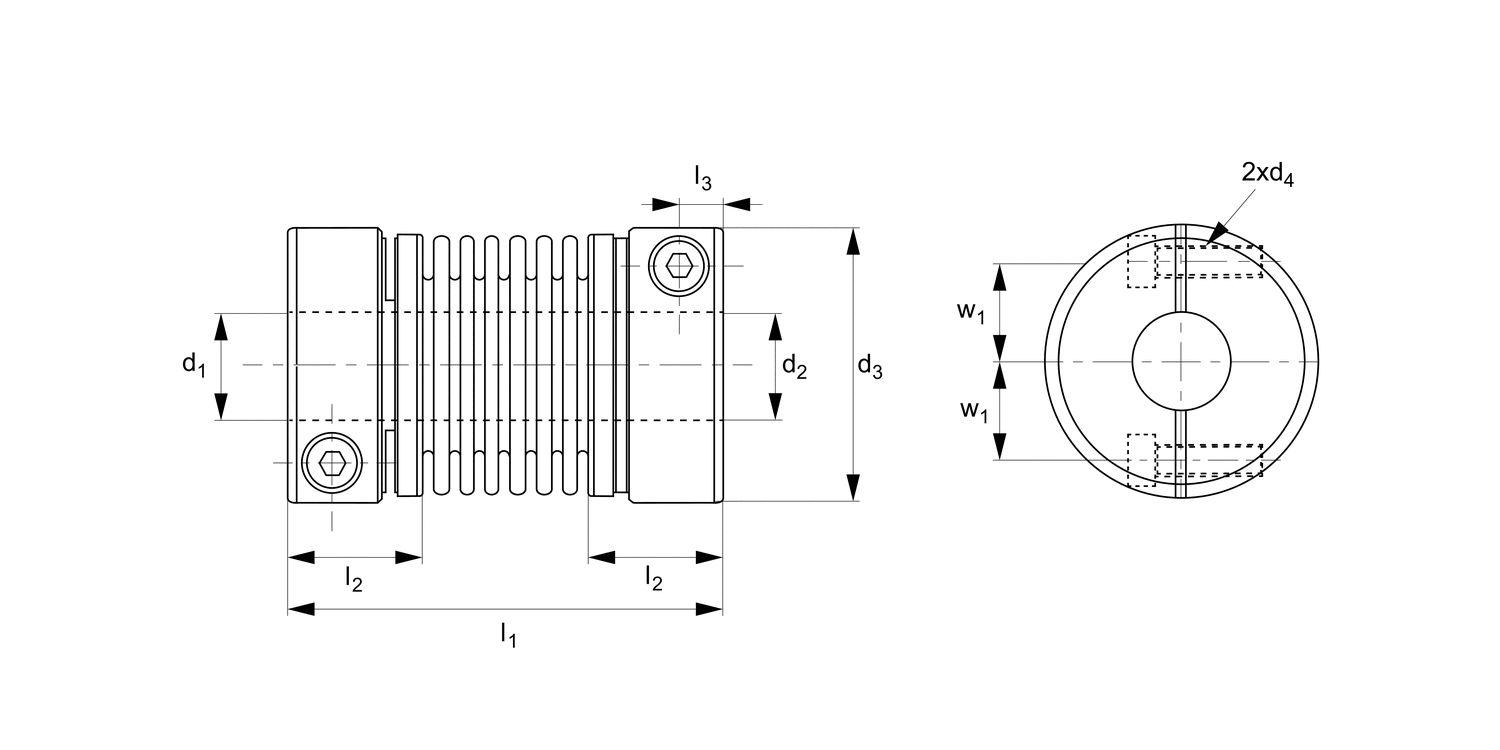

d1 & d2
tol. h8
6
d3
16
d4
M2,5
l1
26.5
l2
9
l3
3
w
5
Allowable misalignment (angular)
°
1.5
Allowable misalignment (axial)
mm
+0,4 -1,2
Weight
g
22
Allowable misalignment (parallel)
mm
0.10
Allowable wrench torque
Nm
1.0
Clamping screw lock torque
Nm
1.0
Moment of inertia
kg·m²
8,1x10-7
rpm
max.
9500
Static torsional stiffness
Nm/rad
150
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1+ | - |
Technical & Application
Material
Mainframe: Stainless steel SUS303
Bellows: Stainless steel SUS316
Technical Notes
Individual misalignment values permitted in an angular, parallel or axial directions are shown in the table below. Misalignment occurring in two or more directions simultaneously will reduce these values by half.
Tips
Other combinations of d1 and d2 available on request.
Product Datasheets

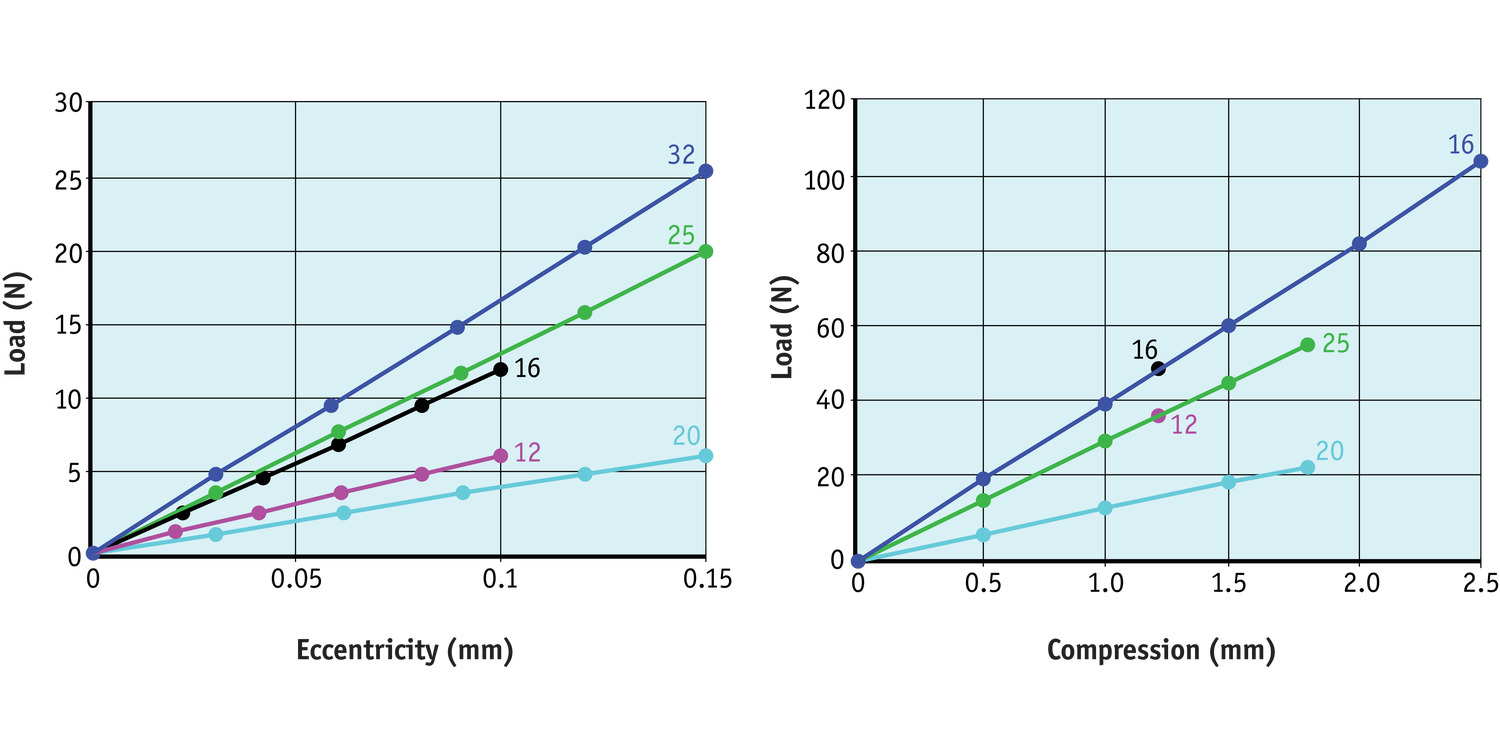

Application images
