Six beam coupling
set screw

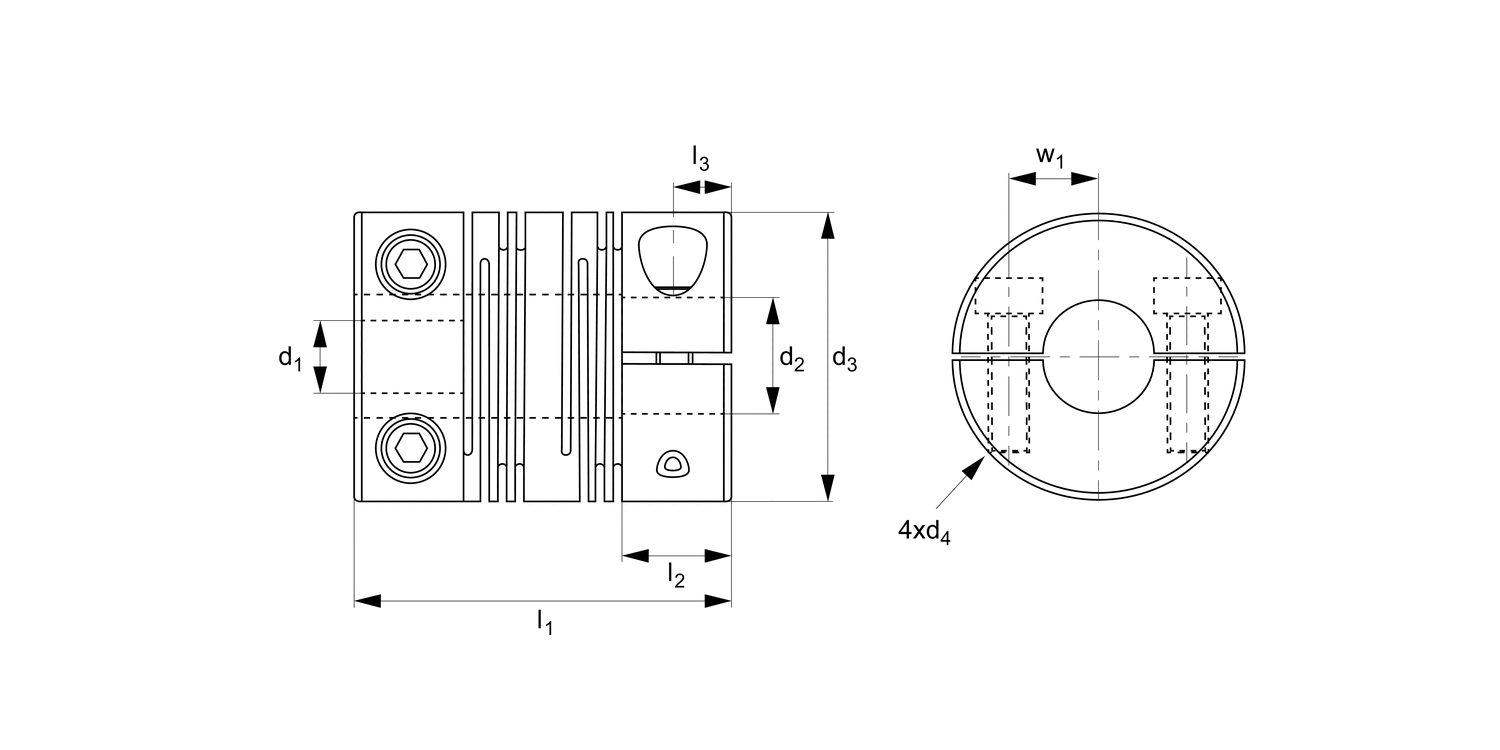

R3004 Beamed Coupling - six beam
aluminium - clamp type, material: Aluminium
Order No.
R3004.D10-10
d1
10
d2
10
d3
19.1
d4
M2,5
l1
26.5
l2
6.5
Ang. offset
7°
Par. offset
mm
0.25
Torque
max.
Nm
5.3
Tors. stiffness
Nm/rad
57
Weight
g
18
£ 60.22 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1+ | £ 60.22 |
Technical & Application
Material
Anodized aluminium (DIN 1725), black.
Technical Notes
One piece construction, no mechanical joints.
No backlash.
Constant velocity.
Torsionally rigid.
High flexibility.
Temperature range -40°C to +120°C.
Central relief diameter may be smaller than bore in some cases.
Max Torque:
Select the size where max.torque exceeds the application target service factor.
Service Factors:
Shock + reversing = 2
Non reversing = 1,5
Steady load = 1
Max. rpm = 5,000
Torsional stiffness:
based on - bore diameter of minimum D2 for size at load of (max torque/2).
Tips
Suitable for:
encoders, stepper motors, precision ball screws, robotics, scientific equipment, measuring systems, medical systems, pumps, servo systems etc.
