Shoulder Nuts - Cap Head
hex drive - 303 stainless
P0130.i Inch Shoulder Screws - Cap Head
hex drive - 303 stainless, material: 303 stainless
Alternative products you may wish to consider

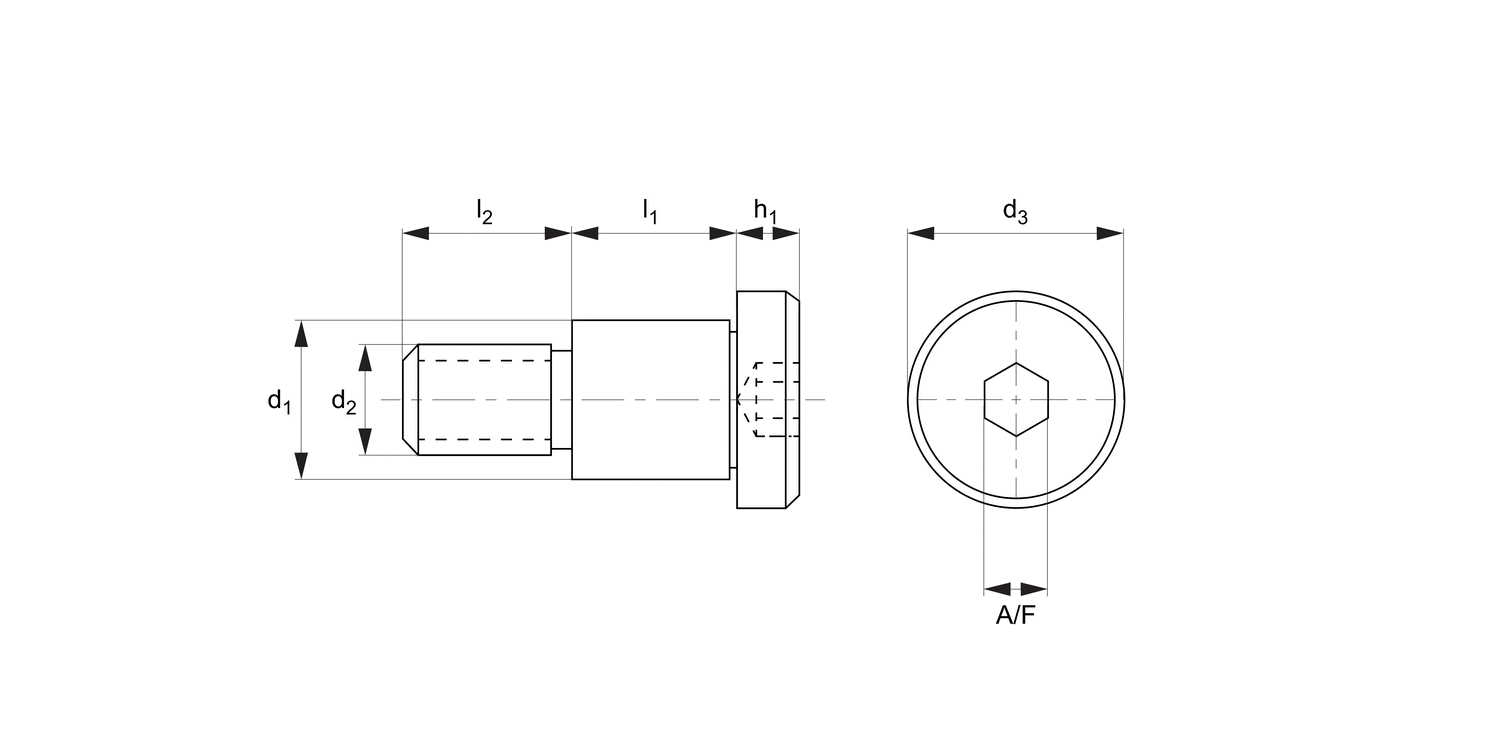

d1
+0
-0,001
d2
d3
l1
+0,002
-0,000
l2
h1
A/F
| Order No. | d1 +0 -0,001 |
d2 | d3 | l1 +0,002 -0,000 |
l2 | h1 | A/F | ||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P0130.125-012 | (1/8") 0,1245 | #4-40 UNC | 1/4" | (1/8") 0,1255 | 5/32" | 1/8" | 5/64" | |||||||||||||||||||||||||||||||||||||
£ 3.22 per unit (click for quantity discounts)
Ready to despatch 17 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
 |
P0130.125-018 | (1/8") 0,1245 | #4-40 UNC | 1/4" | (3/16") 0,1880 | 5/32" | 1/8" | 5/64" | |||||||||||||||||||||||||||||||||||||
£ 2.88 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.125-025 | (1/8") 0,1245 | #4-40 UNC | 1/4" | (1/4") 0,2505 | 5/32" | 1/8" | 5/64" | |||||||||||||||||||||||||||||||||||||
£ 2.88 per unit (click for quantity discounts)
Ready to despatch 10 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.125-031 | (1/8") 0,1245 | #4-40 UNC | 1/4" | (5/16") 0,3130 | 5/32" | 1/8" | 5/64" | |||||||||||||||||||||||||||||||||||||
£ 2.88 per unit (click for quantity discounts)
Ready to despatch 156 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.125-037 | (1/8") 0,1245 | #4-40 UNC | 1/4" | (3/8") 0,3755 | 5/32" | 1/8" | 5/64" | |||||||||||||||||||||||||||||||||||||
£ 3.04 per unit (click for quantity discounts)
Ready to despatch 40 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.187-012 | (3/16") 0,1870 | #8-32 UNC | 5/16" | (1/8") 0,1255 | 3/16" | 5/32" | 3/32" | |||||||||||||||||||||||||||||||||||||
£ 3.14 per unit (click for quantity discounts)
Ready to despatch 30 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.187-018 | (3/16") 0,1870 | #8-32 UNC | 5/16" | (3/16") 0,1880 | 3/16" | 5/32" | 3/32" | |||||||||||||||||||||||||||||||||||||
£ 3.07 per unit (click for quantity discounts)
Ready to despatch 34 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.187-025 | (3/16") 0,1870 | #8-32 UNC | 5/16" | (1/4") 0,2505 | 3/16" | 5/32" | 3/32" | |||||||||||||||||||||||||||||||||||||
£ 3.14 per unit (click for quantity discounts)
Ready to despatch 120 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.187-031 | (3/16") 0,1870 | #8-32 UNC | 5/16" | (5/16") 0,3130 | 3/16" | 5/32" | 3/32" | |||||||||||||||||||||||||||||||||||||
£ 3.18 per unit (click for quantity discounts)
Ready to despatch 90 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.187-037 | (3/16") 0,1870 | #8-32 UNC | 5/16" | (3/8") 0,3755 | 3/16" | 5/32" | 3/32" | |||||||||||||||||||||||||||||||||||||
£ 3.29 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.187-050 | (3/16") 0,1870 | #8-32 UNC | 5/16" | (1/2") 0,5005 | 3/16" | 5/32" | 3/32" | |||||||||||||||||||||||||||||||||||||
£ 3.35 per unit (click for quantity discounts)
Ready to despatch 99 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.187-062 | (3/16") 0,1870 | #8-32 UNC | 5/16" | (5/8") 0,6255 | 3/16" | 5/32" | 3/32" | |||||||||||||||||||||||||||||||||||||
£ 3.35 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.187-075 | (3/16") 0,1870 | #8-32 UNC | 5/16" | (3/4") 0,7505 | 3/16" | 5/32" | 3/32" | |||||||||||||||||||||||||||||||||||||
£ 3.87 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.187-100 | (3/16") 0,1870 | #8-32 UNC | 5/16" | (1") 1,0005 | 3/16" | 5/32" | 3/32" | |||||||||||||||||||||||||||||||||||||
£ 3.96 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.187-125 | (3/16") 0,1870 | #8-32 UNC | 5/16" | (1 1/4") 1,2505 | 3/16" | 5/32" | 3/32" | |||||||||||||||||||||||||||||||||||||
£ 3.90 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.187-150 | (3/16") 0,1870 | #8-32 UNC | 5/16" | (1 1/2") 1,5005 | 3/16" | 5/32" | 3/32" | |||||||||||||||||||||||||||||||||||||
£ 3.90 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.250-012 | (1/4") 0,2495 | #10-32 UNF | 3/8" | (1/8") 0,1255 | 1/4" | 3/16" | 1/8" | |||||||||||||||||||||||||||||||||||||
£ 3.15 per unit (click for quantity discounts)
Ready to despatch 100 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.250-018 | (1/4") 0,2495 | #10-32 UNF | 3/8" | (3/16") 0,1880 | 1/4" | 3/16" | 1/8" | |||||||||||||||||||||||||||||||||||||
£ 3.15 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.250-025 | (1/4") 0,2495 | #10-32 UNF | 3/8" | (1/4") 0,2505 | 1/4" | 3/16" | 1/8" | |||||||||||||||||||||||||||||||||||||
£ 3.19 per unit (click for quantity discounts)
Ready to despatch 47 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.250-031 | (1/4") 0,2495 | #10-32 UNF | 3/8" | (5/16") 0,3130 | 1/4" | 3/16" | 1/8" | |||||||||||||||||||||||||||||||||||||
£ 3.17 per unit (click for quantity discounts)
Ready to despatch 105 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.250-037 | (1/4") 0,2495 | #10-32 UNF | 3/8" | (3/8") 0,3755 | 1/4" | 3/16" | 1/8" | |||||||||||||||||||||||||||||||||||||
£ 3.11 per unit (click for quantity discounts)
Ready to despatch 94 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.250-050 | (1/4") 0,2495 | #10-32 UNF | 3/8" | (1/2") 0,5005 | 1/4" | 3/16" | 1/8" | |||||||||||||||||||||||||||||||||||||
£ 3.11 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.250-062 | (1/4") 0,2495 | #10-32 UNF | 3/8" | (5/8") 0,6255 | 1/4" | 3/16" | 1/8" | |||||||||||||||||||||||||||||||||||||
£ 3.97 per unit (click for quantity discounts)
Ready to despatch 28 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.250-075 | (1/4") 0,2495 | #10-32 UNF | 3/8" | (3/4") 0,7505 | 1/4" | 3/16" | 1/8" | |||||||||||||||||||||||||||||||||||||
£ 3.84 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.250-100 | (1/4") 0,2495 | #10-32 UNF | 3/8" | (1") 1,0005 | 1/4" | 3/16" | 1/8" | |||||||||||||||||||||||||||||||||||||
£ 4.16 per unit (click for quantity discounts)
Ready to despatch 30 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.250-125 | (1/4") 0,2495 | #10-32 UNF | 3/8" | (1 1/4") 1,2505 | 1/4" | 3/16" | 1/8" | |||||||||||||||||||||||||||||||||||||
£ 3.58 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.250-150 | (1/4") 0,2495 | #10-32 UNF | 3/8" | (1 1/2") 1,5005 | 1/4" | 3/16" | 1/8" | |||||||||||||||||||||||||||||||||||||
£ 4.42 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.312-025 | (5/16") 0,3120 | B-20 UNC | 1/2" | (1/4") 0,2505 | 7/16" | 7/32" | 5/32" | |||||||||||||||||||||||||||||||||||||
£ 4.34 per unit (click for quantity discounts)
Ready to despatch 150 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.312-031 | (5/16") 0,3120 | B-20 UNC | 1/2" | (5/16") 0,3130 | 7/16" | 7/32" | 5/32" | |||||||||||||||||||||||||||||||||||||
£ 4.33 per unit (click for quantity discounts)
Ready to despatch 27 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.312-037 | (5/16") 0,3120 | B-20 UNC | 1/2" | (3/8") 0,3755 | 7/16" | 7/32" | 5/32" | |||||||||||||||||||||||||||||||||||||
£ 4.21 per unit (click for quantity discounts)
Ready to despatch 4 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.312-050 | (5/16") 0,3120 | B-20 UNC | 1/2" | (1/2") 0,5005 | 7/16" | 7/32" | 5/32" | |||||||||||||||||||||||||||||||||||||
£ 4.33 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.312-062 | (5/16") 0,3120 | B-20 UNC | 1/2" | (5/8") 0,6255 | 7/16" | 7/32" | 5/32" | |||||||||||||||||||||||||||||||||||||
£ 5.55 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.312-075 | (5/16") 0,3120 | B-20 UNC | 1/2" | (3/4") 0,7505 | 7/16" | 7/32" | 5/32" | |||||||||||||||||||||||||||||||||||||
£ 5.93 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.374-031 | (3/8") 0,3745 | B-20 UNC | 1/2" | (5/16") 0,3130 | 7/16" | 7/32" | 5/32" | |||||||||||||||||||||||||||||||||||||
£ 4.68 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.374-037 | (3/8") 0,3745 | B-20 UNC | 1/2" | (3/8") 0,3755 | 7/16" | 7/32" | 5/32" | |||||||||||||||||||||||||||||||||||||
£ 4.67 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.374-050 | (3/8") 0,3745 | B-20 UNC | 1/2" | (1/2") 0,5005 | 7/16" | 7/32" | 5/32" | |||||||||||||||||||||||||||||||||||||
£ 4.52 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.374-062 | (3/8") 0,3745 | B-20 UNC | 1/2" | (5/8") 0,6255 | 7/16" | 7/32" | 5/32" | |||||||||||||||||||||||||||||||||||||
£ 4.94 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.375-031 | (3/8") 0,3745 | J-18 UNC | 9/16" | (5/16") 0,3130 | 1/2" | 1/4" | 3/16" | |||||||||||||||||||||||||||||||||||||
£ 4.92 per unit (click for quantity discounts)
Ready to despatch 5 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.375-037 | (3/8") 0,3745 | J-18 UNC | 9/16" | (3/8") 0,3755 | 1/2" | 1/4" | 3/16" | |||||||||||||||||||||||||||||||||||||
£ 5.12 per unit (click for quantity discounts)
Ready to despatch 168 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.375-050 | (3/8") 0,3745 | J-18 UNC | 9/16" | (1/2") 0,5005 | 1/2" | 1/4" | 3/16" | |||||||||||||||||||||||||||||||||||||
£ 5.40 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.375-062 | (3/8") 0,3745 | J-18 UNC | 9/16" | (5/8") 0,6255 | 1/2" | 1/4" | 3/16" | |||||||||||||||||||||||||||||||||||||
£ 6.08 per unit (click for quantity discounts)
Ready to despatch 12 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.500-050 | (1/2") 0,4995 | E-16 UNC | 3/4" | (1/2") 0,5005 | 5/8" | 5/16" | 1/4" | |||||||||||||||||||||||||||||||||||||
£ 11.88 per unit (click for quantity discounts)
Ready to despatch 30 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.500-062 | (1/2") 0,4995 | E-16 UNC | 3/4" | (5/8") 0,6255 | 5/8" | 5/16" | 1/4" | |||||||||||||||||||||||||||||||||||||
£ 11.86 per unit (click for quantity discounts)
Ready to despatch 209 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.500-075 | (1/2") 0,4995 | E-16 UNC | 3/4" | (3/4") 0,7505 | 5/8" | 5/16" | 1/4" | |||||||||||||||||||||||||||||||||||||
£ 12.37 per unit (click for quantity discounts)
Ready to despatch 6 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
|
P0130.500-100 | (1/2") 0,4995 | E-16 UNC | 3/4" | (1") 1,0005 | 5/8" | 5/16" | 1/4" | |||||||||||||||||||||||||||||||||||||
£ 13.23 per unit (click for quantity discounts)
Ready to despatch 48 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £11.95. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel (AISI 303, 1.4305).
Tensile strength 550 N/mm2. Proof
stress min. 190 N/mm2, austenitic stainless steel.
