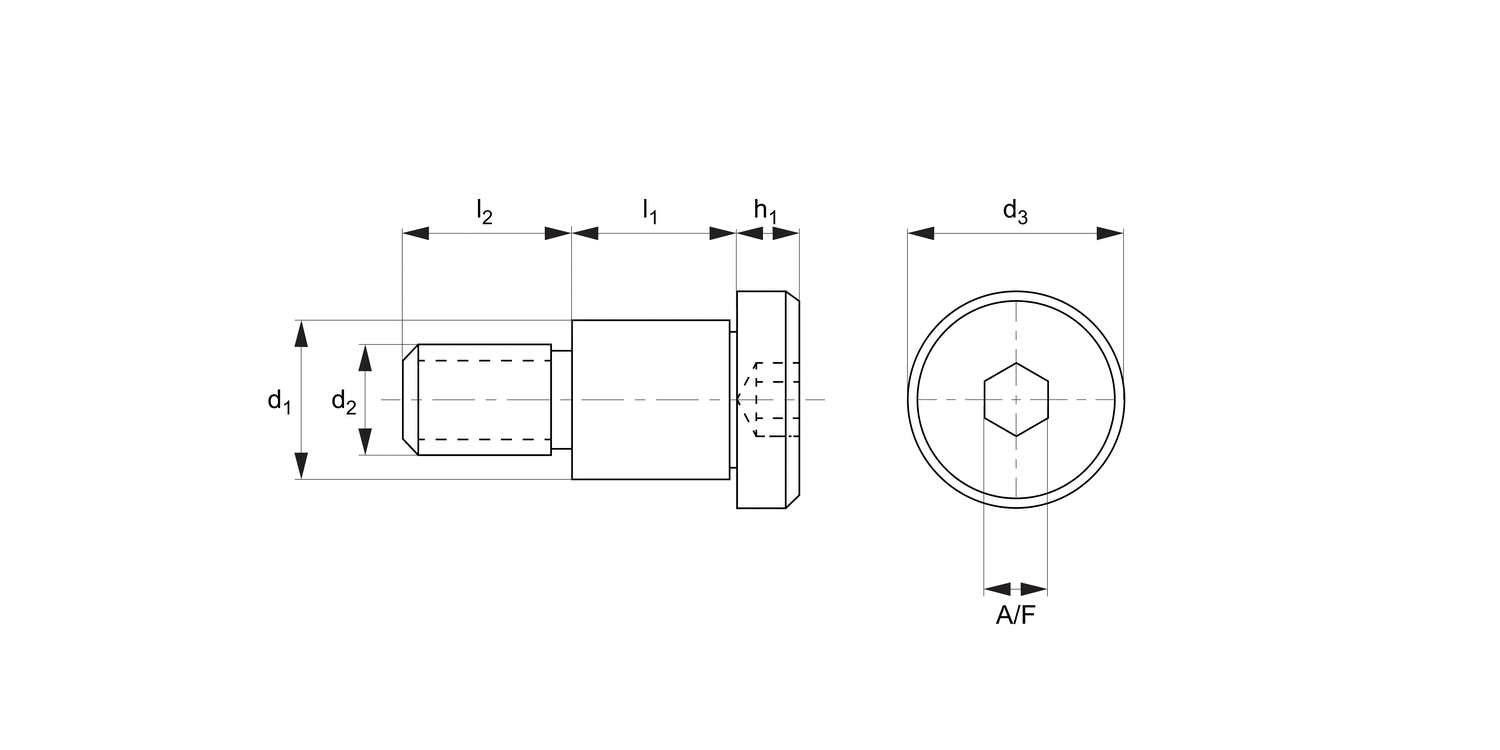

P0130.i Inch Shoulder Screws - Cap Head

hex drive - 303 stainless, material: 303 stainless

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Headless Shoulder Screws
Stainless Steel

Shoulder Nuts - Cap Head
hex drive - 316 stainless

Shoulder Nuts - Cap Head
hex drive - 303 stainless

Shoulder Screws - Countersunk
hex drive - 303 stainless

Shoulder Screws - Countersunk
hex drive - 316 stainless

Shoulder Screws - Cap Head
Stainless steel

Shoulder Screws - Cap Head
hex drive - 316 stainless

Shoulder Screws - Cap Head
hex drive - 303 stainless - locking patch

Inch Shoulder Screws - Cap Head
hex drive - 303 stainless

Shoulder Screws- Cap Head
416 stainless

Shoulder Screw - Cap Head
303 stainless

Shoulder Bolts - Hex. Head
Stainless steel

Shoulder Screws- Slot Head
416 stainless

Ultra Low Head Screws
Stainless Steel

Ultra Low Head Screws
Stainless Steel

Shoulder Bolts - Hex. Head
Stainless steel

Shoulder Screws
Stainless Steel

Shoulder Screws - Cap Head
303 stainless

Shoulder Screws - Cap Head
hex drive-316 stainless

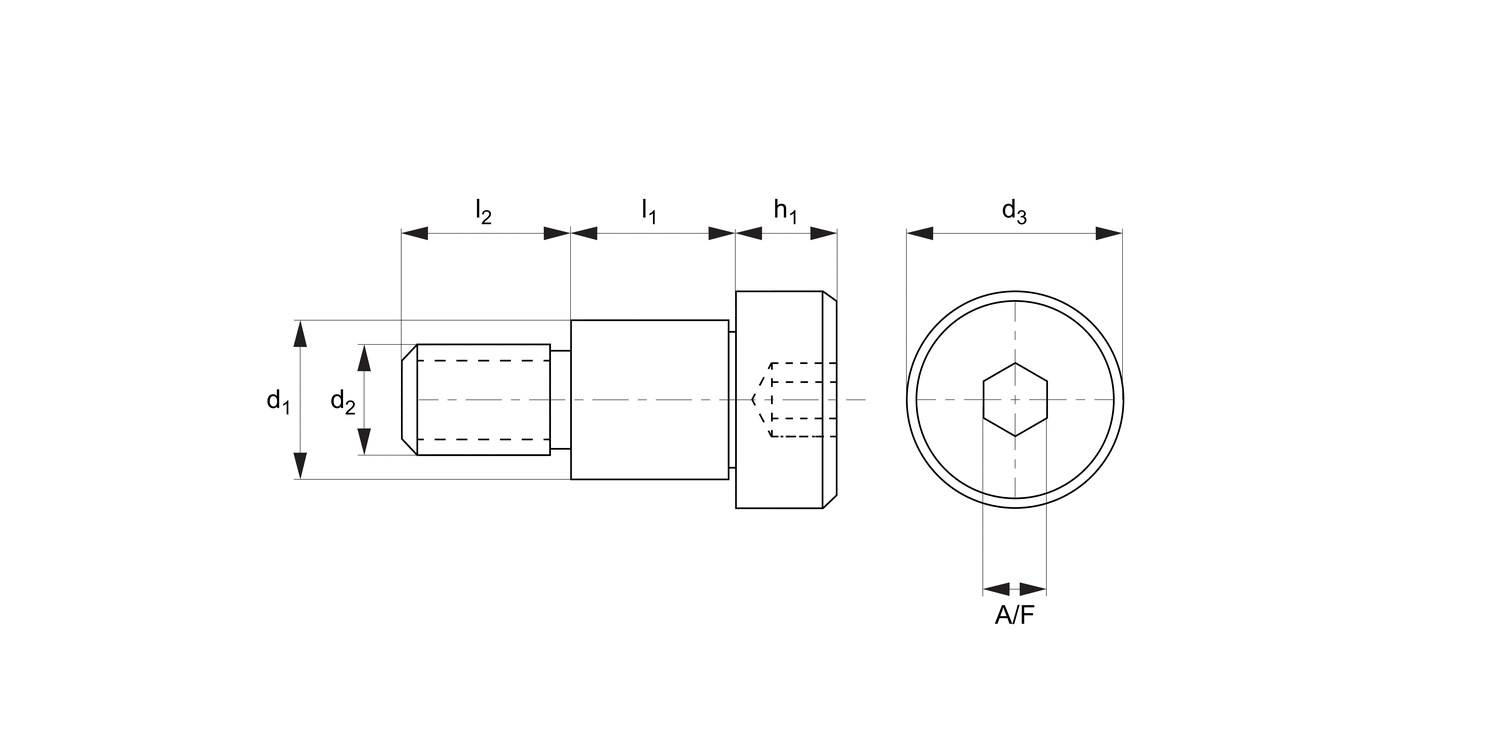

Shoulder screw socket I 1/8x1/8 A2

P0130.125-012

d₁ +0|-0.001

(1/8") 0.1245

l₁ +0.002|-0.000

(1/8") 0.1255

d₂

#4-40 UNC

d₃

1/4"

l₂

5/32"

h₁

1/8"

A/F

5/64"

£ 3.69 per unit (click for quantity discounts)

Shoulder screw socket I 1/8x3/16 A2

P0130.125-018

d₁ +0|-0.001

(1/8") 0.1245

l₁ +0.002|-0.000

(3/16") 0.1880

d₂

#4-40 UNC

d₃

1/4"

l₂

5/32"

h₁

1/8"

A/F

5/64"

£ 3.30 per unit (click for quantity discounts)

Shoulder screw socket I 1/8x1/4 A2

P0130.125-025

d₁ +0|-0.001

(1/8") 0.1245

l₁ +0.002|-0.000

(1/4") 0.2505

d₂

#4-40 UNC

d₃

1/4"

l₂

5/32"

h₁

1/8"

A/F

5/64"

£ 3.30 per unit (click for quantity discounts)

Shoulder screw socket I 1/8x5/16 A2

P0130.125-031

d₁ +0|-0.001

(1/8") 0.1245

l₁ +0.002|-0.000

(5/16") 0.3130

d₂

#4-40 UNC

d₃

1/4"

l₂

5/32"

h₁

1/8"

A/F

5/64"

£ 3.30 per unit (click for quantity discounts)

Shoulder screw socket I 1/8x3/8 A2

P0130.125-037

d₁ +0|-0.001

(1/8") 0.1245

l₁ +0.002|-0.000

(3/8") 0.3755

d₂

#4-40 UNC

d₃

1/4"

l₂

5/32"

h₁

1/8"

A/F

5/64"

£ 3.49 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x1/8 A2

P0130.187-012

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(1/8") 0.1255

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 3.61 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x3/16 A2

P0130.187-018

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(3/16") 0.1880

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 3.52 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x1/4 A2

P0130.187-025

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(1/4") 0.2505

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 3.61 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x5/16 A2

P0130.187-031

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(5/16") 0.3130

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 3.65 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x3/8 A2

P0130.187-037

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(3/8") 0.3755

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 3.77 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x1/2 A2

P0130.187-050

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(1/2") 0.5005

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 3.84 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x5/8 A2

P0130.187-062

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(5/8") 0.6255

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 3.84 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x3/4 A2

P0130.187-075

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(3/4") 0.7505

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 4.44 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x1 A2

P0130.187-100

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(1") 1.0005

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 4.55 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x1-1/4 A2

P0130.187-125

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(1 1/4") 1.2505

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 4.47 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x1-1/2 A2

P0130.187-150

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(1 1/2") 1.5005

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 4.47 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x1/8 A2

P0130.250-012

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(1/8") 0.1255

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 3.62 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x3/16 A2

P0130.250-018

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(3/16") 0.1880

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 3.62 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x1/4 A2

P0130.250-025

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(1/4") 0.2505

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 3.66 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x5/16 A2

P0130.250-031

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(5/16") 0.3130

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 3.64 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x3/8 A2

P0130.250-037

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(3/8") 0.3755

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 3.56 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x1/2 A2

P0130.250-050

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(1/2") 0.5005

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 3.56 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x5/8 A2

P0130.250-062

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(5/8") 0.6255

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 4.56 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x3/4 A2

P0130.250-075

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(3/4") 0.7505

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 4.41 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x1 A2

P0130.250-100

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(1") 1.0005

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 4.77 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x1-1/4 A2

P0130.250-125

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(1 1/4") 1.2505

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 4.10 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x1-1/2 A2

P0130.250-150

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(1 1/2") 1.5005

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 5.07 per unit (click for quantity discounts)

Shoulder screw socket I 5/16x1/4 A2

P0130.312-025

d₁ +0|-0.001

(5/16") 0.3120

l₁ +0.002|-0.000

(1/4") 0.2505

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 4.98 per unit (click for quantity discounts)

Shoulder screw socket I 5/16x5/16 A2

P0130.312-031

d₁ +0|-0.001

(5/16") 0.3120

l₁ +0.002|-0.000

(5/16") 0.3130

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 4.97 per unit (click for quantity discounts)

Shoulder screw socket I 5/16x3/8 A2

P0130.312-037

d₁ +0|-0.001

(5/16") 0.3120

l₁ +0.002|-0.000

(3/8") 0.3755

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 4.83 per unit (click for quantity discounts)

Shoulder screw socket I 5/16x1/2 A2

P0130.312-050

d₁ +0|-0.001

(5/16") 0.3120

l₁ +0.002|-0.000

(1/2") 0.5005

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 4.97 per unit (click for quantity discounts)

Shoulder screw hex 5/16x5/8 A2

P0130.312-062

d₁ +0|-0.001

(5/16") 0.3120

l₁ +0.002|-0.000

(5/8") 0.6255

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 6.36 per unit (click for quantity discounts)

Shoulder screw socket I 5/16x3/4 A2

P0130.312-075

d₁ +0|-0.001

(5/16") 0.3120

l₁ +0.002|-0.000

(3/4") 0.7505

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 6.80 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x5/16 I4 A2

P0130.374-031

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(5/16") 0.3130

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 5.37 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x3/8 I4 A2

P0130.374-037

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(3/8") 0.3755

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 5.36 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x1/2 I4 A2

P0130.374-050

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(1/2") 0.5005

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 5.18 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x5/8 I4 A2

P0130.374-062

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(5/8") 0.6255

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 5.67 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x5/16 I5 A2

P0130.375-031

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(5/16") 0.3130

d₂

5/16-18 UNC

d₃

9/16"

l₂

1/2"

h₁

1/4"

A/F

3/16"

£ 5.64 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x3/8 I5 A2

P0130.375-037

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(3/8") 0.3755

d₂

5/16-18 UNC

d₃

9/16"

l₂

1/2"

h₁

1/4"

A/F

3/16"

£ 5.88 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x1/2 I5 A2

P0130.375-050

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(1/2") 0.5005

d₂

5/16-18 UNC

d₃

9/16"

l₂

1/2"

h₁

1/4"

A/F

3/16"

£ 6.19 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x5/8 I5 A2

P0130.375-062

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(5/8") 0.6255

d₂

5/16-18 UNC

d₃

9/16"

l₂

1/2"

h₁

1/4"

A/F

3/16"

£ 6.97 per unit (click for quantity discounts)

Shoulder screw socket I 1/2x1/2 A2

P0130.500-050

d₁ +0|-0.001

(1/2") 0.4995

l₁ +0.002|-0.000

(1/2") 0.5005

d₂

3/8-16 UNC

d₃

3/4"

l₂

5/8"

h₁

5/16"

A/F

1/4"

£ 13.62 per unit (click for quantity discounts)

Shoulder screw socket I 1/2x5/8 A2

P0130.500-062

d₁ +0|-0.001

(1/2") 0.4995

l₁ +0.002|-0.000

(5/8") 0,6255

d₂

3/8-16 UNC

d₃

3/4"

l₂

5/8"

h₁

5/16"

A/F

1/4"

£ 13.60 per unit (click for quantity discounts)

Shoulder screw socket I 1/2x3/4 A2

P0130.500-075

d₁ +0|-0.001

(1/2") 0.4995

l₁ +0.002|-0.000

(3/4") 0.7505

d₂

3/8-16 UNC

d₃

3/4"

l₂

5/8"

h₁

5/16"

A/F

1/4"

£ 14.18 per unit (click for quantity discounts)

Shoulder screw socket I 1/2x1 A2

P0130.500-100

d₁ +0|-0.001

(1/2") 0.4995

l₁ +0.002|-0.000

(1") 1.0005

d₂

3/8-16 UNC

d₃

3/4"

l₂

5/8"

h₁

5/16"

A/F

1/4"

£ 15.16 per unit (click for quantity discounts)

Shoulder screw socket I 1/8x1/8 A2

P0130.125-012

d₁ +0|-0.001

(1/8") 0.1245

l₁ +0.002|-0.000

(1/8") 0.1255

d₂

#4-40 UNC

d₃

1/4"

l₂

5/32"

h₁

1/8"

A/F

5/64"

£ 3.69 per unit (click for quantity discounts)

Shoulder screw socket I 1/8x3/16 A2

P0130.125-018

d₁ +0|-0.001

(1/8") 0.1245

l₁ +0.002|-0.000

(3/16") 0.1880

d₂

#4-40 UNC

d₃

1/4"

l₂

5/32"

h₁

1/8"

A/F

5/64"

£ 3.30 per unit (click for quantity discounts)

Shoulder screw socket I 1/8x1/4 A2

P0130.125-025

d₁ +0|-0.001

(1/8") 0.1245

l₁ +0.002|-0.000

(1/4") 0.2505

d₂

#4-40 UNC

d₃

1/4"

l₂

5/32"

h₁

1/8"

A/F

5/64"

£ 3.30 per unit (click for quantity discounts)

Shoulder screw socket I 1/8x5/16 A2

P0130.125-031

d₁ +0|-0.001

(1/8") 0.1245

l₁ +0.002|-0.000

(5/16") 0.3130

d₂

#4-40 UNC

d₃

1/4"

l₂

5/32"

h₁

1/8"

A/F

5/64"

£ 3.30 per unit (click for quantity discounts)

Shoulder screw socket I 1/8x3/8 A2

P0130.125-037

d₁ +0|-0.001

(1/8") 0.1245

l₁ +0.002|-0.000

(3/8") 0.3755

d₂

#4-40 UNC

d₃

1/4"

l₂

5/32"

h₁

1/8"

A/F

5/64"

£ 3.49 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x1/8 A2

P0130.187-012

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(1/8") 0.1255

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 3.61 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x3/16 A2

P0130.187-018

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(3/16") 0.1880

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 3.52 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x1/4 A2

P0130.187-025

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(1/4") 0.2505

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 3.61 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x5/16 A2

P0130.187-031

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(5/16") 0.3130

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 3.65 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x3/8 A2

P0130.187-037

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(3/8") 0.3755

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 3.77 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x1/2 A2

P0130.187-050

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(1/2") 0.5005

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 3.84 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x5/8 A2

P0130.187-062

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(5/8") 0.6255

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 3.84 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x3/4 A2

P0130.187-075

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(3/4") 0.7505

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 4.44 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x1 A2

P0130.187-100

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(1") 1.0005

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 4.55 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x1-1/4 A2

P0130.187-125

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(1 1/4") 1.2505

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 4.47 per unit (click for quantity discounts)

Shoulder screw socket I 3/16x1-1/2 A2

P0130.187-150

d₁ +0|-0.001

(3/16") 0.1870

l₁ +0.002|-0.000

(1 1/2") 1.5005

d₂

#8-32 UNC

d₃

5/16"

l₂

3/16"

h₁

5/32"

A/F

3/32"

£ 4.47 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x1/8 A2

P0130.250-012

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(1/8") 0.1255

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 3.62 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x3/16 A2

P0130.250-018

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(3/16") 0.1880

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 3.62 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x1/4 A2

P0130.250-025

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(1/4") 0.2505

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 3.66 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x5/16 A2

P0130.250-031

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(5/16") 0.3130

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 3.64 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x3/8 A2

P0130.250-037

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(3/8") 0.3755

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 3.56 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x1/2 A2

P0130.250-050

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(1/2") 0.5005

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 3.56 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x5/8 A2

P0130.250-062

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(5/8") 0.6255

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 4.56 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x3/4 A2

P0130.250-075

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(3/4") 0.7505

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 4.41 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x1 A2

P0130.250-100

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(1") 1.0005

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 4.77 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x1-1/4 A2

P0130.250-125

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(1 1/4") 1.2505

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 4.10 per unit (click for quantity discounts)

Shoulder screw socket I 1/4x1-1/2 A2

P0130.250-150

d₁ +0|-0.001

(1/4") 0.2495

l₁ +0.002|-0.000

(1 1/2") 1.5005

d₂

#10-32 UNF

d₃

3/8"

l₂

1/4"

h₁

3/16"

A/F

1/8"

£ 5.07 per unit (click for quantity discounts)

Shoulder screw socket I 5/16x1/4 A2

P0130.312-025

d₁ +0|-0.001

(5/16") 0.3120

l₁ +0.002|-0.000

(1/4") 0.2505

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 4.98 per unit (click for quantity discounts)

Shoulder screw socket I 5/16x5/16 A2

P0130.312-031

d₁ +0|-0.001

(5/16") 0.3120

l₁ +0.002|-0.000

(5/16") 0.3130

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 4.97 per unit (click for quantity discounts)

Shoulder screw socket I 5/16x3/8 A2

P0130.312-037

d₁ +0|-0.001

(5/16") 0.3120

l₁ +0.002|-0.000

(3/8") 0.3755

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 4.83 per unit (click for quantity discounts)

Shoulder screw socket I 5/16x1/2 A2

P0130.312-050

d₁ +0|-0.001

(5/16") 0.3120

l₁ +0.002|-0.000

(1/2") 0.5005

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 4.97 per unit (click for quantity discounts)

Shoulder screw hex 5/16x5/8 A2

P0130.312-062

d₁ +0|-0.001

(5/16") 0.3120

l₁ +0.002|-0.000

(5/8") 0.6255

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 6.36 per unit (click for quantity discounts)

Shoulder screw socket I 5/16x3/4 A2

P0130.312-075

d₁ +0|-0.001

(5/16") 0.3120

l₁ +0.002|-0.000

(3/4") 0.7505

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 6.80 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x5/16 I4 A2

P0130.374-031

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(5/16") 0.3130

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 5.37 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x3/8 I4 A2

P0130.374-037

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(3/8") 0.3755

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 5.36 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x1/2 I4 A2

P0130.374-050

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(1/2") 0.5005

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 5.18 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x5/8 I4 A2

P0130.374-062

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(5/8") 0.6255

d₂

1/4-20 UNC

d₃

1/2"

l₂

7/16"

h₁

7/32"

A/F

5/32"

£ 5.67 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x5/16 I5 A2

P0130.375-031

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(5/16") 0.3130

d₂

5/16-18 UNC

d₃

9/16"

l₂

1/2"

h₁

1/4"

A/F

3/16"

£ 5.64 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x3/8 I5 A2

P0130.375-037

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(3/8") 0.3755

d₂

5/16-18 UNC

d₃

9/16"

l₂

1/2"

h₁

1/4"

A/F

3/16"

£ 5.88 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x1/2 I5 A2

P0130.375-050

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(1/2") 0.5005

d₂

5/16-18 UNC

d₃

9/16"

l₂

1/2"

h₁

1/4"

A/F

3/16"

£ 6.19 per unit (click for quantity discounts)

Shoulder screw socket I 3/8x5/8 I5 A2

P0130.375-062

d₁ +0|-0.001

(3/8") 0.3745

l₁ +0.002|-0.000

(5/8") 0.6255

d₂

5/16-18 UNC

d₃

9/16"

l₂

1/2"

h₁

1/4"

A/F

3/16"

£ 6.97 per unit (click for quantity discounts)

Shoulder screw socket I 1/2x1/2 A2

P0130.500-050

d₁ +0|-0.001

(1/2") 0.4995

l₁ +0.002|-0.000

(1/2") 0.5005

d₂

3/8-16 UNC

d₃

3/4"

l₂

5/8"

h₁

5/16"

A/F

1/4"

£ 13.62 per unit (click for quantity discounts)

Shoulder screw socket I 1/2x5/8 A2

P0130.500-062

d₁ +0|-0.001

(1/2") 0.4995

l₁ +0.002|-0.000

(5/8") 0,6255

d₂

3/8-16 UNC

d₃

3/4"

l₂

5/8"

h₁

5/16"

A/F

1/4"

£ 13.60 per unit (click for quantity discounts)

Shoulder screw socket I 1/2x3/4 A2

P0130.500-075

d₁ +0|-0.001

(1/2") 0.4995

l₁ +0.002|-0.000

(3/4") 0.7505

d₂

3/8-16 UNC

d₃

3/4"

l₂

5/8"

h₁

5/16"

A/F

1/4"

£ 14.18 per unit (click for quantity discounts)

Shoulder screw socket I 1/2x1 A2

P0130.500-100

d₁ +0|-0.001

(1/2") 0.4995

l₁ +0.002|-0.000

(1") 1.0005

d₂

3/8-16 UNC

d₃

3/4"

l₂

5/8"

h₁

5/16"

A/F

1/4"

£ 15.16 per unit (click for quantity discounts)



Select all

d₁ +0|-0.001

l₁ +0.002|-0.000

d₂

d₃

l₂

h₁

A/F

Price & Availability	Article	d1 +0|-0.001	l1 +0.002|-0.000	d2	d3	l2	h1	A/F
	P0130.125-012	(1/8") 0.1245	(1/8") 0.1255	#4-40 UNC	1/4"	5/32"	1/8"	5/64"
£ 3.69 per unit (click for quantity discounts) Ready to despatch 306 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.69 0% 100-249 £ 3.32 10% 250-749 £ 2.95 20% 750+ £ 2.58 30% d1 +0|-0.001 (1/8") 0.1245 l1 +0.002|-0.000 (1/8") 0.1255 d2 #4-40 UNC d3 1/4" l2 5/32" h1 1/8" A/F 5/64" more info »
	P0130.125-018	(1/8") 0.1245	(3/16") 0.1880	#4-40 UNC	1/4"	5/32"	1/8"	5/64"
£ 3.30 per unit (click for quantity discounts) Ready to despatch 310 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.30 0% 100-249 £ 2.97 10% 250-749 £ 2.64 20% 750+ £ 2.31 30% d1 +0|-0.001 (1/8") 0.1245 l1 +0.002|-0.000 (3/16") 0.1880 d2 #4-40 UNC d3 1/4" l2 5/32" h1 1/8" A/F 5/64" more info »
	P0130.125-025	(1/8") 0.1245	(1/4") 0.2505	#4-40 UNC	1/4"	5/32"	1/8"	5/64"
£ 3.30 per unit (click for quantity discounts) Ready to despatch 101 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.30 0% 100-249 £ 2.97 10% 250-749 £ 2.64 20% 750+ £ 2.31 30% d1 +0|-0.001 (1/8") 0.1245 l1 +0.002|-0.000 (1/4") 0.2505 d2 #4-40 UNC d3 1/4" l2 5/32" h1 1/8" A/F 5/64" more info »
	P0130.125-031	(1/8") 0.1245	(5/16") 0.3130	#4-40 UNC	1/4"	5/32"	1/8"	5/64"
£ 3.30 per unit (click for quantity discounts) Ready to despatch 156 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.30 0% 100-249 £ 2.97 10% 250-749 £ 2.64 20% 750+ £ 2.31 30% d1 +0|-0.001 (1/8") 0.1245 l1 +0.002|-0.000 (5/16") 0.3130 d2 #4-40 UNC d3 1/4" l2 5/32" h1 1/8" A/F 5/64" more info »
	P0130.125-037	(1/8") 0.1245	(3/8") 0.3755	#4-40 UNC	1/4"	5/32"	1/8"	5/64"
£ 3.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.49 0% 100-249 £ 3.14 10% 250-749 £ 2.79 20% 750+ £ 2.44 30% d1 +0|-0.001 (1/8") 0.1245 l1 +0.002|-0.000 (3/8") 0.3755 d2 #4-40 UNC d3 1/4" l2 5/32" h1 1/8" A/F 5/64" more info »
	P0130.187-012	(3/16") 0.1870	(1/8") 0.1255	#8-32 UNC	5/16"	3/16"	5/32"	3/32"
£ 3.61 per unit (click for quantity discounts) Ready to despatch 529 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.61 0% 100-249 £ 3.25 10% 250-749 £ 2.89 20% 750+ £ 2.53 30% d1 +0|-0.001 (3/16") 0.1870 l1 +0.002|-0.000 (1/8") 0.1255 d2 #8-32 UNC d3 5/16" l2 3/16" h1 5/32" A/F 3/32" more info »
	P0130.187-018	(3/16") 0.1870	(3/16") 0.1880	#8-32 UNC	5/16"	3/16"	5/32"	3/32"
£ 3.52 per unit (click for quantity discounts) Ready to despatch 44 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.52 0% 100-249 £ 3.17 10% 250-749 £ 2.82 20% 750+ £ 2.46 30% d1 +0|-0.001 (3/16") 0.1870 l1 +0.002|-0.000 (3/16") 0.1880 d2 #8-32 UNC d3 5/16" l2 3/16" h1 5/32" A/F 3/32" more info »
	P0130.187-025	(3/16") 0.1870	(1/4") 0.2505	#8-32 UNC	5/16"	3/16"	5/32"	3/32"
£ 3.61 per unit (click for quantity discounts) Ready to despatch 120 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.61 0% 100-249 £ 3.25 10% 250-749 £ 2.89 20% 750+ £ 2.53 30% d1 +0|-0.001 (3/16") 0.1870 l1 +0.002|-0.000 (1/4") 0.2505 d2 #8-32 UNC d3 5/16" l2 3/16" h1 5/32" A/F 3/32" more info »
	P0130.187-031	(3/16") 0.1870	(5/16") 0.3130	#8-32 UNC	5/16"	3/16"	5/32"	3/32"
£ 3.65 per unit (click for quantity discounts) Ready to despatch 90 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.65 0% 100-249 £ 3.29 10% 250-749 £ 2.92 20% 750+ £ 2.56 30% d1 +0|-0.001 (3/16") 0.1870 l1 +0.002|-0.000 (5/16") 0.3130 d2 #8-32 UNC d3 5/16" l2 3/16" h1 5/32" A/F 3/32" more info »
	P0130.187-037	(3/16") 0.1870	(3/8") 0.3755	#8-32 UNC	5/16"	3/16"	5/32"	3/32"
£ 3.77 per unit (click for quantity discounts) Ready to despatch 487 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.77 0% 100-249 £ 3.39 10% 250-749 £ 3.02 20% 750+ £ 2.64 30% d1 +0|-0.001 (3/16") 0.1870 l1 +0.002|-0.000 (3/8") 0.3755 d2 #8-32 UNC d3 5/16" l2 3/16" h1 5/32" A/F 3/32" more info »
	P0130.187-050	(3/16") 0.1870	(1/2") 0.5005	#8-32 UNC	5/16"	3/16"	5/32"	3/32"
£ 3.84 per unit (click for quantity discounts) Ready to despatch 99 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.84 0% 100-249 £ 3.46 10% 250-749 £ 3.07 20% 750+ £ 2.69 30% d1 +0|-0.001 (3/16") 0.1870 l1 +0.002|-0.000 (1/2") 0.5005 d2 #8-32 UNC d3 5/16" l2 3/16" h1 5/32" A/F 3/32" more info »
	P0130.187-062	(3/16") 0.1870	(5/8") 0.6255	#8-32 UNC	5/16"	3/16"	5/32"	3/32"
£ 3.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.84 0% 100-249 £ 3.46 10% 250-749 £ 3.07 20% 750+ £ 2.69 30% d1 +0|-0.001 (3/16") 0.1870 l1 +0.002|-0.000 (5/8") 0.6255 d2 #8-32 UNC d3 5/16" l2 3/16" h1 5/32" A/F 3/32" more info »
	P0130.187-075	(3/16") 0.1870	(3/4") 0.7505	#8-32 UNC	5/16"	3/16"	5/32"	3/32"
£ 4.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.44 0% 100-249 £ 4.00 10% 250-749 £ 3.55 20% 750+ £ 3.11 30% d1 +0|-0.001 (3/16") 0.1870 l1 +0.002|-0.000 (3/4") 0.7505 d2 #8-32 UNC d3 5/16" l2 3/16" h1 5/32" A/F 3/32" more info »
	P0130.187-100	(3/16") 0.1870	(1") 1.0005	#8-32 UNC	5/16"	3/16"	5/32"	3/32"
£ 4.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.55 0% 100-249 £ 4.10 10% 250-749 £ 3.64 20% 750+ £ 3.19 30% d1 +0|-0.001 (3/16") 0.1870 l1 +0.002|-0.000 (1") 1.0005 d2 #8-32 UNC d3 5/16" l2 3/16" h1 5/32" A/F 3/32" more info »
	P0130.187-125	(3/16") 0.1870	(1 1/4") 1.2505	#8-32 UNC	5/16"	3/16"	5/32"	3/32"
£ 4.47 per unit (click for quantity discounts) Ready to despatch 4 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.47 0% 100-249 £ 4.02 10% 250-749 £ 3.58 20% 750+ £ 3.13 30% d1 +0|-0.001 (3/16") 0.1870 l1 +0.002|-0.000 (1 1/4") 1.2505 d2 #8-32 UNC d3 5/16" l2 3/16" h1 5/32" A/F 3/32" more info »
	P0130.187-150	(3/16") 0.1870	(1 1/2") 1.5005	#8-32 UNC	5/16"	3/16"	5/32"	3/32"
£ 4.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.47 0% 100-249 £ 4.02 10% 250-749 £ 3.58 20% 750+ £ 3.13 30% d1 +0|-0.001 (3/16") 0.1870 l1 +0.002|-0.000 (1 1/2") 1.5005 d2 #8-32 UNC d3 5/16" l2 3/16" h1 5/32" A/F 3/32" more info »
	P0130.250-012	(1/4") 0.2495	(1/8") 0.1255	#10-32 UNF	3/8"	1/4"	3/16"	1/8"
£ 3.62 per unit (click for quantity discounts) Ready to despatch 200 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.62 0% 100-249 £ 3.26 10% 250-749 £ 2.90 20% 750+ £ 2.53 30% d1 +0|-0.001 (1/4") 0.2495 l1 +0.002|-0.000 (1/8") 0.1255 d2 #10-32 UNF d3 3/8" l2 1/4" h1 3/16" A/F 1/8" more info »
	P0130.250-018	(1/4") 0.2495	(3/16") 0.1880	#10-32 UNF	3/8"	1/4"	3/16"	1/8"
£ 3.62 per unit (click for quantity discounts) Ready to despatch 201 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.62 0% 100-249 £ 3.26 10% 250-749 £ 2.90 20% 750+ £ 2.53 30% d1 +0|-0.001 (1/4") 0.2495 l1 +0.002|-0.000 (3/16") 0.1880 d2 #10-32 UNF d3 3/8" l2 1/4" h1 3/16" A/F 1/8" more info »
	P0130.250-025	(1/4") 0.2495	(1/4") 0.2505	#10-32 UNF	3/8"	1/4"	3/16"	1/8"
£ 3.66 per unit (click for quantity discounts) Ready to despatch 258 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.66 0% 100-249 £ 3.29 10% 250-749 £ 2.93 20% 750+ £ 2.56 30% d1 +0|-0.001 (1/4") 0.2495 l1 +0.002|-0.000 (1/4") 0.2505 d2 #10-32 UNF d3 3/8" l2 1/4" h1 3/16" A/F 1/8" more info »
	P0130.250-031	(1/4") 0.2495	(5/16") 0.3130	#10-32 UNF	3/8"	1/4"	3/16"	1/8"
£ 3.64 per unit (click for quantity discounts) Ready to despatch 143 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.64 0% 100-249 £ 3.28 10% 250-749 £ 2.91 20% 750+ £ 2.55 30% d1 +0|-0.001 (1/4") 0.2495 l1 +0.002|-0.000 (5/16") 0.3130 d2 #10-32 UNF d3 3/8" l2 1/4" h1 3/16" A/F 1/8" more info »
	P0130.250-037	(1/4") 0.2495	(3/8") 0.3755	#10-32 UNF	3/8"	1/4"	3/16"	1/8"
£ 3.56 per unit (click for quantity discounts) Ready to despatch 34 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.56 0% 100-249 £ 3.20 10% 250-749 £ 2.85 20% 750+ £ 2.49 30% d1 +0|-0.001 (1/4") 0.2495 l1 +0.002|-0.000 (3/8") 0.3755 d2 #10-32 UNF d3 3/8" l2 1/4" h1 3/16" A/F 1/8" more info »
	P0130.250-050	(1/4") 0.2495	(1/2") 0.5005	#10-32 UNF	3/8"	1/4"	3/16"	1/8"
£ 3.56 per unit (click for quantity discounts) Ready to despatch 266 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.56 0% 100-249 £ 3.20 10% 250-749 £ 2.85 20% 750+ £ 2.49 30% d1 +0|-0.001 (1/4") 0.2495 l1 +0.002|-0.000 (1/2") 0.5005 d2 #10-32 UNF d3 3/8" l2 1/4" h1 3/16" A/F 1/8" more info »
	P0130.250-062	(1/4") 0.2495	(5/8") 0.6255	#10-32 UNF	3/8"	1/4"	3/16"	1/8"
£ 4.56 per unit (click for quantity discounts) Ready to despatch 218 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.56 0% 100-249 £ 4.10 10% 250-749 £ 3.65 20% 750+ £ 3.19 30% d1 +0|-0.001 (1/4") 0.2495 l1 +0.002|-0.000 (5/8") 0.6255 d2 #10-32 UNF d3 3/8" l2 1/4" h1 3/16" A/F 1/8" more info »
	P0130.250-075	(1/4") 0.2495	(3/4") 0.7505	#10-32 UNF	3/8"	1/4"	3/16"	1/8"
£ 4.41 per unit (click for quantity discounts) Ready to despatch 191 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.41 0% 100-249 £ 3.97 10% 250-749 £ 3.53 20% 750+ £ 3.09 30% d1 +0|-0.001 (1/4") 0.2495 l1 +0.002|-0.000 (3/4") 0.7505 d2 #10-32 UNF d3 3/8" l2 1/4" h1 3/16" A/F 1/8" more info »
	P0130.250-100	(1/4") 0.2495	(1") 1.0005	#10-32 UNF	3/8"	1/4"	3/16"	1/8"
£ 4.77 per unit (click for quantity discounts) Ready to despatch 30 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.77 0% 100-249 £ 4.29 10% 250-749 £ 3.82 20% 750+ £ 3.34 30% d1 +0|-0.001 (1/4") 0.2495 l1 +0.002|-0.000 (1") 1.0005 d2 #10-32 UNF d3 3/8" l2 1/4" h1 3/16" A/F 1/8" more info »
	P0130.250-125	(1/4") 0.2495	(1 1/4") 1.2505	#10-32 UNF	3/8"	1/4"	3/16"	1/8"
£ 4.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.10 0% 100-249 £ 3.69 10% 250-749 £ 3.28 20% 750+ £ 2.87 30% d1 +0|-0.001 (1/4") 0.2495 l1 +0.002|-0.000 (1 1/4") 1.2505 d2 #10-32 UNF d3 3/8" l2 1/4" h1 3/16" A/F 1/8" more info »
	P0130.250-150	(1/4") 0.2495	(1 1/2") 1.5005	#10-32 UNF	3/8"	1/4"	3/16"	1/8"
£ 5.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 5.07 0% 100-249 £ 4.56 10% 250-749 £ 4.06 20% 750+ £ 3.55 30% d1 +0|-0.001 (1/4") 0.2495 l1 +0.002|-0.000 (1 1/2") 1.5005 d2 #10-32 UNF d3 3/8" l2 1/4" h1 3/16" A/F 1/8" more info »
	P0130.312-025	(5/16") 0.3120	(1/4") 0.2505	1/4-20 UNC	1/2"	7/16"	7/32"	5/32"
£ 4.98 per unit (click for quantity discounts) Ready to despatch 130 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.98 0% 100-249 £ 4.48 10% 250-749 £ 3.98 20% 750+ £ 3.49 30% d1 +0|-0.001 (5/16") 0.3120 l1 +0.002|-0.000 (1/4") 0.2505 d2 1/4-20 UNC d3 1/2" l2 7/16" h1 7/32" A/F 5/32" more info »
	P0130.312-031	(5/16") 0.3120	(5/16") 0.3130	1/4-20 UNC	1/2"	7/16"	7/32"	5/32"
£ 4.97 per unit (click for quantity discounts) Ready to despatch 27 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.97 0% 100-249 £ 4.47 10% 250-749 £ 3.98 20% 750+ £ 3.48 30% d1 +0|-0.001 (5/16") 0.3120 l1 +0.002|-0.000 (5/16") 0.3130 d2 1/4-20 UNC d3 1/2" l2 7/16" h1 7/32" A/F 5/32" more info »
	P0130.312-037	(5/16") 0.3120	(3/8") 0.3755	1/4-20 UNC	1/2"	7/16"	7/32"	5/32"
£ 4.83 per unit (click for quantity discounts) Ready to despatch 4 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.83 0% 100-249 £ 4.35 10% 250-749 £ 3.86 20% 750+ £ 3.38 30% d1 +0|-0.001 (5/16") 0.3120 l1 +0.002|-0.000 (3/8") 0.3755 d2 1/4-20 UNC d3 1/2" l2 7/16" h1 7/32" A/F 5/32" more info »
	P0130.312-050	(5/16") 0.3120	(1/2") 0.5005	1/4-20 UNC	1/2"	7/16"	7/32"	5/32"
£ 4.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.97 0% 100-249 £ 4.47 10% 250-749 £ 3.98 20% 750+ £ 3.48 30% d1 +0|-0.001 (5/16") 0.3120 l1 +0.002|-0.000 (1/2") 0.5005 d2 1/4-20 UNC d3 1/2" l2 7/16" h1 7/32" A/F 5/32" more info »
	P0130.312-062	(5/16") 0.3120	(5/8") 0.6255	1/4-20 UNC	1/2"	7/16"	7/32"	5/32"
£ 6.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 6.36 0% 100-249 £ 5.72 10% 250-749 £ 5.09 20% 750+ £ 4.45 30% d1 +0|-0.001 (5/16") 0.3120 l1 +0.002|-0.000 (5/8") 0.6255 d2 1/4-20 UNC d3 1/2" l2 7/16" h1 7/32" A/F 5/32" more info »
	P0130.312-075	(5/16") 0.3120	(3/4") 0.7505	1/4-20 UNC	1/2"	7/16"	7/32"	5/32"
£ 6.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 6.80 0% 100-249 £ 6.12 10% 250-749 £ 5.44 20% 750+ £ 4.76 30% d1 +0|-0.001 (5/16") 0.3120 l1 +0.002|-0.000 (3/4") 0.7505 d2 1/4-20 UNC d3 1/2" l2 7/16" h1 7/32" A/F 5/32" more info »
	P0130.374-031	(3/8") 0.3745	(5/16") 0.3130	1/4-20 UNC	1/2"	7/16"	7/32"	5/32"
£ 5.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 5.37 0% 100-249 £ 4.83 10% 250-749 £ 4.30 20% 750+ £ 3.76 30% d1 +0|-0.001 (3/8") 0.3745 l1 +0.002|-0.000 (5/16") 0.3130 d2 1/4-20 UNC d3 1/2" l2 7/16" h1 7/32" A/F 5/32" more info »
	P0130.374-037	(3/8") 0.3745	(3/8") 0.3755	1/4-20 UNC	1/2"	7/16"	7/32"	5/32"
£ 5.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 5.36 0% 100-249 £ 4.82 10% 250-749 £ 4.29 20% 750+ £ 3.75 30% d1 +0|-0.001 (3/8") 0.3745 l1 +0.002|-0.000 (3/8") 0.3755 d2 1/4-20 UNC d3 1/2" l2 7/16" h1 7/32" A/F 5/32" more info »
	P0130.374-050	(3/8") 0.3745	(1/2") 0.5005	1/4-20 UNC	1/2"	7/16"	7/32"	5/32"
£ 5.18 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 5.18 0% 100-249 £ 4.66 10% 250-749 £ 4.14 20% 750+ £ 3.63 30% d1 +0|-0.001 (3/8") 0.3745 l1 +0.002|-0.000 (1/2") 0.5005 d2 1/4-20 UNC d3 1/2" l2 7/16" h1 7/32" A/F 5/32" more info »
	P0130.374-062	(3/8") 0.3745	(5/8") 0.6255	1/4-20 UNC	1/2"	7/16"	7/32"	5/32"
£ 5.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 5.67 0% 100-249 £ 5.10 10% 250-749 £ 4.54 20% 750+ £ 3.97 30% d1 +0|-0.001 (3/8") 0.3745 l1 +0.002|-0.000 (5/8") 0.6255 d2 1/4-20 UNC d3 1/2" l2 7/16" h1 7/32" A/F 5/32" more info »
	P0130.375-031	(3/8") 0.3745	(5/16") 0.3130	5/16-18 UNC	9/16"	1/2"	1/4"	3/16"
£ 5.64 per unit (click for quantity discounts) Ready to despatch 249 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 5.64 0% 100-249 £ 5.08 10% 250-749 £ 4.51 20% 750+ £ 3.95 30% d1 +0|-0.001 (3/8") 0.3745 l1 +0.002|-0.000 (5/16") 0.3130 d2 5/16-18 UNC d3 9/16" l2 1/2" h1 1/4" A/F 3/16" more info »
	P0130.375-037	(3/8") 0.3745	(3/8") 0.3755	5/16-18 UNC	9/16"	1/2"	1/4"	3/16"
£ 5.88 per unit (click for quantity discounts) Ready to despatch 168 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 5.88 0% 100-249 £ 5.29 10% 250-749 £ 4.70 20% 750+ £ 4.12 30% d1 +0|-0.001 (3/8") 0.3745 l1 +0.002|-0.000 (3/8") 0.3755 d2 5/16-18 UNC d3 9/16" l2 1/2" h1 1/4" A/F 3/16" more info »
	P0130.375-050	(3/8") 0.3745	(1/2") 0.5005	5/16-18 UNC	9/16"	1/2"	1/4"	3/16"
£ 6.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 6.19 0% 100-249 £ 5.57 10% 250-749 £ 4.95 20% 750+ £ 4.33 30% d1 +0|-0.001 (3/8") 0.3745 l1 +0.002|-0.000 (1/2") 0.5005 d2 5/16-18 UNC d3 9/16" l2 1/2" h1 1/4" A/F 3/16" more info »
	P0130.375-062	(3/8") 0.3745	(5/8") 0.6255	5/16-18 UNC	9/16"	1/2"	1/4"	3/16"
£ 6.97 per unit (click for quantity discounts) Ready to despatch 2 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 6.97 0% 100-249 £ 6.27 10% 250-749 £ 5.58 20% 750+ £ 4.88 30% d1 +0|-0.001 (3/8") 0.3745 l1 +0.002|-0.000 (5/8") 0.6255 d2 5/16-18 UNC d3 9/16" l2 1/2" h1 1/4" A/F 3/16" more info »
	P0130.500-050	(1/2") 0.4995	(1/2") 0.5005	3/8-16 UNC	3/4"	5/8"	5/16"	1/4"
£ 13.62 per unit (click for quantity discounts) Ready to despatch 29 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 13.62 0% 100-249 £ 12.26 10% 250-749 £ 10.90 20% 750+ £ 9.53 30% d1 +0|-0.001 (1/2") 0.4995 l1 +0.002|-0.000 (1/2") 0.5005 d2 3/8-16 UNC d3 3/4" l2 5/8" h1 5/16" A/F 1/4" more info »
	P0130.500-062	(1/2") 0.4995	(5/8") 0,6255	3/8-16 UNC	3/4"	5/8"	5/16"	1/4"
£ 13.60 per unit (click for quantity discounts) Ready to despatch 334 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 13.60 0% 100-249 £ 12.24 10% 250-749 £ 10.88 20% 750+ £ 9.52 30% d1 +0|-0.001 (1/2") 0.4995 l1 +0.002|-0.000 (5/8") 0,6255 d2 3/8-16 UNC d3 3/4" l2 5/8" h1 5/16" A/F 1/4" more info »
	P0130.500-075	(1/2") 0.4995	(3/4") 0.7505	3/8-16 UNC	3/4"	5/8"	5/16"	1/4"
£ 14.18 per unit (click for quantity discounts) Ready to despatch 305 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 14.18 0% 100-249 £ 12.76 10% 250-749 £ 11.34 20% 750+ £ 9.93 30% d1 +0|-0.001 (1/2") 0.4995 l1 +0.002|-0.000 (3/4") 0.7505 d2 3/8-16 UNC d3 3/4" l2 5/8" h1 5/16" A/F 1/4" more info »
	P0130.500-100	(1/2") 0.4995	(1") 1.0005	3/8-16 UNC	3/4"	5/8"	5/16"	1/4"
£ 15.16 per unit (click for quantity discounts) Ready to despatch 48 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 15.16 0% 100-249 £ 13.64 10% 250-749 £ 12.13 20% 750+ £ 10.61 30% d1 +0|-0.001 (1/2") 0.4995 l1 +0.002|-0.000 (1") 1.0005 d2 3/8-16 UNC d3 3/4" l2 5/8" h1 5/16" A/F 1/4" more info »
