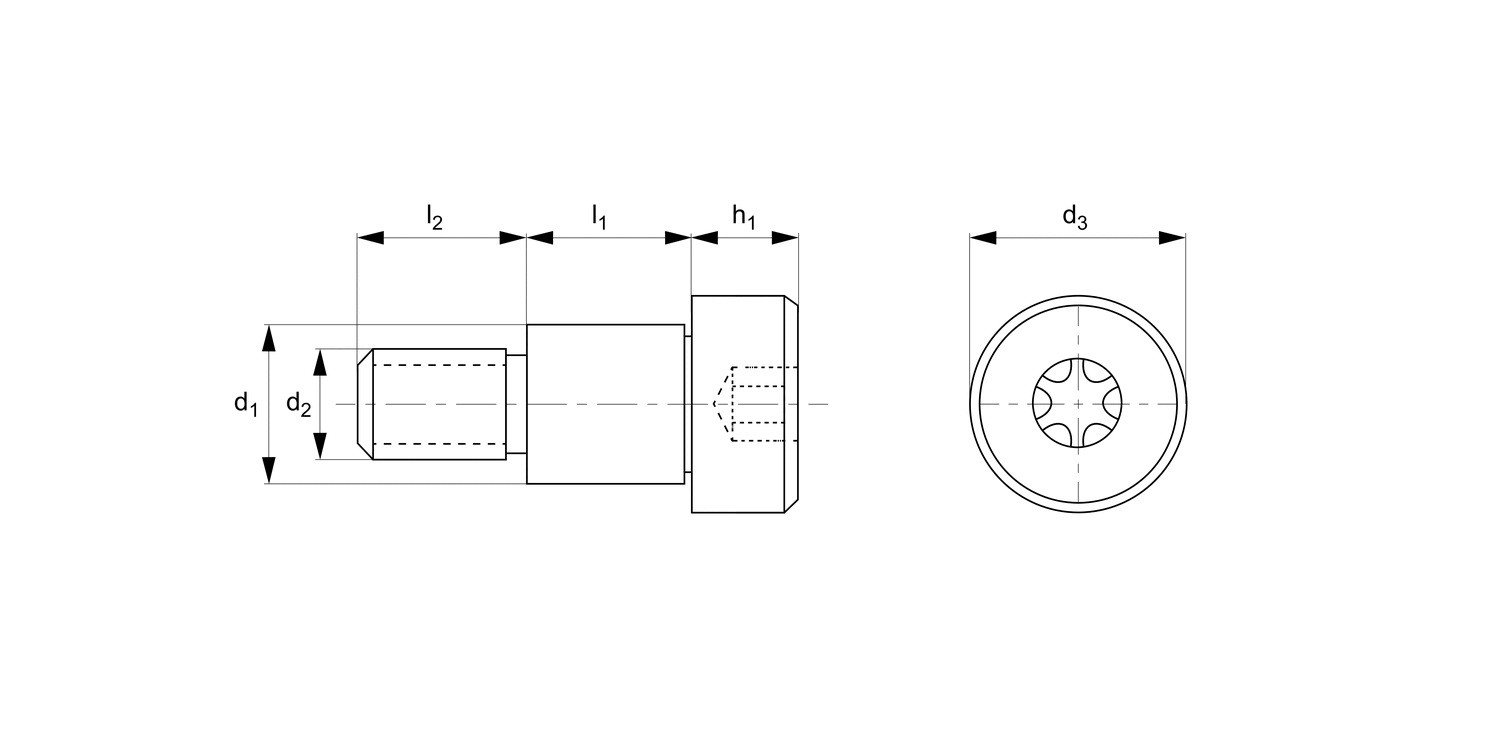

P0145.A2 Shoulder Screws - Cap Head

TX drive - 303 stainless, material: 303 stainless
P0145.A2 Shoulder Screws - Cap Head
P0145.A2 Shoulder Screws - Cap Head
Download product datasheet
Download FREE CAD

Alternative products you may wish to consider

P0126.A2 - Shoulder Screws - Headless
Headless Shoulder Screws
Stainless Steel
P0127.A4 - Shoulder Nuts - Cap Head
Shoulder Nuts - Cap Head
hex drive - 316 stainless
P0127.A2 - Shoulder Nuts - Cap Head
Shoulder Nuts - Cap Head
hex drive - 303 stainless
P0128.A2 - Shoulder Screws - Countersunk
Shoulder Screws - Countersunk
hex drive - 303 stainless
P0128.A4 - Shoulder Screws - Countersunk
Shoulder Screws - Countersunk
hex drive - 316 stainless
P0130.A2 - Shoulder Screws - Cap Head
Shoulder Screws - Cap Head
Stainless steel
P0130.A4 - Shoulder Screws - Cap Head
Shoulder Screws - Cap Head
hex drive - 316 stainless
P0130.P2 - Shoulder Screws - Cap Head
Shoulder Screws - Cap Head
hex drive - 303 stainless - locking patch
P0130.i - Inch Shoulder Screws - Cap Head
Inch Shoulder Screws - Cap Head
hex drive - 303 stainless
P0131 - Shoulder Screws - Cap Head
Shoulder Screws- Cap Head
416 stainless
P0132.A2 - Shoulder Screw - Cap Head
Shoulder Screw - Cap Head
303 stainless
P0132.i - Inch Shoulder Screws - Cap Head
Shoulder Bolts - Hex. Head
Stainless steel
P0133 - Shoulder Screws - Slot Head
Shoulder Screws- Slot Head
416 stainless
P0134.A2 - Ultra Low Head - Shoulder Screw
Ultra Low Head Screws
Stainless Steel
P0134.A4 - Ultra Low Head - Shoulder Screw
Ultra Low Head Screws
Stainless Steel
P0137 - Shoulder Screws - Hex. Socket Head
Shoulder Bolts - Hex. Head
Stainless steel
P0144.A2 - Pan Head Shoulder Screws
Shoulder Screws
Stainless Steel
P0145.A2 - Shoulder Screws - Cap Head
Shoulder Screws - Cap Head
303 stainless
P0145.A4 - Shoulder Screws - Cap Head
Shoulder Screws - Cap Head
hex drive-316 stainless
P0145.040-002-A2 Shoulder screw TX Ø4x2,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245658 WG:05063055663281
Shoulder screw TX Ø4x2,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245658 WG:05063055663281

P0145.040-002-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
2
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 2.93 per unit (click for quantity discounts)
P0145.040-003-A2 Shoulder screw TX Ø4x3,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245665 WG:05063055663298
Shoulder screw TX Ø4x3,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245665 WG:05063055663298

P0145.040-003-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
3
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 2.93 per unit (click for quantity discounts)
P0145.040-004-A2 Shoulder Screws - Cap Head
Shoulder Screws - Cap Head

P0145.040-004-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
4
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
P0145.040-005-A2 Shoulder screw TX Ø4x5,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225049 WG:05063055330527
Shoulder screw TX Ø4x5,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225049 WG:05063055330527

P0145.040-005-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
5
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 2.93 per unit (click for quantity discounts)
P0145.040-006-A2 Shoulder screw TX Ø4x6,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225056 WG:05063055330534
Shoulder screw TX Ø4x6,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225056 WG:05063055330534

P0145.040-006-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
6
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 2.93 per unit (click for quantity discounts)
P0145.040-007-A2 Shoulder screw TX Ø4x7,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245672 WG:05063055663304
Shoulder screw TX Ø4x7,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245672 WG:05063055663304

P0145.040-007-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
7
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 2.93 per unit (click for quantity discounts)
P0145.040-008-A2 Shoulder screw TX Ø4x8,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225063 WG:05063055330541
Shoulder screw TX Ø4x8,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225063 WG:05063055330541

P0145.040-008-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
8
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 2.93 per unit (click for quantity discounts)
P0145.040-010-A2 Shoulder screw TX Ø4x10,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225070 WG:05063055330558
Shoulder screw TX Ø4x10,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225070 WG:05063055330558

P0145.040-010-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
10
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-012-A2 Shoulder screw TX Ø4x12,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245689 WG:05063055663311
Shoulder screw TX Ø4x12,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245689 WG:05063055663311

P0145.040-012-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
12
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-014-A2 Shoulder screw TX Ø4x14,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245696 WG:05063055663328
Shoulder screw TX Ø4x14,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245696 WG:05063055663328

P0145.040-014-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
14
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-016-A2 Shoulder screw TX Ø4x16,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245702 WG:05063055663335
Shoulder screw TX Ø4x16,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245702 WG:05063055663335

P0145.040-016-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
16
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-018-A2 Shoulder screw TX Ø4x18,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245719 WG:05063055663342
Shoulder screw TX Ø4x18,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245719 WG:05063055663342

P0145.040-018-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
18
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-020-A2 Shoulder screw TX Ø4x20,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245726 WG:05063055663359
Shoulder screw TX Ø4x20,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245726 WG:05063055663359

P0145.040-020-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
20
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-025-A2 Shoulder screw TX Ø4x25,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245733 WG:05063055663366
Shoulder screw TX Ø4x25,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245733 WG:05063055663366

P0145.040-025-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
25
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-030-A2 Shoulder screw TX Ø4x30,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245740 WG:05063055663373
Shoulder screw TX Ø4x30,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245740 WG:05063055663373

P0145.040-030-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
30
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-035-A2 Shoulder screw TX Ø4x35,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245757 WG:05063055663380
Shoulder screw TX Ø4x35,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245757 WG:05063055663380

P0145.040-035-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
35
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-040-A2 Shoulder screw TX Ø4x40,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245764 WG:05063055663397
Shoulder screw TX Ø4x40,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245764 WG:05063055663397

P0145.040-040-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
40
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-045-A2 Shoulder screw TX Ø4x45,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245771 WG:05063055663403
Shoulder screw TX Ø4x45,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245771 WG:05063055663403

P0145.040-045-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
45
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-050-A2 Shoulder screw TX Ø4x50,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245788 WG:05063055663410
Shoulder screw TX Ø4x50,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245788 WG:05063055663410

P0145.040-050-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
50
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.050-002-A2 Shoulder screw TX Ø5x2,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245795 WG:05063055663427
Shoulder screw TX Ø5x2,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245795 WG:05063055663427

P0145.050-002-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
2
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.00 per unit (click for quantity discounts)
P0145.050-003-A2 Shoulder screw TX Ø5x3,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245801 WG:05063055663434
Shoulder screw TX Ø5x3,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245801 WG:05063055663434

P0145.050-003-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
3
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.00 per unit (click for quantity discounts)
P0145.050-004-A2 Shoulder screw TX Ø5x4,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245818 WG:05063055663441
Shoulder screw TX Ø5x4,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245818 WG:05063055663441

P0145.050-004-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
4
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.00 per unit (click for quantity discounts)
P0145.050-005-A2 Shoulder screw TX Ø5x5,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245825 WG:05063055663458
Shoulder screw TX Ø5x5,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245825 WG:05063055663458

P0145.050-005-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
5
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.00 per unit (click for quantity discounts)
P0145.050-006-A2 Shoulder screw TX Ø5x6,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20228491 WG:05063055577434
Shoulder screw TX Ø5x6,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20228491 WG:05063055577434

P0145.050-006-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
6
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.10 per unit (click for quantity discounts)
P0145.050-007-A2 Shoulder screw TX Ø5x7,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245832 WG:05063055663465
Shoulder screw TX Ø5x7,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245832 WG:05063055663465

P0145.050-007-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
7
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.10 per unit (click for quantity discounts)
P0145.050-008-A2 Shoulder screw TX Ø5x8,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20241315 WG:05063055637312
Shoulder screw TX Ø5x8,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20241315 WG:05063055637312

P0145.050-008-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
8
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.10 per unit (click for quantity discounts)
P0145.050-010-A2 Shoulder screw TX Ø5x10,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225087 WG:05063055330565
Shoulder screw TX Ø5x10,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225087 WG:05063055330565

P0145.050-010-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
10
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.23 per unit (click for quantity discounts)
P0145.050-012-A2 Shoulder screw TX Ø5x12,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225094 WG:05063055330572
Shoulder screw TX Ø5x12,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225094 WG:05063055330572

P0145.050-012-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
12
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.23 per unit (click for quantity discounts)
P0145.050-014-A2 Shoulder screw TX Ø5x14,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245849 WG:05063055663472
Shoulder screw TX Ø5x14,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245849 WG:05063055663472

P0145.050-014-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
14
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.19 per unit (click for quantity discounts)
P0145.050-016-A2 Shoulder screw TX Ø5x16,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225100 WG:05063055330589
Shoulder screw TX Ø5x16,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225100 WG:05063055330589

P0145.050-016-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
16
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.39 per unit (click for quantity discounts)
P0145.050-018-A2 Shoulder screw TX Ø5x18,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245856 WG:05063055663489
Shoulder screw TX Ø5x18,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245856 WG:05063055663489

P0145.050-018-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
18
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.36 per unit (click for quantity discounts)
P0145.050-020-A2 Shoulder screw TX Ø5x20,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225117 WG:05063055330596
Shoulder screw TX Ø5x20,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225117 WG:05063055330596

P0145.050-020-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
20
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.92 per unit (click for quantity discounts)
P0145.050-025-A2 Shoulder screw TX Ø5x25,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225124 WG:05063055330602
Shoulder screw TX Ø5x25,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225124 WG:05063055330602

P0145.050-025-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
25
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.92 per unit (click for quantity discounts)
P0145.050-030-A2 Shoulder screw TX Ø5x30,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225131 WG:05063055330619
Shoulder screw TX Ø5x30,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225131 WG:05063055330619

P0145.050-030-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
30
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.92 per unit (click for quantity discounts)
P0145.050-035-A2 Shoulder screw TX Ø5x35,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245863 WG:05063055663496
Shoulder screw TX Ø5x35,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245863 WG:05063055663496

P0145.050-035-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
35
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.88 per unit (click for quantity discounts)
P0145.050-040-A2 Shoulder screw TX Ø5x40,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245870 WG:05063055663502
Shoulder screw TX Ø5x40,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245870 WG:05063055663502

P0145.050-040-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
40
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.88 per unit (click for quantity discounts)
P0145.050-045-A2 Shoulder screw TX Ø5x45,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245887 WG:05063055663519
Shoulder screw TX Ø5x45,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245887 WG:05063055663519

P0145.050-045-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
45
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.88 per unit (click for quantity discounts)
P0145.050-050-A2 Shoulder screw TX Ø5x50,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245894 WG:05063055663526
Shoulder screw TX Ø5x50,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245894 WG:05063055663526

P0145.050-050-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
50
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.88 per unit (click for quantity discounts)
P0145.060-002-A2 Shoulder screw TX Ø6x2,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245900 WG:05063055663533
Shoulder screw TX Ø6x2,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245900 WG:05063055663533

P0145.060-002-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
2
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 3.62 per unit (click for quantity discounts)
P0145.060-003-A2 Shoulder screw TX Ø6x3,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245917 WG:05063055663540
Shoulder screw TX Ø6x3,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245917 WG:05063055663540

P0145.060-003-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
3
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 3.62 per unit (click for quantity discounts)
P0145.060-004-A2 Shoulder screw TX Ø6x4,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245924 WG:05063055663557
Shoulder screw TX Ø6x4,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245924 WG:05063055663557

P0145.060-004-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
4
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 3.62 per unit (click for quantity discounts)
P0145.060-005-A2 Shoulder screw TX Ø6x5,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245931 WG:05063055663564
Shoulder screw TX Ø6x5,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245931 WG:05063055663564

P0145.060-005-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
5
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 3.62 per unit (click for quantity discounts)
P0145.060-006-A2 Shoulder screw TX Ø6x6,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20230012 WG:05063055596237
Shoulder screw TX Ø6x6,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20230012 WG:05063055596237

P0145.060-006-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
6
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 3.66 per unit (click for quantity discounts)
P0145.060-007-A2 Shoulder screw TX Ø6x7,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245948 WG:05063055663571
Shoulder screw TX Ø6x7,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245948 WG:05063055663571

P0145.060-007-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
7
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 4.47 per unit (click for quantity discounts)
P0145.060-008-A2 Shoulder screw TX Ø6x8,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20230104 WG:05063055603386
Shoulder screw TX Ø6x8,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20230104 WG:05063055603386

P0145.060-008-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
8
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 4.51 per unit (click for quantity discounts)
P0145.060-010-A2 Shoulder screw TX Ø6x10,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225148 WG:05063055330626
Shoulder screw TX Ø6x10,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225148 WG:05063055330626

P0145.060-010-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
10
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.01 per unit (click for quantity discounts)
P0145.060-012-A2 Shoulder screw TX Ø6x12,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225155 WG:05063055330633
Shoulder screw TX Ø6x12,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225155 WG:05063055330633

P0145.060-012-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
12
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.01 per unit (click for quantity discounts)
P0145.060-014-A2 Shoulder screw TX Ø6x14,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245955 WG:05063055663588
Shoulder screw TX Ø6x14,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245955 WG:05063055663588

P0145.060-014-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
14
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.01 per unit (click for quantity discounts)
P0145.060-016-A2 Shoulder screw TX Ø6x16,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225162 WG:05063055330640
Shoulder screw TX Ø6x16,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225162 WG:05063055330640

P0145.060-016-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
16
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.01 per unit (click for quantity discounts)
P0145.060-018-A2 Shoulder screw TX Ø6x18,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245962 WG:05063055663595
Shoulder screw TX Ø6x18,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245962 WG:05063055663595

P0145.060-018-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
18
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.01 per unit (click for quantity discounts)
P0145.060-020-A2 Shoulder screw TX Ø6x20,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225179 WG:05063055330657
Shoulder screw TX Ø6x20,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225179 WG:05063055330657

P0145.060-020-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
20
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.57 per unit (click for quantity discounts)
P0145.060-025-A2 Shoulder screw TX Ø6x25,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225186 WG:05063055330664
Shoulder screw TX Ø6x25,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225186 WG:05063055330664

P0145.060-025-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
25
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.57 per unit (click for quantity discounts)
P0145.060-030-A2 Shoulder screw TX Ø6x30,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225193 WG:05063055330671
Shoulder screw TX Ø6x30,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225193 WG:05063055330671

P0145.060-030-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
30
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.57 per unit (click for quantity discounts)
P0145.060-035-A2 Shoulder screw TX Ø6x35,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245979 WG:05063055663601
Shoulder screw TX Ø6x35,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245979 WG:05063055663601

P0145.060-035-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
35
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.51 per unit (click for quantity discounts)
P0145.060-040-A2 Shoulder screw TX Ø6x40,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225209 WG:05063055330688
Shoulder screw TX Ø6x40,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225209 WG:05063055330688

P0145.060-040-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
40
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.57 per unit (click for quantity discounts)
P0145.060-045-A2 Shoulder screw TX Ø6x45,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245986 WG:05063055663618
Shoulder screw TX Ø6x45,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245986 WG:05063055663618

P0145.060-045-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
45
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 6.71 per unit (click for quantity discounts)
P0145.060-050-A2 Shoulder screw TX Ø6x50,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225216 WG:05063055330695
Shoulder screw TX Ø6x50,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225216 WG:05063055330695

P0145.060-050-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
50
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 6.76 per unit (click for quantity discounts)
P0145.060-055-A2 Shoulder screw TX Ø6x55,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245993 WG:05063055663625
Shoulder screw TX Ø6x55,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245993 WG:05063055663625

P0145.060-055-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
55
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 7.31 per unit (click for quantity discounts)
P0145.060-060-A2 Shoulder screw TX Ø6x60,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246006 WG:05063055663632
Shoulder screw TX Ø6x60,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246006 WG:05063055663632

P0145.060-060-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
60
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 7.63 per unit (click for quantity discounts)
P0145.060-070-A2 Shoulder screw TX Ø6x70,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246013 WG:05063055663649
Shoulder screw TX Ø6x70,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246013 WG:05063055663649

P0145.060-070-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
70
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 9.29 per unit (click for quantity discounts)
P0145.060-080-A2 Shoulder screw TX Ø6x80,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246020 WG:05063055663656
Shoulder screw TX Ø6x80,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246020 WG:05063055663656

P0145.060-080-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
80
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 12.65 per unit (click for quantity discounts)
P0145.060-090-A2 Shoulder screw TX Ø6x90,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246037 WG:05063055663663
Shoulder screw TX Ø6x90,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246037 WG:05063055663663

P0145.060-090-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
90
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 14.19 per unit (click for quantity discounts)
P0145.060-100-A2 Shoulder screw TX Ø6x100,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246044 WG:05063055663670
Shoulder screw TX Ø6x100,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246044 WG:05063055663670

P0145.060-100-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
100
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 15.91 per unit (click for quantity discounts)
P0145.080-004-A2 Shoulder screw TX Ø8x4,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246051 WG:05063055663687
Shoulder screw TX Ø8x4,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246051 WG:05063055663687

P0145.080-004-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
4
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 4.41 per unit (click for quantity discounts)
P0145.080-005-A2 Shoulder screw TX Ø8x5,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246068 WG:05063055663694
Shoulder screw TX Ø8x5,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246068 WG:05063055663694

P0145.080-005-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
5
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 4.41 per unit (click for quantity discounts)
P0145.080-006-A2 Shoulder screw TX Ø8x6,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20228569 WG:05063055579186
Shoulder screw TX Ø8x6,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20228569 WG:05063055579186

P0145.080-006-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
6
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 4.41 per unit (click for quantity discounts)
P0145.080-007-A2 Shoulder screw TX Ø8x7,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246075 WG:05063055663700
Shoulder screw TX Ø8x7,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246075 WG:05063055663700

P0145.080-007-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
7
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 4.41 per unit (click for quantity discounts)
P0145.080-008-A2 Shoulder screw TX Ø8x8,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20241322 WG:05063055637329
Shoulder screw TX Ø8x8,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20241322 WG:05063055637329

P0145.080-008-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
8
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 5.25 per unit (click for quantity discounts)
P0145.080-010-A2 Shoulder screw TX Ø8x10,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20228507 WG:05063055577441
Shoulder screw TX Ø8x10,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20228507 WG:05063055577441

P0145.080-010-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
10
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 5.32 per unit (click for quantity discounts)
P0145.080-012-A2 Shoulder screw TX Ø8x12,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225223 WG:05063055330701
Shoulder screw TX Ø8x12,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225223 WG:05063055330701

P0145.080-012-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
12
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 5.32 per unit (click for quantity discounts)
P0145.080-014-A2 Shoulder screw TX Ø8x14,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246082 WG:05063055663717
Shoulder screw TX Ø8x14,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246082 WG:05063055663717

P0145.080-014-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
14
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 5.25 per unit (click for quantity discounts)
P0145.080-016-A2 Shoulder screw TX Ø8x16,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225230 WG:05063055330718
Shoulder screw TX Ø8x16,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225230 WG:05063055330718

P0145.080-016-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
16
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 5.32 per unit (click for quantity discounts)
P0145.080-018-A2 Shoulder screw TX Ø8x18,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246099 WG:05063055663724
Shoulder screw TX Ø8x18,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246099 WG:05063055663724

P0145.080-018-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
18
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 5.25 per unit (click for quantity discounts)
P0145.080-020-A2 Shoulder screw TX Ø8x20,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225247 WG:05063055330725
Shoulder screw TX Ø8x20,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225247 WG:05063055330725

P0145.080-020-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
20
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 6.01 per unit (click for quantity discounts)
P0145.080-025-A2 Shoulder screw TX Ø8x25,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225254 WG:05063055330732
Shoulder screw TX Ø8x25,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225254 WG:05063055330732

P0145.080-025-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
25
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 6.80 per unit (click for quantity discounts)
P0145.080-030-A2 Shoulder screw TX Ø8x30,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225261 WG:05063055330749
Shoulder screw TX Ø8x30,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225261 WG:05063055330749

P0145.080-030-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
30
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 6.97 per unit (click for quantity discounts)
P0145.080-035-A2 Shoulder screw TX Ø8x35,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246105 WG:05063055663731
Shoulder screw TX Ø8x35,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246105 WG:05063055663731

P0145.080-035-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
35
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 6.88 per unit (click for quantity discounts)
P0145.080-040-A2 Shoulder screw TX Ø8x40,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225278 WG:05063055330756
Shoulder screw TX Ø8x40,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225278 WG:05063055330756

P0145.080-040-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
40
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 6.97 per unit (click for quantity discounts)
P0145.080-045-A2 Shoulder screw TX Ø8x45,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246112 WG:05063055663748
Shoulder screw TX Ø8x45,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246112 WG:05063055663748

P0145.080-045-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
45
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 7.73 per unit (click for quantity discounts)
P0145.080-050-A2 Shoulder screw TX Ø8x50,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225285 WG:05063055330763
Shoulder screw TX Ø8x50,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225285 WG:05063055330763

P0145.080-050-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
50
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 7.84 per unit (click for quantity discounts)
P0145.080-055-A2 Shoulder screw TX Ø8x55,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246129 WG:05063055663755
Shoulder screw TX Ø8x55,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246129 WG:05063055663755

P0145.080-055-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
55
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 7.73 per unit (click for quantity discounts)
P0145.080-060-A2 Shoulder screw TX Ø8x60,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246136 WG:05063055663762
Shoulder screw TX Ø8x60,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246136 WG:05063055663762

P0145.080-060-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
60
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 7.73 per unit (click for quantity discounts)
P0145.080-065-A2 Shoulder screw TX Ø8x65,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246143 WG:05063055663779
Shoulder screw TX Ø8x65,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246143 WG:05063055663779

P0145.080-065-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
65
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 8.69 per unit (click for quantity discounts)
P0145.080-070-A2 Shoulder screw TX Ø8x70,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246150 WG:05063055663786
Shoulder screw TX Ø8x70,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246150 WG:05063055663786

P0145.080-070-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
70
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 10.67 per unit (click for quantity discounts)
P0145.080-075-A2 Shoulder screw TX Ø8x75,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246167 WG:05063055663793
Shoulder screw TX Ø8x75,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246167 WG:05063055663793

P0145.080-075-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
75
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 11.09 per unit (click for quantity discounts)
P0145.080-080-A2 Shoulder screw TX Ø8x80,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246174 WG:05063055663809
Shoulder screw TX Ø8x80,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246174 WG:05063055663809

P0145.080-080-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
80
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 13.33 per unit (click for quantity discounts)
P0145.080-090-A2 Shoulder screw TX Ø8x90,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246181 WG:05063055663816
Shoulder screw TX Ø8x90,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246181 WG:05063055663816

P0145.080-090-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
90
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 13.53 per unit (click for quantity discounts)
P0145.080-100-A2 Shoulder screw TX Ø8x100,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246198 WG:05063055663823
Shoulder screw TX Ø8x100,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246198 WG:05063055663823

P0145.080-100-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
100
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 13.98 per unit (click for quantity discounts)
P0145.100-008-A2 Shoulder screw TX Ø10x8,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20229047 WG:05063055582056
Shoulder screw TX Ø10x8,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20229047 WG:05063055582056

P0145.100-008-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
8
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 5.54 per unit (click for quantity discounts)
P0145.100-010-A2 Shoulder screw TX Ø10x10,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20229900 WG:05063055592376
Shoulder screw TX Ø10x10,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20229900 WG:05063055592376

P0145.100-010-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
10
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 5.54 per unit (click for quantity discounts)
P0145.100-012-A2 Shoulder screw TX Ø10x12,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20241339 WG:05063055637336
Shoulder screw TX Ø10x12,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20241339 WG:05063055637336

P0145.100-012-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
12
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 5.54 per unit (click for quantity discounts)
P0145.100-014-A2 Shoulder screw TX Ø10x14,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246204 WG:05063055663830
Shoulder screw TX Ø10x14,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246204 WG:05063055663830

P0145.100-014-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
14
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 5.54 per unit (click for quantity discounts)
P0145.100-016-A2 Shoulder screw TX Ø10x16,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225292 WG:05063055330770
Shoulder screw TX Ø10x16,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225292 WG:05063055330770

P0145.100-016-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
16
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 5.54 per unit (click for quantity discounts)
P0145.100-018-A2 Shoulder screw TX Ø10x18,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246211 WG:05063055663847
Shoulder screw TX Ø10x18,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246211 WG:05063055663847

P0145.100-018-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
18
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 5.54 per unit (click for quantity discounts)
P0145.100-020-A2 Shoulder screw TX Ø10x20,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225308 WG:05063055330787
Shoulder screw TX Ø10x20,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225308 WG:05063055330787

P0145.100-020-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
20
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 6.80 per unit (click for quantity discounts)
P0145.100-025-A2 Shoulder screw TX Ø10x25,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225315 WG:05063055330794
Shoulder screw TX Ø10x25,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225315 WG:05063055330794

P0145.100-025-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
25
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 6.80 per unit (click for quantity discounts)
P0145.100-030-A2 Shoulder screw TX Ø10x30,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225322 WG:05063055330800
Shoulder screw TX Ø10x30,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225322 WG:05063055330800

P0145.100-030-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
30
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 7.41 per unit (click for quantity discounts)
P0145.100-035-A2 Shoulder screw TX Ø10x35,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246228 WG:05063055663854
Shoulder screw TX Ø10x35,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246228 WG:05063055663854

P0145.100-035-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
35
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 7.31 per unit (click for quantity discounts)
P0145.100-040-A2 Shoulder screw TX Ø10x40,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225339 WG:05063055330817
Shoulder screw TX Ø10x40,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225339 WG:05063055330817

P0145.100-040-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
40
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 7.41 per unit (click for quantity discounts)
P0145.100-045-A2 Shoulder screw TX Ø10x45,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246235 WG:05063055663861
Shoulder screw TX Ø10x45,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246235 WG:05063055663861

P0145.100-045-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
45
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 8.18 per unit (click for quantity discounts)
P0145.100-050-A2 Shoulder screw TX Ø10x50,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225346 WG:05063055330824
Shoulder screw TX Ø10x50,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225346 WG:05063055330824

P0145.100-050-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
50
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 8.27 per unit (click for quantity discounts)
P0145.100-055-A2 Shoulder screw TX Ø10x55,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246242 WG:05063055663878
Shoulder screw TX Ø10x55,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246242 WG:05063055663878

P0145.100-055-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
55
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 8.18 per unit (click for quantity discounts)
P0145.100-060-A2 Shoulder screw TX Ø10x60,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225353 WG:05063055330831
Shoulder screw TX Ø10x60,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225353 WG:05063055330831

P0145.100-060-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
60
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 8.27 per unit (click for quantity discounts)
P0145.100-065-A2 Shoulder screw TX Ø10x65,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246259 WG:05063055663885
Shoulder screw TX Ø10x65,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246259 WG:05063055663885

P0145.100-065-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
65
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 9.02 per unit (click for quantity discounts)
P0145.100-070-A2 Shoulder screw TX Ø10x70,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225360 WG:05063055330848
Shoulder screw TX Ø10x70,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225360 WG:05063055330848

P0145.100-070-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
70
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 10.46 per unit (click for quantity discounts)
P0145.100-080-A2 Shoulder screw TX Ø10x80,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246266 WG:05063055663892
Shoulder screw TX Ø10x80,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246266 WG:05063055663892

P0145.100-080-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
80
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 11.37 per unit (click for quantity discounts)
P0145.100-090-A2 Shoulder screw TX Ø10x90,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246273 WG:05063055663908
Shoulder screw TX Ø10x90,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246273 WG:05063055663908

P0145.100-090-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
90
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 11.61 per unit (click for quantity discounts)
P0145.100-100-A2 Shoulder screw TX Ø10x100,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246280 WG:05063055663915
Shoulder screw TX Ø10x100,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246280 WG:05063055663915

P0145.100-100-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
100
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 12.25 per unit (click for quantity discounts)
P0145.120-008-A2 Shoulder screw TX Ø12x8,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246297 WG:05063055663922
Shoulder screw TX Ø12x8,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246297 WG:05063055663922

P0145.120-008-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
8
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 7.63 per unit (click for quantity discounts)
P0145.120-010-A2 Shoulder screw TX Ø12x10,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20241346 WG:05063055637343
Shoulder screw TX Ø12x10,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20241346 WG:05063055637343

P0145.120-010-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
10
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 7.63 per unit (click for quantity discounts)
P0145.120-012-A2 Shoulder screw TX Ø12x12,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20241353 WG:05063055637350
Shoulder screw TX Ø12x12,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20241353 WG:05063055637350

P0145.120-012-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
12
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 7.63 per unit (click for quantity discounts)
P0145.120-014-A2 Shoulder screw TX Ø12x14,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246303 WG:05063055663939
Shoulder screw TX Ø12x14,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246303 WG:05063055663939

P0145.120-014-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
14
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 8.18 per unit (click for quantity discounts)
P0145.120-016-A2 Shoulder screw TX Ø12x16,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225377 WG:05063055330855
Shoulder screw TX Ø12x16,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225377 WG:05063055330855

P0145.120-016-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
16
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 8.27 per unit (click for quantity discounts)
P0145.120-018-A2 Shoulder screw TX Ø12x18,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246310 WG:05063055663946
Shoulder screw TX Ø12x18,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246310 WG:05063055663946

P0145.120-018-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
18
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 8.18 per unit (click for quantity discounts)
P0145.120-020-A2 Shoulder screw TX Ø12x20,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225384 WG:05063055330862
Shoulder screw TX Ø12x20,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225384 WG:05063055330862

P0145.120-020-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
20
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 8.27 per unit (click for quantity discounts)
P0145.120-025-A2 Shoulder screw TX Ø12x25,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225391 WG:05063055330879
Shoulder screw TX Ø12x25,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225391 WG:05063055330879

P0145.120-025-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
25
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.93 per unit (click for quantity discounts)
P0145.120-030-A2 Shoulder screw TX Ø12x30,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225407 WG:05063055330886
Shoulder screw TX Ø12x30,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225407 WG:05063055330886

P0145.120-030-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
30
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.93 per unit (click for quantity discounts)
P0145.120-035-A2 Shoulder screw TX Ø12x35,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246327 WG:05063055663953
Shoulder screw TX Ø12x35,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246327 WG:05063055663953

P0145.120-035-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
35
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.80 per unit (click for quantity discounts)
P0145.120-040-A2 Shoulder screw TX Ø12x40,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225414 WG:05063055330893
Shoulder screw TX Ø12x40,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225414 WG:05063055330893

P0145.120-040-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
40
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.93 per unit (click for quantity discounts)
P0145.120-045-A2 Shoulder screw TX Ø12x45,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246334 WG:05063055663960
Shoulder screw TX Ø12x45,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246334 WG:05063055663960

P0145.120-045-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
45
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.80 per unit (click for quantity discounts)
P0145.120-050-A2 Shoulder screw TX Ø12x50,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225421 WG:05063055330909
Shoulder screw TX Ø12x50,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225421 WG:05063055330909

P0145.120-050-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
50
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.93 per unit (click for quantity discounts)
P0145.120-055-A2 Shoulder screw TX Ø12x55,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246341 WG:05063055663977
Shoulder screw TX Ø12x55,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246341 WG:05063055663977

P0145.120-055-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
55
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.80 per unit (click for quantity discounts)
P0145.120-060-A2 Shoulder screw TX Ø12x60,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225438 WG:05063055330916
Shoulder screw TX Ø12x60,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225438 WG:05063055330916

P0145.120-060-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
60
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.93 per unit (click for quantity discounts)
P0145.120-065-A2 Shoulder screw TX Ø12x65,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246358 WG:05063055663984
Shoulder screw TX Ø12x65,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246358 WG:05063055663984

P0145.120-065-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
65
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 10.67 per unit (click for quantity discounts)
P0145.120-070-A2 Shoulder screw TX Ø12x70,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225445 WG:05063055330923
Shoulder screw TX Ø12x70,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225445 WG:05063055330923

P0145.120-070-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
70
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 10.67 per unit (click for quantity discounts)
P0145.120-075-A2 Shoulder screw TX Ø12x75,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246365 WG:05063055663991
Shoulder screw TX Ø12x75,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246365 WG:05063055663991

P0145.120-075-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
75
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 10.67 per unit (click for quantity discounts)
P0145.120-080-A2 Shoulder screw TX Ø12x80,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246372 WG:05063055664004
Shoulder screw TX Ø12x80,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246372 WG:05063055664004

P0145.120-080-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
80
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 11.37 per unit (click for quantity discounts)
P0145.120-090-A2 Shoulder screw TX Ø12x90,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246389 WG:05063055664011
Shoulder screw TX Ø12x90,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246389 WG:05063055664011

P0145.120-090-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
90
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 11.81 per unit (click for quantity discounts)
P0145.120-100-A2 Shoulder screw TX Ø12x100,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246396 WG:05063055664028
Shoulder screw TX Ø12x100,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246396 WG:05063055664028

P0145.120-100-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
100
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 12.47 per unit (click for quantity discounts)
P0145.160-025-A2 Shoulder screw TX Ø16x25,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246402 WG:05063055664035
Shoulder screw TX Ø16x25,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246402 WG:05063055664035

P0145.160-025-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
25
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 13.75 per unit (click for quantity discounts)
P0145.160-030-A2 Shoulder screw TX Ø16x30,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246419 WG:05063055664042
Shoulder screw TX Ø16x30,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246419 WG:05063055664042

P0145.160-030-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
30
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 15.18 per unit (click for quantity discounts)
P0145.160-035-A2 Shoulder screw TX Ø16x35,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246426 WG:05063055664059
Shoulder screw TX Ø16x35,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246426 WG:05063055664059

P0145.160-035-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
35
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 15.18 per unit (click for quantity discounts)
P0145.160-040-A2 Shoulder screw TX Ø16x40,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246433 WG:05063055664066
Shoulder screw TX Ø16x40,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246433 WG:05063055664066

P0145.160-040-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
40
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 18.15 per unit (click for quantity discounts)
P0145.160-045-A2 Shoulder screw TX Ø16x45,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246440 WG:05063055664073
Shoulder screw TX Ø16x45,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246440 WG:05063055664073

P0145.160-045-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
45
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 18.15 per unit (click for quantity discounts)
P0145.160-050-A2 Shoulder screw TX Ø16x50,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246457 WG:05063055664080
Shoulder screw TX Ø16x50,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246457 WG:05063055664080

P0145.160-050-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
50
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 18.15 per unit (click for quantity discounts)
P0145.160-055-A2 Shoulder screw TX Ø16x55,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246464 WG:05063055664097
Shoulder screw TX Ø16x55,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246464 WG:05063055664097

P0145.160-055-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
55
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 18.15 per unit (click for quantity discounts)
P0145.160-060-A2 Shoulder screw TX Ø16x60,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246471 WG:05063055664103
Shoulder screw TX Ø16x60,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246471 WG:05063055664103

P0145.160-060-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
60
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 20.46 per unit (click for quantity discounts)
P0145.160-065-A2 Shoulder screw TX Ø16x65,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246488 WG:05063055664110
Shoulder screw TX Ø16x65,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246488 WG:05063055664110

P0145.160-065-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
65
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 20.46 per unit (click for quantity discounts)
P0145.160-070-A2 Shoulder screw TX Ø16x70,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246495 WG:05063055664127
Shoulder screw TX Ø16x70,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246495 WG:05063055664127

P0145.160-070-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
70
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 20.46 per unit (click for quantity discounts)
P0145.160-075-A2 Shoulder screw TX Ø16x75,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246501 WG:05063055664134
Shoulder screw TX Ø16x75,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246501 WG:05063055664134

P0145.160-075-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
75
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 22.22 per unit (click for quantity discounts)
P0145.160-080-A2 Shoulder screw TX Ø16x80,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246518 WG:05063055664141
Shoulder screw TX Ø16x80,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246518 WG:05063055664141

P0145.160-080-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
80
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 22.22 per unit (click for quantity discounts)
P0145.160-090-A2 Shoulder screw TX Ø16x90,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246525 WG:05063055664158
Shoulder screw TX Ø16x90,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246525 WG:05063055664158

P0145.160-090-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
90
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 23.04 per unit (click for quantity discounts)
P0145.160-100-A2 Shoulder screw TX Ø16x100,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246532 WG:05063055664165
Shoulder screw TX Ø16x100,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246532 WG:05063055664165

P0145.160-100-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
100
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 23.04 per unit (click for quantity discounts)
P0145.200-030-A2 Shoulder screw TX Ø20x30,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246549 WG:05063055664172
Shoulder screw TX Ø20x30,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246549 WG:05063055664172

P0145.200-030-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
30
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 24.19 per unit (click for quantity discounts)
P0145.200-035-A2 Shoulder screw TX Ø20x35,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246556 WG:05063055664189
Shoulder screw TX Ø20x35,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246556 WG:05063055664189

P0145.200-035-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
35
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 24.19 per unit (click for quantity discounts)
P0145.200-040-A2 Shoulder screw TX Ø20x40,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246563 WG:05063055664196
Shoulder screw TX Ø20x40,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246563 WG:05063055664196

P0145.200-040-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
40
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 24.19 per unit (click for quantity discounts)
P0145.200-045-A2 Shoulder screw TX Ø20x45,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246570 WG:05063055664202
Shoulder screw TX Ø20x45,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246570 WG:05063055664202

P0145.200-045-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
45
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 24.19 per unit (click for quantity discounts)
P0145.200-050-A2 Shoulder screw TX Ø20x50,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246587 WG:05063055664219
Shoulder screw TX Ø20x50,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246587 WG:05063055664219

P0145.200-050-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
50
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 31.03 per unit (click for quantity discounts)
P0145.200-055-A2 Shoulder screw TX Ø20x55,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246594 WG:05063055664226
Shoulder screw TX Ø20x55,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246594 WG:05063055664226

P0145.200-055-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
55
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 31.03 per unit (click for quantity discounts)
P0145.200-060-A2 Shoulder screw TX Ø20x60,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246600 WG:05063055664233
Shoulder screw TX Ø20x60,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246600 WG:05063055664233

P0145.200-060-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
60
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 31.03 per unit (click for quantity discounts)
P0145.200-065-A2 Shoulder screw TX Ø20x65,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246617 WG:05063055664240
Shoulder screw TX Ø20x65,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246617 WG:05063055664240

P0145.200-065-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
65
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 31.03 per unit (click for quantity discounts)
P0145.200-070-A2 Shoulder screw TX Ø20x70,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246624 WG:05063055664257
Shoulder screw TX Ø20x70,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246624 WG:05063055664257

P0145.200-070-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
70
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 36.95 per unit (click for quantity discounts)
P0145.200-075-A2 Shoulder screw TX Ø20x75,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246631 WG:05063055664264
Shoulder screw TX Ø20x75,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246631 WG:05063055664264

P0145.200-075-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
75
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 36.95 per unit (click for quantity discounts)
P0145.200-080-A2 Shoulder screw TX Ø20x80,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246648 WG:05063055664271
Shoulder screw TX Ø20x80,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246648 WG:05063055664271

P0145.200-080-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
80
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 36.95 per unit (click for quantity discounts)
P0145.200-090-A2 Shoulder screw TX Ø20x90,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246655 WG:05063055664288
Shoulder screw TX Ø20x90,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246655 WG:05063055664288

P0145.200-090-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
90
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 38.63 per unit (click for quantity discounts)
P0145.200-100-A2 Shoulder screw TX Ø20x100,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246662 WG:05063055664295
Shoulder screw TX Ø20x100,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246662 WG:05063055664295

P0145.200-100-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
100
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 38.63 per unit (click for quantity discounts)
P0145.040-002-A2 Shoulder screw TX Ø4x2,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245658 WG:05063055663281
Shoulder screw TX Ø4x2,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245658 WG:05063055663281

P0145.040-002-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
2
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 2.93 per unit (click for quantity discounts)
P0145.040-003-A2 Shoulder screw TX Ø4x3,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245665 WG:05063055663298
Shoulder screw TX Ø4x3,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245665 WG:05063055663298

P0145.040-003-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
3
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 2.93 per unit (click for quantity discounts)
P0145.040-004-A2 Shoulder Screws - Cap Head
Shoulder Screws - Cap Head

P0145.040-004-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
4
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
P0145.040-005-A2 Shoulder screw TX Ø4x5,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225049 WG:05063055330527
Shoulder screw TX Ø4x5,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225049 WG:05063055330527

P0145.040-005-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
5
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 2.93 per unit (click for quantity discounts)
P0145.040-006-A2 Shoulder screw TX Ø4x6,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225056 WG:05063055330534
Shoulder screw TX Ø4x6,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225056 WG:05063055330534

P0145.040-006-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
6
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 2.93 per unit (click for quantity discounts)
P0145.040-007-A2 Shoulder screw TX Ø4x7,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245672 WG:05063055663304
Shoulder screw TX Ø4x7,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245672 WG:05063055663304

P0145.040-007-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
7
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 2.93 per unit (click for quantity discounts)
P0145.040-008-A2 Shoulder screw TX Ø4x8,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225063 WG:05063055330541
Shoulder screw TX Ø4x8,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225063 WG:05063055330541

P0145.040-008-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
8
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 2.93 per unit (click for quantity discounts)
P0145.040-010-A2 Shoulder screw TX Ø4x10,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225070 WG:05063055330558
Shoulder screw TX Ø4x10,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20225070 WG:05063055330558

P0145.040-010-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
10
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-012-A2 Shoulder screw TX Ø4x12,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245689 WG:05063055663311
Shoulder screw TX Ø4x12,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245689 WG:05063055663311

P0145.040-012-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
12
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-014-A2 Shoulder screw TX Ø4x14,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245696 WG:05063055663328
Shoulder screw TX Ø4x14,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245696 WG:05063055663328

P0145.040-014-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
14
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-016-A2 Shoulder screw TX Ø4x16,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245702 WG:05063055663335
Shoulder screw TX Ø4x16,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245702 WG:05063055663335

P0145.040-016-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
16
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-018-A2 Shoulder screw TX Ø4x18,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245719 WG:05063055663342
Shoulder screw TX Ø4x18,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245719 WG:05063055663342

P0145.040-018-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
18
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-020-A2 Shoulder screw TX Ø4x20,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245726 WG:05063055663359
Shoulder screw TX Ø4x20,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245726 WG:05063055663359

P0145.040-020-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
20
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-025-A2 Shoulder screw TX Ø4x25,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245733 WG:05063055663366
Shoulder screw TX Ø4x25,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245733 WG:05063055663366

P0145.040-025-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
25
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-030-A2 Shoulder screw TX Ø4x30,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245740 WG:05063055663373
Shoulder screw TX Ø4x30,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245740 WG:05063055663373

P0145.040-030-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
30
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-035-A2 Shoulder screw TX Ø4x35,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245757 WG:05063055663380
Shoulder screw TX Ø4x35,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245757 WG:05063055663380

P0145.040-035-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
35
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-040-A2 Shoulder screw TX Ø4x40,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245764 WG:05063055663397
Shoulder screw TX Ø4x40,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245764 WG:05063055663397

P0145.040-040-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
40
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-045-A2 Shoulder screw TX Ø4x45,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245771 WG:05063055663403
Shoulder screw TX Ø4x45,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245771 WG:05063055663403

P0145.040-045-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
45
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.040-050-A2 Shoulder screw TX Ø4x50,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245788 WG:05063055663410
Shoulder screw TX Ø4x50,M3 A2 torx drive, stainless 303 series, 1.4305 EC:20245788 WG:05063055663410

P0145.040-050-A2

d1 +0.0|-0.025
4
l1 +0.05|-0.0
50
d2
M 3
d3
6
l2
4
h1
3
TX size
TX-10
£ 3.00 per unit (click for quantity discounts)
P0145.050-002-A2 Shoulder screw TX Ø5x2,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245795 WG:05063055663427
Shoulder screw TX Ø5x2,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245795 WG:05063055663427

P0145.050-002-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
2
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.00 per unit (click for quantity discounts)
P0145.050-003-A2 Shoulder screw TX Ø5x3,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245801 WG:05063055663434
Shoulder screw TX Ø5x3,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245801 WG:05063055663434

P0145.050-003-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
3
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.00 per unit (click for quantity discounts)
P0145.050-004-A2 Shoulder screw TX Ø5x4,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245818 WG:05063055663441
Shoulder screw TX Ø5x4,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245818 WG:05063055663441

P0145.050-004-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
4
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.00 per unit (click for quantity discounts)
P0145.050-005-A2 Shoulder screw TX Ø5x5,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245825 WG:05063055663458
Shoulder screw TX Ø5x5,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245825 WG:05063055663458

P0145.050-005-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
5
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.00 per unit (click for quantity discounts)
P0145.050-006-A2 Shoulder screw TX Ø5x6,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20228491 WG:05063055577434
Shoulder screw TX Ø5x6,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20228491 WG:05063055577434

P0145.050-006-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
6
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.10 per unit (click for quantity discounts)
P0145.050-007-A2 Shoulder screw TX Ø5x7,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245832 WG:05063055663465
Shoulder screw TX Ø5x7,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245832 WG:05063055663465

P0145.050-007-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
7
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.10 per unit (click for quantity discounts)
P0145.050-008-A2 Shoulder screw TX Ø5x8,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20241315 WG:05063055637312
Shoulder screw TX Ø5x8,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20241315 WG:05063055637312

P0145.050-008-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
8
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.10 per unit (click for quantity discounts)
P0145.050-010-A2 Shoulder screw TX Ø5x10,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225087 WG:05063055330565
Shoulder screw TX Ø5x10,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225087 WG:05063055330565

P0145.050-010-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
10
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.23 per unit (click for quantity discounts)
P0145.050-012-A2 Shoulder screw TX Ø5x12,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225094 WG:05063055330572
Shoulder screw TX Ø5x12,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225094 WG:05063055330572

P0145.050-012-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
12
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.23 per unit (click for quantity discounts)
P0145.050-014-A2 Shoulder screw TX Ø5x14,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245849 WG:05063055663472
Shoulder screw TX Ø5x14,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245849 WG:05063055663472

P0145.050-014-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
14
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.19 per unit (click for quantity discounts)
P0145.050-016-A2 Shoulder screw TX Ø5x16,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225100 WG:05063055330589
Shoulder screw TX Ø5x16,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225100 WG:05063055330589

P0145.050-016-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
16
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.39 per unit (click for quantity discounts)
P0145.050-018-A2 Shoulder screw TX Ø5x18,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245856 WG:05063055663489
Shoulder screw TX Ø5x18,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245856 WG:05063055663489

P0145.050-018-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
18
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.36 per unit (click for quantity discounts)
P0145.050-020-A2 Shoulder screw TX Ø5x20,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225117 WG:05063055330596
Shoulder screw TX Ø5x20,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225117 WG:05063055330596

P0145.050-020-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
20
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.92 per unit (click for quantity discounts)
P0145.050-025-A2 Shoulder screw TX Ø5x25,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225124 WG:05063055330602
Shoulder screw TX Ø5x25,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225124 WG:05063055330602

P0145.050-025-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
25
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.92 per unit (click for quantity discounts)
P0145.050-030-A2 Shoulder screw TX Ø5x30,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225131 WG:05063055330619
Shoulder screw TX Ø5x30,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20225131 WG:05063055330619

P0145.050-030-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
30
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.92 per unit (click for quantity discounts)
P0145.050-035-A2 Shoulder screw TX Ø5x35,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245863 WG:05063055663496
Shoulder screw TX Ø5x35,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245863 WG:05063055663496

P0145.050-035-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
35
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.88 per unit (click for quantity discounts)
P0145.050-040-A2 Shoulder screw TX Ø5x40,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245870 WG:05063055663502
Shoulder screw TX Ø5x40,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245870 WG:05063055663502

P0145.050-040-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
40
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.88 per unit (click for quantity discounts)
P0145.050-045-A2 Shoulder screw TX Ø5x45,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245887 WG:05063055663519
Shoulder screw TX Ø5x45,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245887 WG:05063055663519

P0145.050-045-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
45
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.88 per unit (click for quantity discounts)
P0145.050-050-A2 Shoulder screw TX Ø5x50,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245894 WG:05063055663526
Shoulder screw TX Ø5x50,M4 A2 torx drive, stainless 303 series, 1.4305 EC:20245894 WG:05063055663526

P0145.050-050-A2

d1 +0.0|-0.025
5
l1 +0.05|-0.0
50
d2
M 4
d3
8
l2
5
h1
4
TX size
TX-20
£ 3.88 per unit (click for quantity discounts)
P0145.060-002-A2 Shoulder screw TX Ø6x2,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245900 WG:05063055663533
Shoulder screw TX Ø6x2,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245900 WG:05063055663533

P0145.060-002-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
2
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 3.62 per unit (click for quantity discounts)
P0145.060-003-A2 Shoulder screw TX Ø6x3,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245917 WG:05063055663540
Shoulder screw TX Ø6x3,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245917 WG:05063055663540

P0145.060-003-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
3
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 3.62 per unit (click for quantity discounts)
P0145.060-004-A2 Shoulder screw TX Ø6x4,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245924 WG:05063055663557
Shoulder screw TX Ø6x4,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245924 WG:05063055663557

P0145.060-004-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
4
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 3.62 per unit (click for quantity discounts)
P0145.060-005-A2 Shoulder screw TX Ø6x5,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245931 WG:05063055663564
Shoulder screw TX Ø6x5,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245931 WG:05063055663564

P0145.060-005-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
5
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 3.62 per unit (click for quantity discounts)
P0145.060-006-A2 Shoulder screw TX Ø6x6,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20230012 WG:05063055596237
Shoulder screw TX Ø6x6,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20230012 WG:05063055596237

P0145.060-006-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
6
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 3.66 per unit (click for quantity discounts)
P0145.060-007-A2 Shoulder screw TX Ø6x7,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245948 WG:05063055663571
Shoulder screw TX Ø6x7,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245948 WG:05063055663571

P0145.060-007-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
7
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 4.47 per unit (click for quantity discounts)
P0145.060-008-A2 Shoulder screw TX Ø6x8,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20230104 WG:05063055603386
Shoulder screw TX Ø6x8,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20230104 WG:05063055603386

P0145.060-008-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
8
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 4.51 per unit (click for quantity discounts)
P0145.060-010-A2 Shoulder screw TX Ø6x10,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225148 WG:05063055330626
Shoulder screw TX Ø6x10,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225148 WG:05063055330626

P0145.060-010-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
10
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.01 per unit (click for quantity discounts)
P0145.060-012-A2 Shoulder screw TX Ø6x12,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225155 WG:05063055330633
Shoulder screw TX Ø6x12,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225155 WG:05063055330633

P0145.060-012-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
12
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.01 per unit (click for quantity discounts)
P0145.060-014-A2 Shoulder screw TX Ø6x14,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245955 WG:05063055663588
Shoulder screw TX Ø6x14,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245955 WG:05063055663588

P0145.060-014-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
14
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.01 per unit (click for quantity discounts)
P0145.060-016-A2 Shoulder screw TX Ø6x16,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225162 WG:05063055330640
Shoulder screw TX Ø6x16,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225162 WG:05063055330640

P0145.060-016-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
16
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.01 per unit (click for quantity discounts)
P0145.060-018-A2 Shoulder screw TX Ø6x18,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245962 WG:05063055663595
Shoulder screw TX Ø6x18,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245962 WG:05063055663595

P0145.060-018-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
18
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.01 per unit (click for quantity discounts)
P0145.060-020-A2 Shoulder screw TX Ø6x20,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225179 WG:05063055330657
Shoulder screw TX Ø6x20,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225179 WG:05063055330657

P0145.060-020-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
20
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.57 per unit (click for quantity discounts)
P0145.060-025-A2 Shoulder screw TX Ø6x25,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225186 WG:05063055330664
Shoulder screw TX Ø6x25,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225186 WG:05063055330664

P0145.060-025-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
25
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.57 per unit (click for quantity discounts)
P0145.060-030-A2 Shoulder screw TX Ø6x30,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225193 WG:05063055330671
Shoulder screw TX Ø6x30,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225193 WG:05063055330671

P0145.060-030-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
30
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.57 per unit (click for quantity discounts)
P0145.060-035-A2 Shoulder screw TX Ø6x35,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245979 WG:05063055663601
Shoulder screw TX Ø6x35,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245979 WG:05063055663601

P0145.060-035-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
35
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.51 per unit (click for quantity discounts)
P0145.060-040-A2 Shoulder screw TX Ø6x40,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225209 WG:05063055330688
Shoulder screw TX Ø6x40,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225209 WG:05063055330688

P0145.060-040-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
40
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 5.57 per unit (click for quantity discounts)
P0145.060-045-A2 Shoulder screw TX Ø6x45,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245986 WG:05063055663618
Shoulder screw TX Ø6x45,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245986 WG:05063055663618

P0145.060-045-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
45
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 6.71 per unit (click for quantity discounts)
P0145.060-050-A2 Shoulder screw TX Ø6x50,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225216 WG:05063055330695
Shoulder screw TX Ø6x50,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20225216 WG:05063055330695

P0145.060-050-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
50
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 6.76 per unit (click for quantity discounts)
P0145.060-055-A2 Shoulder screw TX Ø6x55,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245993 WG:05063055663625
Shoulder screw TX Ø6x55,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20245993 WG:05063055663625

P0145.060-055-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
55
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 7.31 per unit (click for quantity discounts)
P0145.060-060-A2 Shoulder screw TX Ø6x60,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246006 WG:05063055663632
Shoulder screw TX Ø6x60,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246006 WG:05063055663632

P0145.060-060-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
60
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 7.63 per unit (click for quantity discounts)
P0145.060-070-A2 Shoulder screw TX Ø6x70,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246013 WG:05063055663649
Shoulder screw TX Ø6x70,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246013 WG:05063055663649

P0145.060-070-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
70
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 9.29 per unit (click for quantity discounts)
P0145.060-080-A2 Shoulder screw TX Ø6x80,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246020 WG:05063055663656
Shoulder screw TX Ø6x80,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246020 WG:05063055663656

P0145.060-080-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
80
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 12.65 per unit (click for quantity discounts)
P0145.060-090-A2 Shoulder screw TX Ø6x90,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246037 WG:05063055663663
Shoulder screw TX Ø6x90,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246037 WG:05063055663663

P0145.060-090-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
90
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 14.19 per unit (click for quantity discounts)
P0145.060-100-A2 Shoulder screw TX Ø6x100,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246044 WG:05063055663670
Shoulder screw TX Ø6x100,M5 A2 torx drive, stainless 303 series, 1.4305 EC:20246044 WG:05063055663670

P0145.060-100-A2

d1 +0.0|-0.025
6
l1 +0.05|-0.0
100
d2
M 5
d3
10
l2
6
h1
5
TX size
TX-25
£ 15.91 per unit (click for quantity discounts)
P0145.080-004-A2 Shoulder screw TX Ø8x4,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246051 WG:05063055663687
Shoulder screw TX Ø8x4,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246051 WG:05063055663687

P0145.080-004-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
4
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 4.41 per unit (click for quantity discounts)
P0145.080-005-A2 Shoulder screw TX Ø8x5,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246068 WG:05063055663694
Shoulder screw TX Ø8x5,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246068 WG:05063055663694

P0145.080-005-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
5
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 4.41 per unit (click for quantity discounts)
P0145.080-006-A2 Shoulder screw TX Ø8x6,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20228569 WG:05063055579186
Shoulder screw TX Ø8x6,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20228569 WG:05063055579186

P0145.080-006-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
6
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 4.41 per unit (click for quantity discounts)
P0145.080-007-A2 Shoulder screw TX Ø8x7,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246075 WG:05063055663700
Shoulder screw TX Ø8x7,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246075 WG:05063055663700

P0145.080-007-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
7
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 4.41 per unit (click for quantity discounts)
P0145.080-008-A2 Shoulder screw TX Ø8x8,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20241322 WG:05063055637329
Shoulder screw TX Ø8x8,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20241322 WG:05063055637329

P0145.080-008-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
8
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 5.25 per unit (click for quantity discounts)
P0145.080-010-A2 Shoulder screw TX Ø8x10,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20228507 WG:05063055577441
Shoulder screw TX Ø8x10,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20228507 WG:05063055577441

P0145.080-010-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
10
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 5.32 per unit (click for quantity discounts)
P0145.080-012-A2 Shoulder screw TX Ø8x12,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225223 WG:05063055330701
Shoulder screw TX Ø8x12,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225223 WG:05063055330701

P0145.080-012-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
12
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 5.32 per unit (click for quantity discounts)
P0145.080-014-A2 Shoulder screw TX Ø8x14,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246082 WG:05063055663717
Shoulder screw TX Ø8x14,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246082 WG:05063055663717

P0145.080-014-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
14
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 5.25 per unit (click for quantity discounts)
P0145.080-016-A2 Shoulder screw TX Ø8x16,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225230 WG:05063055330718
Shoulder screw TX Ø8x16,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225230 WG:05063055330718

P0145.080-016-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
16
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 5.32 per unit (click for quantity discounts)
P0145.080-018-A2 Shoulder screw TX Ø8x18,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246099 WG:05063055663724
Shoulder screw TX Ø8x18,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246099 WG:05063055663724

P0145.080-018-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
18
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 5.25 per unit (click for quantity discounts)
P0145.080-020-A2 Shoulder screw TX Ø8x20,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225247 WG:05063055330725
Shoulder screw TX Ø8x20,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225247 WG:05063055330725

P0145.080-020-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
20
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 6.01 per unit (click for quantity discounts)
P0145.080-025-A2 Shoulder screw TX Ø8x25,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225254 WG:05063055330732
Shoulder screw TX Ø8x25,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225254 WG:05063055330732

P0145.080-025-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
25
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 6.80 per unit (click for quantity discounts)
P0145.080-030-A2 Shoulder screw TX Ø8x30,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225261 WG:05063055330749
Shoulder screw TX Ø8x30,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225261 WG:05063055330749

P0145.080-030-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
30
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 6.97 per unit (click for quantity discounts)
P0145.080-035-A2 Shoulder screw TX Ø8x35,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246105 WG:05063055663731
Shoulder screw TX Ø8x35,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246105 WG:05063055663731

P0145.080-035-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
35
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 6.88 per unit (click for quantity discounts)
P0145.080-040-A2 Shoulder screw TX Ø8x40,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225278 WG:05063055330756
Shoulder screw TX Ø8x40,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225278 WG:05063055330756

P0145.080-040-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
40
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 6.97 per unit (click for quantity discounts)
P0145.080-045-A2 Shoulder screw TX Ø8x45,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246112 WG:05063055663748
Shoulder screw TX Ø8x45,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246112 WG:05063055663748

P0145.080-045-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
45
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 7.73 per unit (click for quantity discounts)
P0145.080-050-A2 Shoulder screw TX Ø8x50,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225285 WG:05063055330763
Shoulder screw TX Ø8x50,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20225285 WG:05063055330763

P0145.080-050-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
50
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 7.84 per unit (click for quantity discounts)
P0145.080-055-A2 Shoulder screw TX Ø8x55,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246129 WG:05063055663755
Shoulder screw TX Ø8x55,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246129 WG:05063055663755

P0145.080-055-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
55
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 7.73 per unit (click for quantity discounts)
P0145.080-060-A2 Shoulder screw TX Ø8x60,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246136 WG:05063055663762
Shoulder screw TX Ø8x60,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246136 WG:05063055663762

P0145.080-060-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
60
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 7.73 per unit (click for quantity discounts)
P0145.080-065-A2 Shoulder screw TX Ø8x65,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246143 WG:05063055663779
Shoulder screw TX Ø8x65,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246143 WG:05063055663779

P0145.080-065-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
65
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 8.69 per unit (click for quantity discounts)
P0145.080-070-A2 Shoulder screw TX Ø8x70,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246150 WG:05063055663786
Shoulder screw TX Ø8x70,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246150 WG:05063055663786

P0145.080-070-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
70
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 10.67 per unit (click for quantity discounts)
P0145.080-075-A2 Shoulder screw TX Ø8x75,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246167 WG:05063055663793
Shoulder screw TX Ø8x75,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246167 WG:05063055663793

P0145.080-075-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
75
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 11.09 per unit (click for quantity discounts)
P0145.080-080-A2 Shoulder screw TX Ø8x80,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246174 WG:05063055663809
Shoulder screw TX Ø8x80,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246174 WG:05063055663809

P0145.080-080-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
80
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 13.33 per unit (click for quantity discounts)
P0145.080-090-A2 Shoulder screw TX Ø8x90,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246181 WG:05063055663816
Shoulder screw TX Ø8x90,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246181 WG:05063055663816

P0145.080-090-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
90
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 13.53 per unit (click for quantity discounts)
P0145.080-100-A2 Shoulder screw TX Ø8x100,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246198 WG:05063055663823
Shoulder screw TX Ø8x100,M6 A2 torx drive, stainless 303 series, 1.4305 EC:20246198 WG:05063055663823

P0145.080-100-A2

d1 +0.0|-0.025
8
l1 +0.05|-0.0
100
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
£ 13.98 per unit (click for quantity discounts)
P0145.100-008-A2 Shoulder screw TX Ø10x8,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20229047 WG:05063055582056
Shoulder screw TX Ø10x8,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20229047 WG:05063055582056

P0145.100-008-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
8
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 5.54 per unit (click for quantity discounts)
P0145.100-010-A2 Shoulder screw TX Ø10x10,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20229900 WG:05063055592376
Shoulder screw TX Ø10x10,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20229900 WG:05063055592376

P0145.100-010-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
10
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 5.54 per unit (click for quantity discounts)
P0145.100-012-A2 Shoulder screw TX Ø10x12,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20241339 WG:05063055637336
Shoulder screw TX Ø10x12,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20241339 WG:05063055637336

P0145.100-012-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
12
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 5.54 per unit (click for quantity discounts)
P0145.100-014-A2 Shoulder screw TX Ø10x14,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246204 WG:05063055663830
Shoulder screw TX Ø10x14,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246204 WG:05063055663830

P0145.100-014-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
14
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 5.54 per unit (click for quantity discounts)
P0145.100-016-A2 Shoulder screw TX Ø10x16,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225292 WG:05063055330770
Shoulder screw TX Ø10x16,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225292 WG:05063055330770

P0145.100-016-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
16
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 5.54 per unit (click for quantity discounts)
P0145.100-018-A2 Shoulder screw TX Ø10x18,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246211 WG:05063055663847
Shoulder screw TX Ø10x18,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246211 WG:05063055663847

P0145.100-018-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
18
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 5.54 per unit (click for quantity discounts)
P0145.100-020-A2 Shoulder screw TX Ø10x20,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225308 WG:05063055330787
Shoulder screw TX Ø10x20,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225308 WG:05063055330787

P0145.100-020-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
20
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 6.80 per unit (click for quantity discounts)
P0145.100-025-A2 Shoulder screw TX Ø10x25,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225315 WG:05063055330794
Shoulder screw TX Ø10x25,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225315 WG:05063055330794

P0145.100-025-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
25
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 6.80 per unit (click for quantity discounts)
P0145.100-030-A2 Shoulder screw TX Ø10x30,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225322 WG:05063055330800
Shoulder screw TX Ø10x30,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225322 WG:05063055330800

P0145.100-030-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
30
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 7.41 per unit (click for quantity discounts)
P0145.100-035-A2 Shoulder screw TX Ø10x35,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246228 WG:05063055663854
Shoulder screw TX Ø10x35,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246228 WG:05063055663854

P0145.100-035-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
35
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 7.31 per unit (click for quantity discounts)
P0145.100-040-A2 Shoulder screw TX Ø10x40,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225339 WG:05063055330817
Shoulder screw TX Ø10x40,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225339 WG:05063055330817

P0145.100-040-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
40
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 7.41 per unit (click for quantity discounts)
P0145.100-045-A2 Shoulder screw TX Ø10x45,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246235 WG:05063055663861
Shoulder screw TX Ø10x45,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246235 WG:05063055663861

P0145.100-045-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
45
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 8.18 per unit (click for quantity discounts)
P0145.100-050-A2 Shoulder screw TX Ø10x50,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225346 WG:05063055330824
Shoulder screw TX Ø10x50,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225346 WG:05063055330824

P0145.100-050-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
50
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 8.27 per unit (click for quantity discounts)
P0145.100-055-A2 Shoulder screw TX Ø10x55,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246242 WG:05063055663878
Shoulder screw TX Ø10x55,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246242 WG:05063055663878

P0145.100-055-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
55
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 8.18 per unit (click for quantity discounts)
P0145.100-060-A2 Shoulder screw TX Ø10x60,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225353 WG:05063055330831
Shoulder screw TX Ø10x60,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225353 WG:05063055330831

P0145.100-060-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
60
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 8.27 per unit (click for quantity discounts)
P0145.100-065-A2 Shoulder screw TX Ø10x65,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246259 WG:05063055663885
Shoulder screw TX Ø10x65,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246259 WG:05063055663885

P0145.100-065-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
65
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 9.02 per unit (click for quantity discounts)
P0145.100-070-A2 Shoulder screw TX Ø10x70,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225360 WG:05063055330848
Shoulder screw TX Ø10x70,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20225360 WG:05063055330848

P0145.100-070-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
70
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 10.46 per unit (click for quantity discounts)
P0145.100-080-A2 Shoulder screw TX Ø10x80,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246266 WG:05063055663892
Shoulder screw TX Ø10x80,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246266 WG:05063055663892

P0145.100-080-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
80
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 11.37 per unit (click for quantity discounts)
P0145.100-090-A2 Shoulder screw TX Ø10x90,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246273 WG:05063055663908
Shoulder screw TX Ø10x90,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246273 WG:05063055663908

P0145.100-090-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
90
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 11.61 per unit (click for quantity discounts)
P0145.100-100-A2 Shoulder screw TX Ø10x100,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246280 WG:05063055663915
Shoulder screw TX Ø10x100,M8 A2 torx drive, stainless 303 series, 1.4305 EC:20246280 WG:05063055663915

P0145.100-100-A2

d1 +0.0|-0.025
10
l1 +0.05|-0.0
100
d2
M 8
d3
14
l2
12
h1
7
TX size
TX-45
£ 12.25 per unit (click for quantity discounts)
P0145.120-008-A2 Shoulder screw TX Ø12x8,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246297 WG:05063055663922
Shoulder screw TX Ø12x8,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246297 WG:05063055663922

P0145.120-008-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
8
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 7.63 per unit (click for quantity discounts)
P0145.120-010-A2 Shoulder screw TX Ø12x10,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20241346 WG:05063055637343
Shoulder screw TX Ø12x10,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20241346 WG:05063055637343

P0145.120-010-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
10
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 7.63 per unit (click for quantity discounts)
P0145.120-012-A2 Shoulder screw TX Ø12x12,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20241353 WG:05063055637350
Shoulder screw TX Ø12x12,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20241353 WG:05063055637350

P0145.120-012-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
12
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 7.63 per unit (click for quantity discounts)
P0145.120-014-A2 Shoulder screw TX Ø12x14,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246303 WG:05063055663939
Shoulder screw TX Ø12x14,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246303 WG:05063055663939

P0145.120-014-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
14
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 8.18 per unit (click for quantity discounts)
P0145.120-016-A2 Shoulder screw TX Ø12x16,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225377 WG:05063055330855
Shoulder screw TX Ø12x16,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225377 WG:05063055330855

P0145.120-016-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
16
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 8.27 per unit (click for quantity discounts)
P0145.120-018-A2 Shoulder screw TX Ø12x18,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246310 WG:05063055663946
Shoulder screw TX Ø12x18,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246310 WG:05063055663946

P0145.120-018-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
18
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 8.18 per unit (click for quantity discounts)
P0145.120-020-A2 Shoulder screw TX Ø12x20,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225384 WG:05063055330862
Shoulder screw TX Ø12x20,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225384 WG:05063055330862

P0145.120-020-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
20
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 8.27 per unit (click for quantity discounts)
P0145.120-025-A2 Shoulder screw TX Ø12x25,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225391 WG:05063055330879
Shoulder screw TX Ø12x25,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225391 WG:05063055330879

P0145.120-025-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
25
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.93 per unit (click for quantity discounts)
P0145.120-030-A2 Shoulder screw TX Ø12x30,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225407 WG:05063055330886
Shoulder screw TX Ø12x30,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225407 WG:05063055330886

P0145.120-030-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
30
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.93 per unit (click for quantity discounts)
P0145.120-035-A2 Shoulder screw TX Ø12x35,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246327 WG:05063055663953
Shoulder screw TX Ø12x35,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246327 WG:05063055663953

P0145.120-035-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
35
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.80 per unit (click for quantity discounts)
P0145.120-040-A2 Shoulder screw TX Ø12x40,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225414 WG:05063055330893
Shoulder screw TX Ø12x40,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225414 WG:05063055330893

P0145.120-040-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
40
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.93 per unit (click for quantity discounts)
P0145.120-045-A2 Shoulder screw TX Ø12x45,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246334 WG:05063055663960
Shoulder screw TX Ø12x45,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246334 WG:05063055663960

P0145.120-045-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
45
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.80 per unit (click for quantity discounts)
P0145.120-050-A2 Shoulder screw TX Ø12x50,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225421 WG:05063055330909
Shoulder screw TX Ø12x50,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225421 WG:05063055330909

P0145.120-050-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
50
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.93 per unit (click for quantity discounts)
P0145.120-055-A2 Shoulder screw TX Ø12x55,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246341 WG:05063055663977
Shoulder screw TX Ø12x55,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246341 WG:05063055663977

P0145.120-055-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
55
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.80 per unit (click for quantity discounts)
P0145.120-060-A2 Shoulder screw TX Ø12x60,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225438 WG:05063055330916
Shoulder screw TX Ø12x60,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225438 WG:05063055330916

P0145.120-060-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
60
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 9.93 per unit (click for quantity discounts)
P0145.120-065-A2 Shoulder screw TX Ø12x65,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246358 WG:05063055663984
Shoulder screw TX Ø12x65,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246358 WG:05063055663984

P0145.120-065-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
65
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 10.67 per unit (click for quantity discounts)
P0145.120-070-A2 Shoulder screw TX Ø12x70,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225445 WG:05063055330923
Shoulder screw TX Ø12x70,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20225445 WG:05063055330923

P0145.120-070-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
70
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 10.67 per unit (click for quantity discounts)
P0145.120-075-A2 Shoulder screw TX Ø12x75,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246365 WG:05063055663991
Shoulder screw TX Ø12x75,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246365 WG:05063055663991

P0145.120-075-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
75
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 10.67 per unit (click for quantity discounts)
P0145.120-080-A2 Shoulder screw TX Ø12x80,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246372 WG:05063055664004
Shoulder screw TX Ø12x80,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246372 WG:05063055664004

P0145.120-080-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
80
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 11.37 per unit (click for quantity discounts)
P0145.120-090-A2 Shoulder screw TX Ø12x90,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246389 WG:05063055664011
Shoulder screw TX Ø12x90,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246389 WG:05063055664011

P0145.120-090-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
90
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 11.81 per unit (click for quantity discounts)
P0145.120-100-A2 Shoulder screw TX Ø12x100,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246396 WG:05063055664028
Shoulder screw TX Ø12x100,M10 A2 torx drive, stainless 303 series, 1.4305 EC:20246396 WG:05063055664028

P0145.120-100-A2

d1 +0.0|-0.025
12
l1 +0.05|-0.0
100
d2
M 10
d3
20
l2
16
h1
8
TX size
TX-50
£ 12.47 per unit (click for quantity discounts)
P0145.160-025-A2 Shoulder screw TX Ø16x25,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246402 WG:05063055664035
Shoulder screw TX Ø16x25,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246402 WG:05063055664035

P0145.160-025-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
25
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 13.75 per unit (click for quantity discounts)
P0145.160-030-A2 Shoulder screw TX Ø16x30,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246419 WG:05063055664042
Shoulder screw TX Ø16x30,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246419 WG:05063055664042

P0145.160-030-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
30
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 15.18 per unit (click for quantity discounts)
P0145.160-035-A2 Shoulder screw TX Ø16x35,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246426 WG:05063055664059
Shoulder screw TX Ø16x35,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246426 WG:05063055664059

P0145.160-035-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
35
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 15.18 per unit (click for quantity discounts)
P0145.160-040-A2 Shoulder screw TX Ø16x40,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246433 WG:05063055664066
Shoulder screw TX Ø16x40,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246433 WG:05063055664066

P0145.160-040-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
40
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 18.15 per unit (click for quantity discounts)
P0145.160-045-A2 Shoulder screw TX Ø16x45,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246440 WG:05063055664073
Shoulder screw TX Ø16x45,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246440 WG:05063055664073

P0145.160-045-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
45
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 18.15 per unit (click for quantity discounts)
P0145.160-050-A2 Shoulder screw TX Ø16x50,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246457 WG:05063055664080
Shoulder screw TX Ø16x50,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246457 WG:05063055664080

P0145.160-050-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
50
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 18.15 per unit (click for quantity discounts)
P0145.160-055-A2 Shoulder screw TX Ø16x55,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246464 WG:05063055664097
Shoulder screw TX Ø16x55,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246464 WG:05063055664097

P0145.160-055-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
55
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 18.15 per unit (click for quantity discounts)
P0145.160-060-A2 Shoulder screw TX Ø16x60,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246471 WG:05063055664103
Shoulder screw TX Ø16x60,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246471 WG:05063055664103

P0145.160-060-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
60
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 20.46 per unit (click for quantity discounts)
P0145.160-065-A2 Shoulder screw TX Ø16x65,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246488 WG:05063055664110
Shoulder screw TX Ø16x65,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246488 WG:05063055664110

P0145.160-065-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
65
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 20.46 per unit (click for quantity discounts)
P0145.160-070-A2 Shoulder screw TX Ø16x70,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246495 WG:05063055664127
Shoulder screw TX Ø16x70,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246495 WG:05063055664127

P0145.160-070-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
70
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 20.46 per unit (click for quantity discounts)
P0145.160-075-A2 Shoulder screw TX Ø16x75,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246501 WG:05063055664134
Shoulder screw TX Ø16x75,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246501 WG:05063055664134

P0145.160-075-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
75
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 22.22 per unit (click for quantity discounts)
P0145.160-080-A2 Shoulder screw TX Ø16x80,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246518 WG:05063055664141
Shoulder screw TX Ø16x80,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246518 WG:05063055664141

P0145.160-080-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
80
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 22.22 per unit (click for quantity discounts)
P0145.160-090-A2 Shoulder screw TX Ø16x90,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246525 WG:05063055664158
Shoulder screw TX Ø16x90,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246525 WG:05063055664158

P0145.160-090-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
90
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 23.04 per unit (click for quantity discounts)
P0145.160-100-A2 Shoulder screw TX Ø16x100,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246532 WG:05063055664165
Shoulder screw TX Ø16x100,M12 A2 torx drive, stainless 303 series, 1.4305 EC:20246532 WG:05063055664165

P0145.160-100-A2

d1 +0.0|-0.025
16
l1 +0.05|-0.0
100
d2
M 12
d3
24
l2
18
h1
11
TX size
TX-60
£ 23.04 per unit (click for quantity discounts)
P0145.200-030-A2 Shoulder screw TX Ø20x30,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246549 WG:05063055664172
Shoulder screw TX Ø20x30,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246549 WG:05063055664172

P0145.200-030-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
30
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 24.19 per unit (click for quantity discounts)
P0145.200-035-A2 Shoulder screw TX Ø20x35,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246556 WG:05063055664189
Shoulder screw TX Ø20x35,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246556 WG:05063055664189

P0145.200-035-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
35
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 24.19 per unit (click for quantity discounts)
P0145.200-040-A2 Shoulder screw TX Ø20x40,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246563 WG:05063055664196
Shoulder screw TX Ø20x40,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246563 WG:05063055664196

P0145.200-040-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
40
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 24.19 per unit (click for quantity discounts)
P0145.200-045-A2 Shoulder screw TX Ø20x45,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246570 WG:05063055664202
Shoulder screw TX Ø20x45,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246570 WG:05063055664202

P0145.200-045-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
45
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 24.19 per unit (click for quantity discounts)
P0145.200-050-A2 Shoulder screw TX Ø20x50,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246587 WG:05063055664219
Shoulder screw TX Ø20x50,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246587 WG:05063055664219

P0145.200-050-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
50
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 31.03 per unit (click for quantity discounts)
P0145.200-055-A2 Shoulder screw TX Ø20x55,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246594 WG:05063055664226
Shoulder screw TX Ø20x55,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246594 WG:05063055664226

P0145.200-055-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
55
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 31.03 per unit (click for quantity discounts)
P0145.200-060-A2 Shoulder screw TX Ø20x60,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246600 WG:05063055664233
Shoulder screw TX Ø20x60,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246600 WG:05063055664233

P0145.200-060-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
60
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 31.03 per unit (click for quantity discounts)
P0145.200-065-A2 Shoulder screw TX Ø20x65,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246617 WG:05063055664240
Shoulder screw TX Ø20x65,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246617 WG:05063055664240

P0145.200-065-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
65
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 31.03 per unit (click for quantity discounts)
P0145.200-070-A2 Shoulder screw TX Ø20x70,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246624 WG:05063055664257
Shoulder screw TX Ø20x70,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246624 WG:05063055664257

P0145.200-070-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
70
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 36.95 per unit (click for quantity discounts)
P0145.200-075-A2 Shoulder screw TX Ø20x75,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246631 WG:05063055664264
Shoulder screw TX Ø20x75,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246631 WG:05063055664264

P0145.200-075-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
75
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 36.95 per unit (click for quantity discounts)
P0145.200-080-A2 Shoulder screw TX Ø20x80,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246648 WG:05063055664271
Shoulder screw TX Ø20x80,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246648 WG:05063055664271

P0145.200-080-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
80
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 36.95 per unit (click for quantity discounts)
P0145.200-090-A2 Shoulder screw TX Ø20x90,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246655 WG:05063055664288
Shoulder screw TX Ø20x90,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246655 WG:05063055664288

P0145.200-090-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
90
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 38.63 per unit (click for quantity discounts)
P0145.200-100-A2 Shoulder screw TX Ø20x100,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246662 WG:05063055664295
Shoulder screw TX Ø20x100,M16 A2 torx drive, stainless 303 series, 1.4305 EC:20246662 WG:05063055664295

P0145.200-100-A2

d1 +0.0|-0.025
20
l1 +0.05|-0.0
100
d2
M 16
d3
30
l2
22
h1
14
TX size
TX-70
£ 38.63 per unit (click for quantity discounts)

d1 +0.0|-0.025
l1 +0.05|-0.0
d2
d3
l2
h1
TX size
Price & AvailabilityArticled1 +0.0|-0.025l1 +0.05|-0.0d2d3l2h1TX size
P0145.040-002-A242M 3643TX-10
P0145.040-003-A243M 3643TX-10
P0145.040-004-A244M 3643TX-10
P0145.040-005-A245M 3643TX-10
P0145.040-006-A246M 3643TX-10
P0145.040-007-A247M 3643TX-10
P0145.040-008-A248M 3643TX-10
P0145.040-010-A2410M 3643TX-10
P0145.040-012-A2412M 3643TX-10
P0145.040-014-A2414M 3643TX-10
P0145.040-016-A2416M 3643TX-10
P0145.040-018-A2418M 3643TX-10
P0145.040-020-A2420M 3643TX-10
P0145.040-025-A2425M 3643TX-10
P0145.040-030-A2430M 3643TX-10
P0145.040-035-A2435M 3643TX-10
P0145.040-040-A2440M 3643TX-10
P0145.040-045-A2445M 3643TX-10
P0145.040-050-A2450M 3643TX-10
P0145.050-002-A252M 4854TX-20
P0145.050-003-A253M 4854TX-20
P0145.050-004-A254M 4854TX-20
P0145.050-005-A255M 4854TX-20
P0145.050-006-A256M 4854TX-20
P0145.050-007-A257M 4854TX-20
P0145.050-008-A258M 4854TX-20
P0145.050-010-A2510M 4854TX-20
P0145.050-012-A2512M 4854TX-20
P0145.050-014-A2514M 4854TX-20
P0145.050-016-A2516M 4854TX-20
P0145.050-018-A2518M 4854TX-20
P0145.050-020-A2520M 4854TX-20
P0145.050-025-A2525M 4854TX-20
P0145.050-030-A2530M 4854TX-20
P0145.050-035-A2535M 4854TX-20
P0145.050-040-A2540M 4854TX-20
P0145.050-045-A2545M 4854TX-20
P0145.050-050-A2550M 4854TX-20
P0145.060-002-A262M 51065TX-25
P0145.060-003-A263M 51065TX-25
P0145.060-004-A264M 51065TX-25
P0145.060-005-A265M 51065TX-25
P0145.060-006-A266M 51065TX-25
P0145.060-007-A267M 51065TX-25
P0145.060-008-A268M 51065TX-25
P0145.060-010-A2610M 51065TX-25
P0145.060-012-A2612M 51065TX-25
P0145.060-014-A2614M 51065TX-25
P0145.060-016-A2616M 51065TX-25
P0145.060-018-A2618M 51065TX-25
P0145.060-020-A2620M 51065TX-25
P0145.060-025-A2625M 51065TX-25
P0145.060-030-A2630M 51065TX-25
P0145.060-035-A2635M 51065TX-25
P0145.060-040-A2640M 51065TX-25
P0145.060-045-A2645M 51065TX-25
P0145.060-050-A2650M 51065TX-25
P0145.060-055-A2655M 51065TX-25
P0145.060-060-A2660M 51065TX-25
P0145.060-070-A2670M 51065TX-25
P0145.060-080-A2680M 51065TX-25
P0145.060-090-A2690M 51065TX-25
P0145.060-100-A26100M 51065TX-25
P0145.080-004-A284M 612116TX-30
P0145.080-005-A285M 612116TX-30
P0145.080-006-A286M 612116TX-30
P0145.080-007-A287M 612116TX-30
P0145.080-008-A288M 612116TX-30
P0145.080-010-A2810M 612116TX-30
P0145.080-012-A2812M 612116TX-30
P0145.080-014-A2814M 612116TX-30
P0145.080-016-A2816M 612116TX-30
P0145.080-018-A2818M 612116TX-30
P0145.080-020-A2820M 612116TX-30
P0145.080-025-A2825M 612116TX-30
P0145.080-030-A2830M 612116TX-30
P0145.080-035-A2835M 612116TX-30
P0145.080-040-A2840M 612116TX-30
P0145.080-045-A2845M 612116TX-30
P0145.080-050-A2850M 612116TX-30
P0145.080-055-A2855M 612116TX-30
P0145.080-060-A2860M 612116TX-30
P0145.080-065-A2865M 612116TX-30
P0145.080-070-A2870M 612116TX-30
P0145.080-075-A2875M 612116TX-30
P0145.080-080-A2880M 612116TX-30
P0145.080-090-A2890M 612116TX-30
P0145.080-100-A28100M 612116TX-30
P0145.100-008-A2108M 814127TX-45
P0145.100-010-A21010M 814127TX-45
P0145.100-012-A21012M 814127TX-45
P0145.100-014-A21014M 814127TX-45
P0145.100-016-A21016M 814127TX-45
P0145.100-018-A21018M 814127TX-45
P0145.100-020-A21020M 814127TX-45
P0145.100-025-A21025M 814127TX-45
P0145.100-030-A21030M 814127TX-45
P0145.100-035-A21035M 814127TX-45
P0145.100-040-A21040M 814127TX-45
P0145.100-045-A21045M 814127TX-45
P0145.100-050-A21050M 814127TX-45
P0145.100-055-A21055M 814127TX-45
P0145.100-060-A21060M 814127TX-45
P0145.100-065-A21065M 814127TX-45
P0145.100-070-A21070M 814127TX-45
P0145.100-080-A21080M 814127TX-45
P0145.100-090-A21090M 814127TX-45
P0145.100-100-A210100M 814127TX-45
P0145.120-008-A2128M 1020168TX-50
P0145.120-010-A21210M 1020168TX-50
P0145.120-012-A21212M 1020168TX-50
P0145.120-014-A21214M 1020168TX-50
P0145.120-016-A21216M 1020168TX-50
P0145.120-018-A21218M 1020168TX-50
P0145.120-020-A21220M 1020168TX-50
P0145.120-025-A21225M 1020168TX-50
P0145.120-030-A21230M 1020168TX-50
P0145.120-035-A21235M 1020168TX-50
P0145.120-040-A21240M 1020168TX-50
P0145.120-045-A21245M 1020168TX-50
P0145.120-050-A21250M 1020168TX-50
P0145.120-055-A21255M 1020168TX-50
P0145.120-060-A21260M 1020168TX-50
P0145.120-065-A21265M 1020168TX-50
P0145.120-070-A21270M 1020168TX-50
P0145.120-075-A21275M 1020168TX-50
P0145.120-080-A21280M 1020168TX-50
P0145.120-090-A21290M 1020168TX-50
P0145.120-100-A212100M 1020168TX-50
P0145.160-025-A21625M 12241811TX-60
P0145.160-030-A21630M 12241811TX-60
P0145.160-035-A21635M 12241811TX-60
P0145.160-040-A21640M 12241811TX-60
P0145.160-045-A21645M 12241811TX-60
P0145.160-050-A21650M 12241811TX-60
P0145.160-055-A21655M 12241811TX-60
P0145.160-060-A21660M 12241811TX-60
P0145.160-065-A21665M 12241811TX-60
P0145.160-070-A21670M 12241811TX-60
P0145.160-075-A21675M 12241811TX-60
P0145.160-080-A21680M 12241811TX-60
P0145.160-090-A21690M 12241811TX-60
P0145.160-100-A216100M 12241811TX-60
P0145.200-030-A22030M 16302214TX-70
P0145.200-035-A22035M 16302214TX-70
P0145.200-040-A22040M 16302214TX-70
P0145.200-045-A22045M 16302214TX-70
P0145.200-050-A22050M 16302214TX-70
P0145.200-055-A22055M 16302214TX-70
P0145.200-060-A22060M 16302214TX-70
P0145.200-065-A22065M 16302214TX-70
P0145.200-070-A22070M 16302214TX-70
P0145.200-075-A22075M 16302214TX-70
P0145.200-080-A22080M 16302214TX-70
P0145.200-090-A22090M 16302214TX-70
P0145.200-100-A220100M 16302214TX-70

Technical & Application

Material

Stainless steel (AISI 303, 1.4305).
Tensile strength 550 N/mm2.
Proof stress min. 190 N/mm2, austenitic stainless steel.

Technical Notes

303 series stainless steel provides good resistance to corrosion. It is mildly magnetic.

Product Datasheets

P0145.A2 Shoulder Screws - Cap HeadMay 16, 2025, 2:30 PM / 96.78 kB
Stainless Shoulder ScrewsJanuary 3, 2025, 3:15 PM / 1.20 MB
Shoulder ScrewsJanuary 3, 2025, 3:15 PM / 2.19 MB
Shoulder Screws, Captive Screws & Sealing ScrewsJanuary 3, 2025, 3:15 PM / 6.75 MB
Mechanical ComponentsJanuary 3, 2025, 3:16 PM / 42.45 MB

CAD files

P0145.A2 AcisJanuary 13, 2022, 6:05 PM / 1.64 MB
P0145.A2 IGESJanuary 13, 2022, 6:05 PM / 4.56 MB
P0145.A2 ParasolidJanuary 13, 2022, 6:05 PM / 1.55 MB
P0145.A2 ProEJanuary 13, 2022, 6:05 PM / 10.18 MB
P0145.A2 SolidWorksJanuary 13, 2022, 6:05 PM / 51.93 MB
P0145.A2 StepJanuary 13, 2022, 6:05 PM / 2.28 MB
Contact
Automotion Components Ltd
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4498
sales@automotioncomponents.co.uk
Route via Google Maps

Company registration no: 2761902
Company VAT number GB 408154022

Information
FAQNewsTechnical ReferenceComponents In Motion
Follow us
© 2025 Automotion Components Ltd
Contact
Automotion Components Ltd

Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4498
