R3579 Plastic Rod End Female

material: Plastic

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Spherical Plain Bearing - K Series
maintenance free

Heavy Duty Rod Ends Inch
Steel

Spherical Plain Bearing - E Series
maintenance free

Integral Ball Bearing
maintenance required

Integral Ball Bearing
maintenance required

Integral Roller Bearing
maintenance required

Integral Ball Bearing
maintenance required

Spherical Plain Bearing - K series
maintenance free stainless

Spherical Plain Bearing - E series
maintenance free stainless

Spherical Plain Bearing - K series
maintenance free

Spherical Plain Bearing - K series
maintenance required

Spherical Plain Bearing - E series
maintenance free

Spherical Plain Bearing - E series
maintenance free

Spherical Plain Bearing
maintenance free stainless

Stainless Low Cost Rod Ends
Female - A4 stainless steel

Spherical Plain Bearing
Steel

Female Plastic Rod Ends

Plastic Rod End Female



Select all

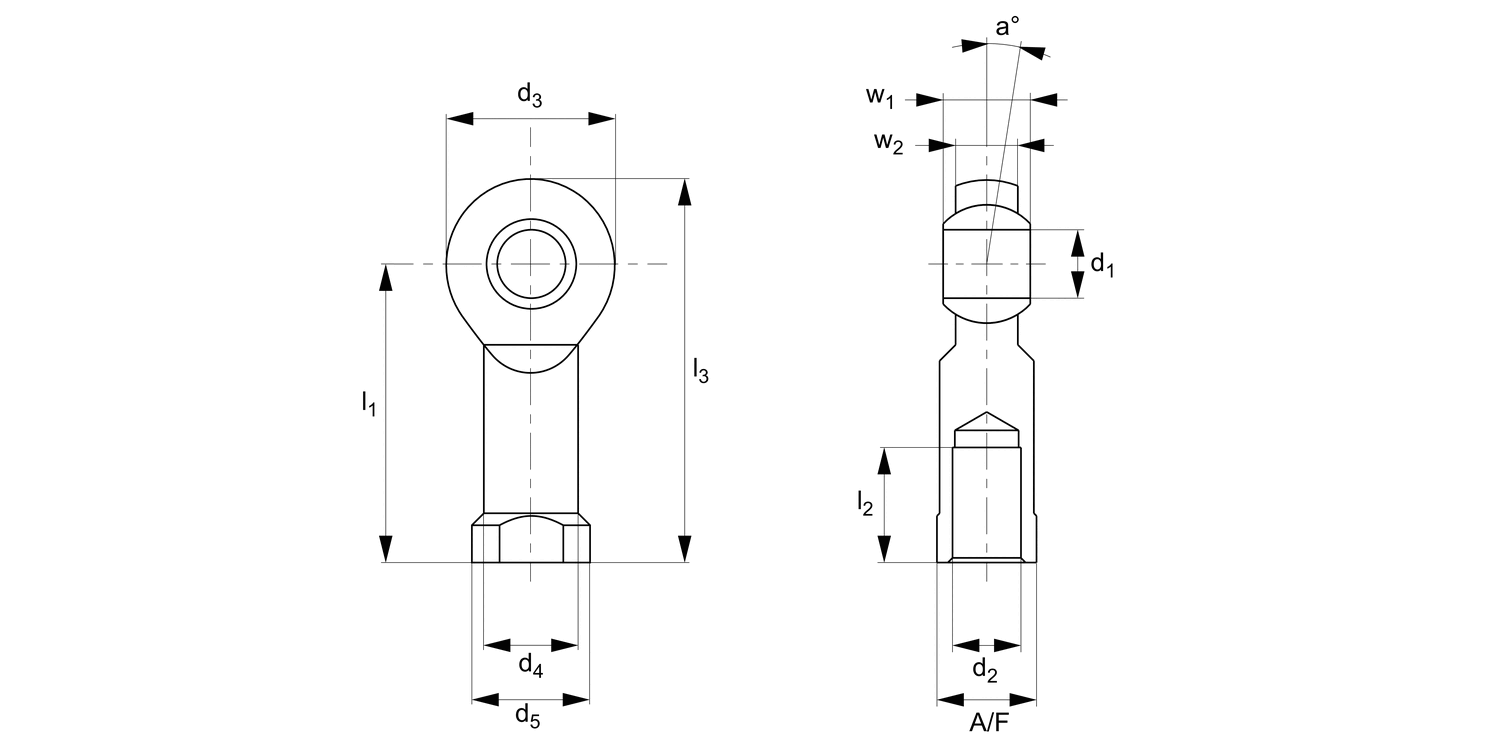

Thread hand

d₁ tol. E10

l₁

d₂

d₃

d₄

d₅

l₂

l₃

w₁

Price & Availability	Article	Thread hand	d1 tol. E10	l1	d2	d3	d4	d5	l2	l3	w1
	R3579.R002	Right	2	12.5	M2	9	4.0	4.6	6	17	4
£ 9.91 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 9.91 0% 10-24 £ 8.92 10% 25-49 £ 8.42 15% 50-99 £ 7.93 20% 100-249 £ 7.43 25% 250+ £ 6.94 30% Thread hand Right d1 tol. E10 2 l1 12.5 d2 M2 d3 9 d4 4.0 d5 4.6 l2 6 l3 17 w1 4 more info »
	R3579.R003	Right	3	18.5	M3	13	6.5	8.0	8	25	6
£ 13.06 per unit (click for quantity discounts) Ready to despatch 35 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 13.06 0% 10-24 £ 11.75 10% 25-49 £ 11.10 15% 50-99 £ 10.45 20% 100-249 £ 9.80 25% 250+ £ 9.14 30% Thread hand Right d1 tol. E10 3 l1 18.5 d2 M3 d3 13 d4 6.5 d5 8.0 l2 8 l3 25 w1 6 more info »
	R3579.R004	Right	5	27	M4	18	9.0	12.0	10	36	8
£ 15.88 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 15.88 0% 10-24 £ 14.29 10% 25-49 £ 13.50 15% 50-99 £ 12.70 20% 100-249 £ 11.91 25% 250+ £ 11.12 30% Thread hand Right d1 tol. E10 5 l1 27 d2 M4 d3 18 d4 9.0 d5 12.0 l2 10 l3 36 w1 8 more info »
	R3579.R005	Right	5	27	M5	18	9.0	12.0	10	36	8
£ 15.88 per unit (click for quantity discounts) Ready to despatch 41 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 15.88 0% 10-24 £ 14.29 10% 25-49 £ 13.50 15% 50-99 £ 12.70 20% 100-249 £ 11.91 25% 250+ £ 11.12 30% Thread hand Right d1 tol. E10 5 l1 27 d2 M5 d3 18 d4 9.0 d5 12.0 l2 10 l3 36 w1 8 more info »
	R3579.R006	Right	6	30	M6	20	10.0	13.0	12	40	9
£ 16.02 per unit (click for quantity discounts) Ready to despatch 63 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 16.02 0% 10-24 £ 14.42 10% 25-49 £ 13.62 15% 50-99 £ 12.82 20% 100-249 £ 12.02 25% 250+ £ 11.21 30% Thread hand Right d1 tol. E10 6 l1 30 d2 M6 d3 20 d4 10.0 d5 13.0 l2 12 l3 40 w1 9 more info »
	R3579.R008	Right	8	36	M8	24	13.0	16.0	16	48	12
£ 16.41 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 16.41 0% 10-24 £ 14.77 10% 25-49 £ 13.95 15% 50-99 £ 13.13 20% 100-249 £ 12.31 25% 250+ £ 11.49 30% Thread hand Right d1 tol. E10 8 l1 36 d2 M8 d3 24 d4 13.0 d5 16.0 l2 16 l3 48 w1 12 more info »
	R3579.R010	Right	10	43	M10	30	15.0	19.0	20	58	14
£ 18.01 per unit (click for quantity discounts) Ready to despatch 21 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 18.01 0% 10-24 £ 16.21 10% 25-49 £ 15.31 15% 50-99 £ 14.41 20% 100-249 £ 13.51 25% 250+ £ 12.61 30% Thread hand Right d1 tol. E10 10 l1 43 d2 M10 d3 30 d4 15.0 d5 19.0 l2 20 l3 58 w1 14 more info »
	R3579.R011	Right	10	43	M10 x 1,25*	30	15.0	19.0	20	58	14
£ 18.01 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 18.01 0% 10-24 £ 16.21 10% 25-49 £ 15.31 15% 50-99 £ 14.41 20% 100-249 £ 13.51 25% 250+ £ 12.61 30% Thread hand Right d1 tol. E10 10 l1 43 d2 M10 x 1,25* d3 30 d4 15.0 d5 19.0 l2 20 l3 58 w1 14 more info »
	R3579.R012	Right	12	50	M12	34	18.0	22.0	22	67	16
£ 21.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 21.19 0% 10-24 £ 19.07 10% 25-49 £ 18.01 15% 50-99 £ 16.95 20% 100-249 £ 15.89 25% 250+ £ 14.83 30% Thread hand Right d1 tol. E10 12 l1 50 d2 M12 d3 34 d4 18.0 d5 22.0 l2 22 l3 67 w1 16 more info »
	R3579.R013	Right	12	50	M12 x 1,25*	34	18.0	22.0	22	67	16
£ 21.19 per unit (click for quantity discounts) Ready to despatch 14 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 21.19 0% 10-24 £ 19.07 10% 25-49 £ 18.01 15% 50-99 £ 16.95 20% 100-249 £ 15.89 25% 250+ £ 14.83 30% Thread hand Right d1 tol. E10 12 l1 50 d2 M12 x 1,25* d3 34 d4 18.0 d5 22.0 l2 22 l3 67 w1 16 more info »
	R3579.R014	Right	14	57	M14	38	20.0	25.0	25	76	19
£ 23.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 23.83 0% 10-24 £ 21.45 10% 25-49 £ 20.26 15% 50-99 £ 19.06 20% 100-249 £ 17.87 25% 250+ £ 16.68 30% Thread hand Right d1 tol. E10 14 l1 57 d2 M14 d3 38 d4 20.0 d5 25.0 l2 25 l3 76 w1 19 more info »
	R3579.R016	Right	16	64	M16	42	22.0	27.0	28	85	21
£ 26.84 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 26.84 0% 10-24 £ 24.16 10% 25-49 £ 22.81 15% 50-99 £ 21.47 20% 100-249 £ 20.13 25% 250+ £ 18.79 30% Thread hand Right d1 tol. E10 16 l1 64 d2 M16 d3 42 d4 22.0 d5 27.0 l2 28 l3 85 w1 21 more info »
	R3579.R017	Right	16	64	M16 x 1,5*	42	22.0	27.0	28	85	21
£ 26.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 26.84 0% 10-24 £ 24.16 10% 25-49 £ 22.81 15% 50-99 £ 21.47 20% 100-249 £ 20.13 25% 250+ £ 18.79 30% Thread hand Right d1 tol. E10 16 l1 64 d2 M16 x 1,5* d3 42 d4 22.0 d5 27.0 l2 28 l3 85 w1 21 more info »
	R3579.R018	Right	18	71	M18 x 1,5*	46	25.0	31.0	32	94	23
£ 29.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 29.99 0% 10-24 £ 26.99 10% 25-49 £ 25.49 15% 50-99 £ 23.99 20% 100-249 £ 22.49 25% 250+ £ 20.99 30% Thread hand Right d1 tol. E10 18 l1 71 d2 M18 x 1,5* d3 46 d4 25.0 d5 31.0 l2 32 l3 94 w1 23 more info »
	R3579.R020	Right	20	77	M20 x 1,5*	50	28.0	34.0	33	102	25
£ 36.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 36.29 0% 10-24 £ 32.66 10% 25-49 £ 30.85 15% 50-99 £ 29.03 20% 100-249 £ 27.22 25% 250+ £ 25.40 30% Thread hand Right d1 tol. E10 20 l1 77 d2 M20 x 1,5* d3 50 d4 28.0 d5 34.0 l2 33 l3 102 w1 25 more info »
	R3579.R021	Right	20	77	M20 x 2,5	50	28.0	34.0	33	102	25
£ 36.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 36.29 0% 10-24 £ 32.66 10% 25-49 £ 30.85 15% 50-99 £ 29.03 20% 100-249 £ 27.22 25% 250+ £ 25.40 30% Thread hand Right d1 tol. E10 20 l1 77 d2 M20 x 2,5 d3 50 d4 28.0 d5 34.0 l2 33 l3 102 w1 25 more info »
	R3579.R022	Right	22	84	M22 x 1,5*	56	30.0	37.0	37	112	28
£ 42.53 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 42.53 0% 10-24 £ 38.28 10% 25-49 £ 36.15 15% 50-99 £ 34.02 20% 100-249 £ 31.90 25% 250+ £ 29.77 30% Thread hand Right d1 tol. E10 22 l1 84 d2 M22 x 1,5* d3 56 d4 30.0 d5 37.0 l2 37 l3 112 w1 28 more info »
	R3579.R025	Right	25	94	M24 x 2*	60	32.0	41.0	94	124	31
£ 48.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 48.23 0% 10-24 £ 43.41 10% 25-49 £ 41.00 15% 50-99 £ 38.58 20% 100-249 £ 36.17 25% 250+ £ 33.76 30% Thread hand Right d1 tol. E10 25 l1 94 d2 M24 x 2* d3 60 d4 32.0 d5 41.0 l2 94 l3 124 w1 31 more info »
	R3579.R030	Right	30	110	M30 x 2*	70	37.0	50.0	51	145	37
£ 68.08 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 68.08 0% 10-24 £ 61.27 10% 25-49 £ 57.87 15% 50-99 £ 54.46 20% 100-249 £ 51.06 25% 250+ £ 47.66 30% Thread hand Right d1 tol. E10 30 l1 110 d2 M30 x 2* d3 70 d4 37.0 d5 50.0 l2 51 l3 145 w1 37 more info »
	R3579.L002	Left	2	12.5	M2	9	4.0	4.6	6	17	6
£ 9.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 9.91 0% 10-24 £ 8.92 10% 25-49 £ 8.42 15% 50-99 £ 7.93 20% 100-249 £ 7.43 25% 250+ £ 6.94 30% Thread hand Left d1 tol. E10 2 l1 12.5 d2 M2 d3 9 d4 4.0 d5 4.6 l2 6 l3 17 w1 6 more info »
	R3579.L003	Left	3	18.5	M3	13	6.5	8.0	8	25	8
£ 13.06 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 13.06 0% 10-24 £ 11.75 10% 25-49 £ 11.10 15% 50-99 £ 10.45 20% 100-249 £ 9.80 25% 250+ £ 9.14 30% Thread hand Left d1 tol. E10 3 l1 18.5 d2 M3 d3 13 d4 6.5 d5 8.0 l2 8 l3 25 w1 8 more info »
	R3579.L004	Left	5	27	M4	18	9.0	12.0	10	36	10
£ 15.88 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 15.88 0% 10-24 £ 14.29 10% 25-49 £ 13.50 15% 50-99 £ 12.70 20% 100-249 £ 11.91 25% 250+ £ 11.12 30% Thread hand Left d1 tol. E10 5 l1 27 d2 M4 d3 18 d4 9.0 d5 12.0 l2 10 l3 36 w1 10 more info »
	R3579.L005	Left	5	27	M5	18	9.0	12.0	10	36	10
£ 15.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 15.88 0% 10-24 £ 14.29 10% 25-49 £ 13.50 15% 50-99 £ 12.70 20% 100-249 £ 11.91 25% 250+ £ 11.12 30% Thread hand Left d1 tol. E10 5 l1 27 d2 M5 d3 18 d4 9.0 d5 12.0 l2 10 l3 36 w1 10 more info »
	R3579.L006	Left	6	30	M6	20	10.0	13.0	12	40	12
£ 16.02 per unit (click for quantity discounts) Ready to despatch 18 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 16.02 0% 10-24 £ 14.42 10% 25-49 £ 13.62 15% 50-99 £ 12.82 20% 100-249 £ 12.02 25% 250+ £ 11.21 30% Thread hand Left d1 tol. E10 6 l1 30 d2 M6 d3 20 d4 10.0 d5 13.0 l2 12 l3 40 w1 12 more info »
	R3579.L008	Left	8	36	M8	24	13.0	16.0	16	48	16
£ 16.41 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 16.41 0% 10-24 £ 14.77 10% 25-49 £ 13.95 15% 50-99 £ 13.13 20% 100-249 £ 12.31 25% 250+ £ 11.49 30% Thread hand Left d1 tol. E10 8 l1 36 d2 M8 d3 24 d4 13.0 d5 16.0 l2 16 l3 48 w1 16 more info »
	R3579.L010	Left	10	43	M10	30	15.0	19.0	20	58	20
£ 18.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 18.01 0% 10-24 £ 16.21 10% 25-49 £ 15.31 15% 50-99 £ 14.41 20% 100-249 £ 13.51 25% 250+ £ 12.61 30% Thread hand Left d1 tol. E10 10 l1 43 d2 M10 d3 30 d4 15.0 d5 19.0 l2 20 l3 58 w1 20 more info »
	R3579.L011	Left	10	43	M10 x 1,25*	30	15.0	19.0	20	58	20
£ 18.01 per unit (click for quantity discounts) Ready to despatch 12 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 18.01 0% 10-24 £ 16.21 10% 25-49 £ 15.31 15% 50-99 £ 14.41 20% 100-249 £ 13.51 25% 250+ £ 12.61 30% Thread hand Left d1 tol. E10 10 l1 43 d2 M10 x 1,25* d3 30 d4 15.0 d5 19.0 l2 20 l3 58 w1 20 more info »
	R3579.L012	Left	12	50	M12	34	18.0	22.0	22	67	22
£ 21.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 21.19 0% 10-24 £ 19.07 10% 25-49 £ 18.01 15% 50-99 £ 16.95 20% 100-249 £ 15.89 25% 250+ £ 14.83 30% Thread hand Left d1 tol. E10 12 l1 50 d2 M12 d3 34 d4 18.0 d5 22.0 l2 22 l3 67 w1 22 more info »
	R3579.L013	Left	12	50	M12 x 1,25*	34	18.0	22.0	22	67	22
£ 21.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 21.19 0% 10-24 £ 19.07 10% 25-49 £ 18.01 15% 50-99 £ 16.95 20% 100-249 £ 15.89 25% 250+ £ 14.83 30% Thread hand Left d1 tol. E10 12 l1 50 d2 M12 x 1,25* d3 34 d4 18.0 d5 22.0 l2 22 l3 67 w1 22 more info »
	R3579.L014	Left	14	57	M14	38	20.0	25.0	25	76	25
£ 23.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 23.83 0% 10-24 £ 21.45 10% 25-49 £ 20.26 15% 50-99 £ 19.06 20% 100-249 £ 17.87 25% 250+ £ 16.68 30% Thread hand Left d1 tol. E10 14 l1 57 d2 M14 d3 38 d4 20.0 d5 25.0 l2 25 l3 76 w1 25 more info »
	R3579.L016	Left	16	64	M16	42	22.0	27.0	28	85	28
£ 26.84 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 26.84 0% 10-24 £ 24.16 10% 25-49 £ 22.81 15% 50-99 £ 21.47 20% 100-249 £ 20.13 25% 250+ £ 18.79 30% Thread hand Left d1 tol. E10 16 l1 64 d2 M16 d3 42 d4 22.0 d5 27.0 l2 28 l3 85 w1 28 more info »
	R3579.L017	Left	16	64	M16 x 1,5*	42	22.0	27.0	28	85	28
£ 26.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 26.84 0% 10-24 £ 24.16 10% 25-49 £ 22.81 15% 50-99 £ 21.47 20% 100-249 £ 20.13 25% 250+ £ 18.79 30% Thread hand Left d1 tol. E10 16 l1 64 d2 M16 x 1,5* d3 42 d4 22.0 d5 27.0 l2 28 l3 85 w1 28 more info »
	R3579.L018	Left	18	71	M18 x 1,5*	46	25.0	31.0	32	94	32
£ 29.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 29.99 0% 10-24 £ 26.99 10% 25-49 £ 25.49 15% 50-99 £ 23.99 20% 100-249 £ 22.49 25% 250+ £ 20.99 30% Thread hand Left d1 tol. E10 18 l1 71 d2 M18 x 1,5* d3 46 d4 25.0 d5 31.0 l2 32 l3 94 w1 32 more info »
	R3579.L020	Left	20	77	M20 x 1,5*	50	28.0	34.0	33	102	33
£ 36.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 36.29 0% 10-24 £ 32.66 10% 25-49 £ 30.85 15% 50-99 £ 29.03 20% 100-249 £ 27.22 25% 250+ £ 25.40 30% Thread hand Left d1 tol. E10 20 l1 77 d2 M20 x 1,5* d3 50 d4 28.0 d5 34.0 l2 33 l3 102 w1 33 more info »
	R3579.L021	Left	20	77	M20 x 2,5	50	28.0	34.0	33	102	33
£ 36.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 36.29 0% 10-24 £ 32.66 10% 25-49 £ 30.85 15% 50-99 £ 29.03 20% 100-249 £ 27.22 25% 250+ £ 25.40 30% Thread hand Left d1 tol. E10 20 l1 77 d2 M20 x 2,5 d3 50 d4 28.0 d5 34.0 l2 33 l3 102 w1 33 more info »
	R3579.L022	Left	22	84	M22 x 1,5*	56	30.0	37.0	37	112	37
£ 42.53 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 42.53 0% 10-24 £ 38.28 10% 25-49 £ 36.15 15% 50-99 £ 34.02 20% 100-249 £ 31.90 25% 250+ £ 29.77 30% Thread hand Left d1 tol. E10 22 l1 84 d2 M22 x 1,5* d3 56 d4 30.0 d5 37.0 l2 37 l3 112 w1 37 more info »
	R3579.L025	Left	25	94	M24 x 2*	60	32.0	41.0	42	124	42
£ 48.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 48.23 0% 10-24 £ 43.41 10% 25-49 £ 41.00 15% 50-99 £ 38.58 20% 100-249 £ 36.17 25% 250+ £ 33.76 30% Thread hand Left d1 tol. E10 25 l1 94 d2 M24 x 2* d3 60 d4 32.0 d5 41.0 l2 42 l3 124 w1 42 more info »
	R3579.L030	Left	30	110	M30 x 2*	70	37.0	50.0	51	110	51
£ 68.08 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 68.08 0% 10-24 £ 61.27 10% 25-49 £ 57.87 15% 50-99 £ 54.46 20% 100-249 £ 51.06 25% 250+ £ 47.66 30% Thread hand Left d1 tol. E10 30 l1 110 d2 M30 x 2* d3 70 d4 37.0 d5 50.0 l2 51 l3 110 w1 51 more info »



Select all

w₂

A/F

a °

Static strength (long term) max. N

Radial load (short term) max. N

Radial load (long term) max. N

Static strength (short term) max. N

Thread depth min.

Torque strength in thread max.

Torque through ball max.

Torque through ball MS max. Nm

Price & Availability	Article	w2	A/F	a °	Static strength (long term) max. N	Radial load (short term) max. N	Radial load (long term) max. N	Static strength (short term) max. N	Thread depth min.	Torque strength in thread max.	Torque through ball max.	Torque through ball MS max. Nm
	R3579.R002	3.0	04	15	200	50	25	200	4	0.30	1	2
£ 9.91 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 9.91 0% 10-24 £ 8.92 10% 25-49 £ 8.42 15% 50-99 £ 7.93 20% 100-249 £ 7.43 25% 250+ £ 6.94 30% w2 3.0 A/F 04 a ° 15 Static strength (long term) max. N 200 Radial load (short term) max. N 50 Radial load (long term) max. N 25 Static strength (short term) max. N 200 Thread depth min. 4 Torque strength in thread max. 0.30 Torque through ball max. 1 Torque through ball MS max. Nm 2 more info »
	R3579.R003	4.5	06	15	100	400	50	800	5	0.50	2	4
£ 13.06 per unit (click for quantity discounts) Ready to despatch 35 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 13.06 0% 10-24 £ 11.75 10% 25-49 £ 11.10 15% 50-99 £ 10.45 20% 100-249 £ 9.80 25% 250+ £ 9.14 30% w2 4.5 A/F 06 a ° 15 Static strength (long term) max. N 100 Radial load (short term) max. N 400 Radial load (long term) max. N 50 Static strength (short term) max. N 800 Thread depth min. 5 Torque strength in thread max. 0.50 Torque through ball max. 2 Torque through ball MS max. Nm 4 more info »
	R3579.R004	6.0	09	15	500	250	125	1000	7	0.75	5	12
£ 15.88 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 15.88 0% 10-24 £ 14.29 10% 25-49 £ 13.50 15% 50-99 £ 12.70 20% 100-249 £ 11.91 25% 250+ £ 11.12 30% w2 6.0 A/F 09 a ° 15 Static strength (long term) max. N 500 Radial load (short term) max. N 250 Radial load (long term) max. N 125 Static strength (short term) max. N 1000 Thread depth min. 7 Torque strength in thread max. 0.75 Torque through ball max. 5 Torque through ball MS max. Nm 12 more info »
	R3579.R005	6.0	09	15	500	250	125	1000	7	1.00	5	12
£ 15.88 per unit (click for quantity discounts) Ready to despatch 41 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 15.88 0% 10-24 £ 14.29 10% 25-49 £ 13.50 15% 50-99 £ 12.70 20% 100-249 £ 11.91 25% 250+ £ 11.12 30% w2 6.0 A/F 09 a ° 15 Static strength (long term) max. N 500 Radial load (short term) max. N 250 Radial load (long term) max. N 125 Static strength (short term) max. N 1000 Thread depth min. 7 Torque strength in thread max. 1.00 Torque through ball max. 5 Torque through ball MS max. Nm 12 more info »
	R3579.R006	7.0	11	14.5	700	400	200	1400	8	1.50	10	15
£ 16.02 per unit (click for quantity discounts) Ready to despatch 63 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 16.02 0% 10-24 £ 14.42 10% 25-49 £ 13.62 15% 50-99 £ 12.82 20% 100-249 £ 12.02 25% 250+ £ 11.21 30% w2 7.0 A/F 11 a ° 14.5 Static strength (long term) max. N 700 Radial load (short term) max. N 400 Radial load (long term) max. N 200 Static strength (short term) max. N 1400 Thread depth min. 8 Torque strength in thread max. 1.50 Torque through ball max. 10 Torque through ball MS max. Nm 15 more info »
	R3579.R008	9.0	14	12.5	1050	700	350	2100	11	10.0	12	40
£ 16.41 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 16.41 0% 10-24 £ 14.77 10% 25-49 £ 13.95 15% 50-99 £ 13.13 20% 100-249 £ 12.31 25% 250+ £ 11.49 30% w2 9.0 A/F 14 a ° 12.5 Static strength (long term) max. N 1050 Radial load (short term) max. N 700 Radial load (long term) max. N 350 Static strength (short term) max. N 2100 Thread depth min. 11 Torque strength in thread max. 10.0 Torque through ball max. 12 Torque through ball MS max. Nm 40 more info »
	R3579.R010	10.5	17	12.5	1550	800	400	3100	13	15.0	20	50
£ 18.01 per unit (click for quantity discounts) Ready to despatch 21 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 18.01 0% 10-24 £ 16.21 10% 25-49 £ 15.31 15% 50-99 £ 14.41 20% 100-249 £ 13.51 25% 250+ £ 12.61 30% w2 10.5 A/F 17 a ° 12.5 Static strength (long term) max. N 1550 Radial load (short term) max. N 800 Radial load (long term) max. N 400 Static strength (short term) max. N 3100 Thread depth min. 13 Torque strength in thread max. 15.0 Torque through ball max. 20 Torque through ball MS max. Nm 50 more info »
	R3579.R011	10.5	17	12.5	1550	800	400	3100	13	6.00	20	50
£ 18.01 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 18.01 0% 10-24 £ 16.21 10% 25-49 £ 15.31 15% 50-99 £ 14.41 20% 100-249 £ 13.51 25% 250+ £ 12.61 30% w2 10.5 A/F 17 a ° 12.5 Static strength (long term) max. N 1550 Radial load (short term) max. N 800 Radial load (long term) max. N 400 Static strength (short term) max. N 3100 Thread depth min. 13 Torque strength in thread max. 6.00 Torque through ball max. 20 Torque through ball MS max. Nm 50 more info »
	R3579.R012	12.0	19	12.5	1800	900	450	3600	15	20.0	30	70
£ 21.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 21.19 0% 10-24 £ 19.07 10% 25-49 £ 18.01 15% 50-99 £ 16.95 20% 100-249 £ 15.89 25% 250+ £ 14.83 30% w2 12.0 A/F 19 a ° 12.5 Static strength (long term) max. N 1800 Radial load (short term) max. N 900 Radial load (long term) max. N 450 Static strength (short term) max. N 3600 Thread depth min. 15 Torque strength in thread max. 20.0 Torque through ball max. 30 Torque through ball MS max. Nm 70 more info »
	R3579.R013	12.0	19	12,5°	1800	900	450	3600	15	15.0	30	70
£ 21.19 per unit (click for quantity discounts) Ready to despatch 14 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 21.19 0% 10-24 £ 19.07 10% 25-49 £ 18.01 15% 50-99 £ 16.95 20% 100-249 £ 15.89 25% 250+ £ 14.83 30% w2 12.0 A/F 19 a ° 12,5° Static strength (long term) max. N 1800 Radial load (short term) max. N 900 Radial load (long term) max. N 450 Static strength (short term) max. N 3600 Thread depth min. 15 Torque strength in thread max. 15.0 Torque through ball max. 30 Torque through ball MS max. Nm 70 more info »
	R3579.R014	13.5	22	11.5	2000	1000	500	4000	17	25.0	35	75
£ 23.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 23.83 0% 10-24 £ 21.45 10% 25-49 £ 20.26 15% 50-99 £ 19.06 20% 100-249 £ 17.87 25% 250+ £ 16.68 30% w2 13.5 A/F 22 a ° 11.5 Static strength (long term) max. N 2000 Radial load (short term) max. N 1000 Radial load (long term) max. N 500 Static strength (short term) max. N 4000 Thread depth min. 17 Torque strength in thread max. 25.0 Torque through ball max. 35 Torque through ball MS max. Nm 75 more info »
	R3579.R016	15.0	22	11.5	2100	1300	650	4200	19	30.0	40	110
£ 26.84 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 26.84 0% 10-24 £ 24.16 10% 25-49 £ 22.81 15% 50-99 £ 21.47 20% 100-249 £ 20.13 25% 250+ £ 18.79 30% w2 15.0 A/F 22 a ° 11.5 Static strength (long term) max. N 2100 Radial load (short term) max. N 1300 Radial load (long term) max. N 650 Static strength (short term) max. N 4200 Thread depth min. 19 Torque strength in thread max. 30.0 Torque through ball max. 40 Torque through ball MS max. Nm 110 more info »
	R3579.R017	15.0	22	11.5	2100	1300	650	4200	19	27.5	40	110
£ 26.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 26.84 0% 10-24 £ 24.16 10% 25-49 £ 22.81 15% 50-99 £ 21.47 20% 100-249 £ 20.13 25% 250+ £ 18.79 30% w2 15.0 A/F 22 a ° 11.5 Static strength (long term) max. N 2100 Radial load (short term) max. N 1300 Radial load (long term) max. N 650 Static strength (short term) max. N 4200 Thread depth min. 19 Torque strength in thread max. 27.5 Torque through ball max. 40 Torque through ball MS max. Nm 110 more info »
	R3579.R018	16.5	27	11.5	2300	1600	800	4600	21	45.0	45	150
£ 29.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 29.99 0% 10-24 £ 26.99 10% 25-49 £ 25.49 15% 50-99 £ 23.99 20% 100-249 £ 22.49 25% 250+ £ 20.99 30% w2 16.5 A/F 27 a ° 11.5 Static strength (long term) max. N 2300 Radial load (short term) max. N 1600 Radial load (long term) max. N 800 Static strength (short term) max. N 4600 Thread depth min. 21 Torque strength in thread max. 45.0 Torque through ball max. 45 Torque through ball MS max. Nm 150 more info »
	R3579.R020	18.0	30	11.5	2700	2100	1050	5400	22	60.0	55	200
£ 36.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 36.29 0% 10-24 £ 32.66 10% 25-49 £ 30.85 15% 50-99 £ 29.03 20% 100-249 £ 27.22 25% 250+ £ 25.40 30% w2 18.0 A/F 30 a ° 11.5 Static strength (long term) max. N 2700 Radial load (short term) max. N 2100 Radial load (long term) max. N 1050 Static strength (short term) max. N 5400 Thread depth min. 22 Torque strength in thread max. 60.0 Torque through ball max. 55 Torque through ball MS max. Nm 200 more info »
	R3579.R021	18.0	30	11.5	2700	2100	1050	5400	22	60.0	55	200
£ 36.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 36.29 0% 10-24 £ 32.66 10% 25-49 £ 30.85 15% 50-99 £ 29.03 20% 100-249 £ 27.22 25% 250+ £ 25.40 30% w2 18.0 A/F 30 a ° 11.5 Static strength (long term) max. N 2700 Radial load (short term) max. N 2100 Radial load (long term) max. N 1050 Static strength (short term) max. N 5400 Thread depth min. 22 Torque strength in thread max. 60.0 Torque through ball max. 55 Torque through ball MS max. Nm 200 more info »
	R3579.R022	20.0	32	11	3500	2200	1100	7000	25	75.0	60	225
£ 42.53 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 42.53 0% 10-24 £ 38.28 10% 25-49 £ 36.15 15% 50-99 £ 34.02 20% 100-249 £ 31.90 25% 250+ £ 29.77 30% w2 20.0 A/F 32 a ° 11 Static strength (long term) max. N 3500 Radial load (short term) max. N 2200 Radial load (long term) max. N 1100 Static strength (short term) max. N 7000 Thread depth min. 25 Torque strength in thread max. 75.0 Torque through ball max. 60 Torque through ball MS max. Nm 225 more info »
	R3579.R025	22.0	36	11	4250	2300	1150	8500	28	120.0	60	260
£ 48.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 48.23 0% 10-24 £ 43.41 10% 25-49 £ 41.00 15% 50-99 £ 38.58 20% 100-249 £ 36.17 25% 250+ £ 33.76 30% w2 22.0 A/F 36 a ° 11 Static strength (long term) max. N 4250 Radial load (short term) max. N 2300 Radial load (long term) max. N 1150 Static strength (short term) max. N 8500 Thread depth min. 28 Torque strength in thread max. 120.0 Torque through ball max. 60 Torque through ball MS max. Nm 260 more info »
	R3579.R030	25.0	41	11	5250	2500	1250	10500	34	135.0	60	300
£ 68.08 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 68.08 0% 10-24 £ 61.27 10% 25-49 £ 57.87 15% 50-99 £ 54.46 20% 100-249 £ 51.06 25% 250+ £ 47.66 30% w2 25.0 A/F 41 a ° 11 Static strength (long term) max. N 5250 Radial load (short term) max. N 2500 Radial load (long term) max. N 1250 Static strength (short term) max. N 10500 Thread depth min. 34 Torque strength in thread max. 135.0 Torque through ball max. 60 Torque through ball MS max. Nm 300 more info »
	R3579.L002	3.0	04	15	200	50	25	200	4	0.30	1	2
£ 9.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 9.91 0% 10-24 £ 8.92 10% 25-49 £ 8.42 15% 50-99 £ 7.93 20% 100-249 £ 7.43 25% 250+ £ 6.94 30% w2 3.0 A/F 04 a ° 15 Static strength (long term) max. N 200 Radial load (short term) max. N 50 Radial load (long term) max. N 25 Static strength (short term) max. N 200 Thread depth min. 4 Torque strength in thread max. 0.30 Torque through ball max. 1 Torque through ball MS max. Nm 2 more info »
	R3579.L003	4.5	06	15	100	400	50	800	5	0.50	2	4
£ 13.06 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 13.06 0% 10-24 £ 11.75 10% 25-49 £ 11.10 15% 50-99 £ 10.45 20% 100-249 £ 9.80 25% 250+ £ 9.14 30% w2 4.5 A/F 06 a ° 15 Static strength (long term) max. N 100 Radial load (short term) max. N 400 Radial load (long term) max. N 50 Static strength (short term) max. N 800 Thread depth min. 5 Torque strength in thread max. 0.50 Torque through ball max. 2 Torque through ball MS max. Nm 4 more info »
	R3579.L004	6.0	09	15	500	250	125	1000	7	0.75	5	12
£ 15.88 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 15.88 0% 10-24 £ 14.29 10% 25-49 £ 13.50 15% 50-99 £ 12.70 20% 100-249 £ 11.91 25% 250+ £ 11.12 30% w2 6.0 A/F 09 a ° 15 Static strength (long term) max. N 500 Radial load (short term) max. N 250 Radial load (long term) max. N 125 Static strength (short term) max. N 1000 Thread depth min. 7 Torque strength in thread max. 0.75 Torque through ball max. 5 Torque through ball MS max. Nm 12 more info »
	R3579.L005	6.0	09	15	500	250	125	1000	7	1.00	5	12
£ 15.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 15.88 0% 10-24 £ 14.29 10% 25-49 £ 13.50 15% 50-99 £ 12.70 20% 100-249 £ 11.91 25% 250+ £ 11.12 30% w2 6.0 A/F 09 a ° 15 Static strength (long term) max. N 500 Radial load (short term) max. N 250 Radial load (long term) max. N 125 Static strength (short term) max. N 1000 Thread depth min. 7 Torque strength in thread max. 1.00 Torque through ball max. 5 Torque through ball MS max. Nm 12 more info »
	R3579.L006	7.0	11	14.5	700	400	200	1400	8	1.50	10	15
£ 16.02 per unit (click for quantity discounts) Ready to despatch 18 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 16.02 0% 10-24 £ 14.42 10% 25-49 £ 13.62 15% 50-99 £ 12.82 20% 100-249 £ 12.02 25% 250+ £ 11.21 30% w2 7.0 A/F 11 a ° 14.5 Static strength (long term) max. N 700 Radial load (short term) max. N 400 Radial load (long term) max. N 200 Static strength (short term) max. N 1400 Thread depth min. 8 Torque strength in thread max. 1.50 Torque through ball max. 10 Torque through ball MS max. Nm 15 more info »
	R3579.L008	9.0	14	12.5	1050	700	350	2100	11	10.0	12	40
£ 16.41 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 16.41 0% 10-24 £ 14.77 10% 25-49 £ 13.95 15% 50-99 £ 13.13 20% 100-249 £ 12.31 25% 250+ £ 11.49 30% w2 9.0 A/F 14 a ° 12.5 Static strength (long term) max. N 1050 Radial load (short term) max. N 700 Radial load (long term) max. N 350 Static strength (short term) max. N 2100 Thread depth min. 11 Torque strength in thread max. 10.0 Torque through ball max. 12 Torque through ball MS max. Nm 40 more info »
	R3579.L010	10.5	17	12.5	1550	800	400	3100	13	15.0	20	50
£ 18.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 18.01 0% 10-24 £ 16.21 10% 25-49 £ 15.31 15% 50-99 £ 14.41 20% 100-249 £ 13.51 25% 250+ £ 12.61 30% w2 10.5 A/F 17 a ° 12.5 Static strength (long term) max. N 1550 Radial load (short term) max. N 800 Radial load (long term) max. N 400 Static strength (short term) max. N 3100 Thread depth min. 13 Torque strength in thread max. 15.0 Torque through ball max. 20 Torque through ball MS max. Nm 50 more info »
	R3579.L011	10.5	17	12.5	1550	800	400	3100	13	6.00	20	50
£ 18.01 per unit (click for quantity discounts) Ready to despatch 12 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 18.01 0% 10-24 £ 16.21 10% 25-49 £ 15.31 15% 50-99 £ 14.41 20% 100-249 £ 13.51 25% 250+ £ 12.61 30% w2 10.5 A/F 17 a ° 12.5 Static strength (long term) max. N 1550 Radial load (short term) max. N 800 Radial load (long term) max. N 400 Static strength (short term) max. N 3100 Thread depth min. 13 Torque strength in thread max. 6.00 Torque through ball max. 20 Torque through ball MS max. Nm 50 more info »
	R3579.L012	12.0	19	12.5	1800	900	450	3600	15	20.0	30	70
£ 21.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 21.19 0% 10-24 £ 19.07 10% 25-49 £ 18.01 15% 50-99 £ 16.95 20% 100-249 £ 15.89 25% 250+ £ 14.83 30% w2 12.0 A/F 19 a ° 12.5 Static strength (long term) max. N 1800 Radial load (short term) max. N 900 Radial load (long term) max. N 450 Static strength (short term) max. N 3600 Thread depth min. 15 Torque strength in thread max. 20.0 Torque through ball max. 30 Torque through ball MS max. Nm 70 more info »
	R3579.L013	12.0	19	12.5	1800	900	450	3600	15	15.0	30	70
£ 21.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 21.19 0% 10-24 £ 19.07 10% 25-49 £ 18.01 15% 50-99 £ 16.95 20% 100-249 £ 15.89 25% 250+ £ 14.83 30% w2 12.0 A/F 19 a ° 12.5 Static strength (long term) max. N 1800 Radial load (short term) max. N 900 Radial load (long term) max. N 450 Static strength (short term) max. N 3600 Thread depth min. 15 Torque strength in thread max. 15.0 Torque through ball max. 30 Torque through ball MS max. Nm 70 more info »
	R3579.L014	13.5	22	11.5	2000	1000	500	4000	17	25.0	35	75
£ 23.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 23.83 0% 10-24 £ 21.45 10% 25-49 £ 20.26 15% 50-99 £ 19.06 20% 100-249 £ 17.87 25% 250+ £ 16.68 30% w2 13.5 A/F 22 a ° 11.5 Static strength (long term) max. N 2000 Radial load (short term) max. N 1000 Radial load (long term) max. N 500 Static strength (short term) max. N 4000 Thread depth min. 17 Torque strength in thread max. 25.0 Torque through ball max. 35 Torque through ball MS max. Nm 75 more info »
	R3579.L016	15.0	22	11.5	2100	1300	650	4200	19	30.0	40	110
£ 26.84 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 26.84 0% 10-24 £ 24.16 10% 25-49 £ 22.81 15% 50-99 £ 21.47 20% 100-249 £ 20.13 25% 250+ £ 18.79 30% w2 15.0 A/F 22 a ° 11.5 Static strength (long term) max. N 2100 Radial load (short term) max. N 1300 Radial load (long term) max. N 650 Static strength (short term) max. N 4200 Thread depth min. 19 Torque strength in thread max. 30.0 Torque through ball max. 40 Torque through ball MS max. Nm 110 more info »
	R3579.L017	15.0	22	11.5	2100	1300	650	4200	19	27.5	40	110
£ 26.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 26.84 0% 10-24 £ 24.16 10% 25-49 £ 22.81 15% 50-99 £ 21.47 20% 100-249 £ 20.13 25% 250+ £ 18.79 30% w2 15.0 A/F 22 a ° 11.5 Static strength (long term) max. N 2100 Radial load (short term) max. N 1300 Radial load (long term) max. N 650 Static strength (short term) max. N 4200 Thread depth min. 19 Torque strength in thread max. 27.5 Torque through ball max. 40 Torque through ball MS max. Nm 110 more info »
	R3579.L018	16.5	27	11.5	2300	1600	800	4600	21	45.0	45	150
£ 29.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 29.99 0% 10-24 £ 26.99 10% 25-49 £ 25.49 15% 50-99 £ 23.99 20% 100-249 £ 22.49 25% 250+ £ 20.99 30% w2 16.5 A/F 27 a ° 11.5 Static strength (long term) max. N 2300 Radial load (short term) max. N 1600 Radial load (long term) max. N 800 Static strength (short term) max. N 4600 Thread depth min. 21 Torque strength in thread max. 45.0 Torque through ball max. 45 Torque through ball MS max. Nm 150 more info »
	R3579.L020	18.0	30	11.5	2700	2100	1050	5400	22	60.0	22	200
£ 36.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 36.29 0% 10-24 £ 32.66 10% 25-49 £ 30.85 15% 50-99 £ 29.03 20% 100-249 £ 27.22 25% 250+ £ 25.40 30% w2 18.0 A/F 30 a ° 11.5 Static strength (long term) max. N 2700 Radial load (short term) max. N 2100 Radial load (long term) max. N 1050 Static strength (short term) max. N 5400 Thread depth min. 22 Torque strength in thread max. 60.0 Torque through ball max. 22 Torque through ball MS max. Nm 200 more info »
	R3579.L021	18.0	30	11.5	2700	2100	1050	5400	22	60.0	55	200
£ 36.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 36.29 0% 10-24 £ 32.66 10% 25-49 £ 30.85 15% 50-99 £ 29.03 20% 100-249 £ 27.22 25% 250+ £ 25.40 30% w2 18.0 A/F 30 a ° 11.5 Static strength (long term) max. N 2700 Radial load (short term) max. N 2100 Radial load (long term) max. N 1050 Static strength (short term) max. N 5400 Thread depth min. 22 Torque strength in thread max. 60.0 Torque through ball max. 55 Torque through ball MS max. Nm 200 more info »
	R3579.L022	20.0	32	11	3500	2200	1100	7000	25	75.0	60	225
£ 42.53 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 42.53 0% 10-24 £ 38.28 10% 25-49 £ 36.15 15% 50-99 £ 34.02 20% 100-249 £ 31.90 25% 250+ £ 29.77 30% w2 20.0 A/F 32 a ° 11 Static strength (long term) max. N 3500 Radial load (short term) max. N 2200 Radial load (long term) max. N 1100 Static strength (short term) max. N 7000 Thread depth min. 25 Torque strength in thread max. 75.0 Torque through ball max. 60 Torque through ball MS max. Nm 225 more info »
	R3579.L025	22.0	36	11	4250	2300	1150	8500	28	120.0	60	260
£ 48.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 48.23 0% 10-24 £ 43.41 10% 25-49 £ 41.00 15% 50-99 £ 38.58 20% 100-249 £ 36.17 25% 250+ £ 33.76 30% w2 22.0 A/F 36 a ° 11 Static strength (long term) max. N 4250 Radial load (short term) max. N 2300 Radial load (long term) max. N 1150 Static strength (short term) max. N 8500 Thread depth min. 28 Torque strength in thread max. 120.0 Torque through ball max. 60 Torque through ball MS max. Nm 260 more info »
	R3579.L030	25.0	41	11	5250	2500	1250	10500	34	135.0	60	300
£ 68.08 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 68.08 0% 10-24 £ 61.27 10% 25-49 £ 57.87 15% 50-99 £ 54.46 20% 100-249 £ 51.06 25% 250+ £ 47.66 30% w2 25.0 A/F 41 a ° 11 Static strength (long term) max. N 5250 Radial load (short term) max. N 2500 Radial load (long term) max. N 1250 Static strength (short term) max. N 10500 Thread depth min. 34 Torque strength in thread max. 135.0 Torque through ball max. 60 Torque through ball MS max. Nm 300 more info »
