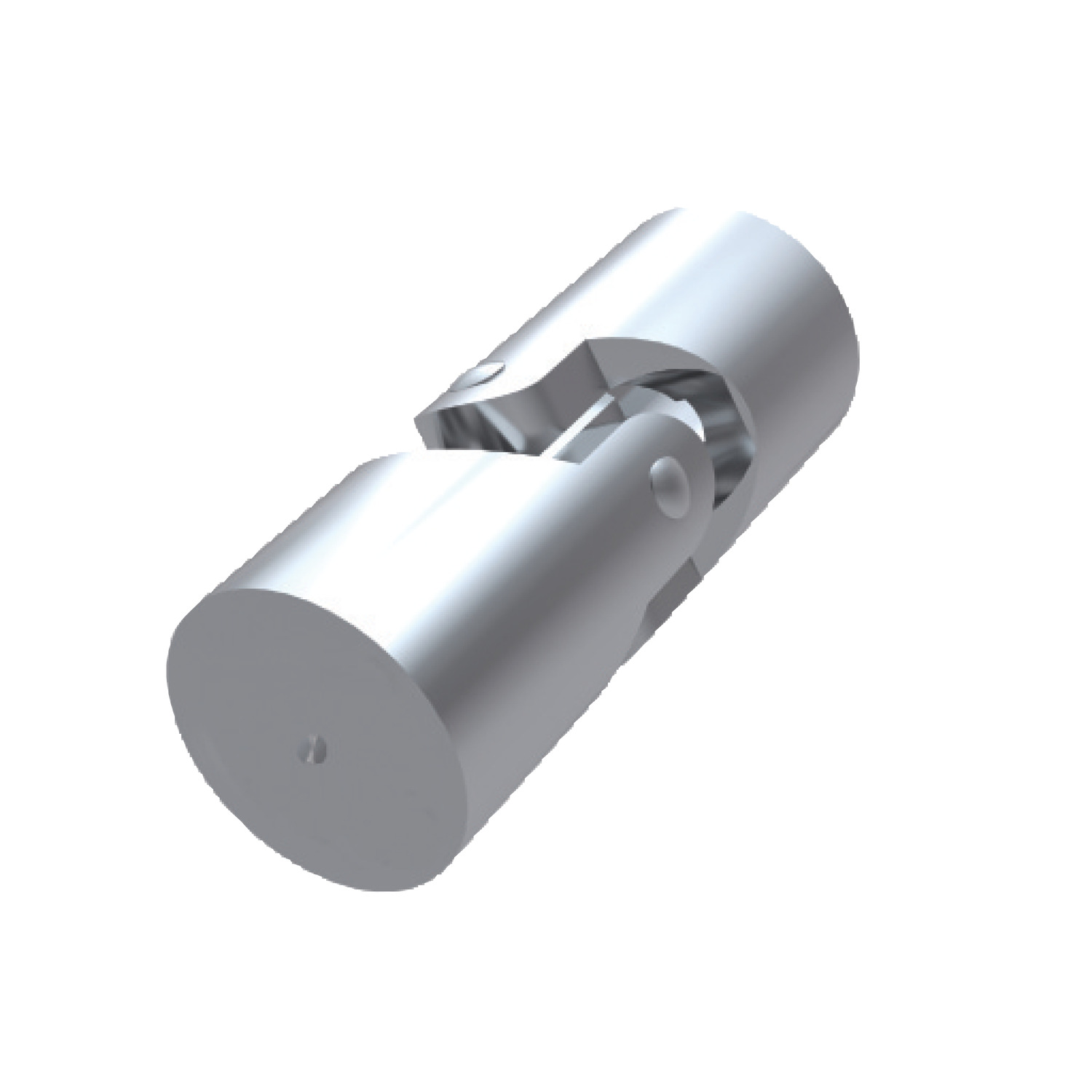

R3695 Stainless 304 Single Universal Joint
Stainless unbored - solid ends, material: Stainless steel 304
Order No.
R3695.020
Bore dia.
Unbored
d
tol. h4
20
l1
63
l2
31
l3
21
Weight
g
70
£ 41.76 per unit (click for quantity discounts)
Ready to despatch 7
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 41.76 | 0% |
| 5-9 | £ 37.58 | 10% |
| 10-19 | £ 35.50 | 15% |
| 20-49 | £ 31.32 | 25% |
| 50+ | £ 27.14 | 35% |
Technical & Application
Material
Stainless steel (AISI 304), bearing type: Plain bearing.
Technical Notes
To DIN 808.
Maximum bending angle 45° per joint.
Max. drive speed of joints with journal bearings 1000 rpm.
Tips
Single universal joints are used where shafts off-set towards each other.
Product variations available on request: square bores and hex bores.
