Plain Bearing Double Universal Joints
steel, solid
R3696 Stainless Double Universal Joint
Stainless, material: Stainless steel
Alternative products you may wish to consider

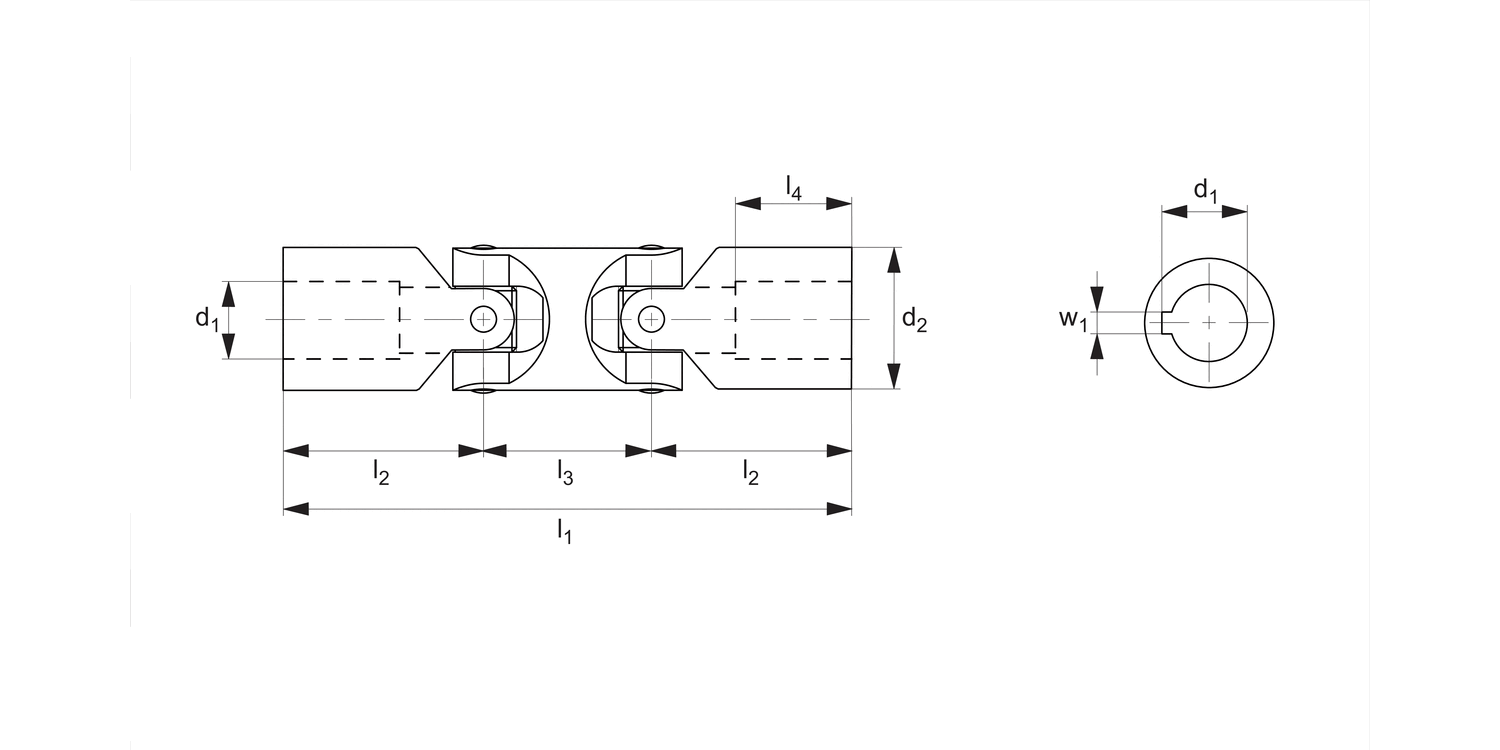

Bore dia.
Round Bore
d1
tol. H7
6
d2
16
l1
56
l2
17
l3
22
l4
8
w1
-
w2
-
Weight
g
80
£ 83.99 per unit (click for quantity discounts)
Bore dia.
Round Bore
d1
tol. H7
8
d2
16
l1
62
l2
20
l3
22
l4
11
w1
-
w2
-
Weight
g
80
£ 83.99 per unit (click for quantity discounts)
Bore dia.
Round Bore
d1
tol. H7
10
d2
22
l1
74
l2
24
l3
26
l4
12
w1
-
w2
-
Weight
g
150
£ 83.99 per unit (click for quantity discounts)
Bore dia.
Round Bore
d1
tol. H7
12
d2
25
l1
86
l2
28
l3
30
l4
13
w1
-
w2
-
Weight
g
250
£ 88.72 per unit (click for quantity discounts)
Bore dia.
Round Bore
d1
tol. H7
16
d2
32
l1
104
l2
34
l3
36
l4
16
w1
-
w2
-
Weight
g
450
£ 105.44 per unit (click for quantity discounts)
Bore dia.
Round Bore
d1
tol. H7
20
d2
42
l1
128
l2
41
l3
46
l4
18
w1
-
w2
-
Weight
g
1000
£ 143.86 per unit (click for quantity discounts)
Bore dia.
Round Bore
d1
tol. H7
25
d2
50
l1
163
l2
54
l3
55
l4
26
w1
-
w2
-
Weight
g
2000
£ 236.67 per unit (click for quantity discounts)
Bore dia.
Round Bore
d1
tol. H7
30
d2
58
l1
190
l2
61
l3
68
l4
29
w1
-
w2
-
Weight
g
2900
£ 277.92 per unit (click for quantity discounts)
Bore dia.
Keyway
d1
tol. H7
6
d2
16
l1
56
l2
17
l3
22
l4
8
w1
2
w2
7.0
Weight
g
80
£ 105.09 per unit (click for quantity discounts)
Bore dia.
Keyway
d1
tol. H7
8
d2
16
l1
62
l2
20
l3
22
l4
11
w1
2
w2
9.0
Weight
g
80
£ 105.09 per unit (click for quantity discounts)
Bore dia.
Keyway
d1
tol. H7
10
d2
22
l1
74
l2
24
l3
26
l4
12
w1
3
w2
11.4
Weight
g
150
£ 105.09 per unit (click for quantity discounts)
Bore dia.
Keyway
d1
tol. H7
12
d2
25
l1
86
l2
28
l3
30
l4
13
w1
4
w2
13.8
Weight
g
250
£ 109.82 per unit (click for quantity discounts)
Bore dia.
Keyway
d1
tol. H7
16
d2
32
l1
104
l2
34
l3
36
l4
16
w1
5
w2
18.3
Weight
g
450
£ 126.53 per unit (click for quantity discounts)
Bore dia.
Keyway
d1
tol. H7
20
d2
42
l1
128
l2
41
l3
46
l4
18
w1
6
w2
22.8
Weight
g
1000
£ 164.96 per unit (click for quantity discounts)
Bore dia.
Keyway
d1
tol. H7
25
d2
50
l1
163
l2
54
l3
55
l4
26
w1
8
w2
28.3
Weight
g
2000
£ 262.94 per unit (click for quantity discounts)
Bore dia.
Keyway
d1
tol. H7
30
d2
58
l1
190
l2
61
l3
68
l4
29
w1
8
w2
33.3
Weight
g
2900
£ 304.23 per unit (click for quantity discounts)
Bore dia.
d1
tol. H7
d2
l1
l2
l3
l4
w1
w2
Weight
g
| Price & Availability | Article | Bore dia. | d1 tol. H7 | d2 | l1 | l2 | l3 | l4 | w1 | w2 | Weight g | ||||||||||||||||||
| R3696.006-RB | Round Bore | 6 | 16 | 56 | 17 | 22 | 8 | - | - | 80 | |||||||||||||||||||
£ 83.99 per unit (click for quantity discounts) Ready to despatch 18 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 6 d2 16 l1 56 l2 17 l3 22 l4 8 w1 - w2 - Weight
g 80 | |||||||||||||||||||||||||||||
| R3696.008-RB | Round Bore | 8 | 16 | 62 | 20 | 22 | 11 | - | - | 80 | |||||||||||||||||||
£ 83.99 per unit (click for quantity discounts) Ready to despatch 10 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 8 d2 16 l1 62 l2 20 l3 22 l4 11 w1 - w2 - Weight
g 80 | |||||||||||||||||||||||||||||
| R3696.010-RB | Round Bore | 10 | 22 | 74 | 24 | 26 | 12 | - | - | 150 | |||||||||||||||||||
£ 83.99 per unit (click for quantity discounts) Ready to despatch 99 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 10 d2 22 l1 74 l2 24 l3 26 l4 12 w1 - w2 - Weight
g 150 | |||||||||||||||||||||||||||||
| R3696.012-RB | Round Bore | 12 | 25 | 86 | 28 | 30 | 13 | - | - | 250 | |||||||||||||||||||
£ 88.72 per unit (click for quantity discounts) Ready to despatch 3 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 12 d2 25 l1 86 l2 28 l3 30 l4 13 w1 - w2 - Weight
g 250 | |||||||||||||||||||||||||||||
| R3696.016-RB | Round Bore | 16 | 32 | 104 | 34 | 36 | 16 | - | - | 450 | |||||||||||||||||||
£ 105.44 per unit (click for quantity discounts) Ready to despatch 2 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 16 d2 32 l1 104 l2 34 l3 36 l4 16 w1 - w2 - Weight
g 450 | |||||||||||||||||||||||||||||
| R3696.020-RB | Round Bore | 20 | 42 | 128 | 41 | 46 | 18 | - | - | 1000 | |||||||||||||||||||
£ 143.86 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 20 d2 42 l1 128 l2 41 l3 46 l4 18 w1 - w2 - Weight
g 1000 | |||||||||||||||||||||||||||||
| R3696.025-RB | Round Bore | 25 | 50 | 163 | 54 | 55 | 26 | - | - | 2000 | |||||||||||||||||||
£ 236.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 25 d2 50 l1 163 l2 54 l3 55 l4 26 w1 - w2 - Weight
g 2000 | |||||||||||||||||||||||||||||
| R3696.030-RB | Round Bore | 30 | 58 | 190 | 61 | 68 | 29 | - | - | 2900 | |||||||||||||||||||
£ 277.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 30 d2 58 l1 190 l2 61 l3 68 l4 29 w1 - w2 - Weight
g 2900 | |||||||||||||||||||||||||||||
| R3696.006-KW | Keyway | 6 | 16 | 56 | 17 | 22 | 8 | 2 | 7.0 | 80 | |||||||||||||||||||
£ 105.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. Keyway d1
tol. H7 6 d2 16 l1 56 l2 17 l3 22 l4 8 w1 2 w2 7.0 Weight
g 80 | |||||||||||||||||||||||||||||
| R3696.008-KW | Keyway | 8 | 16 | 62 | 20 | 22 | 11 | 2 | 9.0 | 80 | |||||||||||||||||||
£ 105.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. Keyway d1
tol. H7 8 d2 16 l1 62 l2 20 l3 22 l4 11 w1 2 w2 9.0 Weight
g 80 | |||||||||||||||||||||||||||||
| R3696.010-KW | Keyway | 10 | 22 | 74 | 24 | 26 | 12 | 3 | 11.4 | 150 | |||||||||||||||||||
£ 105.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. Keyway d1
tol. H7 10 d2 22 l1 74 l2 24 l3 26 l4 12 w1 3 w2 11.4 Weight
g 150 | |||||||||||||||||||||||||||||
| R3696.012-KW | Keyway | 12 | 25 | 86 | 28 | 30 | 13 | 4 | 13.8 | 250 | |||||||||||||||||||
£ 109.82 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. Keyway d1
tol. H7 12 d2 25 l1 86 l2 28 l3 30 l4 13 w1 4 w2 13.8 Weight
g 250 | |||||||||||||||||||||||||||||
| R3696.016-KW | Keyway | 16 | 32 | 104 | 34 | 36 | 16 | 5 | 18.3 | 450 | |||||||||||||||||||
£ 126.53 per unit (click for quantity discounts) Ready to despatch 2 Need more? Please call us.
Bore dia. Keyway d1
tol. H7 16 d2 32 l1 104 l2 34 l3 36 l4 16 w1 5 w2 18.3 Weight
g 450 | |||||||||||||||||||||||||||||
| R3696.020-KW | Keyway | 20 | 42 | 128 | 41 | 46 | 18 | 6 | 22.8 | 1000 | |||||||||||||||||||
£ 164.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. Keyway d1
tol. H7 20 d2 42 l1 128 l2 41 l3 46 l4 18 w1 6 w2 22.8 Weight
g 1000 | |||||||||||||||||||||||||||||
| R3696.025-KW | Keyway | 25 | 50 | 163 | 54 | 55 | 26 | 8 | 28.3 | 2000 | |||||||||||||||||||
£ 262.94 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. Keyway d1
tol. H7 25 d2 50 l1 163 l2 54 l3 55 l4 26 w1 8 w2 28.3 Weight
g 2000 | |||||||||||||||||||||||||||||
| R3696.030-KW | Keyway | 30 | 58 | 190 | 61 | 68 | 29 | 8 | 33.3 | 2900 | |||||||||||||||||||
£ 304.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. Keyway d1
tol. H7 30 d2 58 l1 190 l2 61 l3 68 l4 29 w1 8 w2 33.3 Weight
g 2900 | |||||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel (AISI 304).
Technical Notes
To DIN 808, maximum bending angle 45° per joint.
Tips
Product variations available on request, for square bores change the suffix to SQ for square bores or HX for hex bores.
Product Datasheets
