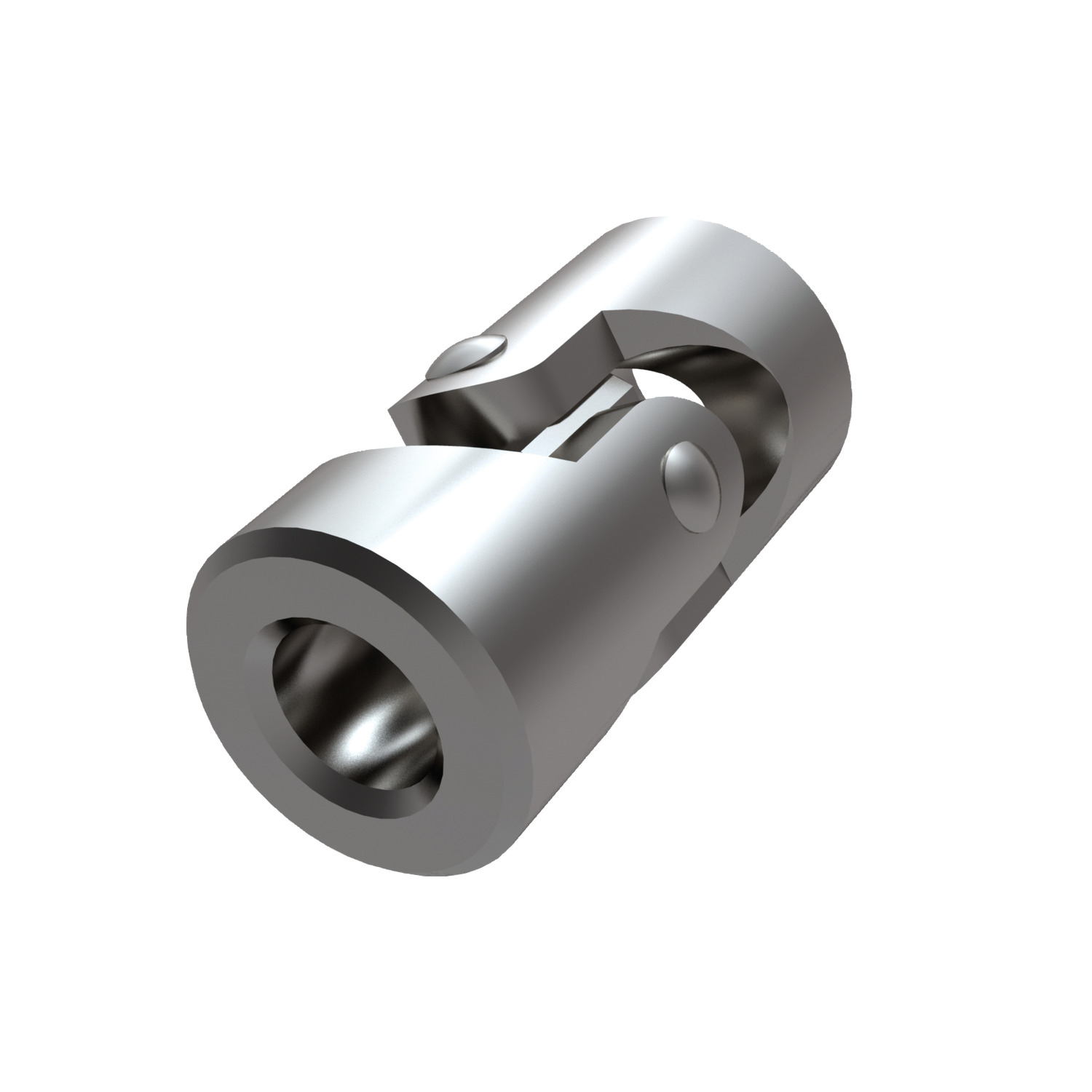

R3694 Stainless Single Universal Joint
Stainless, material: Stainless steel
Order No.
R3694.010-KW

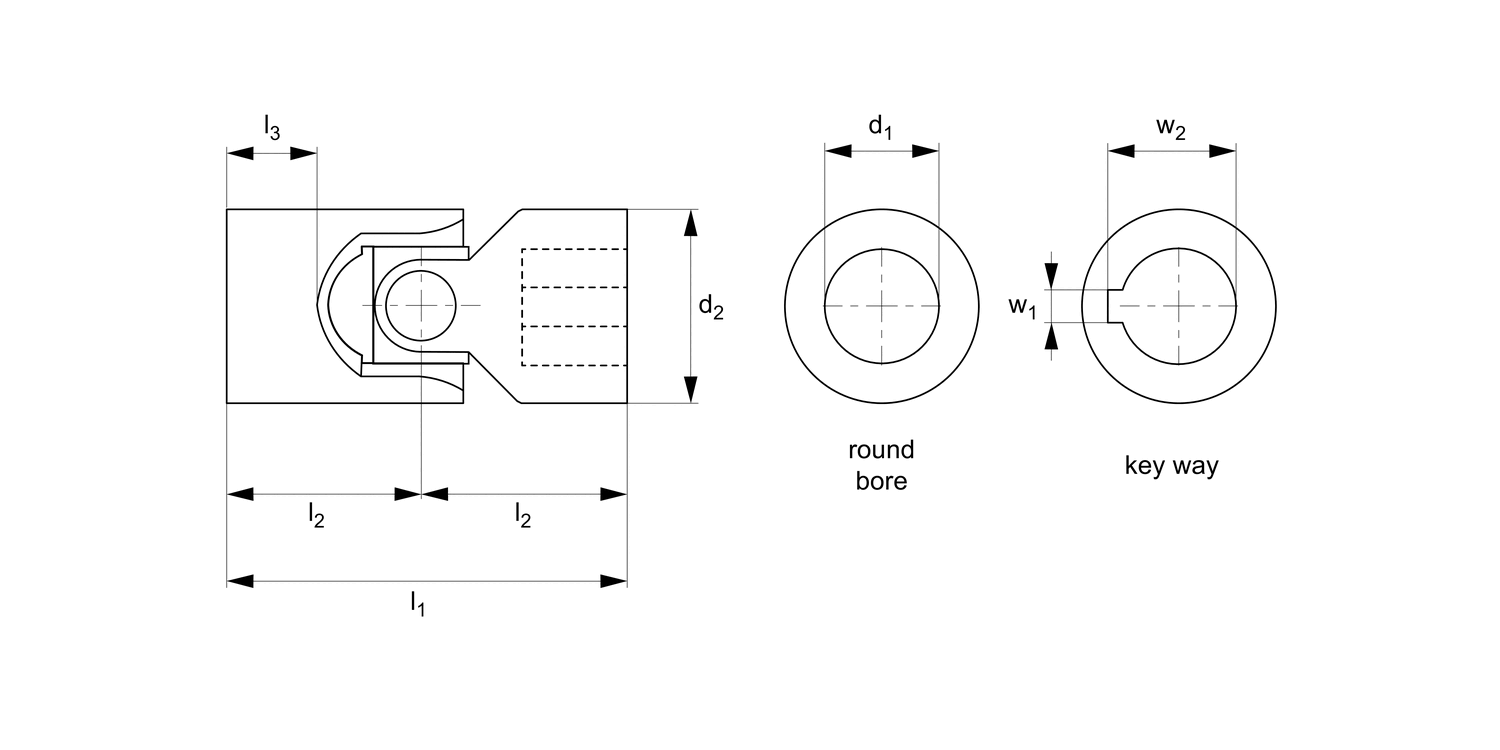

Bore dia.
Keyway
d1
tol. H7
10
d2
22
l1
48
l2
24
l3
12
w1
tol. JS9
3
w2
11.4
Weight
g
100
£ 69.47 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 69.47 | 0% |
| 5-9 | £ 62.52 | 10% |
| 10-19 | £ 59.05 | 15% |
| 20-49 | £ 52.10 | 25% |
| 50+ | £ 45.16 | 35% |
Technical & Application
Material
Stainless steel (AISI 304)
Technical Notes
To DIN 808, maximum bending angle 45° per joint.
Tips
Single universal joints are used where shafts are off-set towards each other.
Product variations available on request, for square bores change the suffix to SQ for square bores or HX for hex bores.
