R3693 Universal Joint

Name: R3693.014
Brand: WC
SKU: R3693.014
Price: 76.35 EUR
Availability: OutOfStock

with quick change coupling, material: Steel

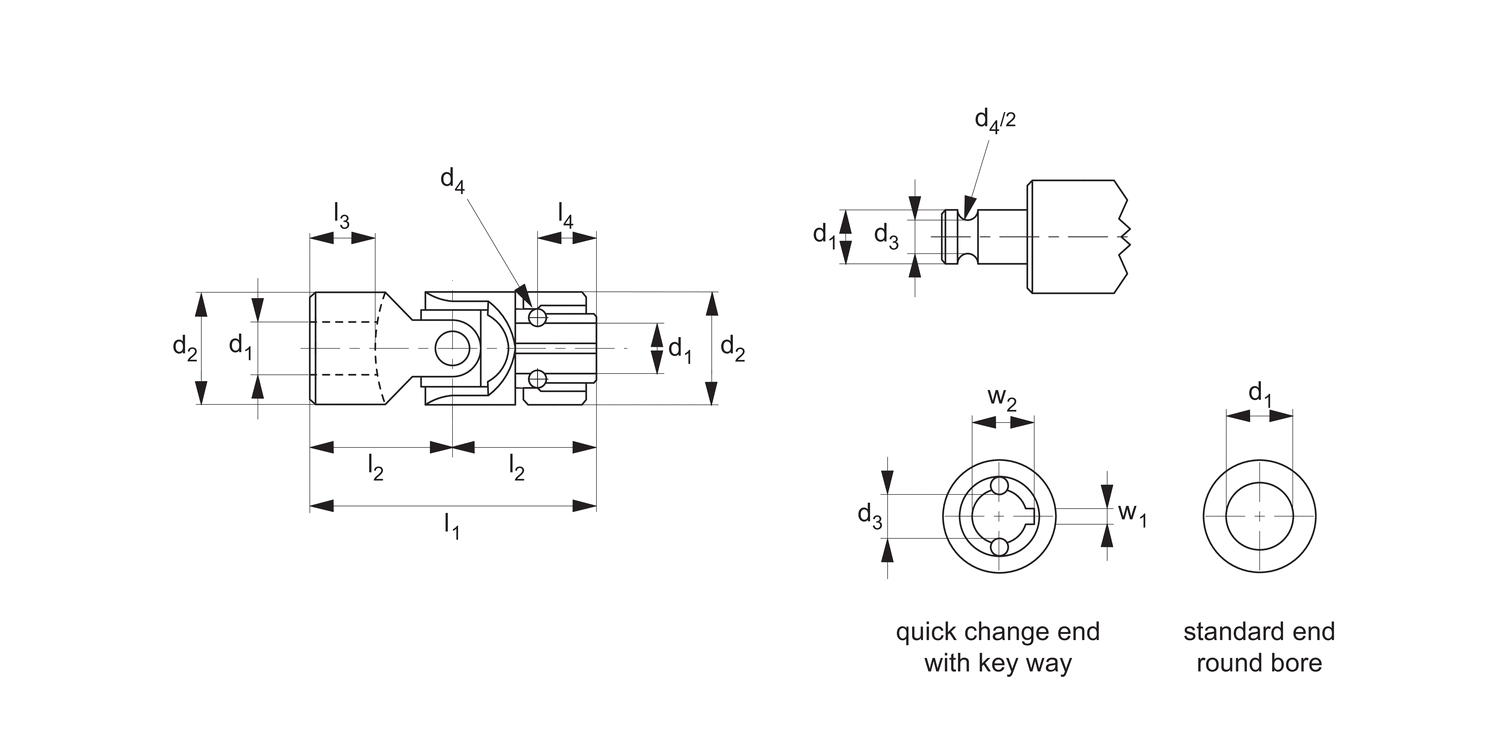

Article properties

Order No.

R3693.014

d₁ tol. H7

d₂

d₃

d₄

l₁

l₂

l₃

l₄

13.5

w₁ tol. JS9

w₂

15.3

Weight g

160

See full product selection

£ 76.35 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 76.35	0%
10-19	£ 68.72	10%
20-39	£ 64.90	15%
40-49	£ 57.26	25%
50-99	£ 53.45	30%
100+	£ 45.81	40%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel (9 SMnPb28 k, no. 10718, greased).
Bearing type: plain bearing.

Technical Notes

To DIN 808.
Maximum bending angle 45° per joint.
Max. drive speed of joints with journal bearings 1000 rpm.

Tips

Rapid change coupling ideal where time is critical.
Retention of shaft accomplished with two ball bearings engaging the shaft via a round bore with keyway.
Product variations available on request: needle bearings and hex shaped bores.
(Keyway and hex shaped bores on quick change end only unless requested otherwise.)
