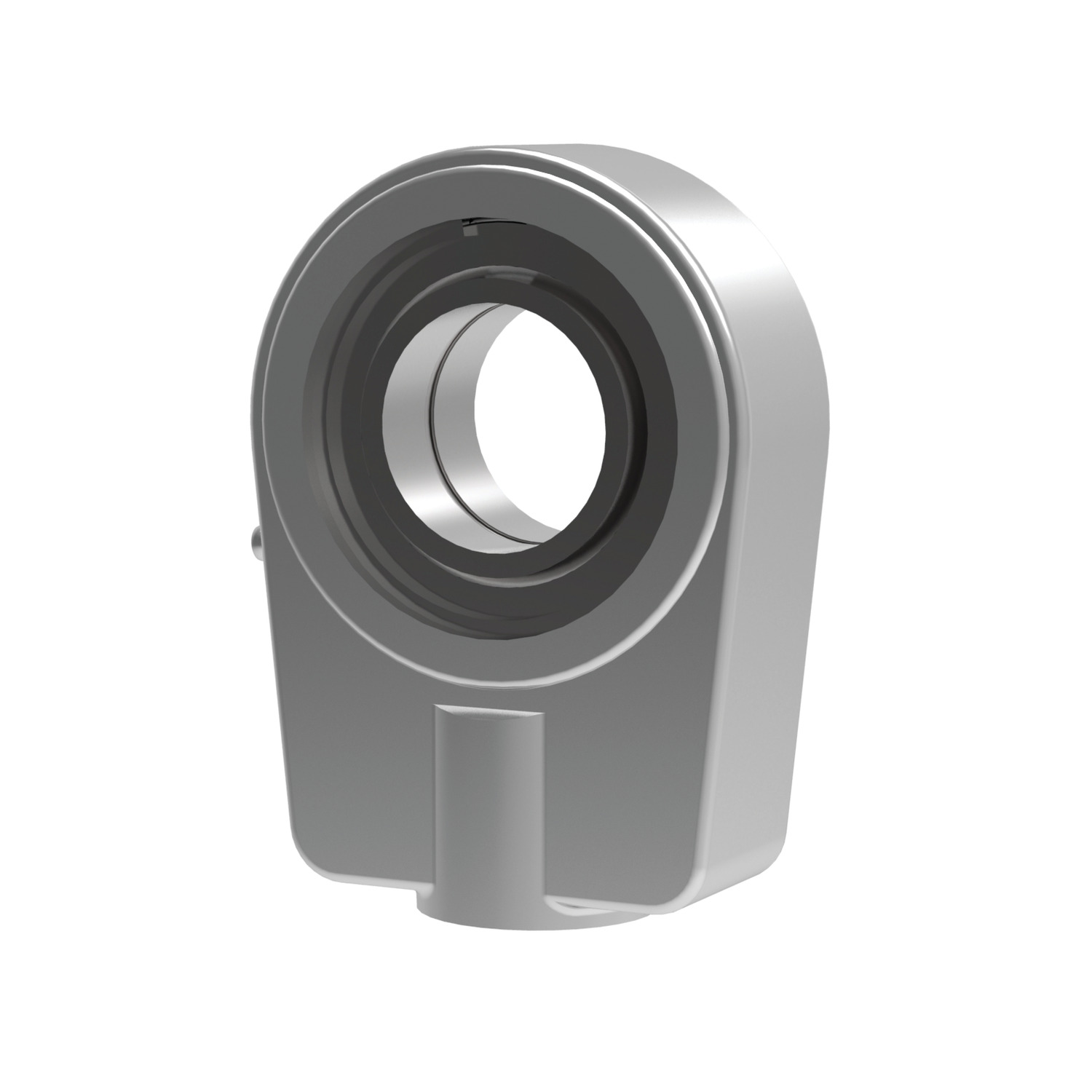

R3625 Hydraulic Rod Ends

Name: R3625.025
Brand: WC
SKU: R3625.025
Price: 155.93 EUR
Availability: OutOfStock

stainless steel, material: Stainless steel

Article properties

Order No.

R3625.025

d₁ tol. M7

l₁

d₂ tol. 6H

M16x1,5

d₃

35.5

d₄

d₅

d₆

d₇

29.3

Dyn. load C max. kN

48.00

Weight g

475

l₂

l₃

l₄

Static load C₀ max. kN

72.00

w₁

w₂

a °

See full product selection

£ 155.93 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 155.93	0%
10-19	£ 140.34	10%
20-49	£ 132.54	15%
50-99	£ 124.74	20%
100+	£ 109.15	30%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Housing: stainless steel (AISI 316.)
Bearing stainless steel (AISI 420C) and PTFE fabric.

Tips

Standard thread is right hand thread.

Product Datasheets

R3625 Hydraulic Rod EndsJune 19, 2025, 4:56 PM / 1.52 MB

Hydraulic Rod EndsJune 19, 2025, 4:50 PM / 6.15 MB

Rod EndsJune 19, 2025, 4:45 PM / 18.33 MB

Universal Joints & Rod EndsJune 19, 2025, 4:38 PM / 4.30 MB

Linkages & Rotary ComponentsJune 19, 2025, 4:38 PM / 20.62 MB

CAD files

R3625 AcisMay 20, 2018, 11:47 AM / 733.63 kB

R3625 IGESMay 20, 2018, 11:47 AM / 1.16 MB

R3625 ParasolidMay 20, 2018, 11:47 AM / 238.06 kB

R3625 ProEMay 20, 2018, 11:47 AM / 4.88 MB

R3625 SolidWorksMay 20, 2018, 11:47 AM / 2.66 MB

R3625 StepMay 20, 2018, 11:47 AM / 617.72 kB
