Spherical Plain Bearing - K Series
maintenance free

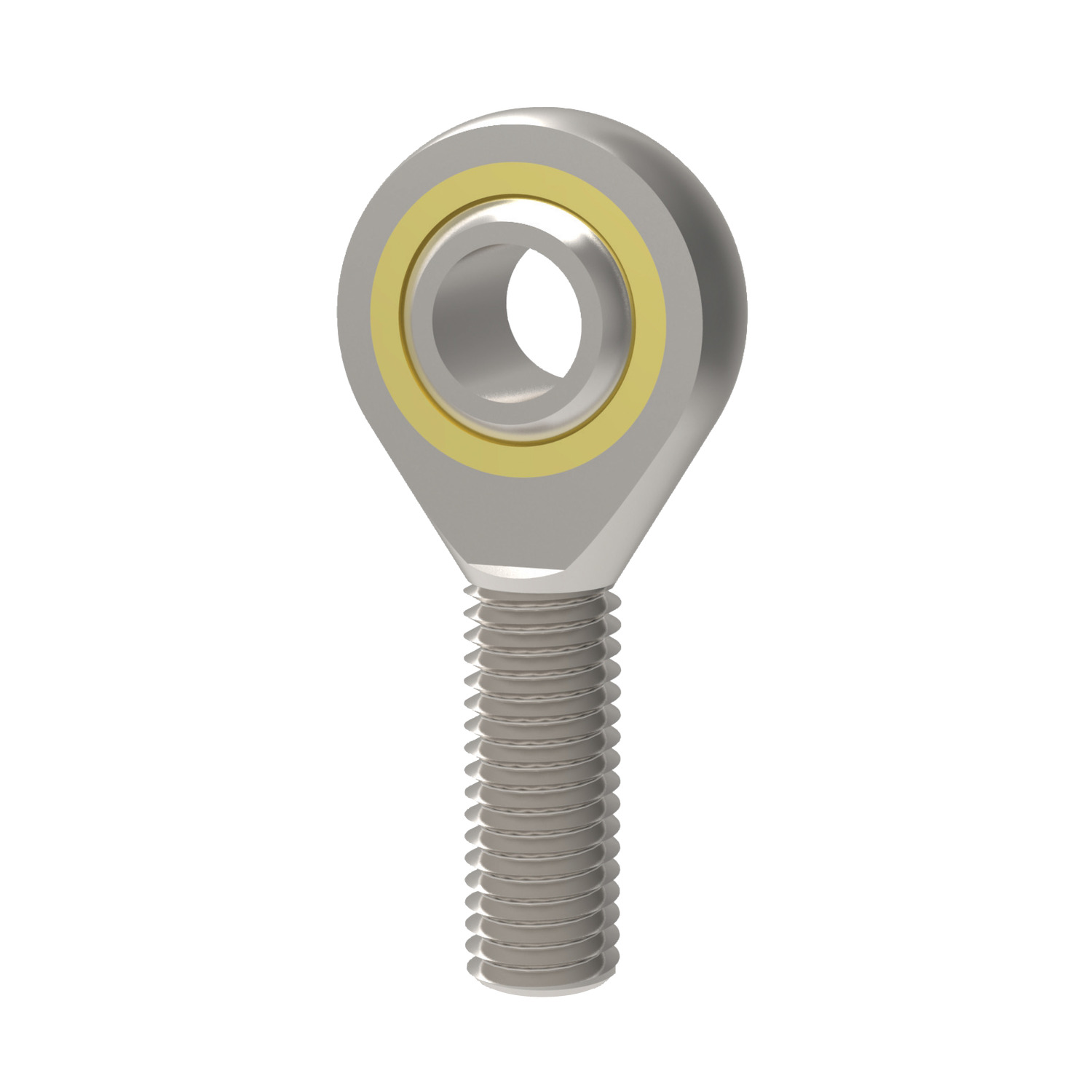

R3577.A2 Stainless Low Cost Rod Ends
Male, material: Stainless steel
Order No.
R3577.R010-A2
Thread hand
Right

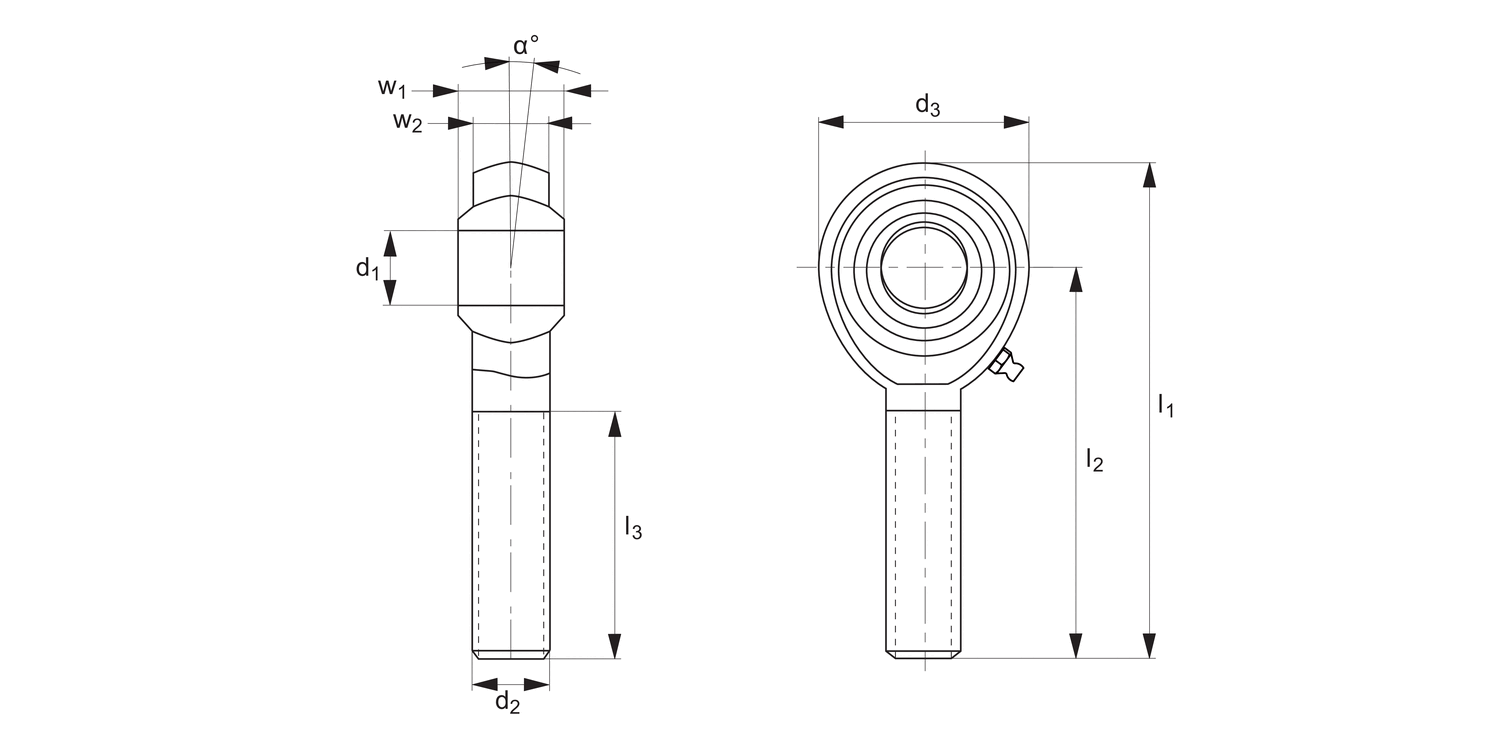

d1
tol. H7
10
l1
62
d2
M 10
d3
28
l2
48
a
°
13
l3
28
w1
14
w2
10.50
Static load
max.
kN
14.4
Weight
g
55
£ 22.46 per unit (click for quantity discounts)
Ready to despatch 160
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 22.46 | 0% |
| 50-99 | £ 17.97 | 20% |
| 100-199 | £ 16.85 | 25% |
| 200-499 | £ 15.72 | 30% |
| 500-999 | £ 14.60 | 35% |
| 1000+ | £ 13.48 | 40% |
Technical & Application
Material
Housing: stainless steel (AISI 303)
Ball: stainless steel, hardened, ground and polished.
Race: teflon or PTFE liner.
Stainless steel bearing ring lined with bronze and PTFE Composite
Technical Notes
Standard thread is right hand thread.
