Spherical Plain Bearing - K Series
maintenance free

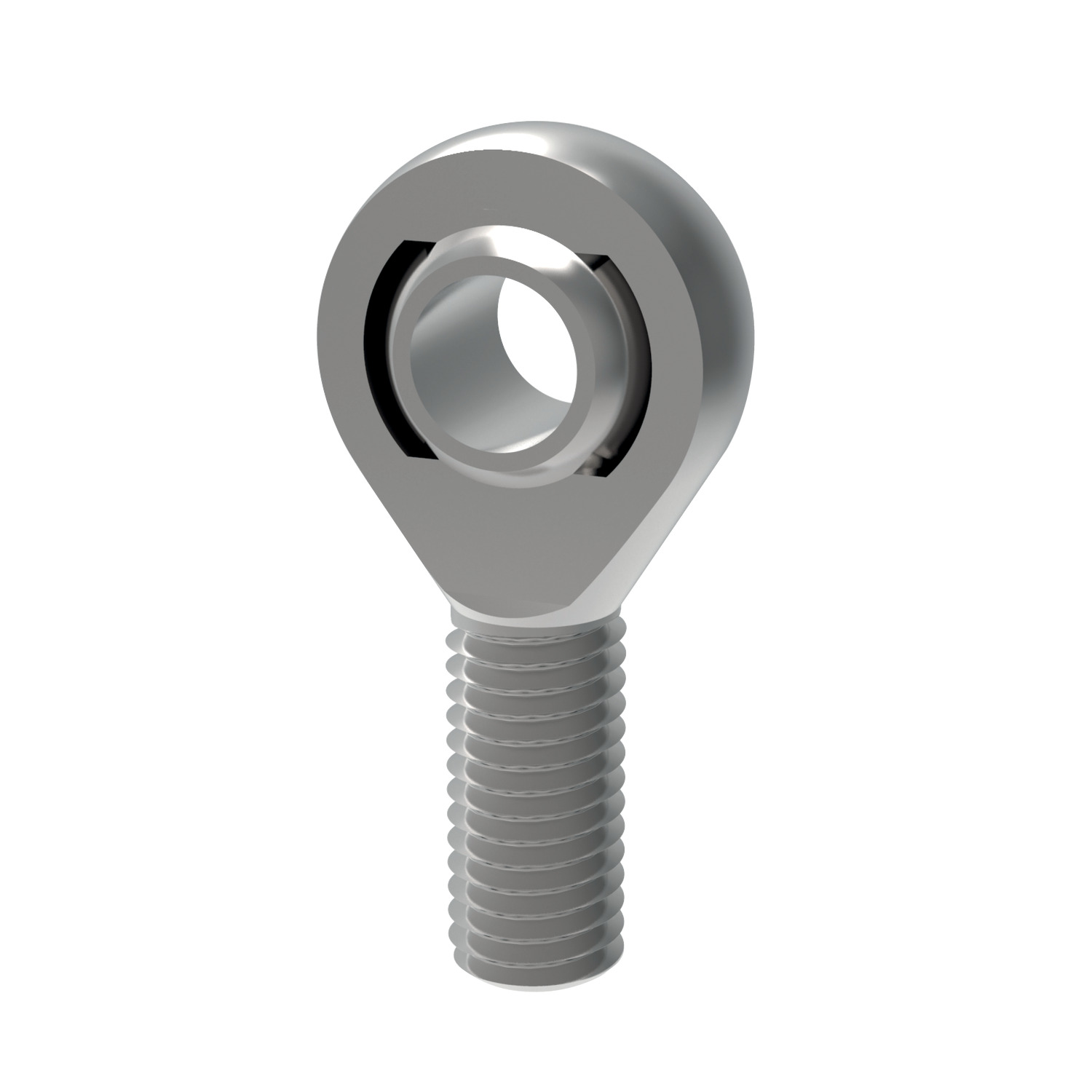

R3550 Heavy-Duty Rod Ends - Male
with integral spherical plain bearing, material: Steel

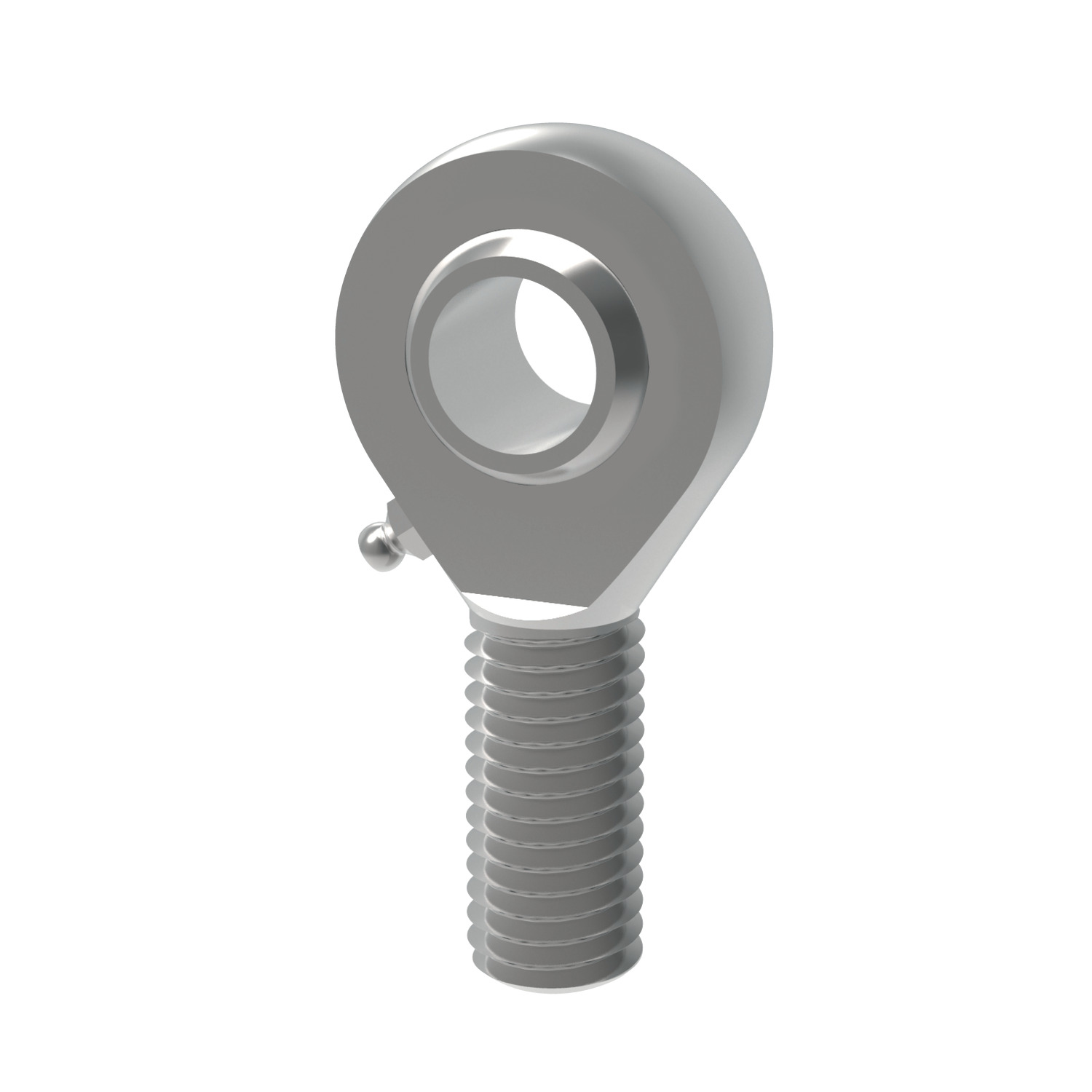

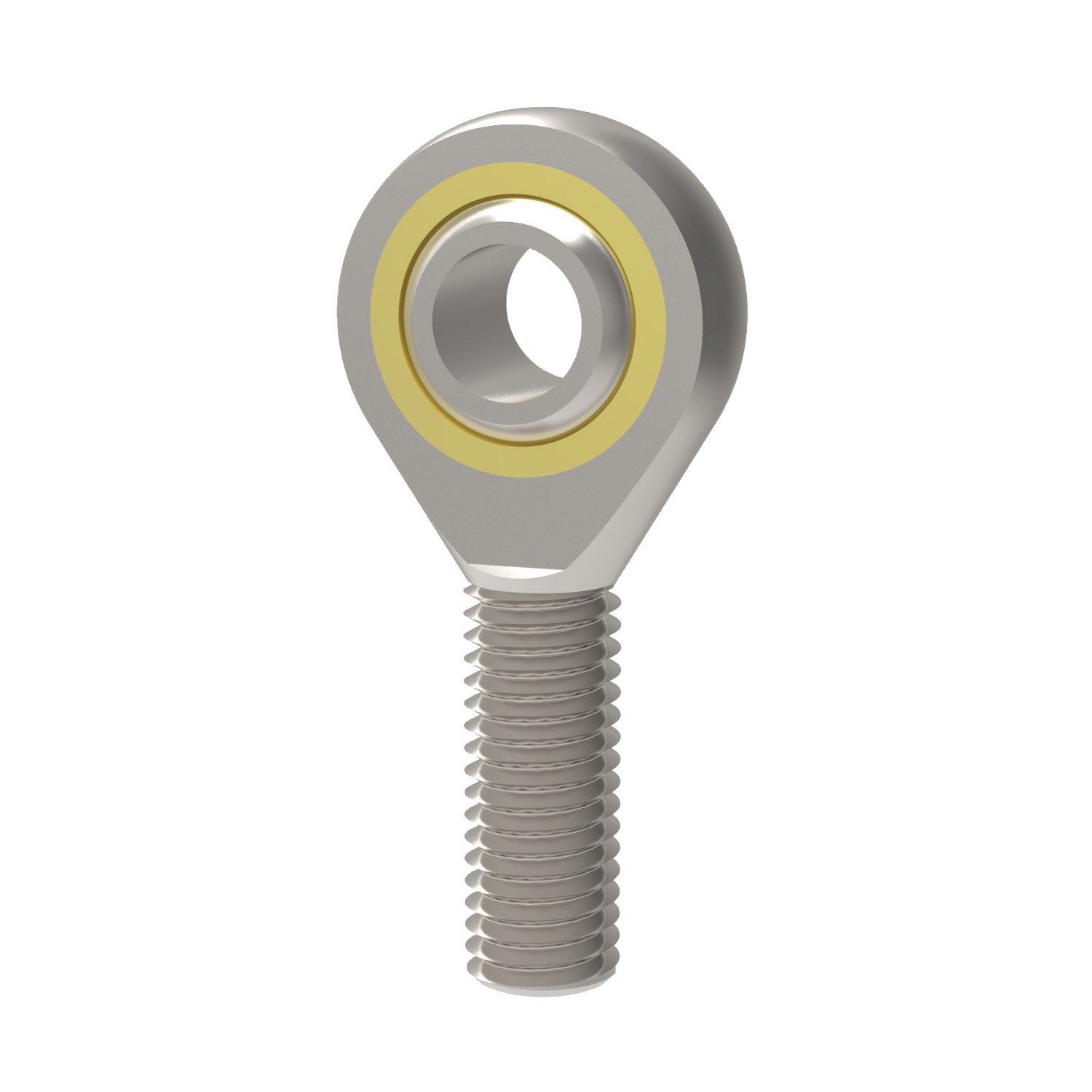

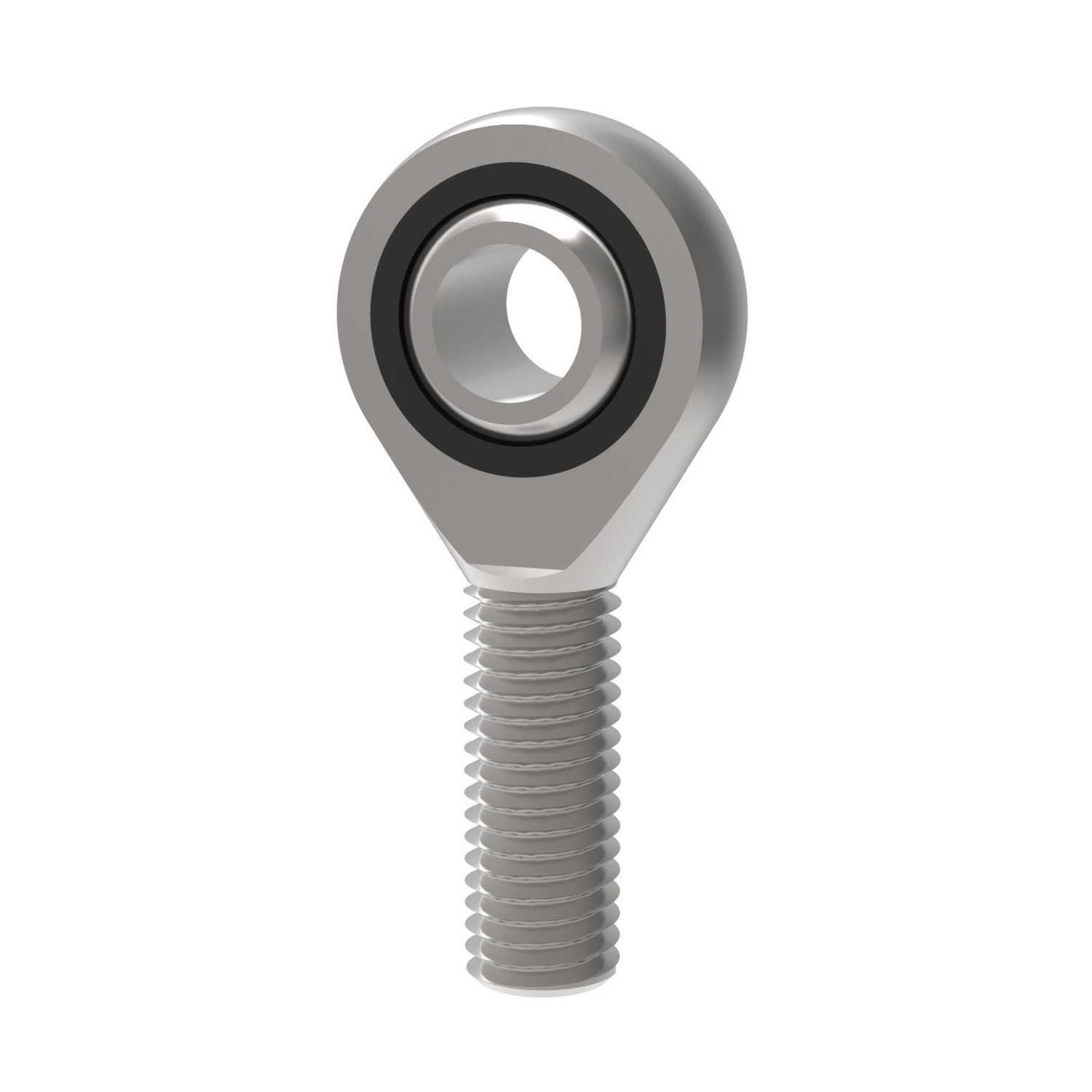

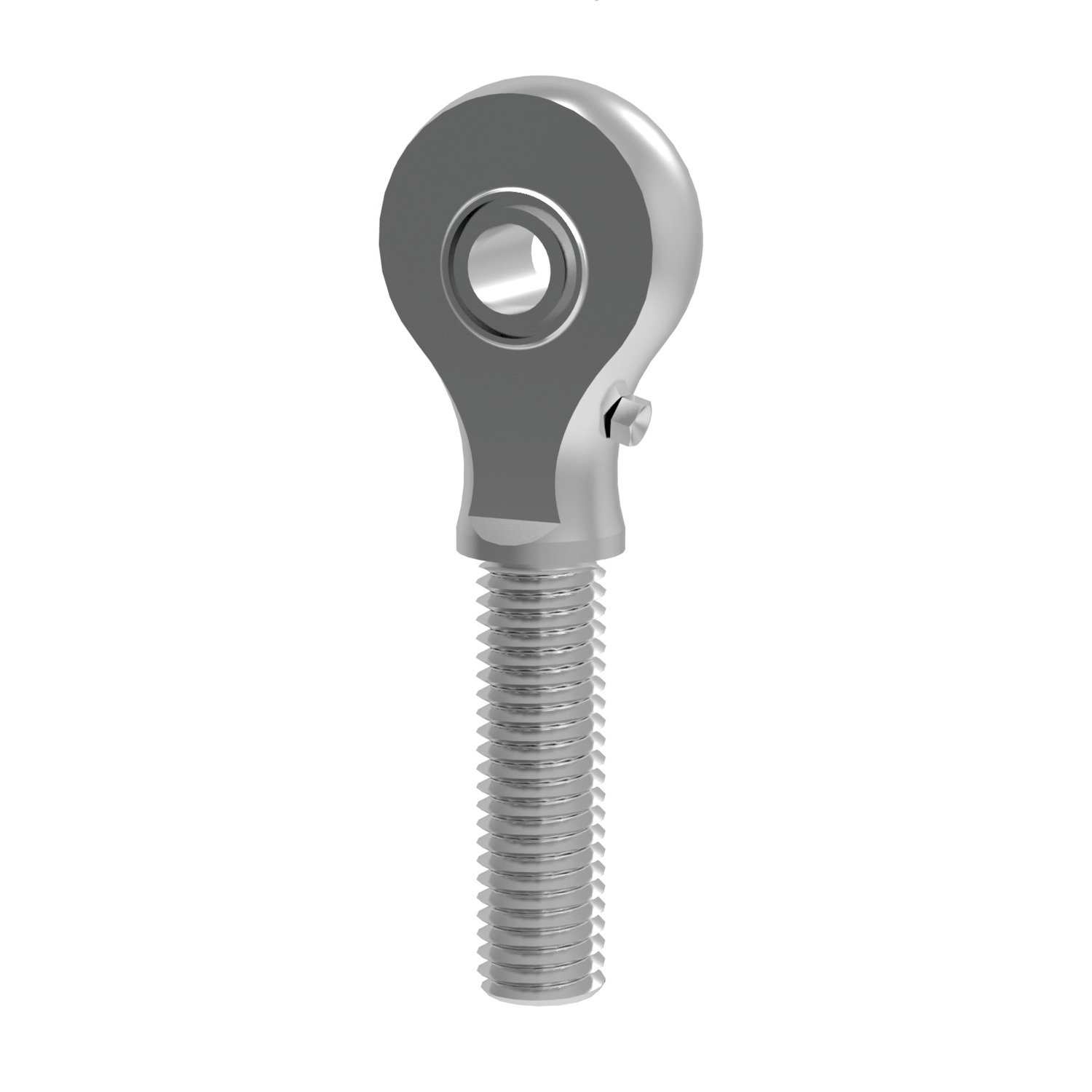

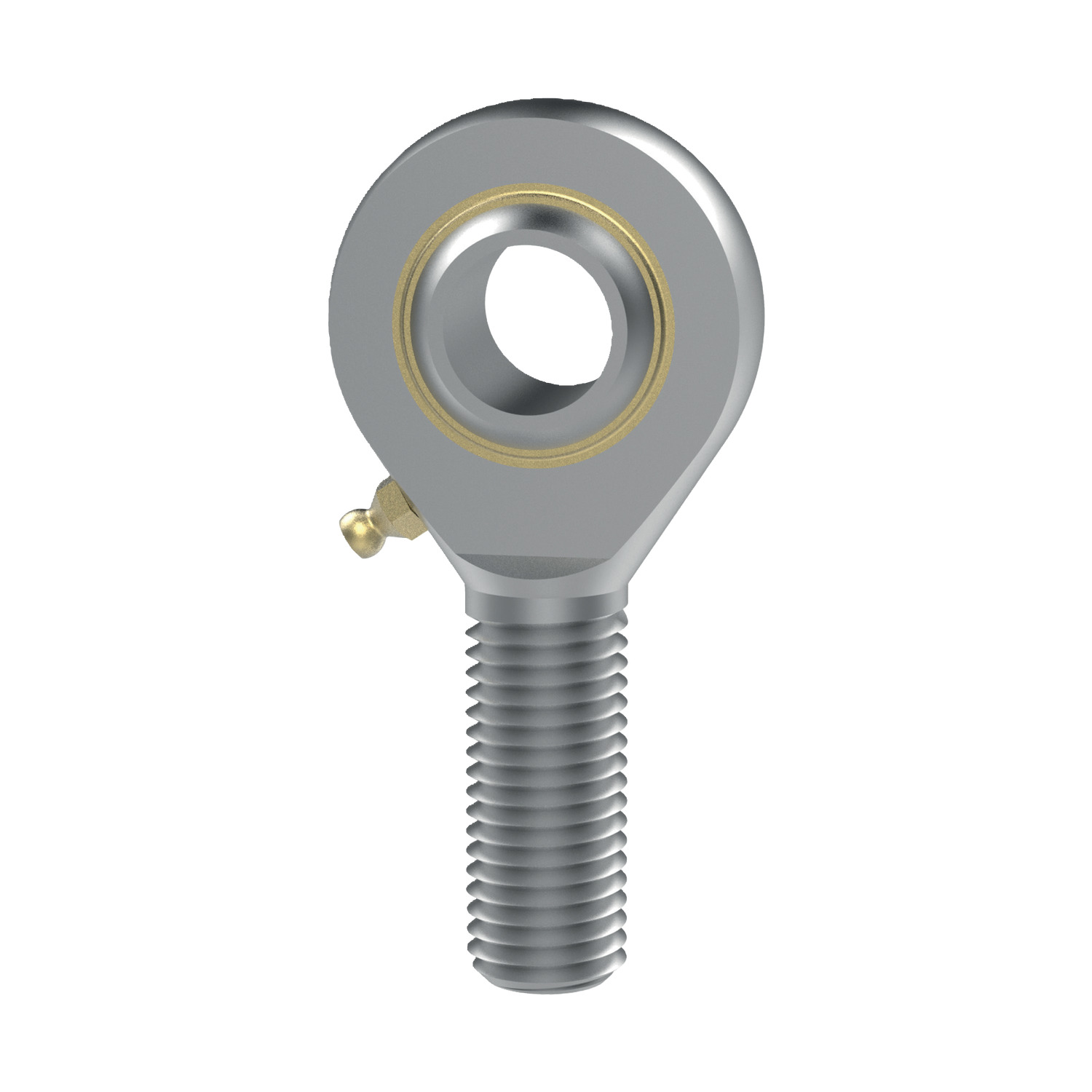

Alternative products you may wish to consider

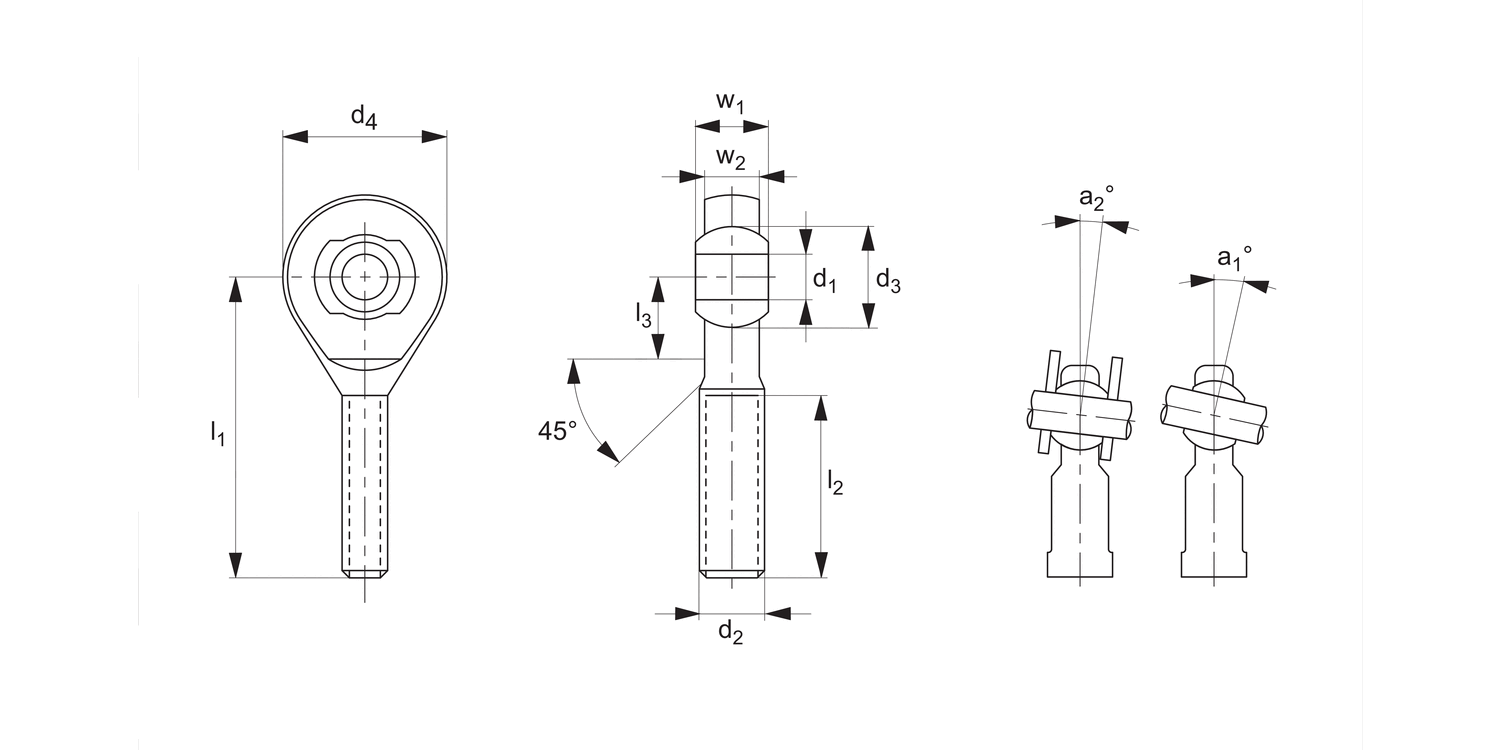

Thread hand
d1
l1
d2
d3
l2
d4
a1
°
| Price & Availability | Article | Thread hand | d1 | l1 | d2 | d3 | l2 | d4 | a1 ° | ||||||||||||||||||
| R3550.R005 | Right | 5 | 33 | M5 | 11.11 | 20 | 18 | 13.0 | |||||||||||||||||||
£ 23.80 per unit (click for quantity discounts) Ready to despatch 11 Need more? Please call us.
Thread hand Right d1 5 l1 33 d2 M5 d3 11.11 l2 20 d4 18 a1
° 13.0 | |||||||||||||||||||||||||||
| R3550.R006 | Right | 6 | 36 | M6 | 12.70 | 22 | 20 | 13.0 | |||||||||||||||||||
£ 23.80 per unit (click for quantity discounts) Ready to despatch 16 Need more? Please call us.
Thread hand Right d1 6 l1 36 d2 M6 d3 12.70 l2 22 d4 20 a1
° 13.0 | |||||||||||||||||||||||||||
| R3550.R008 | Right | 8 | 42 | M8 | 15.87 | 25 | 24 | 14.5 | |||||||||||||||||||
£ 26.40 per unit (click for quantity discounts) Ready to despatch 15 Need more? Please call us.
Thread hand Right d1 8 l1 42 d2 M8 d3 15.87 l2 25 d4 24 a1
° 14.5 | |||||||||||||||||||||||||||
| R3550.R010 | Right | 10 | 48 | M10 | 19.05 | 29 | 28 | 13.5 | |||||||||||||||||||
£ 28.88 per unit (click for quantity discounts) Ready to despatch 13 Need more? Please call us.
Thread hand Right d1 10 l1 48 d2 M10 d3 19.05 l2 29 d4 28 a1
° 13.5 | |||||||||||||||||||||||||||
| R3550.R012 | Right | 12 | 54 | M12 | 22.22 | 33 | 32 | 13.0 | |||||||||||||||||||
£ 37.21 per unit (click for quantity discounts) Ready to despatch 18 Need more? Please call us.
Thread hand Right d1 12 l1 54 d2 M12 d3 22.22 l2 33 d4 32 a1
° 13.0 | |||||||||||||||||||||||||||
| R3550.R014 | Right | 14 | 60 | M14 | 25.40 | 36 | 36 | 16.0 | |||||||||||||||||||
£ 50.94 per unit (click for quantity discounts) Ready to despatch 75 Need more? Please call us.
Thread hand Right d1 14 l1 60 d2 M14 d3 25.40 l2 36 d4 36 a1
° 16.0 | |||||||||||||||||||||||||||
| R3550.R016 | Right | 16 | 66 | M16 | 28.57 | 40 | 42 | 15.5 | |||||||||||||||||||
£ 60.24 per unit (click for quantity discounts) Ready to despatch 28 Need more? Please call us.
Thread hand Right d1 16 l1 66 d2 M16 d3 28.57 l2 40 d4 42 a1
° 15.5 | |||||||||||||||||||||||||||
| R3550.R018 | Right | 18 | 72 | M18x1,5* | 31.75 | 44 | 46 | 15.0 | |||||||||||||||||||
£ 76.90 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us.
Thread hand Right d1 18 l1 72 d2 M18x1,5* d3 31.75 l2 44 d4 46 a1
° 15.0 | |||||||||||||||||||||||||||
| R3550.R020 | Right | 20 | 78 | M20x1,5* | 34.92 | 47 | 50 | 14.5 | |||||||||||||||||||
£ 80.04 per unit (click for quantity discounts) Ready to despatch 4 Need more? Please call us.
Thread hand Right d1 20 l1 78 d2 M20x1,5* d3 34.92 l2 47 d4 50 a1
° 14.5 | |||||||||||||||||||||||||||
| R3550.R022 | Right | 22 | 84 | M22x1,5* | 38.10 | 51 | 54 | 15.5 | |||||||||||||||||||
£ 106.43 per unit (click for quantity discounts) Ready to despatch 3 Need more? Please call us.
Thread hand Right d1 22 l1 84 d2 M22x1,5* d3 38.10 l2 51 d4 54 a1
° 15.5 | |||||||||||||||||||||||||||
| R3550.R025 | Right | 25 | 94 | M24x2* | 42.85 | 57 | 60 | 15.0 | |||||||||||||||||||
£ 117.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Thread hand Right d1 25 l1 94 d2 M24x2* d3 42.85 l2 57 d4 60 a1
° 15.0 | |||||||||||||||||||||||||||
| R3550.R030 | Right | 30 | 110 | M30x2* | 50.75 | 66 | 70 | 17.0 | |||||||||||||||||||
£ 155.36 per unit (click for quantity discounts) Ready to despatch 2 Need more? Please call us.
Thread hand Right d1 30 l1 110 d2 M30x2* d3 50.75 l2 66 d4 70 a1
° 17.0 | |||||||||||||||||||||||||||
| R3550.L005 | Left | 5 | 33 | M5 | 11.11 | 20 | 18 | 13.0 | |||||||||||||||||||
£ 23.80 per unit (click for quantity discounts) Ready to despatch 30 Need more? Please call us.
Thread hand Left d1 5 l1 33 d2 M5 d3 11.11 l2 20 d4 18 a1
° 13.0 | |||||||||||||||||||||||||||
| R3550.L006 | Left | 6 | 36 | M6 | 12.70 | 22 | 20 | 13.0 | |||||||||||||||||||
£ 23.80 per unit (click for quantity discounts) Ready to despatch 34 Need more? Please call us.
Thread hand Left d1 6 l1 36 d2 M6 d3 12.70 l2 22 d4 20 a1
° 13.0 | |||||||||||||||||||||||||||
| R3550.L008 | Left | 8 | 42 | M8 | 15.87 | 25 | 24 | 14.5 | |||||||||||||||||||
£ 26.40 per unit (click for quantity discounts) Ready to despatch 19 Need more? Please call us.
Thread hand Left d1 8 l1 42 d2 M8 d3 15.87 l2 25 d4 24 a1
° 14.5 | |||||||||||||||||||||||||||
| R3550.L010 | Left | 10 | 48 | M10 | 19.05 | 29 | 28 | 13.5 | |||||||||||||||||||
£ 28.88 per unit (click for quantity discounts) Ready to despatch 24 Need more? Please call us.
Thread hand Left d1 10 l1 48 d2 M10 d3 19.05 l2 29 d4 28 a1
° 13.5 | |||||||||||||||||||||||||||
| R3550.L012 | Left | 12 | 54 | M12 | 22.22 | 33 | 32 | 13.0 | |||||||||||||||||||
£ 37.21 per unit (click for quantity discounts) Ready to despatch 8 Need more? Please call us.
Thread hand Left d1 12 l1 54 d2 M12 d3 22.22 l2 33 d4 32 a1
° 13.0 | |||||||||||||||||||||||||||
| R3550.L014 | Left | 14 | 60 | M14 | 25.40 | 36 | 36 | 16.0 | |||||||||||||||||||
£ 50.94 per unit (click for quantity discounts) Ready to despatch 11 Need more? Please call us.
Thread hand Left d1 14 l1 60 d2 M14 d3 25.40 l2 36 d4 36 a1
° 16.0 | |||||||||||||||||||||||||||
| R3550.L016 | Left | 16 | 66 | M16 | 28.57 | 40 | 42 | 15.5 | |||||||||||||||||||
£ 60.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Thread hand Left d1 16 l1 66 d2 M16 d3 28.57 l2 40 d4 42 a1
° 15.5 | |||||||||||||||||||||||||||
| R3550.L018 | Left | 18 | 72 | M18x1,5* | 31.75 | 44 | 46 | 15.0 | |||||||||||||||||||
£ 76.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Thread hand Left d1 18 l1 72 d2 M18x1,5* d3 31.75 l2 44 d4 46 a1
° 15.0 | |||||||||||||||||||||||||||
| R3550.L020 | Left | 20 | 78 | M20x1,5* | 34.92 | 47 | 50 | 14.5 | |||||||||||||||||||
£ 80.04 per unit (click for quantity discounts) Ready to despatch 3 Need more? Please call us.
Thread hand Left d1 20 l1 78 d2 M20x1,5* d3 34.92 l2 47 d4 50 a1
° 14.5 | |||||||||||||||||||||||||||
| R3550.L022 | Left | 22 | 84 | M22x1,5* | 38.10 | 51 | 54 | 15.5 | |||||||||||||||||||
£ 106.43 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Thread hand Left d1 22 l1 84 d2 M22x1,5* d3 38.10 l2 51 d4 54 a1
° 15.5 | |||||||||||||||||||||||||||
| R3550.L025 | Left | 25 | 94 | M24x2* | 42.85 | 57 | 60 | 15.0 | |||||||||||||||||||
£ 117.99 per unit (click for quantity discounts) Ready to despatch 7 Need more? Please call us.
Thread hand Left d1 25 l1 94 d2 M24x2* d3 42.85 l2 57 d4 60 a1
° 15.0 | |||||||||||||||||||||||||||
| R3550.L030 | Left | 30 | 110 | M30x2* | 50.80 | 66 | 70 | 17.0 | |||||||||||||||||||
£ 155.36 per unit (click for quantity discounts) Ready to despatch 6 Need more? Please call us.
Thread hand Left d1 30 l1 110 d2 M30x2* d3 50.80 l2 66 d4 70 a1
° 17.0 | |||||||||||||||||||||||||||
Weight
g
a2
°
l3
w1
w2
Dyn. load C
max.
kN
Static load C0
max.
kN
| Price & Availability | Article | Weight g | a2 ° | l3 | w1 | w2 | Dyn. load C max. kN | Static load C0 max. kN | ||||||||||||||||||
| R3550.R005 | 14 | 7.5 | 9 | 8 | 6.00 | 3.9 | 5.6 | |||||||||||||||||||
£ 23.80 per unit (click for quantity discounts) Ready to despatch 11 Need more? Please call us.
Weight
g 14 a2
° 7.5 l3 9 w1 8 w2 6.00 Dyn. load C
max.
kN 3.9 Static load C0
max.
kN 5.6 | ||||||||||||||||||||||||||
| R3550.R006 | 20 | 6.5 | 12 | 9 | 6.75 | 4.6 | 7.8 | |||||||||||||||||||
£ 23.80 per unit (click for quantity discounts) Ready to despatch 16 Need more? Please call us.
Weight
g 20 a2
° 6.5 l3 12 w1 9 w2 6.75 Dyn. load C
max.
kN 4.6 Static load C0
max.
kN 7.8 | ||||||||||||||||||||||||||
| R3550.R008 | 38 | 7.5 | 15 | 12 | 9.00 | 7.0 | 14.3 | |||||||||||||||||||
£ 26.40 per unit (click for quantity discounts) Ready to despatch 15 Need more? Please call us.
Weight
g 38 a2
° 7.5 l3 15 w1 12 w2 9.00 Dyn. load C
max.
kN 7.0 Static load C0
max.
kN 14.3 | ||||||||||||||||||||||||||
| R3550.R010 | 60 | 8.0 | 15 | 14 | 10.50 | 10.4 | 22.6 | |||||||||||||||||||
£ 28.88 per unit (click for quantity discounts) Ready to despatch 13 Need more? Please call us.
Weight
g 60 a2
° 8.0 l3 15 w1 14 w2 10.50 Dyn. load C
max.
kN 10.4 Static load C0
max.
kN 22.6 | ||||||||||||||||||||||||||
| R3550.R012 | 92 | 8.0 | 19 | 16 | 12.00 | 12.4 | 32.8 | |||||||||||||||||||
£ 37.21 per unit (click for quantity discounts) Ready to despatch 18 Need more? Please call us.
Weight
g 92 a2
° 8.0 l3 19 w1 16 w2 12.00 Dyn. load C
max.
kN 12.4 Static load C0
max.
kN 32.8 | ||||||||||||||||||||||||||
| R3550.R014 | 127 | 9.5 | 20 | 19 | 13.50 | 15.4 | 41.3 | |||||||||||||||||||
£ 50.94 per unit (click for quantity discounts) Ready to despatch 75 Need more? Please call us.
Weight
g 127 a2
° 9.5 l3 20 w1 19 w2 13.50 Dyn. load C
max.
kN 15.4 Static load C0
max.
kN 41.3 | ||||||||||||||||||||||||||
| R3550.R016 | 202 | 8.5 | 22 | 21 | 15.00 | 22.4 | 56.6 | |||||||||||||||||||
£ 60.24 per unit (click for quantity discounts) Ready to despatch 28 Need more? Please call us.
Weight
g 202 a2
° 8.5 l3 22 w1 21 w2 15.00 Dyn. load C
max.
kN 22.4 Static load C0
max.
kN 56.6 | ||||||||||||||||||||||||||
| R3550.R018 | 250 | 9.5 | 25 | 23 | 16.50 | 26.3 | 69.7 | |||||||||||||||||||
£ 76.90 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us.
Weight
g 250 a2
° 9.5 l3 25 w1 23 w2 16.50 Dyn. load C
max.
kN 26.3 Static load C0
max.
kN 69.7 | ||||||||||||||||||||||||||
| R3550.R020 | 327 | 9.0 | 28 | 25 | 18.00 | 30.8 | 82.2 | |||||||||||||||||||
£ 80.04 per unit (click for quantity discounts) Ready to despatch 4 Need more? Please call us.
Weight
g 327 a2
° 9.0 l3 28 w1 25 w2 18.00 Dyn. load C
max.
kN 30.8 Static load C0
max.
kN 82.2 | ||||||||||||||||||||||||||
| R3550.R022 | 440 | 10.0 | 26 | 28 | 20.00 | 38.2 | 95.6 | |||||||||||||||||||
£ 106.43 per unit (click for quantity discounts) Ready to despatch 3 Need more? Please call us.
Weight
g 440 a2
° 10.0 l3 26 w1 28 w2 20.00 Dyn. load C
max.
kN 38.2 Static load C0
max.
kN 95.6 | ||||||||||||||||||||||||||
| R3550.R025 | 630 | 10.0 | 30 | 31 | 22.00 | 45.3 | 118.6 | |||||||||||||||||||
£ 117.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 630 a2
° 10.0 l3 30 w1 31 w2 22.00 Dyn. load C
max.
kN 45.3 Static load C0
max.
kN 118.6 | ||||||||||||||||||||||||||
| R3550.R030 | 1015 | 10.5 | 35 | 37 | 25.00 | 55.0 | 145.6 | |||||||||||||||||||
£ 155.36 per unit (click for quantity discounts) Ready to despatch 2 Need more? Please call us.
Weight
g 1015 a2
° 10.5 l3 35 w1 37 w2 25.00 Dyn. load C
max.
kN 55.0 Static load C0
max.
kN 145.6 | ||||||||||||||||||||||||||
| R3550.L005 | 14 | 7.5 | 9 | 8 | 6.00 | 3.9 | 5.6 | |||||||||||||||||||
£ 23.80 per unit (click for quantity discounts) Ready to despatch 30 Need more? Please call us.
Weight
g 14 a2
° 7.5 l3 9 w1 8 w2 6.00 Dyn. load C
max.
kN 3.9 Static load C0
max.
kN 5.6 | ||||||||||||||||||||||||||
| R3550.L006 | 20 | 6.5 | 12 | 9 | 6.75 | 4.6 | 7.8 | |||||||||||||||||||
£ 23.80 per unit (click for quantity discounts) Ready to despatch 34 Need more? Please call us.
Weight
g 20 a2
° 6.5 l3 12 w1 9 w2 6.75 Dyn. load C
max.
kN 4.6 Static load C0
max.
kN 7.8 | ||||||||||||||||||||||||||
| R3550.L008 | 38 | 7.5 | 15 | 12 | 9.00 | 7.0 | 14.3 | |||||||||||||||||||
£ 26.40 per unit (click for quantity discounts) Ready to despatch 19 Need more? Please call us.
Weight
g 38 a2
° 7.5 l3 15 w1 12 w2 9.00 Dyn. load C
max.
kN 7.0 Static load C0
max.
kN 14.3 | ||||||||||||||||||||||||||
| R3550.L010 | 60 | 8.0 | 15 | 14 | 10.50 | 10.4 | 22.6 | |||||||||||||||||||
£ 28.88 per unit (click for quantity discounts) Ready to despatch 24 Need more? Please call us.
Weight
g 60 a2
° 8.0 l3 15 w1 14 w2 10.50 Dyn. load C
max.
kN 10.4 Static load C0
max.
kN 22.6 | ||||||||||||||||||||||||||
| R3550.L012 | 92 | 8.0 | 19 | 16 | 12.00 | 12.4 | 32.8 | |||||||||||||||||||
£ 37.21 per unit (click for quantity discounts) Ready to despatch 8 Need more? Please call us.
Weight
g 92 a2
° 8.0 l3 19 w1 16 w2 12.00 Dyn. load C
max.
kN 12.4 Static load C0
max.
kN 32.8 | ||||||||||||||||||||||||||
| R3550.L014 | 127 | 9.5 | 20 | 19 | 13.50 | 15.4 | 41.3 | |||||||||||||||||||
£ 50.94 per unit (click for quantity discounts) Ready to despatch 11 Need more? Please call us.
Weight
g 127 a2
° 9.5 l3 20 w1 19 w2 13.50 Dyn. load C
max.
kN 15.4 Static load C0
max.
kN 41.3 | ||||||||||||||||||||||||||
| R3550.L016 | 202 | 8.5 | 22 | 21 | 15.00 | 22.4 | 56.6 | |||||||||||||||||||
£ 60.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 202 a2
° 8.5 l3 22 w1 21 w2 15.00 Dyn. load C
max.
kN 22.4 Static load C0
max.
kN 56.6 | ||||||||||||||||||||||||||
| R3550.L018 | 250 | 9.5 | 25 | 23 | 16.50 | 26.325 | 69.700 | |||||||||||||||||||
£ 76.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 250 a2
° 9.5 l3 25 w1 23 w2 16.50 Dyn. load C
max.
kN 26.325 Static load C0
max.
kN 69.700 | ||||||||||||||||||||||||||
| R3550.L020 | 327 | 9.0 | 28 | 25 | 18.00 | 30.805 | 82.200 | |||||||||||||||||||
£ 80.04 per unit (click for quantity discounts) Ready to despatch 3 Need more? Please call us.
Weight
g 327 a2
° 9.0 l3 28 w1 25 w2 18.00 Dyn. load C
max.
kN 30.805 Static load C0
max.
kN 82.200 | ||||||||||||||||||||||||||
| R3550.L022 | 440 | 10.0 | 26 | 28 | 20.00 | 38.2 | 95.6 | |||||||||||||||||||
£ 106.43 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 440 a2
° 10.0 l3 26 w1 28 w2 20.00 Dyn. load C
max.
kN 38.2 Static load C0
max.
kN 95.6 | ||||||||||||||||||||||||||
| R3550.L025 | 630 | 10.0 | 30 | 31 | 22.00 | 45.3 | 118.6 | |||||||||||||||||||
£ 117.99 per unit (click for quantity discounts) Ready to despatch 7 Need more? Please call us.
Weight
g 630 a2
° 10.0 l3 30 w1 31 w2 22.00 Dyn. load C
max.
kN 45.3 Static load C0
max.
kN 118.6 | ||||||||||||||||||||||||||
| R3550.L030 | 1015 | 10.5 | 35 | 37 | 25.00 | 55.0 | 145.6 | |||||||||||||||||||
£ 155.36 per unit (click for quantity discounts) Ready to despatch 6 Need more? Please call us.
Weight
g 1015 a2
° 10.5 l3 35 w1 37 w2 25.00 Dyn. load C
max.
kN 55.0 Static load C0
max.
kN 145.6 | ||||||||||||||||||||||||||
Technical & Application
Material
Housing - forged steel, tempered, rolled thread, surface galvanized.
Joint ball - ball bearing steel, hardened and ground.
Race - nylon/teflon/glass compound.
Technical Notes
Maintenance free, sizes according to DIN ISO 12240-4, series K, for tolerances see technical pages.
Tips
Standard thread is right hand thread.
Important Notes
*Denotes fine pitch thread.
