Spherical Plain Bearing - K Series
maintenance free
R3572.F Low Cost Rod End - Female
with teflon bearing race, material: Steel
Order No.
R3572.FL005
Thread hand
Left

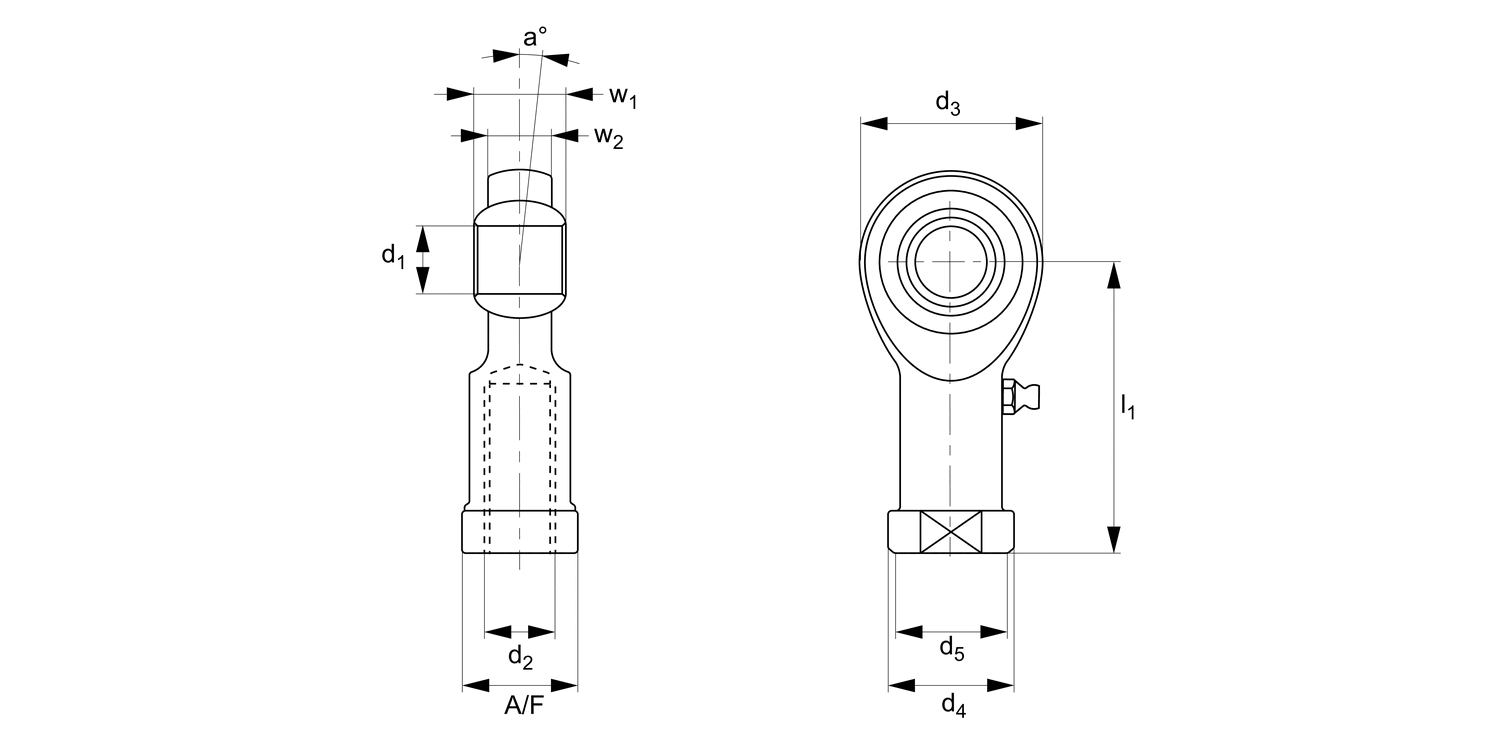

d1
tol. H7
5
l1
27
d2
M 5
d3
16
d4
11
d5
8.5
l2
10
l3
35
w1
8
w2
6.0
A/F
9
a
°
13
Static load C0
max.
kN
4.6
£ 2.56 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 2.56 | 0% |
| 50-99 | £ 2.05 | 20% |
| 100-199 | £ 1.92 | 25% |
| 200-499 | £ 1.79 | 30% |
| 500-999 | £ 1.66 | 35% |
| 1000+ | £ 1.54 | 40% |
Technical & Application
Material
Ball: low carbon steel, surface hardened. Silver zinc plated.
Housing: low carbon steel, zinc plated for corrosion resistance.
Technical Notes
Standard thread is right hand thread.
Important Notes
Housing styles are subject to change.
