Spherical Plain Bearing - K Series
maintenance free

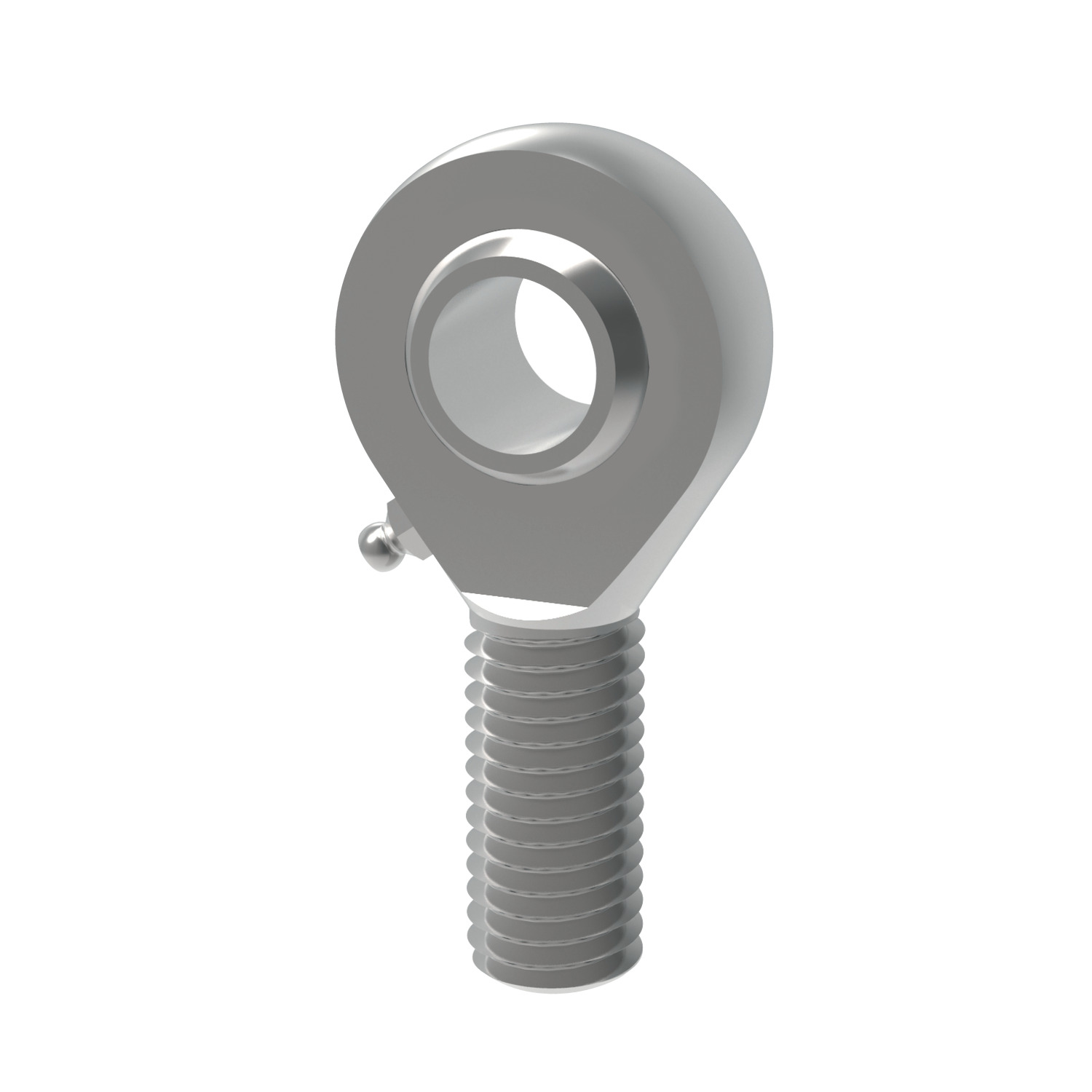

R3563 Stainless Heavy-Duty Rod Ends - Male
with integral ball bearing, material: Stainless steel
Order No.
R3563.R008
Thread hand
Right

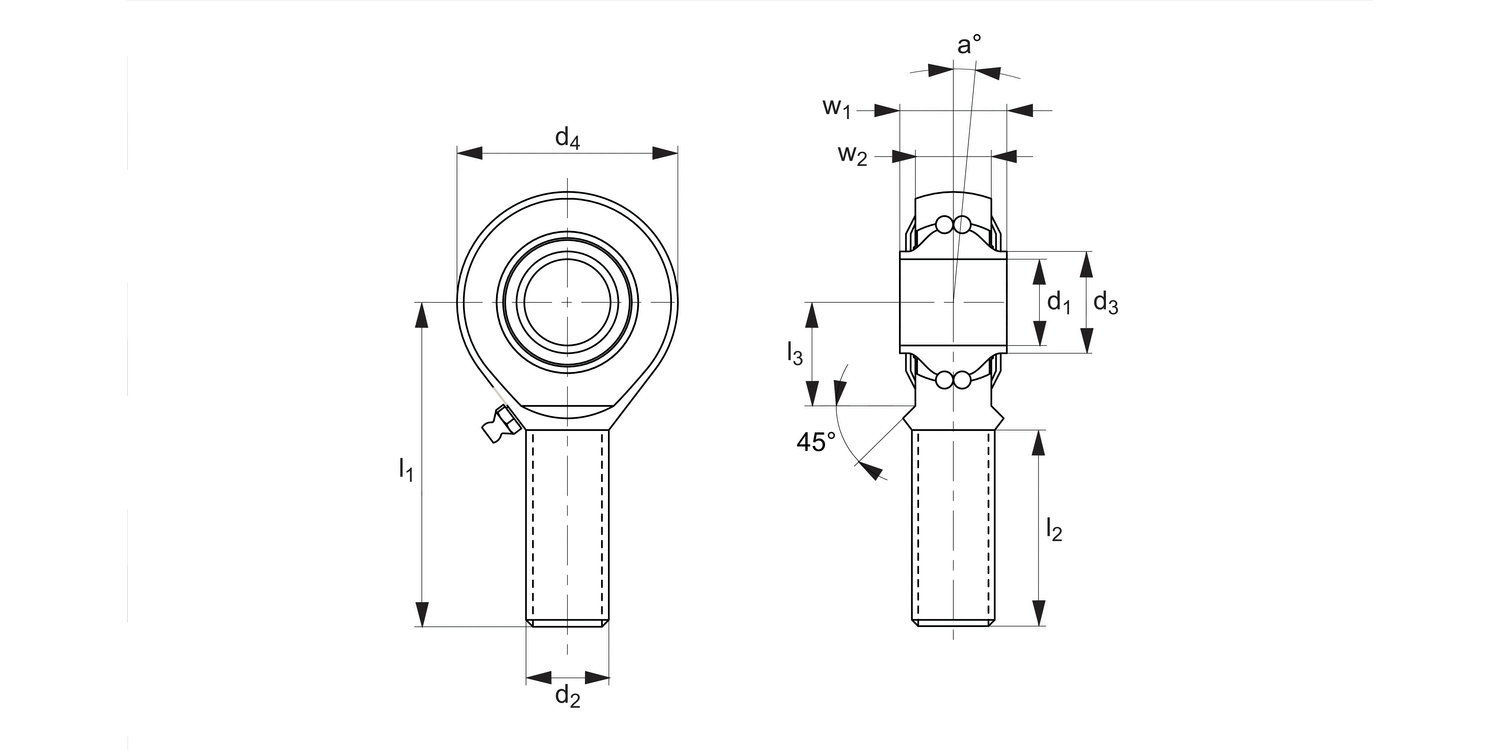

d1
8
l1
42
d2
M8
d3
10.5
l2
25
d4
24
a
°
8.5
l3
15
w1
12
Weight
g
36
w2
9.00
Calc. factor Y
1.89
Calc. factor Y0
1.80
Dyn. load C
max.
kN
0.7
Speed
max.
rpm
1300
Static load C0
max.
kN
2.8
£ 169.64 per unit (click for quantity discounts)
Ready to despatch 8
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 169.64 | 0% |
| 10-19 | £ 152.68 | 10% |
| 20-49 | £ 144.19 | 15% |
| 50-99 | £ 135.71 | 20% |
| 100+ | £ 118.75 | 30% |
Technical & Application
Material
Housing - stainless steel (AISI 304), forged, hardened bearing race, superfinished, rolled thread.
Inner ring - stainless steel (AISI 304), hardened, superfine finish.
Lubrication - aluminium-complex-soap-grease, temp range -45°C to +120°C.
Lubrication nipple - DIN 3405 D1/A (until size 10) DIN 71412 H1 (from size 12).
Technical Notes
Low maintenance, sizes according to DIN ISO 12240-4 series K, for tolerances see technical pages.
Tips
Standard thread is right hand thread.
Important Notes
*Denotes fine pitch thread.
