R3562
HomeProductsLinkages & Rotary ComponentsUniversal Joints & Rod EndsRod EndsFemale Rod EndsR3562R3562.R030

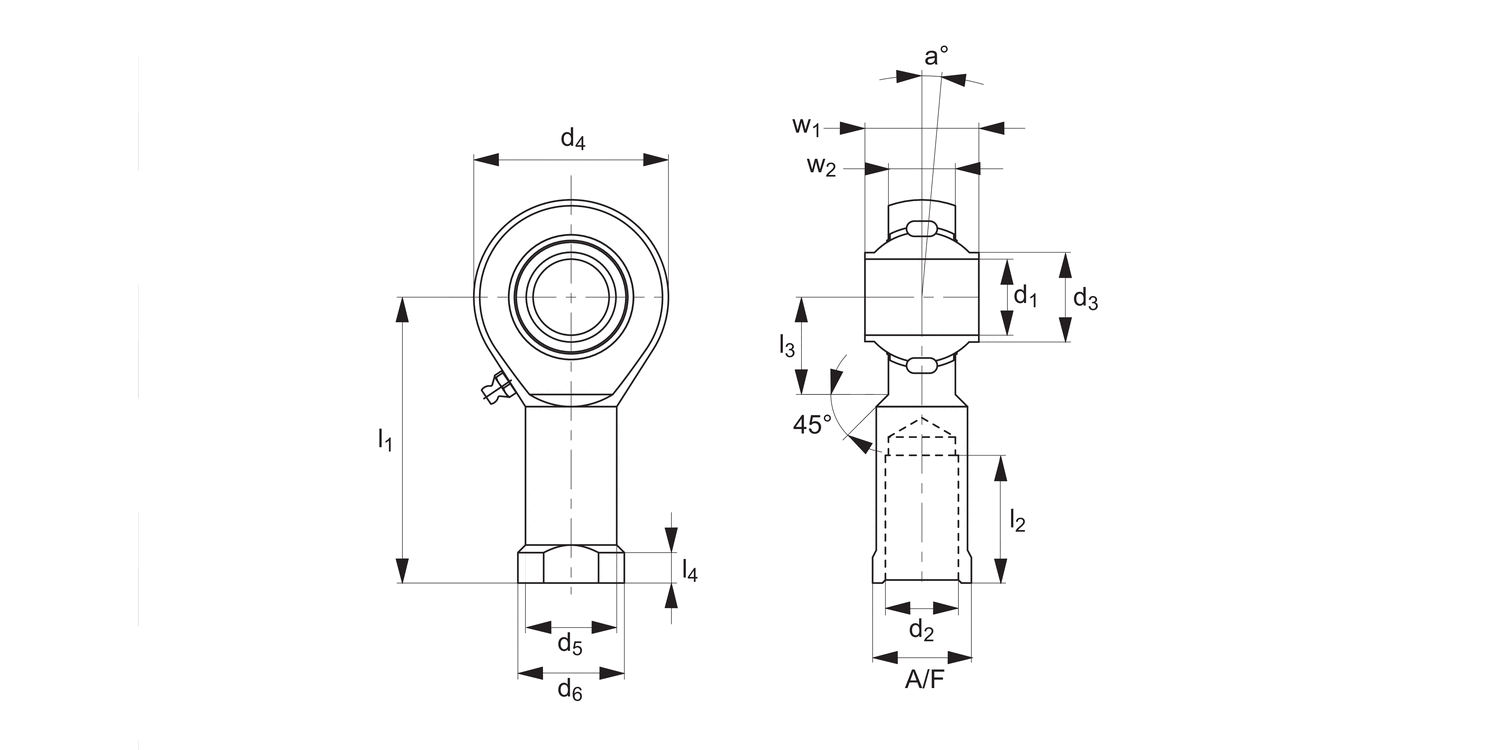

R3562 Heavy-Duty Rod Ends - Female

with integral roller bearing, material: Steel
R3562 Heavy-Duty Rod Ends - Female
R3562 Heavy-Duty Rod Ends - Female
Article properties
Order No.
R3562.R030
Thread hand
Right
d1
30
l1
110.0
d2
M30x2*
d3
34.5
d4
70
d5
40.0
d6
50
l2
51.0
Weight g
1000
l3
35
l4
15.0
w1
37
w2
25
A/F
41
a °
7.5
Dyn. load C max. kN
32.5
Speed max. rpm
450
Static load C0 max. kN
24.9
See full product selection
£ 357.92 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1-9£ 357.920%
10-19£ 322.1310%
20-49£ 304.2315%
50-99£ 286.3420%
100+£ 250.5430%
Download product datasheet
Download FREE CAD

Technical & Application

Material

Rod end housing - forged steel, tempered, case hardened bearing race, ground and lapped, surface galvanized.
Inner ring - ball bearing steel, hardened, superfine ground.
Lubrication - calcium-complex-soap-grease, temp. range -20°C to +120°C, lubrication nipple - DIN 71412 HZ.

Technical Notes

Low maintenance. Sizes according to DIN ISO 12240-4, series K, for tolerances see technical pages.

Tips

Standard thread is right hand thread.

Important Notes

*Denotes fine pitch thread.

Product Datasheets

R3562 Heavy-Duty Rod Ends - FemaleJune 19, 2025, 4:57 PM / 2.93 MB
Female Rod EndsJune 19, 2025, 4:50 PM / 8.89 MB
Rod EndsJune 19, 2025, 4:45 PM / 18.33 MB
Universal Joints & Rod EndsJune 19, 2025, 4:38 PM / 4.30 MB
Linkages & Rotary ComponentsJune 19, 2025, 4:38 PM / 20.62 MB

CAD files

R3562 AcisNovember 8, 2012, 8:55 AM / 742.62 kB
R3562 IGESNovember 8, 2012, 8:55 AM / 1.67 MB
R3562 ParasolidNovember 8, 2012, 8:55 AM / 306.68 kB
R3562 ProENovember 8, 2012, 8:55 AM / 1.29 MB
R3562 SolidWorksNovember 8, 2012, 8:55 AM / 2.37 MB
R3562 StepNovember 8, 2012, 8:55 AM / 598.94 kB
