R3560 Heavy-Duty Rod Ends - Female

with integral ball bearing, material: Steel
R3560 Heavy-Duty Rod Ends - Female
R3560 Heavy-Duty Rod Ends - Female
Article properties

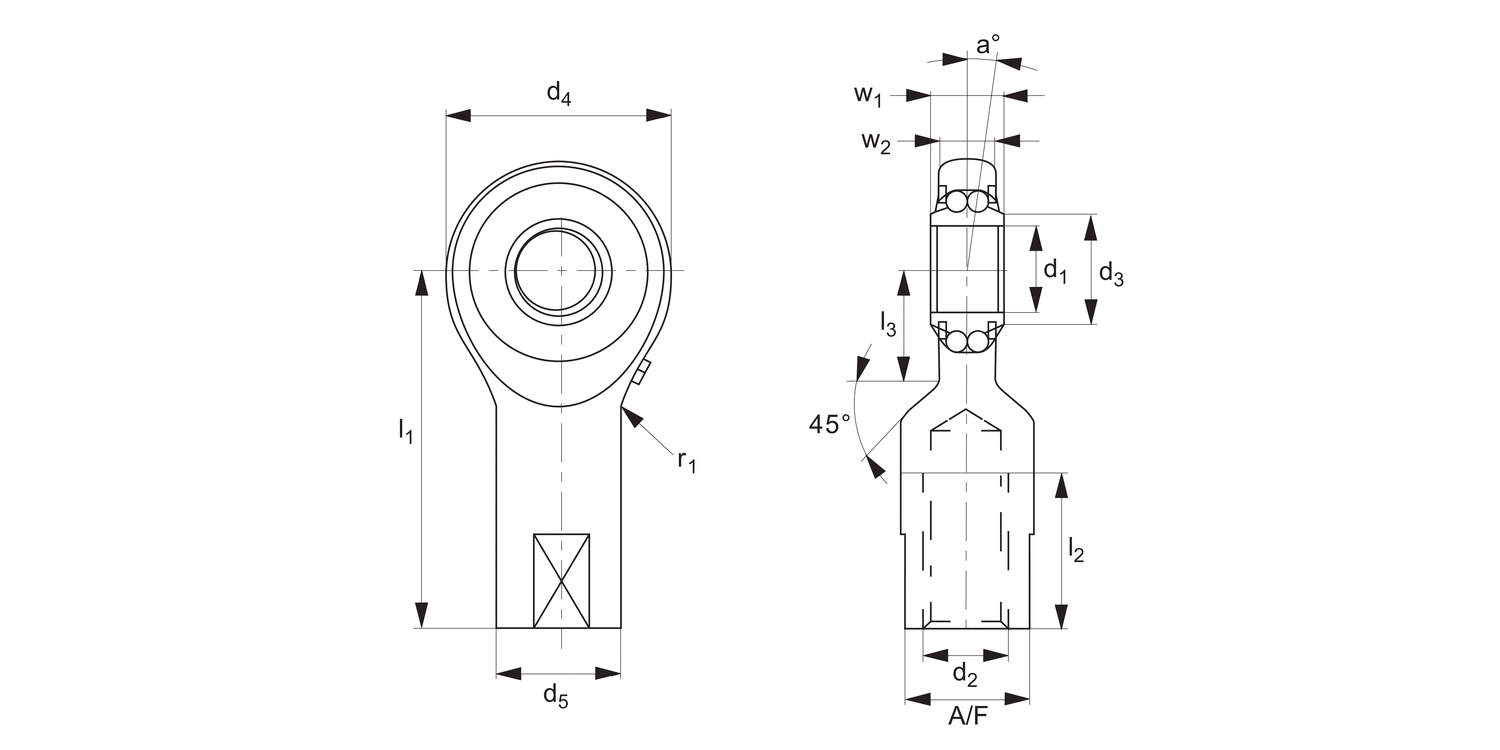

Order No.
R3560.R015
Thread hand
Right
d1
15
l1
51
d2
M12
d3
17.5
d4
40
d5
19
l2
24
l3
20.0
w1
16.5
w2
12
R
15
Weight g
140
A/F
17
a °
7.0
Calc. factor Y
2.30
Dyn. load C max. kN
5.0
Calc. factor Y0
2.41
Speed max. rpm
1025
Static load C0 max. kN
1.9
See full product selection
£ 115.40 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1-9£ 115.400%
10-19£ 103.8610%
20-49£ 98.0915%
50-99£ 92.3220%
100+£ 80.7830%
Download product datasheet
Download FREE CAD

Technical & Application

Material

Rod end housing - forged steel, tempered, case hardened bearing race, ground and lapped, surface galvanized.
Inner ring - ball bearing steel, hardened, superfine ground.
Lubrication - calcium-complex-soap-grease, temp range -20°C to +120°C, lubrication nipple - DIN 3405 D1/A.

Technical Notes

Low maintenance, for tolerances see technical pages.

Tips

Standard thread is right hand thread.

Product Datasheets

R3560 Heavy-Duty Rod Ends - FemaleJune 19, 2025, 4:57 PM / 2.93 MB
Female Rod EndsJune 19, 2025, 4:50 PM / 8.89 MB
Rod EndsJune 19, 2025, 4:45 PM / 18.33 MB
Universal Joints & Rod EndsJune 19, 2025, 4:38 PM / 4.30 MB
Linkages & Rotary ComponentsJune 19, 2025, 4:38 PM / 20.62 MB

CAD files

R3560 IGESSeptember 17, 2010, 1:28 PM / 1.09 MB
R3560 ParasolidSeptember 17, 2010, 1:28 PM / 206.52 kB
R3560 ProESeptember 17, 2010, 1:28 PM / 825.07 kB
R3560 SolidWorksSeptember 17, 2010, 1:28 PM / 1.35 MB
R3560 StepSeptember 17, 2010, 1:28 PM / 412.85 kB
