Spherical Plain Bearing - K Series
maintenance free
R3551.i Imperial Heavy Duty Rod End
Female, material: Steel
Order No.
R3551.I500
Thread hand
Right

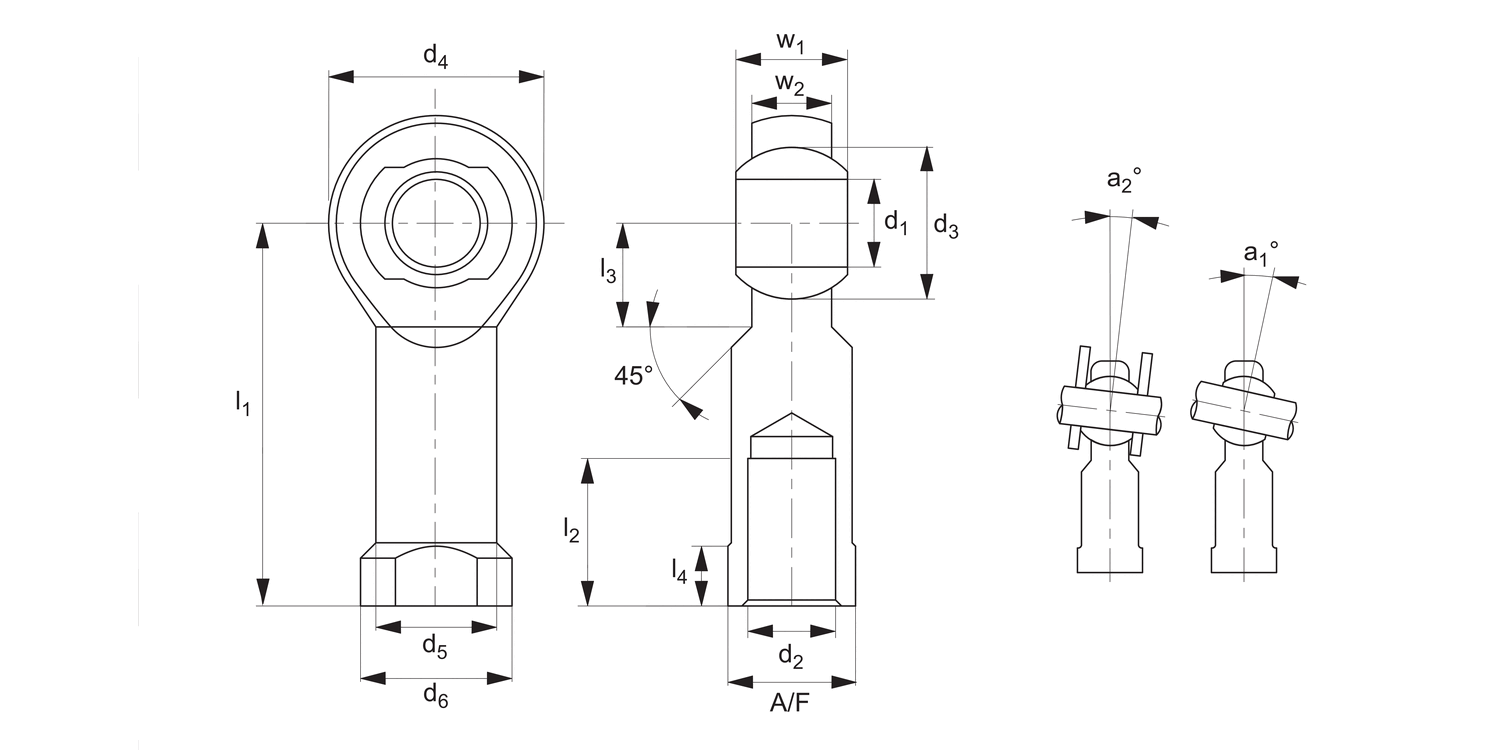

d1
0.500
l1
2.145
d2
1/2-20
d3
0.876
d4
1.311
d5
0.748
d6
0.874
Weight
g
127
l2
1.161
l3
0.649
l4
0.279
l5
2.801
w1
0.624
w2
0.472
A/F
0.757
a
°
13.0
Dyn. load C
max.
kN
14.7
Static load C0
max.
kN
42.9
£ 40.13 per unit (click for quantity discounts)
Ready to despatch 4
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 40.13 | 0% |
| 50-99 | £ 32.10 | 20% |
| 100-199 | £ 28.09 | 30% |
| 200-999 | £ 20.07 | 50% |
| 1000+ | £ 16.05 | 60% |
Technical & Application
Material
Rod end housing - forged steel, tempered, surface galvanized.
Joint ball - ball bearing steel, hardened and ground, polished and chromium plated.
Race - nylon/teflon/glass compound.
Technical Notes
Female thread maintenance free adapter sizes according to DIN ISO 12240-4, series K, thread according to Cetop RP 103P.
Tips
Standard thread is right hand thread.
