R3622 Hydraulic Rod Ends

Name: R3622.120
Brand: WC
SKU: R3622.120
Price: 1145.57 EUR
Availability: OutOfStock

weld-on base, material: Steel

Article properties

Order No.

R3622.120

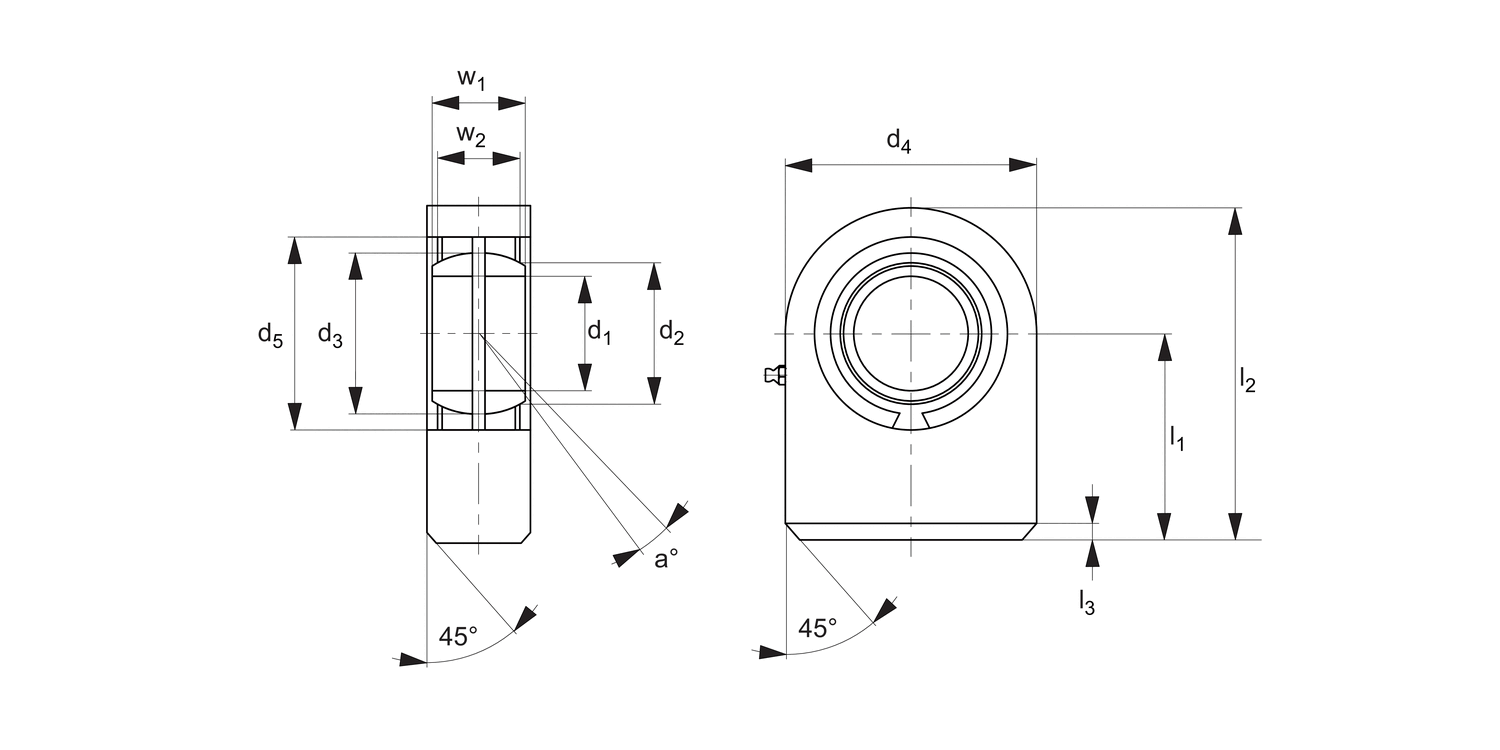

d₁ tol. M7

120

l₁

210

d₂

135.5

d₃

160

d₄

360

d₅

180

Weight g

79000

Dyn. load C max. kN

950.00

l₂

390

l₃

Static load C₀ max. kN

3250.00

w₁

w₂

a °

See full product selection

£ 1,145.57 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 1,145.57	0%
10-19	£ 1,031.01	10%
20-49	£ 973.73	15%
50-99	£ 916.46	20%
100+	£ 801.90	30%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Housing: forged steel (st 52-3), steel on steel bearing requiring lubrication, spherical plain bearing.

Technical Notes

Fitted with hydraulic grease nipple to DIN 71412

Tips

Rod ends with rectangular surface for weld-on, spherical plain bearings fixed with snap rings.

Product Datasheets

R3622 Hydraulic Rod EndsJune 19, 2025, 4:56 PM / 1.64 MB

Hydraulic Rod EndsJune 19, 2025, 4:50 PM / 6.15 MB

Rod EndsJune 19, 2025, 4:45 PM / 18.33 MB

Universal Joints & Rod EndsJune 19, 2025, 4:38 PM / 4.30 MB

Linkages & Rotary ComponentsJune 19, 2025, 4:38 PM / 20.62 MB

CAD files

R3622 AcisJuly 1, 2011, 10:14 AM / 1.07 MB

R3622 IGESJuly 1, 2011, 10:14 AM / 1.67 MB

R3622 ParasolidJuly 1, 2011, 10:14 AM / 341.70 kB

R3622 ProEJuly 1, 2011, 10:14 AM / 1.48 MB

R3622 SolidWorksJuly 1, 2011, 10:14 AM / 3.38 MB

R3622 StepJuly 1, 2011, 10:14 AM / 764.86 kB
