R4000 Flexure Pivot Bearings

single-ended, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Flexure Pivot Bearings
single end

Flexure Pivot Bearings
double end

Pivot bearing single end 1/8in

R4000.A-10

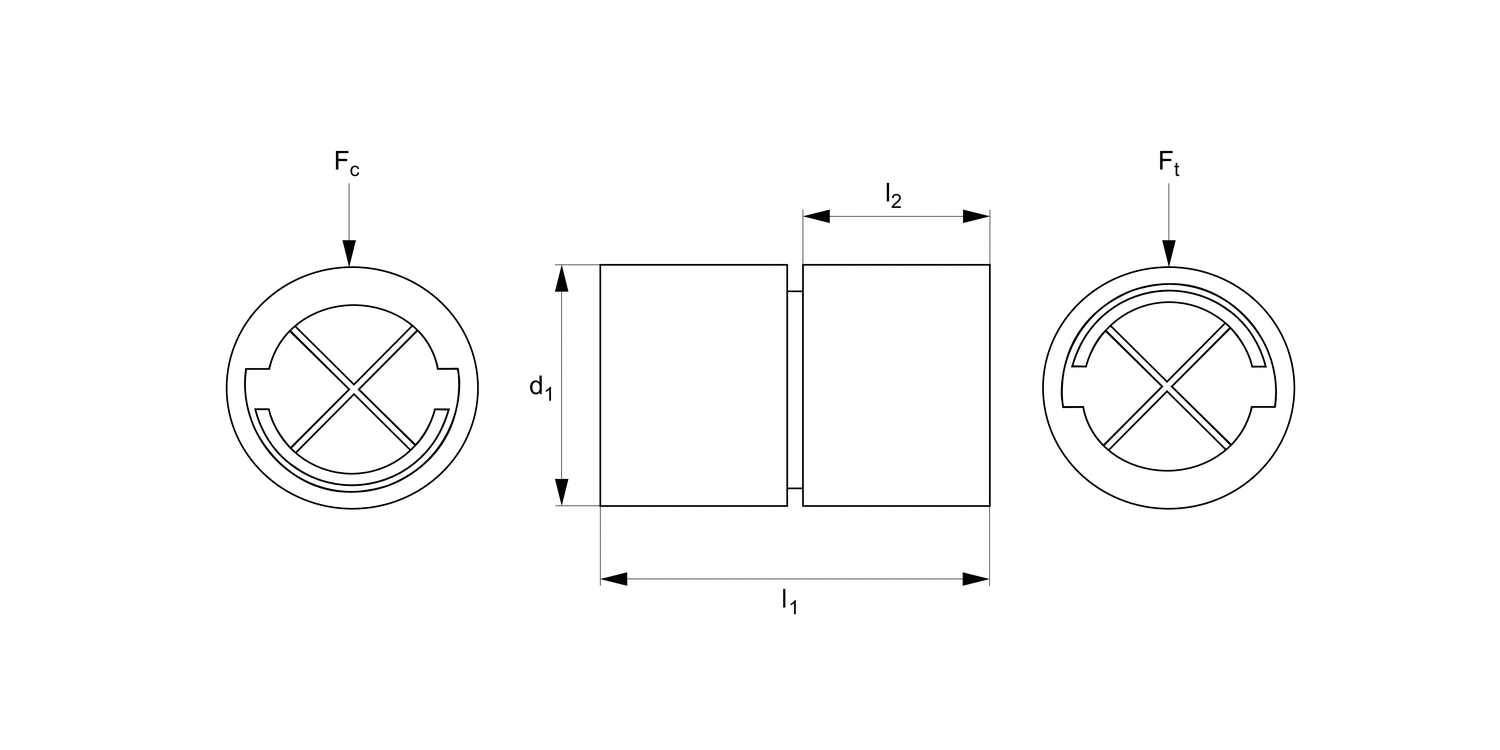

d₁ +0.00|-0.13

3,175 (1/8")

l₁ ±0.08

5.08

l₂ min.

2.24

Torsional spring rate Nmm/°

0.034

Load f_c compression max. kg

0.43

Load f_t tension max. kg

1.72

Angular movement max.

±15°

£ 113.65 per unit (click for quantity discounts)

Pivot bearing single end 1/8in

R4000.A-20

d₁ +0.00|-0.13

3,175 (1/8")

l₁ ±0.08

5.08

l₂ min.

2.24

Torsional spring rate Nmm/°

0.20

Load f_c compression max. kg

4.03

Load f_t tension max. kg

5.76

Angular movement max.

±7,5°

£ 101.02 per unit (click for quantity discounts)

Pivot bearing single end 1/8in

R4000.A-30

d₁ +0.00|-0.13

3,175 (1/8")

l₁ ±0.08

5.08

l₂ min.

2.24

Torsional spring rate Nmm/°

1.67

Load f_c compression max. kg

11.47

Load f_t tension max. kg

11.47

Angular movement max.

±3,7°

£ 101.02 per unit (click for quantity discounts)

Pivot bearing single end 5/32in

R4000.B-10

d₁ +0.00|-0.13

3,969 (5/32")

l₁ ±0.08

6.35

l₂ min.

2.90

Torsional spring rate Nmm/°

0.045

Load f_c compression max. kg

0.64

Load f_t tension max. kg

2.54

Angular movement max.

±15°

£ 119.75 per unit (click for quantity discounts)

Pivot bearing single end 5/32in

R4000.B-20

d₁ +0.00|-0.13

3,969 (5/32")

l₁ ±0.08

6.35

l₂ min.

2.90

Torsional spring rate Nmm/°

0.42

Load f_c compression max. kg

6.21

Load f_t tension max. kg

8.89

Angular movement max.

±7,5°

£ 96.92 per unit (click for quantity discounts)

Pivot bearing single end 5/32in

R4000.B-30

d₁ +0.00|-0.13

3,969 (5/32")

l₁ ±0.08

6.35

l₂ min.

2.90

Torsional spring rate Nmm/°

3.35

Load f_c compression max. kg

17.82

Load f_t tension max. kg

17.82

Angular movement max.

±3,7°

£ 96.92 per unit (click for quantity discounts)

Pivot bearing single end 3/16

R4000.C-10

d₁ +0.00|-0.13

4,763 (3/16")

l₁ ±0.08

7.62

l₂ min.

3.45

Torsional spring rate Nmm/°

0.08

Load f_c compression max. kg

0.90

Load f_t tension max. kg

3.53

Angular movement max.

±15°

£ 119.21 per unit (click for quantity discounts)

Pivot bearing single end 3/16in

R4000.C-20

d₁ +0.00|-0.13

4,763 (3/16")

l₁ ±0.08

7.62

l₂ min.

3.45

Torsional spring rate Nmm/°

0.68

Load f_c compression max. kg

8.84

Load f_t tension max. kg

12.65

Angular movement max.

±7,5°

£ 101.53 per unit (click for quantity discounts)

Pivot bearing single end 3/16in

R4000.C-30

d₁ +0.00|-0.13

4,763 (3/16")

l₁ ±0.08

7.62

l₂ min.

3.45

Torsional spring rate Nmm/°

5.45

Load f_c compression max. kg

25.31

Load f_t tension max. kg

25.31

Angular movement max.

±3,7°

£ 101.53 per unit (click for quantity discounts)

Pivot bearing single end 1/4in

R4000.D-10

d₁ +0.00|-0.13

6,350 (1/4")

l₁ ±0.08

10.16

l₂ min.

4.67

Torsional spring rate Nmm/°

0.20

Load f_c compression max. kg

1.63

Load f_t tension max. kg

6.44

Angular movement max.

±15°

£ 124.61 per unit (click for quantity discounts)

Pivot bearing single end 1/4in

R4000.D-20

d₁ +0.00|-0.13

6,350 (1/4")

l₁ ±0.08

10.16

l₂ min.

4.67

Torsional spring rate Nmm/°

1.67

Load f_c compression max. kg

15.87

Load f_t tension max. kg

22.68

Angular movement max.

±7,5°

£ 110.77 per unit (click for quantity discounts)

Pivot bearing single end 1/4in

R4000.D-30

d₁ +0.00|-0.13

6,350 (1/4")

l₁ ±0.08

10.16

l₂ min.

4.67

Torsional spring rate Nmm/°

13.39

Load f_c compression max. kg

45.36

Load f_t tension max. kg

45.36

Angular movement max.

±3,7°

£ 110.77 per unit (click for quantity discounts)

Pivot bearing single end 5/16in

R4000.E-10

d₁ +0.00|-0.13

7,938 (5/16")

l₁ ±0.08

12.70

l₂ min.

5.89

Torsional spring rate Nmm/°

0.42

Load f_c compression max. kg

2.58

Load f_t tension max. kg

10.34

Angular movement max.

±15°

£ 129.21 per unit (click for quantity discounts)

Pivot bearing single end 5/16in

R4000.E-20

d₁ +0.00|-0.13

7,938 (5/16")

l₁ ±0.08

12.70

l₂ min.

5.89

Torsional spring rate Nmm/°

3.35

Load f_c compression max. kg

24.95

Load f_t tension max. kg

35.65

Angular movement max.

±7,5°

£ 137.82 per unit (click for quantity discounts)

Pivot bearing single end 5/16in

R4000.E-30

d₁ +0.00|-0.13

7,938 (3/10")

l₁ ±0.08

12.70

l₂ min.

5.89

Torsional spring rate Nmm/°

26.75

Load f_c compression max. kg

71.26

Load f_t tension max. kg

71.26

Angular movement max.

±3,7°

£ 125.96 per unit (click for quantity discounts)

Pivot bearing single end 3/8in

R4000.F-10

d₁ +0.00|-0.13

9,525 (3/8")

l₁ ±0.08

15.24

l₂ min.

7.09

Torsional spring rate Nmm/°

0.73

Load f_c compression max. kg

3.81

Load f_t tension max. kg

15.24

Angular movement max.

±15°

£ 138.45 per unit (click for quantity discounts)

Pivot bearing single end 3/8in

R4000.F-20

d₁ +0.00|-0.13

9,525 (3/8")

l₁ ±0.08

15.24

l₂ min.

7.09

Torsional spring rate Nmm/°

5.45

Load f_c compression max. kg

35.88

Load f_t tension max. kg

51.25

Angular movement max.

±7,5°

£ 126.91 per unit (click for quantity discounts)

Pivot bearing single end 3/8in

R4000.F-30

d₁ +0.00|-0.13

9,525 (3/8")

l₁ ±0.08

15.24

l₂ min.

7.09

Torsional spring rate Nmm/°

45.22

Load f_c compression max. kg

102.51

Load f_t tension max. kg

102.51

Angular movement max.

±3,7°

£ 126.91 per unit (click for quantity discounts)

Pivot bearing single end 1/2in

R4000.G-10

d₁ +0.00|-0.13

12,700 (1/2")

l₁ ±0.08

20.32

l₂ min.

9.50

Torsional spring rate Nmm/°

1.67

Load f_c compression max. kg

6.53

Load f_t tension max. kg

26.03

Angular movement max.

±15°

£ 157.70 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4000.G-20

d₁ +0.00|-0.13

12,700 (1/2")

l₁ ±0.08

20.32

l₂ min.

9.50

Torsional spring rate Nmm/°

13.39

Load f_c compression max. kg

63.50

Load f_t tension max. kg

90.72

Angular movement max.

±7,5°

Pivot bearing single end 1/2in

R4000.G-30

d₁ +0.00|-0.13

12,700 (1/2")

l₁ ±0.08

20.32

l₂ min.

9.50

Torsional spring rate Nmm/°

107.19

Load f_c compression max. kg

181.44

Load f_t tension max. kg

181.44

Angular movement max.

±3,7°

£ 133.84 per unit (click for quantity discounts)

Pivot bearing single end 5/8in

R4000.H-10

d₁ +0.00|-0.13

15,875 (5/8")

l₁ ±0.08

25.40

l₂ min.

11.91

Torsional spring rate Nmm/°

3.33

Load f_c compression max. kg

10.43

Load f_t tension max. kg

41.73

Angular movement max.

±15°

£ 173.07 per unit (click for quantity discounts)

Pivot bearing single end 5/8in

R4000.H-20

d₁ +0.00|-0.13

15,875 (5/8")

l₁ ±0.08

25.40

l₂ min.

11.91

Torsional spring rate Nmm/°

26.75

Load f_c compression max. kg

100.29

Load f_t tension max. kg

143.25

Angular movement max.

±7,5°

£ 180.72 per unit (click for quantity discounts)

Pivot bearing single end 5/8in

R4000.H-30

d₁ +0.00|-0.13

15,875 (5/8")

l₁ ±0.08

25.40

l₂ min.

11.91

Torsional spring rate Nmm/°

214.02

Load f_c compression max. kg

286.45

Load f_t tension max. kg

286.45

Angular movement max.

±3,7°

£ 173.17 per unit (click for quantity discounts)

Pivot bearing single end 3/4in

R4000.I-10

d₁ +0.00|-0.13

19,050 (3/4")

l₁ ±0.08

30.48

l₂ min.

14.32

Torsional spring rate Nmm/°

5.45

Load f_c compression max. kg

14.69

Load f_t tension max. kg

58.69

Angular movement max.

±15°

£ 223.94 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4000.I-20

d₁ +0.00|-0.13

19,050 (3/4")

l₁ ±0.08

30.48

l₂ min.

14.32

Torsional spring rate Nmm/°

45.22

Load f_c compression max. kg

143.88

Load f_t tension max. kg

205.52

Angular movement max.

±7,5°

Pivot bearing single end 3/4in

R4000.I-30

d₁ +0.00|-0.13

19,050 (3/4")

l₁ ±0.08

30.48

l₂ min.

14.32

Torsional spring rate Nmm/°

368.49

Load f_c compression max. kg

411.00

Load f_t tension max. kg

411.00

Angular movement max.

±3,7°

£ 241.32 per unit (click for quantity discounts)

Pivot bearing single end 1in

R4000.J-10

d₁ +0.00|-0.13

25,400 (1")

l₁ ±0.08

40.64

l₂ min.

19.40

Torsional spring rate Nmm/°

13.39

Load f_c compression max. kg

26.85

Load f_t tension max. kg

107.32

Angular movement max.

±15°

£ 276.89 per unit (click for quantity discounts)

Pivot bearing single end 1in

R4000.J-20

d₁ +0.00|-0.13

25,400 (1")

l₁ ±0.08

40.64

l₂ min.

19.40

Torsional spring rate Nmm/°

107.19

Load f_c compression max. kg

256.87

Load f_t tension max. kg

366.92

Angular movement max.

±7,5°

£ 253.81 per unit (click for quantity discounts)

Pivot bearing single end 1in

R4000.J-30

d₁ +0.00|-0.13

25,400 (1")

l₁ ±0.08

40.64

l₂ min.

19.40

Torsional spring rate Nmm/°

881.66

Load f_c compression max. kg

733.00

Load f_t tension max. kg

733.00

Angular movement max.

±3,7°

£ 253.81 per unit (click for quantity discounts)

Pivot bearing single end 1/8in

R4000.A-10

d₁ +0.00|-0.13

3,175 (1/8")

l₁ ±0.08

5.08

l₂ min.

2.24

Torsional spring rate Nmm/°

0.034

Load f_c compression max. kg

0.43

Load f_t tension max. kg

1.72

Angular movement max.

±15°

£ 113.65 per unit (click for quantity discounts)

Pivot bearing single end 1/8in

R4000.A-20

d₁ +0.00|-0.13

3,175 (1/8")

l₁ ±0.08

5.08

l₂ min.

2.24

Torsional spring rate Nmm/°

0.20

Load f_c compression max. kg

4.03

Load f_t tension max. kg

5.76

Angular movement max.

±7,5°

£ 101.02 per unit (click for quantity discounts)

Pivot bearing single end 1/8in

R4000.A-30

d₁ +0.00|-0.13

3,175 (1/8")

l₁ ±0.08

5.08

l₂ min.

2.24

Torsional spring rate Nmm/°

1.67

Load f_c compression max. kg

11.47

Load f_t tension max. kg

11.47

Angular movement max.

±3,7°

£ 101.02 per unit (click for quantity discounts)

Pivot bearing single end 5/32in

R4000.B-10

d₁ +0.00|-0.13

3,969 (5/32")

l₁ ±0.08

6.35

l₂ min.

2.90

Torsional spring rate Nmm/°

0.045

Load f_c compression max. kg

0.64

Load f_t tension max. kg

2.54

Angular movement max.

±15°

£ 119.75 per unit (click for quantity discounts)

Pivot bearing single end 5/32in

R4000.B-20

d₁ +0.00|-0.13

3,969 (5/32")

l₁ ±0.08

6.35

l₂ min.

2.90

Torsional spring rate Nmm/°

0.42

Load f_c compression max. kg

6.21

Load f_t tension max. kg

8.89

Angular movement max.

±7,5°

£ 96.92 per unit (click for quantity discounts)

Pivot bearing single end 5/32in

R4000.B-30

d₁ +0.00|-0.13

3,969 (5/32")

l₁ ±0.08

6.35

l₂ min.

2.90

Torsional spring rate Nmm/°

3.35

Load f_c compression max. kg

17.82

Load f_t tension max. kg

17.82

Angular movement max.

±3,7°

£ 96.92 per unit (click for quantity discounts)

Pivot bearing single end 3/16

R4000.C-10

d₁ +0.00|-0.13

4,763 (3/16")

l₁ ±0.08

7.62

l₂ min.

3.45

Torsional spring rate Nmm/°

0.08

Load f_c compression max. kg

0.90

Load f_t tension max. kg

3.53

Angular movement max.

±15°

£ 119.21 per unit (click for quantity discounts)

Pivot bearing single end 3/16in

R4000.C-20

d₁ +0.00|-0.13

4,763 (3/16")

l₁ ±0.08

7.62

l₂ min.

3.45

Torsional spring rate Nmm/°

0.68

Load f_c compression max. kg

8.84

Load f_t tension max. kg

12.65

Angular movement max.

±7,5°

£ 101.53 per unit (click for quantity discounts)

Pivot bearing single end 3/16in

R4000.C-30

d₁ +0.00|-0.13

4,763 (3/16")

l₁ ±0.08

7.62

l₂ min.

3.45

Torsional spring rate Nmm/°

5.45

Load f_c compression max. kg

25.31

Load f_t tension max. kg

25.31

Angular movement max.

±3,7°

£ 101.53 per unit (click for quantity discounts)

Pivot bearing single end 1/4in

R4000.D-10

d₁ +0.00|-0.13

6,350 (1/4")

l₁ ±0.08

10.16

l₂ min.

4.67

Torsional spring rate Nmm/°

0.20

Load f_c compression max. kg

1.63

Load f_t tension max. kg

6.44

Angular movement max.

±15°

£ 124.61 per unit (click for quantity discounts)

Pivot bearing single end 1/4in

R4000.D-20

d₁ +0.00|-0.13

6,350 (1/4")

l₁ ±0.08

10.16

l₂ min.

4.67

Torsional spring rate Nmm/°

1.67

Load f_c compression max. kg

15.87

Load f_t tension max. kg

22.68

Angular movement max.

±7,5°

£ 110.77 per unit (click for quantity discounts)

Pivot bearing single end 1/4in

R4000.D-30

d₁ +0.00|-0.13

6,350 (1/4")

l₁ ±0.08

10.16

l₂ min.

4.67

Torsional spring rate Nmm/°

13.39

Load f_c compression max. kg

45.36

Load f_t tension max. kg

45.36

Angular movement max.

±3,7°

£ 110.77 per unit (click for quantity discounts)

Pivot bearing single end 5/16in

R4000.E-10

d₁ +0.00|-0.13

7,938 (5/16")

l₁ ±0.08

12.70

l₂ min.

5.89

Torsional spring rate Nmm/°

0.42

Load f_c compression max. kg

2.58

Load f_t tension max. kg

10.34

Angular movement max.

±15°

£ 129.21 per unit (click for quantity discounts)

Pivot bearing single end 5/16in

R4000.E-20

d₁ +0.00|-0.13

7,938 (5/16")

l₁ ±0.08

12.70

l₂ min.

5.89

Torsional spring rate Nmm/°

3.35

Load f_c compression max. kg

24.95

Load f_t tension max. kg

35.65

Angular movement max.

±7,5°

£ 137.82 per unit (click for quantity discounts)

Pivot bearing single end 5/16in

R4000.E-30

d₁ +0.00|-0.13

7,938 (3/10")

l₁ ±0.08

12.70

l₂ min.

5.89

Torsional spring rate Nmm/°

26.75

Load f_c compression max. kg

71.26

Load f_t tension max. kg

71.26

Angular movement max.

±3,7°

£ 125.96 per unit (click for quantity discounts)

Pivot bearing single end 3/8in

R4000.F-10

d₁ +0.00|-0.13

9,525 (3/8")

l₁ ±0.08

15.24

l₂ min.

7.09

Torsional spring rate Nmm/°

0.73

Load f_c compression max. kg

3.81

Load f_t tension max. kg

15.24

Angular movement max.

±15°

£ 138.45 per unit (click for quantity discounts)

Pivot bearing single end 3/8in

R4000.F-20

d₁ +0.00|-0.13

9,525 (3/8")

l₁ ±0.08

15.24

l₂ min.

7.09

Torsional spring rate Nmm/°

5.45

Load f_c compression max. kg

35.88

Load f_t tension max. kg

51.25

Angular movement max.

±7,5°

£ 126.91 per unit (click for quantity discounts)

Pivot bearing single end 3/8in

R4000.F-30

d₁ +0.00|-0.13

9,525 (3/8")

l₁ ±0.08

15.24

l₂ min.

7.09

Torsional spring rate Nmm/°

45.22

Load f_c compression max. kg

102.51

Load f_t tension max. kg

102.51

Angular movement max.

±3,7°

£ 126.91 per unit (click for quantity discounts)

Pivot bearing single end 1/2in

R4000.G-10

d₁ +0.00|-0.13

12,700 (1/2")

l₁ ±0.08

20.32

l₂ min.

9.50

Torsional spring rate Nmm/°

1.67

Load f_c compression max. kg

6.53

Load f_t tension max. kg

26.03

Angular movement max.

±15°

£ 157.70 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4000.G-20

d₁ +0.00|-0.13

12,700 (1/2")

l₁ ±0.08

20.32

l₂ min.

9.50

Torsional spring rate Nmm/°

13.39

Load f_c compression max. kg

63.50

Load f_t tension max. kg

90.72

Angular movement max.

±7,5°

Pivot bearing single end 1/2in

R4000.G-30

d₁ +0.00|-0.13

12,700 (1/2")

l₁ ±0.08

20.32

l₂ min.

9.50

Torsional spring rate Nmm/°

107.19

Load f_c compression max. kg

181.44

Load f_t tension max. kg

181.44

Angular movement max.

±3,7°

£ 133.84 per unit (click for quantity discounts)

Pivot bearing single end 5/8in

R4000.H-10

d₁ +0.00|-0.13

15,875 (5/8")

l₁ ±0.08

25.40

l₂ min.

11.91

Torsional spring rate Nmm/°

3.33

Load f_c compression max. kg

10.43

Load f_t tension max. kg

41.73

Angular movement max.

±15°

£ 173.07 per unit (click for quantity discounts)

Pivot bearing single end 5/8in

R4000.H-20

d₁ +0.00|-0.13

15,875 (5/8")

l₁ ±0.08

25.40

l₂ min.

11.91

Torsional spring rate Nmm/°

26.75

Load f_c compression max. kg

100.29

Load f_t tension max. kg

143.25

Angular movement max.

±7,5°

£ 180.72 per unit (click for quantity discounts)

Pivot bearing single end 5/8in

R4000.H-30

d₁ +0.00|-0.13

15,875 (5/8")

l₁ ±0.08

25.40

l₂ min.

11.91

Torsional spring rate Nmm/°

214.02

Load f_c compression max. kg

286.45

Load f_t tension max. kg

286.45

Angular movement max.

±3,7°

£ 173.17 per unit (click for quantity discounts)

Pivot bearing single end 3/4in

R4000.I-10

d₁ +0.00|-0.13

19,050 (3/4")

l₁ ±0.08

30.48

l₂ min.

14.32

Torsional spring rate Nmm/°

5.45

Load f_c compression max. kg

14.69

Load f_t tension max. kg

58.69

Angular movement max.

±15°

£ 223.94 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4000.I-20

d₁ +0.00|-0.13

19,050 (3/4")

l₁ ±0.08

30.48

l₂ min.

14.32

Torsional spring rate Nmm/°

45.22

Load f_c compression max. kg

143.88

Load f_t tension max. kg

205.52

Angular movement max.

±7,5°

Pivot bearing single end 3/4in

R4000.I-30

d₁ +0.00|-0.13

19,050 (3/4")

l₁ ±0.08

30.48

l₂ min.

14.32

Torsional spring rate Nmm/°

368.49

Load f_c compression max. kg

411.00

Load f_t tension max. kg

411.00

Angular movement max.

±3,7°

£ 241.32 per unit (click for quantity discounts)

Pivot bearing single end 1in

R4000.J-10

d₁ +0.00|-0.13

25,400 (1")

l₁ ±0.08

40.64

l₂ min.

19.40

Torsional spring rate Nmm/°

13.39

Load f_c compression max. kg

26.85

Load f_t tension max. kg

107.32

Angular movement max.

±15°

£ 276.89 per unit (click for quantity discounts)

Pivot bearing single end 1in

R4000.J-20

d₁ +0.00|-0.13

25,400 (1")

l₁ ±0.08

40.64

l₂ min.

19.40

Torsional spring rate Nmm/°

107.19

Load f_c compression max. kg

256.87

Load f_t tension max. kg

366.92

Angular movement max.

±7,5°

£ 253.81 per unit (click for quantity discounts)

Pivot bearing single end 1in

R4000.J-30

d₁ +0.00|-0.13

25,400 (1")

l₁ ±0.08

40.64

l₂ min.

19.40

Torsional spring rate Nmm/°

881.66

Load f_c compression max. kg

733.00

Load f_t tension max. kg

733.00

Angular movement max.

±3,7°

£ 253.81 per unit (click for quantity discounts)



Select all

d₁ +0.00|-0.13

l₁ ±0.08

l₂ min.

Torsional spring rate Nmm/°

Load f_c compression max. kg

Load f_t tension max. kg

Angular movement max.

Price & Availability	Article	d1 +0.00|-0.13	l1 ±0.08	l2 min.	Torsional spring rate Nmm/°	Load fc compression max. kg	Load ft tension max. kg	Angular movement max.
	R4000.A-10	3,175 (1/8")	5.08	2.24	0.034	0.43	1.72	±15°
£ 113.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 113.65 0% 5-19 £ 102.29 10% 20-39 £ 90.92 20% 40-99 £ 79.56 30% 100+ £ 68.19 40% d1 +0.00|-0.13 3,175 (1/8") l1 ±0.08 5.08 l2 min. 2.24 Torsional spring rate Nmm/° 0.034 Load fc compression max. kg 0.43 Load ft tension max. kg 1.72 Angular movement max. ±15° more info »
	R4000.A-20	3,175 (1/8")	5.08	2.24	0.20	4.03	5.76	±7,5°
£ 101.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 101.02 0% 5-19 £ 90.92 10% 20-39 £ 80.82 20% 40-99 £ 70.71 30% 100+ £ 60.61 40% d1 +0.00|-0.13 3,175 (1/8") l1 ±0.08 5.08 l2 min. 2.24 Torsional spring rate Nmm/° 0.20 Load fc compression max. kg 4.03 Load ft tension max. kg 5.76 Angular movement max. ±7,5° more info »
	R4000.A-30	3,175 (1/8")	5.08	2.24	1.67	11.47	11.47	±3,7°
£ 101.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 101.02 0% 5-19 £ 90.92 10% 20-39 £ 80.82 20% 40-99 £ 70.71 30% 100+ £ 60.61 40% d1 +0.00|-0.13 3,175 (1/8") l1 ±0.08 5.08 l2 min. 2.24 Torsional spring rate Nmm/° 1.67 Load fc compression max. kg 11.47 Load ft tension max. kg 11.47 Angular movement max. ±3,7° more info »
	R4000.B-10	3,969 (5/32")	6.35	2.90	0.045	0.64	2.54	±15°
£ 119.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 119.75 0% 5-19 £ 107.78 10% 20-39 £ 95.80 20% 40-99 £ 83.83 30% 100+ £ 71.85 40% d1 +0.00|-0.13 3,969 (5/32") l1 ±0.08 6.35 l2 min. 2.90 Torsional spring rate Nmm/° 0.045 Load fc compression max. kg 0.64 Load ft tension max. kg 2.54 Angular movement max. ±15° more info »
	R4000.B-20	3,969 (5/32")	6.35	2.90	0.42	6.21	8.89	±7,5°
£ 96.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 96.92 0% 5-19 £ 87.23 10% 20-39 £ 77.54 20% 40-99 £ 67.84 30% 100+ £ 58.15 40% d1 +0.00|-0.13 3,969 (5/32") l1 ±0.08 6.35 l2 min. 2.90 Torsional spring rate Nmm/° 0.42 Load fc compression max. kg 6.21 Load ft tension max. kg 8.89 Angular movement max. ±7,5° more info »
	R4000.B-30	3,969 (5/32")	6.35	2.90	3.35	17.82	17.82	±3,7°
£ 96.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 96.92 0% 5-19 £ 87.23 10% 20-39 £ 77.54 20% 40-99 £ 67.84 30% 100+ £ 58.15 40% d1 +0.00|-0.13 3,969 (5/32") l1 ±0.08 6.35 l2 min. 2.90 Torsional spring rate Nmm/° 3.35 Load fc compression max. kg 17.82 Load ft tension max. kg 17.82 Angular movement max. ±3,7° more info »
	R4000.C-10	4,763 (3/16")	7.62	3.45	0.08	0.90	3.53	±15°
£ 119.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 119.21 0% 5-19 £ 107.29 10% 20-39 £ 95.37 20% 40-99 £ 83.45 30% 100+ £ 71.53 40% d1 +0.00|-0.13 4,763 (3/16") l1 ±0.08 7.62 l2 min. 3.45 Torsional spring rate Nmm/° 0.08 Load fc compression max. kg 0.90 Load ft tension max. kg 3.53 Angular movement max. ±15° more info »
	R4000.C-20	4,763 (3/16")	7.62	3.45	0.68	8.84	12.65	±7,5°
£ 101.53 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 101.53 0% 5-19 £ 91.38 10% 20-39 £ 81.22 20% 40-99 £ 71.07 30% 100+ £ 60.92 40% d1 +0.00|-0.13 4,763 (3/16") l1 ±0.08 7.62 l2 min. 3.45 Torsional spring rate Nmm/° 0.68 Load fc compression max. kg 8.84 Load ft tension max. kg 12.65 Angular movement max. ±7,5° more info »
	R4000.C-30	4,763 (3/16")	7.62	3.45	5.45	25.31	25.31	±3,7°
£ 101.53 per unit (click for quantity discounts) Ready to despatch 2 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 101.53 0% 5-19 £ 91.38 10% 20-39 £ 81.22 20% 40-99 £ 71.07 30% 100+ £ 60.92 40% d1 +0.00|-0.13 4,763 (3/16") l1 ±0.08 7.62 l2 min. 3.45 Torsional spring rate Nmm/° 5.45 Load fc compression max. kg 25.31 Load ft tension max. kg 25.31 Angular movement max. ±3,7° more info »
	R4000.D-10	6,350 (1/4")	10.16	4.67	0.20	1.63	6.44	±15°
£ 124.61 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 124.61 0% 5-19 £ 112.15 10% 20-39 £ 99.69 20% 40-99 £ 87.23 30% 100+ £ 74.77 40% d1 +0.00|-0.13 6,350 (1/4") l1 ±0.08 10.16 l2 min. 4.67 Torsional spring rate Nmm/° 0.20 Load fc compression max. kg 1.63 Load ft tension max. kg 6.44 Angular movement max. ±15° more info »
	R4000.D-20	6,350 (1/4")	10.16	4.67	1.67	15.87	22.68	±7,5°
£ 110.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 110.77 0% 5-19 £ 99.69 10% 20-39 £ 88.62 20% 40-99 £ 77.54 30% 100+ £ 66.46 40% d1 +0.00|-0.13 6,350 (1/4") l1 ±0.08 10.16 l2 min. 4.67 Torsional spring rate Nmm/° 1.67 Load fc compression max. kg 15.87 Load ft tension max. kg 22.68 Angular movement max. ±7,5° more info »
	R4000.D-30	6,350 (1/4")	10.16	4.67	13.39	45.36	45.36	±3,7°
£ 110.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 110.77 0% 5-19 £ 99.69 10% 20-39 £ 88.62 20% 40-99 £ 77.54 30% 100+ £ 66.46 40% d1 +0.00|-0.13 6,350 (1/4") l1 ±0.08 10.16 l2 min. 4.67 Torsional spring rate Nmm/° 13.39 Load fc compression max. kg 45.36 Load ft tension max. kg 45.36 Angular movement max. ±3,7° more info »
	R4000.E-10	7,938 (5/16")	12.70	5.89	0.42	2.58	10.34	±15°
£ 129.21 per unit (click for quantity discounts) Ready to despatch 2 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 129.21 0% 5-19 £ 116.29 10% 20-39 £ 103.37 20% 40-99 £ 90.45 30% 100+ £ 77.53 40% d1 +0.00|-0.13 7,938 (5/16") l1 ±0.08 12.70 l2 min. 5.89 Torsional spring rate Nmm/° 0.42 Load fc compression max. kg 2.58 Load ft tension max. kg 10.34 Angular movement max. ±15° more info »
	R4000.E-20	7,938 (5/16")	12.70	5.89	3.35	24.95	35.65	±7,5°
£ 137.82 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 137.82 0% 5-19 £ 124.04 10% 20-39 £ 110.26 20% 40-99 £ 96.47 30% 100+ £ 82.69 40% d1 +0.00|-0.13 7,938 (5/16") l1 ±0.08 12.70 l2 min. 5.89 Torsional spring rate Nmm/° 3.35 Load fc compression max. kg 24.95 Load ft tension max. kg 35.65 Angular movement max. ±7,5° more info »
	R4000.E-30	7,938 (3/10")	12.70	5.89	26.75	71.26	71.26	±3,7°
£ 125.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 125.96 0% 5-19 £ 113.36 10% 20-39 £ 100.77 20% 40-99 £ 88.17 30% 100+ £ 75.58 40% d1 +0.00|-0.13 7,938 (3/10") l1 ±0.08 12.70 l2 min. 5.89 Torsional spring rate Nmm/° 26.75 Load fc compression max. kg 71.26 Load ft tension max. kg 71.26 Angular movement max. ±3,7° more info »
	R4000.F-10	9,525 (3/8")	15.24	7.09	0.73	3.81	15.24	±15°
£ 138.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 138.45 0% 5-19 £ 124.61 10% 20-39 £ 110.76 20% 40-99 £ 96.92 30% 100+ £ 83.07 40% d1 +0.00|-0.13 9,525 (3/8") l1 ±0.08 15.24 l2 min. 7.09 Torsional spring rate Nmm/° 0.73 Load fc compression max. kg 3.81 Load ft tension max. kg 15.24 Angular movement max. ±15° more info »
	R4000.F-20	9,525 (3/8")	15.24	7.09	5.45	35.88	51.25	±7,5°
£ 126.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 126.91 0% 5-19 £ 114.22 10% 20-39 £ 101.53 20% 40-99 £ 88.84 30% 100+ £ 76.15 40% d1 +0.00|-0.13 9,525 (3/8") l1 ±0.08 15.24 l2 min. 7.09 Torsional spring rate Nmm/° 5.45 Load fc compression max. kg 35.88 Load ft tension max. kg 51.25 Angular movement max. ±7,5° more info »
	R4000.F-30	9,525 (3/8")	15.24	7.09	45.22	102.51	102.51	±3,7°
£ 126.91 per unit (click for quantity discounts) Ready to despatch 3 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 126.91 0% 5-19 £ 114.22 10% 20-39 £ 101.53 20% 40-99 £ 88.84 30% 100+ £ 76.15 40% d1 +0.00|-0.13 9,525 (3/8") l1 ±0.08 15.24 l2 min. 7.09 Torsional spring rate Nmm/° 45.22 Load fc compression max. kg 102.51 Load ft tension max. kg 102.51 Angular movement max. ±3,7° more info »
	R4000.G-10	12,700 (1/2")	20.32	9.50	1.67	6.53	26.03	±15°
£ 157.70 per unit (click for quantity discounts) Ready to despatch 10 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 157.70 0% 5-19 £ 141.93 10% 20-39 £ 126.16 20% 40-99 £ 110.39 30% 100+ £ 94.62 40% d1 +0.00|-0.13 12,700 (1/2") l1 ±0.08 20.32 l2 min. 9.50 Torsional spring rate Nmm/° 1.67 Load fc compression max. kg 6.53 Load ft tension max. kg 26.03 Angular movement max. ±15° more info »
	R4000.G-20	12,700 (1/2")	20.32	9.50	13.39	63.50	90.72	±7,5°
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 +0.00|-0.13 12,700 (1/2") l1 ±0.08 20.32 l2 min. 9.50 Torsional spring rate Nmm/° 13.39 Load fc compression max. kg 63.50 Load ft tension max. kg 90.72 Angular movement max. ±7,5° more info »
	R4000.G-30	12,700 (1/2")	20.32	9.50	107.19	181.44	181.44	±3,7°
£ 133.84 per unit (click for quantity discounts) Ready to despatch 33 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 133.84 0% 5-19 £ 120.46 10% 20-39 £ 107.07 20% 40-99 £ 93.69 30% 100+ £ 80.30 40% d1 +0.00|-0.13 12,700 (1/2") l1 ±0.08 20.32 l2 min. 9.50 Torsional spring rate Nmm/° 107.19 Load fc compression max. kg 181.44 Load ft tension max. kg 181.44 Angular movement max. ±3,7° more info »
	R4000.H-10	15,875 (5/8")	25.40	11.91	3.33	10.43	41.73	±15°
£ 173.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 173.07 0% 5-19 £ 155.76 10% 20-39 £ 138.46 20% 40-99 £ 121.15 30% 100+ £ 103.84 40% d1 +0.00|-0.13 15,875 (5/8") l1 ±0.08 25.40 l2 min. 11.91 Torsional spring rate Nmm/° 3.33 Load fc compression max. kg 10.43 Load ft tension max. kg 41.73 Angular movement max. ±15° more info »
	R4000.H-20	15,875 (5/8")	25.40	11.91	26.75	100.29	143.25	±7,5°
£ 180.72 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 180.72 0% 5-19 £ 162.65 10% 20-39 £ 144.58 20% 40-99 £ 126.50 30% 100+ £ 108.43 40% d1 +0.00|-0.13 15,875 (5/8") l1 ±0.08 25.40 l2 min. 11.91 Torsional spring rate Nmm/° 26.75 Load fc compression max. kg 100.29 Load ft tension max. kg 143.25 Angular movement max. ±7,5° more info »
	R4000.H-30	15,875 (5/8")	25.40	11.91	214.02	286.45	286.45	±3,7°
£ 173.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 173.17 0% 5-19 £ 155.85 10% 20-39 £ 138.54 20% 40-99 £ 121.22 30% 100+ £ 103.90 40% d1 +0.00|-0.13 15,875 (5/8") l1 ±0.08 25.40 l2 min. 11.91 Torsional spring rate Nmm/° 214.02 Load fc compression max. kg 286.45 Load ft tension max. kg 286.45 Angular movement max. ±3,7° more info »
	R4000.I-10	19,050 (3/4")	30.48	14.32	5.45	14.69	58.69	±15°
£ 223.94 per unit (click for quantity discounts) Ready to despatch 27 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 223.94 0% 5-19 £ 201.55 10% 20-39 £ 179.15 20% 40-99 £ 156.76 30% 100+ £ 134.36 40% d1 +0.00|-0.13 19,050 (3/4") l1 ±0.08 30.48 l2 min. 14.32 Torsional spring rate Nmm/° 5.45 Load fc compression max. kg 14.69 Load ft tension max. kg 58.69 Angular movement max. ±15° more info »
	R4000.I-20	19,050 (3/4")	30.48	14.32	45.22	143.88	205.52	±7,5°
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 +0.00|-0.13 19,050 (3/4") l1 ±0.08 30.48 l2 min. 14.32 Torsional spring rate Nmm/° 45.22 Load fc compression max. kg 143.88 Load ft tension max. kg 205.52 Angular movement max. ±7,5° more info »
	R4000.I-30	19,050 (3/4")	30.48	14.32	368.49	411.00	411.00	±3,7°
£ 241.32 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 241.32 0% 5-19 £ 217.19 10% 20-39 £ 193.06 20% 40-99 £ 168.92 30% 100+ £ 144.79 40% d1 +0.00|-0.13 19,050 (3/4") l1 ±0.08 30.48 l2 min. 14.32 Torsional spring rate Nmm/° 368.49 Load fc compression max. kg 411.00 Load ft tension max. kg 411.00 Angular movement max. ±3,7° more info »
	R4000.J-10	25,400 (1")	40.64	19.40	13.39	26.85	107.32	±15°
£ 276.89 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 276.89 0% 5-19 £ 249.20 10% 20-39 £ 221.51 20% 40-99 £ 193.82 30% 100+ £ 166.13 40% d1 +0.00|-0.13 25,400 (1") l1 ±0.08 40.64 l2 min. 19.40 Torsional spring rate Nmm/° 13.39 Load fc compression max. kg 26.85 Load ft tension max. kg 107.32 Angular movement max. ±15° more info »
	R4000.J-20	25,400 (1")	40.64	19.40	107.19	256.87	366.92	±7,5°
£ 253.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 253.81 0% 5-19 £ 228.43 10% 20-39 £ 203.05 20% 40-99 £ 177.67 30% 100+ £ 152.29 40% d1 +0.00|-0.13 25,400 (1") l1 ±0.08 40.64 l2 min. 19.40 Torsional spring rate Nmm/° 107.19 Load fc compression max. kg 256.87 Load ft tension max. kg 366.92 Angular movement max. ±7,5° more info »
	R4000.J-30	25,400 (1")	40.64	19.40	881.66	733.00	733.00	±3,7°
£ 253.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 253.81 0% 5-19 £ 228.43 10% 20-39 £ 203.05 20% 40-99 £ 177.67 30% 100+ £ 152.29 40% d1 +0.00|-0.13 25,400 (1") l1 ±0.08 40.64 l2 min. 19.40 Torsional spring rate Nmm/° 881.66 Load fc compression max. kg 733.00 Load ft tension max. kg 733.00 Angular movement max. ±3,7° more info »
