R4002 Flexure Pivot Bearings

double-ended, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Flexure Pivot Bearings
single end

Flexure Pivot Bearings
double end

Pivot bearing double end 1/8in

R4002.AD-10

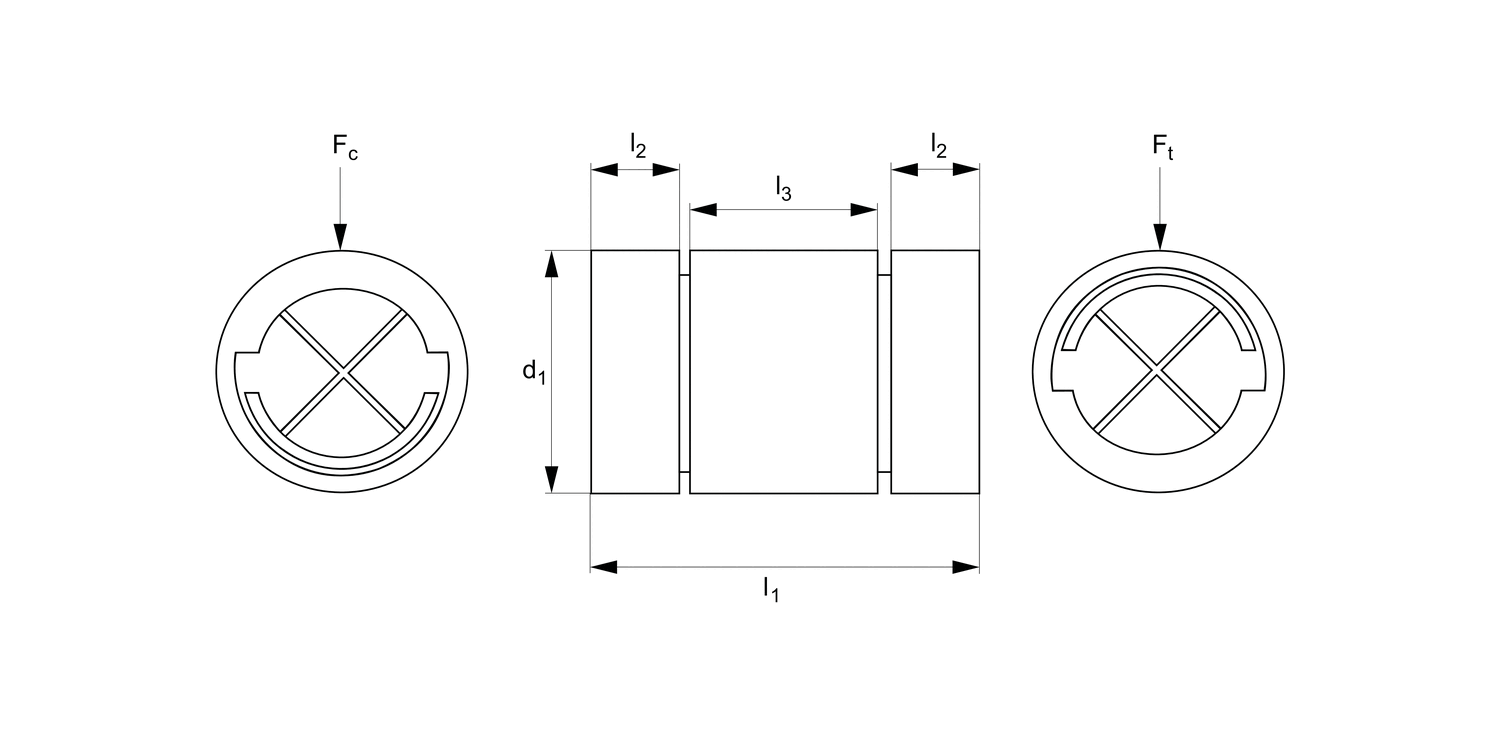

d₁ +0|-0.013

3,175 (1/8")

l₁ ±0.08

5.08

l₂ min.

0.97

l₃ min.

1.78

Torsional spring rate Nmm/°

0.034

Load f_c compression max. kg

0.43

Load f_t tension max. kg

1.72

Angular movement max.

±15°

£ 164.64 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4002.AD-20

d₁ +0|-0.013

3,175 (1/8")

l₁ ±0.08

5.08

l₂ min.

0.97

l₃ min.

1.78

Torsional spring rate Nmm/°

0.20

Load f_c compression max. kg

4.03

Load f_t tension max. kg

5.76

Angular movement max.

±7,5°

Pivot bearing double end 1/8in

R4002.AD-30

d₁ +0|-0.013

3,175 (1/8")

l₁ ±0.08

5.08

l₂ min.

0.97

l₃ min.

1.78

Torsional spring rate Nmm/°

1.67

Load f_c compression max. kg

11.47

Load f_t tension max. kg

11.47

Angular movement max.

±3,7°

£ 124.61 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4002.BD-10

d₁ +0|-0.013

3,967 (5/32")

l₁ ±0.08

6.35

l₂ min.

1.27

l₃ min.

2.54

Torsional spring rate Nmm/°

0.045

Load f_c compression max. kg

0.64

Load f_t tension max. kg

2.54

Angular movement max.

±15°

Pivot bearing double end 5/32in

R4002.BD-20

d₁ +0|-0.013

3,967 (5/32")

l₁ ±0.08

6.35

l₂ min.

1.27

l₃ min.

2.54

Torsional spring rate Nmm/°

0.42

Load f_c compression max. kg

6.21

Load f_t tension max. kg

8.89

Angular movement max.

±7,5°

£ 143.95 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4002.BD-30

d₁ +0|-0.013

3,967 (5/32")

l₁ ±0.08

6.35

l₂ min.

1.27

l₃ min.

2.54

Torsional spring rate Nmm/°

3.35

Load f_c compression max. kg

17.82

Load f_t tension max. kg

17.82

Angular movement max.

±3,7°

Pivot bearing double end 3/16in

R4002.CD-10

d₁ +0|-0.013

4,763 (3/16")

l₁ ±0.08

7.62

l₂ min.

1.52

l₃ min.

3.05

Torsional spring rate Nmm/°

0.08

Load f_c compression max. kg

0.90

Load f_t tension max. kg

3.53

Angular movement max.

±15°

£ 182.52 per unit (click for quantity discounts)

Pivot bearing double end 3/16in

R4002.CD-20

d₁ +0|-0.013

4,763 (3/16")

l₁ ±0.08

7.62

l₂ min.

1.52

l₃ min.

3.05

Torsional spring rate Nmm/°

0.67

Load f_c compression max. kg

8.84

Load f_t tension max. kg

12.65

Angular movement max.

±7,5°

£ 151.66 per unit (click for quantity discounts)

Pivot bearing double end 3/16in

R4002.CD-30

d₁ +0|-0.013

4,763 (3/16")

l₁ ±0.08

7.62

l₂ min.

1.52

l₃ min.

3.05

Torsional spring rate Nmm/°

5.45

Load f_c compression max. kg

25.31

Load f_t tension max. kg

25.31

Angular movement max.

±3,7°

£ 136.14 per unit (click for quantity discounts)

Pivot bearing double end 1/4in

R4002.DD-10

d₁ +0|-0.013

6,350 (1/4")

l₁ ±0.08

10.16

l₂ min.

2.11

l₃ min.

4.19

Torsional spring rate Nmm/°

0.20

Load f_c compression max. kg

1.63

Load f_t tension max. kg

6.44

Angular movement max.

±15°

£ 213.55 per unit (click for quantity discounts)

Pivot bearing double end 1/4in

R4002.DD-20

d₁ +0|-0.013

6,350 (1/4")

l₁ ±0.08

10.16

l₂ min.

2.11

l₃ min.

4.19

Torsional spring rate Nmm/°

1.67

Load f_c compression max. kg

15.87

Load f_t tension max. kg

22.68

Angular movement max.

±7,5°

£ 186.27 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4002.DD-30

d₁ +0|-0.013

6,350 (1/4")

l₁ ±0.08

10.16

l₂ min.

2.11

l₃ min.

4.19

Torsional spring rate Nmm/°

13.39

Load f_c compression max. kg

45.36

Load f_t tension max. kg

45.36

Angular movement max.

±3,7°

Pivot bearing double end 5/16in

R4002.ED-10

d₁ +0|-0.013

7,938 (5/16")

l₁ ±0.08

12.70

l₂ min.

2.67

l₃ min.

5.23

Torsional spring rate Nmm/°

0.42

Load f_c compression max. kg

2.58

Load f_t tension max. kg

10.34

Angular movement max.

±15°

£ 184.60 per unit (click for quantity discounts)

Pivot bearing double end 5/16in

R4002.ED-20

d₁ +0|-0.013

7,938 (5/16")

l₁ ±0.08

12.70

l₂ min.

2.67

l₃ min.

5.23

Torsional spring rate Nmm/°

3.345

Load f_c compression max. kg

24.95

Load f_t tension max. kg

35.65

Angular movement max.

±7,5°

£ 160.30 per unit (click for quantity discounts)

Pivot bearing double end 5/16in

R4002.ED-30

d₁ +0|-0.013

7,938 (5/16")

l₁ ±0.08

12.70

l₂ min.

2.67

l₃ min.

5.23

Torsional spring rate Nmm/°

26.75

Load f_c compression max. kg

71.26

Load f_t tension max. kg

71.26

Angular movement max.

±3,7°

£ 156.93 per unit (click for quantity discounts)

Pivot bearing double end 3/8in

R4002.FD-10

d₁ +0|-0.013

9,525 (3/8")

l₁ ±0.08

15.24

l₂ min.

3.25

l₃ min.

6.48

Torsional spring rate Nmm/°

0.73

Load f_c compression max. kg

3.81

Load f_t tension max. kg

15.24

Angular movement max.

±15°

£ 198.44 per unit (click for quantity discounts)

Pivot bearing double end 3/8in

R4002.FD-20

d₁ +0|-0.013

9,525 (3/8")

l₁ ±0.08

15.24

l₂ min.

3.25

l₃ min.

6.48

Torsional spring rate Nmm/°

5.446

Load f_c compression max. kg

35.88

Load f_t tension max. kg

51.25

Angular movement max.

±7,5°

£ 170.76 per unit (click for quantity discounts)

Pivot bearing double end 3/8in

R4002.FD-30

d₁ +0|-0.013

9,525 (3/8")

l₁ ±0.08

15.24

l₂ min.

3.25

l₃ min.

6.48

Torsional spring rate Nmm/°

45.22

Load f_c compression max. kg

102.51

Load f_t tension max. kg

102.51

Angular movement max.

±3,7°

£ 163.87 per unit (click for quantity discounts)

Pivot bearing double end 1/2in

R4002.GD-10

d₁ +0|-0.013

12,700 (1/2")

l₁ ±0.08

20.32

l₂ min.

4.39

l₃ min.

8.76

Torsional spring rate Nmm/°

1.67

Load f_c compression max. kg

6.53

Load f_t tension max. kg

26.03

Angular movement max.

±15°

£ 209.50 per unit (click for quantity discounts)

Pivot bearing double end 1/2in

R4002.GD-20

d₁ +0|-0.013

12,700 (1/2")

l₁ ±0.08

20.32

l₂ min.

4.39

l₃ min.

8.76

Torsional spring rate Nmm/°

13.39

Load f_c compression max. kg

63.50

Load f_t tension max. kg

90.72

Angular movement max.

±7,5°

£ 179.98 per unit (click for quantity discounts)

Pivot bearing double end 1/2in

R4002.GD-30

d₁ +0|-0.013

12,700 (1/2")

l₁ ±0.08

20.32

l₂ min.

4.39

l₃ min.

8.76

Torsional spring rate Nmm/°

107.19

Load f_c compression max. kg

181.44

Load f_t tension max. kg

181.44

Angular movement max.

±3,7°

£ 179.98 per unit (click for quantity discounts)

Pivot bearing double end 5/8in

R4002.HD-10

d₁ +0|-0.013

15,875 (5/8")

l₁ ±0.08

25.40

l₂ min.

5.33

l₃ min.

10.92

Torsional spring rate Nmm/°

3.345

Load f_c compression max. kg

10.43

Load f_t tension max. kg

41.73

Angular movement max.

±15°

£ 195.14 per unit (click for quantity discounts)

Pivot bearing double end 5/8in

R4002.HD-20

d₁ +0|-0.013

15,875 (5/8")

l₁ ±0.08

25.40

l₂ min.

5.33

l₃ min.

10.92

Torsional spring rate Nmm/°

26.75

Load f_c compression max. kg

100.29

Load f_t tension max. kg

143.25

Angular movement max.

±7,5°

£ 216.89 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4002.HD-30

d₁ +0|-0.013

15.875

l₁ ±0.08

25.40

l₂ min.

5.33

l₃ min.

10.92

Torsional spring rate Nmm/°

214.0

Load f_c compression max. kg

286.45

Load f_t tension max. kg

286.45

Angular movement max.

±3,7°

Pivot bearing double end 3/4in

R4002.ID-10

d₁ +0|-0.013

19,050 (3/4")

l₁ ±0.08

30.48

l₂ min.

6.68

l₃ min.

13.21

Torsional spring rate Nmm/°

5.44

Load f_c compression max. kg

14.69

Load f_t tension max. kg

58.69

Angular movement max.

±15°

£ 301.69 per unit (click for quantity discounts)

Pivot bearing double end 3/4in

R4002.ID-20

d₁ +0|-0.013

19,050 (3/4")

l₁ ±0.08

30.48

l₂ min.

6.68

l₃ min.

13.21

Torsional spring rate Nmm/°

45.22

Load f_c compression max. kg

143.88

Load f_t tension max. kg

205.52

Angular movement max.

±7,5°

£ 279.19 per unit (click for quantity discounts)

Pivot bearing double end 3/4in

R4002.ID-30

d₁ +0|-0.013

19,050 (3/4")

l₁ ±0.08

30.48

l₂ min.

6.68

l₃ min.

13.21

Torsional spring rate Nmm/°

368.49

Load f_c compression max. kg

411.00

Load f_t tension max. kg

411.00

Angular movement max.

±3,7°

£ 233.04 per unit (click for quantity discounts)

Pivot bearing double end 1in

R4002.JD-10

d₁ +0|-0.013

25,400 (1")

l₁ ±0.08

40.64

l₂ min.

9.22

l₃ min.

18.29

Torsional spring rate Nmm/°

13.39

Load f_c compression max. kg

26.85

Load f_t tension max. kg

107.32

Angular movement max.

±15°

£ 396.87 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4002.JD-20

d₁ +0|-0.013

25,400 (1")

l₁ ±0.08

40.64

l₂ min.

9.22

l₃ min.

18.29

Torsional spring rate Nmm/°

107.19

Load f_c compression max. kg

256.87

Load f_t tension max. kg

366.92

Angular movement max.

±7,5°

Pivot bearing double end 1in

R4002.JD-30

d₁ +0|-0.013

25,400 (1")

l₁ ±0.08

40.64

l₂ min.

9.22

l₃ min.

18.29

Torsional spring rate Nmm/°

881.65

Load f_c compression max. kg

733.00

Load f_t tension max. kg

733.00

Angular movement max.

±3,7°

£ 325.54 per unit (click for quantity discounts)

Pivot bearing double end 1/8in

R4002.AD-10

d₁ +0|-0.013

3,175 (1/8")

l₁ ±0.08

5.08

l₂ min.

0.97

l₃ min.

1.78

Torsional spring rate Nmm/°

0.034

Load f_c compression max. kg

0.43

Load f_t tension max. kg

1.72

Angular movement max.

±15°

£ 164.64 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4002.AD-20

d₁ +0|-0.013

3,175 (1/8")

l₁ ±0.08

5.08

l₂ min.

0.97

l₃ min.

1.78

Torsional spring rate Nmm/°

0.20

Load f_c compression max. kg

4.03

Load f_t tension max. kg

5.76

Angular movement max.

±7,5°

Pivot bearing double end 1/8in

R4002.AD-30

d₁ +0|-0.013

3,175 (1/8")

l₁ ±0.08

5.08

l₂ min.

0.97

l₃ min.

1.78

Torsional spring rate Nmm/°

1.67

Load f_c compression max. kg

11.47

Load f_t tension max. kg

11.47

Angular movement max.

±3,7°

£ 124.61 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4002.BD-10

d₁ +0|-0.013

3,967 (5/32")

l₁ ±0.08

6.35

l₂ min.

1.27

l₃ min.

2.54

Torsional spring rate Nmm/°

0.045

Load f_c compression max. kg

0.64

Load f_t tension max. kg

2.54

Angular movement max.

±15°

Pivot bearing double end 5/32in

R4002.BD-20

d₁ +0|-0.013

3,967 (5/32")

l₁ ±0.08

6.35

l₂ min.

1.27

l₃ min.

2.54

Torsional spring rate Nmm/°

0.42

Load f_c compression max. kg

6.21

Load f_t tension max. kg

8.89

Angular movement max.

±7,5°

£ 143.95 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4002.BD-30

d₁ +0|-0.013

3,967 (5/32")

l₁ ±0.08

6.35

l₂ min.

1.27

l₃ min.

2.54

Torsional spring rate Nmm/°

3.35

Load f_c compression max. kg

17.82

Load f_t tension max. kg

17.82

Angular movement max.

±3,7°

Pivot bearing double end 3/16in

R4002.CD-10

d₁ +0|-0.013

4,763 (3/16")

l₁ ±0.08

7.62

l₂ min.

1.52

l₃ min.

3.05

Torsional spring rate Nmm/°

0.08

Load f_c compression max. kg

0.90

Load f_t tension max. kg

3.53

Angular movement max.

±15°

£ 182.52 per unit (click for quantity discounts)

Pivot bearing double end 3/16in

R4002.CD-20

d₁ +0|-0.013

4,763 (3/16")

l₁ ±0.08

7.62

l₂ min.

1.52

l₃ min.

3.05

Torsional spring rate Nmm/°

0.67

Load f_c compression max. kg

8.84

Load f_t tension max. kg

12.65

Angular movement max.

±7,5°

£ 151.66 per unit (click for quantity discounts)

Pivot bearing double end 3/16in

R4002.CD-30

d₁ +0|-0.013

4,763 (3/16")

l₁ ±0.08

7.62

l₂ min.

1.52

l₃ min.

3.05

Torsional spring rate Nmm/°

5.45

Load f_c compression max. kg

25.31

Load f_t tension max. kg

25.31

Angular movement max.

±3,7°

£ 136.14 per unit (click for quantity discounts)

Pivot bearing double end 1/4in

R4002.DD-10

d₁ +0|-0.013

6,350 (1/4")

l₁ ±0.08

10.16

l₂ min.

2.11

l₃ min.

4.19

Torsional spring rate Nmm/°

0.20

Load f_c compression max. kg

1.63

Load f_t tension max. kg

6.44

Angular movement max.

±15°

£ 213.55 per unit (click for quantity discounts)

Pivot bearing double end 1/4in

R4002.DD-20

d₁ +0|-0.013

6,350 (1/4")

l₁ ±0.08

10.16

l₂ min.

2.11

l₃ min.

4.19

Torsional spring rate Nmm/°

1.67

Load f_c compression max. kg

15.87

Load f_t tension max. kg

22.68

Angular movement max.

±7,5°

£ 186.27 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4002.DD-30

d₁ +0|-0.013

6,350 (1/4")

l₁ ±0.08

10.16

l₂ min.

2.11

l₃ min.

4.19

Torsional spring rate Nmm/°

13.39

Load f_c compression max. kg

45.36

Load f_t tension max. kg

45.36

Angular movement max.

±3,7°

Pivot bearing double end 5/16in

R4002.ED-10

d₁ +0|-0.013

7,938 (5/16")

l₁ ±0.08

12.70

l₂ min.

2.67

l₃ min.

5.23

Torsional spring rate Nmm/°

0.42

Load f_c compression max. kg

2.58

Load f_t tension max. kg

10.34

Angular movement max.

±15°

£ 184.60 per unit (click for quantity discounts)

Pivot bearing double end 5/16in

R4002.ED-20

d₁ +0|-0.013

7,938 (5/16")

l₁ ±0.08

12.70

l₂ min.

2.67

l₃ min.

5.23

Torsional spring rate Nmm/°

3.345

Load f_c compression max. kg

24.95

Load f_t tension max. kg

35.65

Angular movement max.

±7,5°

£ 160.30 per unit (click for quantity discounts)

Pivot bearing double end 5/16in

R4002.ED-30

d₁ +0|-0.013

7,938 (5/16")

l₁ ±0.08

12.70

l₂ min.

2.67

l₃ min.

5.23

Torsional spring rate Nmm/°

26.75

Load f_c compression max. kg

71.26

Load f_t tension max. kg

71.26

Angular movement max.

±3,7°

£ 156.93 per unit (click for quantity discounts)

Pivot bearing double end 3/8in

R4002.FD-10

d₁ +0|-0.013

9,525 (3/8")

l₁ ±0.08

15.24

l₂ min.

3.25

l₃ min.

6.48

Torsional spring rate Nmm/°

0.73

Load f_c compression max. kg

3.81

Load f_t tension max. kg

15.24

Angular movement max.

±15°

£ 198.44 per unit (click for quantity discounts)

Pivot bearing double end 3/8in

R4002.FD-20

d₁ +0|-0.013

9,525 (3/8")

l₁ ±0.08

15.24

l₂ min.

3.25

l₃ min.

6.48

Torsional spring rate Nmm/°

5.446

Load f_c compression max. kg

35.88

Load f_t tension max. kg

51.25

Angular movement max.

±7,5°

£ 170.76 per unit (click for quantity discounts)

Pivot bearing double end 3/8in

R4002.FD-30

d₁ +0|-0.013

9,525 (3/8")

l₁ ±0.08

15.24

l₂ min.

3.25

l₃ min.

6.48

Torsional spring rate Nmm/°

45.22

Load f_c compression max. kg

102.51

Load f_t tension max. kg

102.51

Angular movement max.

±3,7°

£ 163.87 per unit (click for quantity discounts)

Pivot bearing double end 1/2in

R4002.GD-10

d₁ +0|-0.013

12,700 (1/2")

l₁ ±0.08

20.32

l₂ min.

4.39

l₃ min.

8.76

Torsional spring rate Nmm/°

1.67

Load f_c compression max. kg

6.53

Load f_t tension max. kg

26.03

Angular movement max.

±15°

£ 209.50 per unit (click for quantity discounts)

Pivot bearing double end 1/2in

R4002.GD-20

d₁ +0|-0.013

12,700 (1/2")

l₁ ±0.08

20.32

l₂ min.

4.39

l₃ min.

8.76

Torsional spring rate Nmm/°

13.39

Load f_c compression max. kg

63.50

Load f_t tension max. kg

90.72

Angular movement max.

±7,5°

£ 179.98 per unit (click for quantity discounts)

Pivot bearing double end 1/2in

R4002.GD-30

d₁ +0|-0.013

12,700 (1/2")

l₁ ±0.08

20.32

l₂ min.

4.39

l₃ min.

8.76

Torsional spring rate Nmm/°

107.19

Load f_c compression max. kg

181.44

Load f_t tension max. kg

181.44

Angular movement max.

±3,7°

£ 179.98 per unit (click for quantity discounts)

Pivot bearing double end 5/8in

R4002.HD-10

d₁ +0|-0.013

15,875 (5/8")

l₁ ±0.08

25.40

l₂ min.

5.33

l₃ min.

10.92

Torsional spring rate Nmm/°

3.345

Load f_c compression max. kg

10.43

Load f_t tension max. kg

41.73

Angular movement max.

±15°

£ 195.14 per unit (click for quantity discounts)

Pivot bearing double end 5/8in

R4002.HD-20

d₁ +0|-0.013

15,875 (5/8")

l₁ ±0.08

25.40

l₂ min.

5.33

l₃ min.

10.92

Torsional spring rate Nmm/°

26.75

Load f_c compression max. kg

100.29

Load f_t tension max. kg

143.25

Angular movement max.

±7,5°

£ 216.89 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4002.HD-30

d₁ +0|-0.013

15.875

l₁ ±0.08

25.40

l₂ min.

5.33

l₃ min.

10.92

Torsional spring rate Nmm/°

214.0

Load f_c compression max. kg

286.45

Load f_t tension max. kg

286.45

Angular movement max.

±3,7°

Pivot bearing double end 3/4in

R4002.ID-10

d₁ +0|-0.013

19,050 (3/4")

l₁ ±0.08

30.48

l₂ min.

6.68

l₃ min.

13.21

Torsional spring rate Nmm/°

5.44

Load f_c compression max. kg

14.69

Load f_t tension max. kg

58.69

Angular movement max.

±15°

£ 301.69 per unit (click for quantity discounts)

Pivot bearing double end 3/4in

R4002.ID-20

d₁ +0|-0.013

19,050 (3/4")

l₁ ±0.08

30.48

l₂ min.

6.68

l₃ min.

13.21

Torsional spring rate Nmm/°

45.22

Load f_c compression max. kg

143.88

Load f_t tension max. kg

205.52

Angular movement max.

±7,5°

£ 279.19 per unit (click for quantity discounts)

Pivot bearing double end 3/4in

R4002.ID-30

d₁ +0|-0.013

19,050 (3/4")

l₁ ±0.08

30.48

l₂ min.

6.68

l₃ min.

13.21

Torsional spring rate Nmm/°

368.49

Load f_c compression max. kg

411.00

Load f_t tension max. kg

411.00

Angular movement max.

±3,7°

£ 233.04 per unit (click for quantity discounts)

Pivot bearing double end 1in

R4002.JD-10

d₁ +0|-0.013

25,400 (1")

l₁ ±0.08

40.64

l₂ min.

9.22

l₃ min.

18.29

Torsional spring rate Nmm/°

13.39

Load f_c compression max. kg

26.85

Load f_t tension max. kg

107.32

Angular movement max.

±15°

£ 396.87 per unit (click for quantity discounts)

Flexure Pivot Bearings

R4002.JD-20

d₁ +0|-0.013

25,400 (1")

l₁ ±0.08

40.64

l₂ min.

9.22

l₃ min.

18.29

Torsional spring rate Nmm/°

107.19

Load f_c compression max. kg

256.87

Load f_t tension max. kg

366.92

Angular movement max.

±7,5°

Pivot bearing double end 1in

R4002.JD-30

d₁ +0|-0.013

25,400 (1")

l₁ ±0.08

40.64

l₂ min.

9.22

l₃ min.

18.29

Torsional spring rate Nmm/°

881.65

Load f_c compression max. kg

733.00

Load f_t tension max. kg

733.00

Angular movement max.

±3,7°

£ 325.54 per unit (click for quantity discounts)



Select all

d₁ +0|-0.013

l₁ ±0.08

l₂ min.

l₃ min.

Torsional spring rate Nmm/°

Load f_c compression max. kg

Load f_t tension max. kg

Angular movement max.

Price & Availability	Article	d1 +0|-0.013	l1 ±0.08	l2 min.	l3 min.	Torsional spring rate Nmm/°	Load fc compression max. kg	Load ft tension max. kg	Angular movement max.
	R4002.AD-10	3,175 (1/8")	5.08	0.97	1.78	0.034	0.43	1.72	±15°
£ 164.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 164.64 0% 5-19 £ 148.18 10% 20-39 £ 131.71 20% 40-99 £ 115.25 30% 100+ £ 98.78 40% d1 +0|-0.013 3,175 (1/8") l1 ±0.08 5.08 l2 min. 0.97 l3 min. 1.78 Torsional spring rate Nmm/° 0.034 Load fc compression max. kg 0.43 Load ft tension max. kg 1.72 Angular movement max. ±15° more info »
	R4002.AD-20	3,175 (1/8")	5.08	0.97	1.78	0.20	4.03	5.76	±7,5°
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 +0|-0.013 3,175 (1/8") l1 ±0.08 5.08 l2 min. 0.97 l3 min. 1.78 Torsional spring rate Nmm/° 0.20 Load fc compression max. kg 4.03 Load ft tension max. kg 5.76 Angular movement max. ±7,5° more info »
	R4002.AD-30	3,175 (1/8")	5.08	0.97	1.78	1.67	11.47	11.47	±3,7°
£ 124.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 124.61 0% 5-19 £ 112.15 10% 20-39 £ 99.69 20% 40-99 £ 87.23 30% 100+ £ 74.77 40% d1 +0|-0.013 3,175 (1/8") l1 ±0.08 5.08 l2 min. 0.97 l3 min. 1.78 Torsional spring rate Nmm/° 1.67 Load fc compression max. kg 11.47 Load ft tension max. kg 11.47 Angular movement max. ±3,7° more info »
	R4002.BD-10	3,967 (5/32")	6.35	1.27	2.54	0.045	0.64	2.54	±15°
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 +0|-0.013 3,967 (5/32") l1 ±0.08 6.35 l2 min. 1.27 l3 min. 2.54 Torsional spring rate Nmm/° 0.045 Load fc compression max. kg 0.64 Load ft tension max. kg 2.54 Angular movement max. ±15° more info »
	R4002.BD-20	3,967 (5/32")	6.35	1.27	2.54	0.42	6.21	8.89	±7,5°
£ 143.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 143.95 0% 5-19 £ 129.56 10% 20-39 £ 115.16 20% 40-99 £ 100.77 30% 100+ £ 86.37 40% d1 +0|-0.013 3,967 (5/32") l1 ±0.08 6.35 l2 min. 1.27 l3 min. 2.54 Torsional spring rate Nmm/° 0.42 Load fc compression max. kg 6.21 Load ft tension max. kg 8.89 Angular movement max. ±7,5° more info »
	R4002.BD-30	3,967 (5/32")	6.35	1.27	2.54	3.35	17.82	17.82	±3,7°
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 +0|-0.013 3,967 (5/32") l1 ±0.08 6.35 l2 min. 1.27 l3 min. 2.54 Torsional spring rate Nmm/° 3.35 Load fc compression max. kg 17.82 Load ft tension max. kg 17.82 Angular movement max. ±3,7° more info »
	R4002.CD-10	4,763 (3/16")	7.62	1.52	3.05	0.08	0.90	3.53	±15°
£ 182.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 182.52 0% 5-19 £ 164.27 10% 20-39 £ 146.02 20% 40-99 £ 127.76 30% 100+ £ 109.51 40% d1 +0|-0.013 4,763 (3/16") l1 ±0.08 7.62 l2 min. 1.52 l3 min. 3.05 Torsional spring rate Nmm/° 0.08 Load fc compression max. kg 0.90 Load ft tension max. kg 3.53 Angular movement max. ±15° more info »
	R4002.CD-20	4,763 (3/16")	7.62	1.52	3.05	0.67	8.84	12.65	±7,5°
£ 151.66 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 151.66 0% 5-19 £ 136.49 10% 20-39 £ 121.33 20% 40-99 £ 106.16 30% 100+ £ 91.00 40% d1 +0|-0.013 4,763 (3/16") l1 ±0.08 7.62 l2 min. 1.52 l3 min. 3.05 Torsional spring rate Nmm/° 0.67 Load fc compression max. kg 8.84 Load ft tension max. kg 12.65 Angular movement max. ±7,5° more info »
	R4002.CD-30	4,763 (3/16")	7.62	1.52	3.05	5.45	25.31	25.31	±3,7°
£ 136.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 136.14 0% 5-19 £ 122.53 10% 20-39 £ 108.91 20% 40-99 £ 95.30 30% 100+ £ 81.68 40% d1 +0|-0.013 4,763 (3/16") l1 ±0.08 7.62 l2 min. 1.52 l3 min. 3.05 Torsional spring rate Nmm/° 5.45 Load fc compression max. kg 25.31 Load ft tension max. kg 25.31 Angular movement max. ±3,7° more info »
	R4002.DD-10	6,350 (1/4")	10.16	2.11	4.19	0.20	1.63	6.44	±15°
£ 213.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 213.55 0% 5-19 £ 192.20 10% 20-39 £ 170.84 20% 40-99 £ 149.49 30% 100+ £ 128.13 40% d1 +0|-0.013 6,350 (1/4") l1 ±0.08 10.16 l2 min. 2.11 l3 min. 4.19 Torsional spring rate Nmm/° 0.20 Load fc compression max. kg 1.63 Load ft tension max. kg 6.44 Angular movement max. ±15° more info »
	R4002.DD-20	6,350 (1/4")	10.16	2.11	4.19	1.67	15.87	22.68	±7,5°
£ 186.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 186.27 0% 5-19 £ 167.64 10% 20-39 £ 149.02 20% 40-99 £ 130.39 30% 100+ £ 111.76 40% d1 +0|-0.013 6,350 (1/4") l1 ±0.08 10.16 l2 min. 2.11 l3 min. 4.19 Torsional spring rate Nmm/° 1.67 Load fc compression max. kg 15.87 Load ft tension max. kg 22.68 Angular movement max. ±7,5° more info »
	R4002.DD-30	6,350 (1/4")	10.16	2.11	4.19	13.39	45.36	45.36	±3,7°
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 +0|-0.013 6,350 (1/4") l1 ±0.08 10.16 l2 min. 2.11 l3 min. 4.19 Torsional spring rate Nmm/° 13.39 Load fc compression max. kg 45.36 Load ft tension max. kg 45.36 Angular movement max. ±3,7° more info »
	R4002.ED-10	7,938 (5/16")	12.70	2.67	5.23	0.42	2.58	10.34	±15°
£ 184.60 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 184.60 0% 5-19 £ 166.14 10% 20-39 £ 147.68 20% 40-99 £ 129.22 30% 100+ £ 110.76 40% d1 +0|-0.013 7,938 (5/16") l1 ±0.08 12.70 l2 min. 2.67 l3 min. 5.23 Torsional spring rate Nmm/° 0.42 Load fc compression max. kg 2.58 Load ft tension max. kg 10.34 Angular movement max. ±15° more info »
	R4002.ED-20	7,938 (5/16")	12.70	2.67	5.23	3.345	24.95	35.65	±7,5°
£ 160.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 160.30 0% 5-19 £ 144.27 10% 20-39 £ 128.24 20% 40-99 £ 112.21 30% 100+ £ 96.18 40% d1 +0|-0.013 7,938 (5/16") l1 ±0.08 12.70 l2 min. 2.67 l3 min. 5.23 Torsional spring rate Nmm/° 3.345 Load fc compression max. kg 24.95 Load ft tension max. kg 35.65 Angular movement max. ±7,5° more info »
	R4002.ED-30	7,938 (5/16")	12.70	2.67	5.23	26.75	71.26	71.26	±3,7°
£ 156.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 156.93 0% 5-19 £ 141.24 10% 20-39 £ 125.54 20% 40-99 £ 109.85 30% 100+ £ 94.16 40% d1 +0|-0.013 7,938 (5/16") l1 ±0.08 12.70 l2 min. 2.67 l3 min. 5.23 Torsional spring rate Nmm/° 26.75 Load fc compression max. kg 71.26 Load ft tension max. kg 71.26 Angular movement max. ±3,7° more info »
	R4002.FD-10	9,525 (3/8")	15.24	3.25	6.48	0.73	3.81	15.24	±15°
£ 198.44 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 198.44 0% 5-19 £ 178.60 10% 20-39 £ 158.75 20% 40-99 £ 138.91 30% 100+ £ 119.06 40% d1 +0|-0.013 9,525 (3/8") l1 ±0.08 15.24 l2 min. 3.25 l3 min. 6.48 Torsional spring rate Nmm/° 0.73 Load fc compression max. kg 3.81 Load ft tension max. kg 15.24 Angular movement max. ±15° more info »
	R4002.FD-20	9,525 (3/8")	15.24	3.25	6.48	5.446	35.88	51.25	±7,5°
£ 170.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 170.76 0% 5-19 £ 153.68 10% 20-39 £ 136.61 20% 40-99 £ 119.53 30% 100+ £ 102.46 40% d1 +0|-0.013 9,525 (3/8") l1 ±0.08 15.24 l2 min. 3.25 l3 min. 6.48 Torsional spring rate Nmm/° 5.446 Load fc compression max. kg 35.88 Load ft tension max. kg 51.25 Angular movement max. ±7,5° more info »
	R4002.FD-30	9,525 (3/8")	15.24	3.25	6.48	45.22	102.51	102.51	±3,7°
£ 163.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 163.87 0% 5-19 £ 147.48 10% 20-39 £ 131.10 20% 40-99 £ 114.71 30% 100+ £ 98.32 40% d1 +0|-0.013 9,525 (3/8") l1 ±0.08 15.24 l2 min. 3.25 l3 min. 6.48 Torsional spring rate Nmm/° 45.22 Load fc compression max. kg 102.51 Load ft tension max. kg 102.51 Angular movement max. ±3,7° more info »
	R4002.GD-10	12,700 (1/2")	20.32	4.39	8.76	1.67	6.53	26.03	±15°
£ 209.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 209.50 0% 5-19 £ 188.55 10% 20-39 £ 167.60 20% 40-99 £ 146.65 30% 100+ £ 125.70 40% d1 +0|-0.013 12,700 (1/2") l1 ±0.08 20.32 l2 min. 4.39 l3 min. 8.76 Torsional spring rate Nmm/° 1.67 Load fc compression max. kg 6.53 Load ft tension max. kg 26.03 Angular movement max. ±15° more info »
	R4002.GD-20	12,700 (1/2")	20.32	4.39	8.76	13.39	63.50	90.72	±7,5°
£ 179.98 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 179.98 0% 5-19 £ 161.98 10% 20-39 £ 143.98 20% 40-99 £ 125.99 30% 100+ £ 107.99 40% d1 +0|-0.013 12,700 (1/2") l1 ±0.08 20.32 l2 min. 4.39 l3 min. 8.76 Torsional spring rate Nmm/° 13.39 Load fc compression max. kg 63.50 Load ft tension max. kg 90.72 Angular movement max. ±7,5° more info »
	R4002.GD-30	12,700 (1/2")	20.32	4.39	8.76	107.19	181.44	181.44	±3,7°
£ 179.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 179.98 0% 5-19 £ 161.98 10% 20-39 £ 143.98 20% 40-99 £ 125.99 30% 100+ £ 107.99 40% d1 +0|-0.013 12,700 (1/2") l1 ±0.08 20.32 l2 min. 4.39 l3 min. 8.76 Torsional spring rate Nmm/° 107.19 Load fc compression max. kg 181.44 Load ft tension max. kg 181.44 Angular movement max. ±3,7° more info »
	R4002.HD-10	15,875 (5/8")	25.40	5.33	10.92	3.345	10.43	41.73	±15°
£ 195.14 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 195.14 0% 5-19 £ 175.63 10% 20-39 £ 156.11 20% 40-99 £ 136.60 30% 100+ £ 117.08 40% d1 +0|-0.013 15,875 (5/8") l1 ±0.08 25.40 l2 min. 5.33 l3 min. 10.92 Torsional spring rate Nmm/° 3.345 Load fc compression max. kg 10.43 Load ft tension max. kg 41.73 Angular movement max. ±15° more info »
	R4002.HD-20	15,875 (5/8")	25.40	5.33	10.92	26.75	100.29	143.25	±7,5°
£ 216.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 216.89 0% 5-19 £ 195.20 10% 20-39 £ 173.51 20% 40-99 £ 151.82 30% 100+ £ 130.13 40% d1 +0|-0.013 15,875 (5/8") l1 ±0.08 25.40 l2 min. 5.33 l3 min. 10.92 Torsional spring rate Nmm/° 26.75 Load fc compression max. kg 100.29 Load ft tension max. kg 143.25 Angular movement max. ±7,5° more info »
	R4002.HD-30	15.875	25.40	5.33	10.92	214.0	286.45	286.45	±3,7°
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 +0|-0.013 15.875 l1 ±0.08 25.40 l2 min. 5.33 l3 min. 10.92 Torsional spring rate Nmm/° 214.0 Load fc compression max. kg 286.45 Load ft tension max. kg 286.45 Angular movement max. ±3,7° more info »
	R4002.ID-10	19,050 (3/4")	30.48	6.68	13.21	5.44	14.69	58.69	±15°
£ 301.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 301.69 0% 5-19 £ 271.52 10% 20-39 £ 241.35 20% 40-99 £ 211.18 30% 100+ £ 181.01 40% d1 +0|-0.013 19,050 (3/4") l1 ±0.08 30.48 l2 min. 6.68 l3 min. 13.21 Torsional spring rate Nmm/° 5.44 Load fc compression max. kg 14.69 Load ft tension max. kg 58.69 Angular movement max. ±15° more info »
	R4002.ID-20	19,050 (3/4")	30.48	6.68	13.21	45.22	143.88	205.52	±7,5°
£ 279.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 279.19 0% 5-19 £ 251.27 10% 20-39 £ 223.35 20% 40-99 £ 195.43 30% 100+ £ 167.51 40% d1 +0|-0.013 19,050 (3/4") l1 ±0.08 30.48 l2 min. 6.68 l3 min. 13.21 Torsional spring rate Nmm/° 45.22 Load fc compression max. kg 143.88 Load ft tension max. kg 205.52 Angular movement max. ±7,5° more info »
	R4002.ID-30	19,050 (3/4")	30.48	6.68	13.21	368.49	411.00	411.00	±3,7°
£ 233.04 per unit (click for quantity discounts) Ready to despatch 2 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 233.04 0% 5-19 £ 209.74 10% 20-39 £ 186.43 20% 40-99 £ 163.13 30% 100+ £ 139.82 40% d1 +0|-0.013 19,050 (3/4") l1 ±0.08 30.48 l2 min. 6.68 l3 min. 13.21 Torsional spring rate Nmm/° 368.49 Load fc compression max. kg 411.00 Load ft tension max. kg 411.00 Angular movement max. ±3,7° more info »
	R4002.JD-10	25,400 (1")	40.64	9.22	18.29	13.39	26.85	107.32	±15°
£ 396.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 396.87 0% 5-19 £ 357.18 10% 20-39 £ 317.50 20% 40-99 £ 277.81 30% 100+ £ 238.12 40% d1 +0|-0.013 25,400 (1") l1 ±0.08 40.64 l2 min. 9.22 l3 min. 18.29 Torsional spring rate Nmm/° 13.39 Load fc compression max. kg 26.85 Load ft tension max. kg 107.32 Angular movement max. ±15° more info »
	R4002.JD-20	25,400 (1")	40.64	9.22	18.29	107.19	256.87	366.92	±7,5°
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 +0|-0.013 25,400 (1") l1 ±0.08 40.64 l2 min. 9.22 l3 min. 18.29 Torsional spring rate Nmm/° 107.19 Load fc compression max. kg 256.87 Load ft tension max. kg 366.92 Angular movement max. ±7,5° more info »
	R4002.JD-30	25,400 (1")	40.64	9.22	18.29	881.65	733.00	733.00	±3,7°
£ 325.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 325.54 0% 5-19 £ 292.99 10% 20-39 £ 260.43 20% 40-99 £ 227.88 30% 100+ £ 195.32 40% d1 +0|-0.013 25,400 (1") l1 ±0.08 40.64 l2 min. 9.22 l3 min. 18.29 Torsional spring rate Nmm/° 881.65 Load fc compression max. kg 733.00 Load ft tension max. kg 733.00 Angular movement max. ±3,7° more info »
