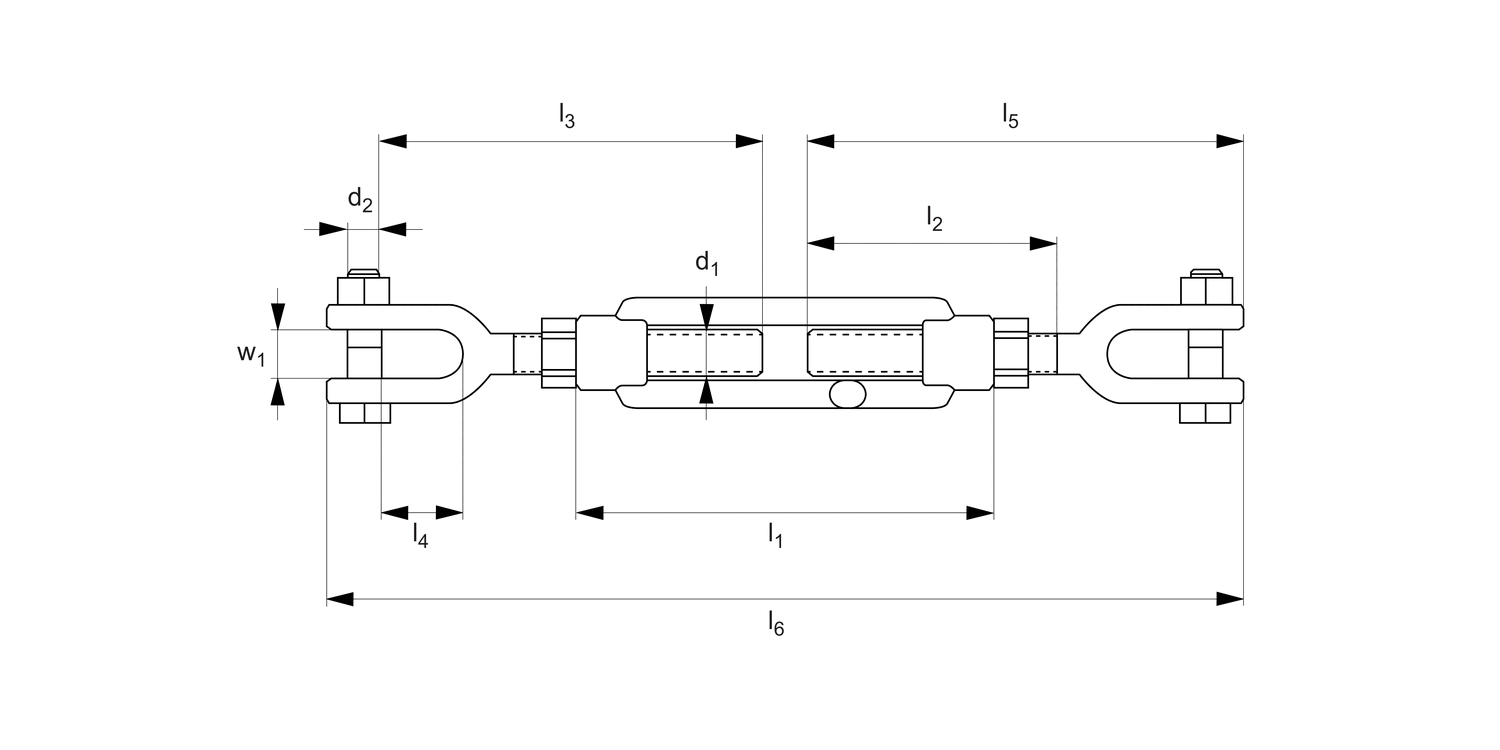

R3848 Jaw End Turnbuckle
steel, material: Steel
Alternative products you may wish to consider
d1
M 8
l1
110
l2
68
l3
116
l4
28.75
d2
8.5
l5
125
l6
min.
250
l6
max.
325
w
9.0
Weight
kg
0.14
d1
M10
l1
125
l2
82
l3
130
l4
29.25
d2
8.5
l5
139
l6
min.
279
l6
max.
364
w
10.7
Weight
kg
0.26
£ 18.91 per unit (click for quantity discounts)
d1
M12
l1
125
l2
90
l3
150
l4
44.75
d2
10.5
l5
160
l6
min.
321
l6
max.
401
w
15.5
Weight
kg
0.40
£ 26.65 per unit (click for quantity discounts)
d1
M16
l1
170
l2
102
l3
172
l4
45.25
d2
12.5
l5
186
l6
min.
372
l6
max.
482
w
20.0
Weight
kg
0.64
£ 31.23 per unit (click for quantity discounts)
d1
M20
l1
200
l2
115
l3
185
l4
59.50
d2
17.5
l5
205
l6
min.
410
l6
max.
540
w
23.5
Weight
kg
1.30
£ 48.79 per unit (click for quantity discounts)
d1
M24
l1
255
l2
125
l3
215
l4
62.75
d2
20.5
l5
240
l6
min.
481
l6
max.
651
w
29.0
Weight
kg
2.28
£ 69.48 per unit (click for quantity discounts)
d1
M30
l1
255
l2
150
l3
255
l4
89.50
d2
25.5
l5
290
l6
min.
581
l6
max.
741
w
34.0
Weight
kg
4.02
d1
l1
l2
l3
l4
d2
l5
l6
min.
l6
max.
w
Weight
kg
| Price & Availability | Article | d1 | l1 | l2 | l3 | l4 | d2 | l5 | l6 min. | l6 max. | w | Weight kg | |||||||||||||||||||||
| R3848.008-ZP | M 8 | 110 | 68 | 116 | 28.75 | 8.5 | 125 | 250 | 325 | 9.0 | 0.14 | ||||||||||||||||||||||
Ready to despatch 50 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 8 l1 110 l2 68 l3 116 l4 28.75 d2 8.5 l5 125 l6
min. 250 l6
max. 325 w 9.0 Weight
kg 0.14 | |||||||||||||||||||||||||||||||||
| R3848.010-ZP | M10 | 125 | 82 | 130 | 29.25 | 8.5 | 139 | 279 | 364 | 10.7 | 0.26 | ||||||||||||||||||||||
£ 18.91 per unit (click for quantity discounts) Ready to despatch 143 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M10 l1 125 l2 82 l3 130 l4 29.25 d2 8.5 l5 139 l6
min. 279 l6
max. 364 w 10.7 Weight
kg 0.26 | |||||||||||||||||||||||||||||||||
| R3848.012-ZP | M12 | 125 | 90 | 150 | 44.75 | 10.5 | 160 | 321 | 401 | 15.5 | 0.40 | ||||||||||||||||||||||
£ 26.65 per unit (click for quantity discounts) Ready to despatch 90 Need more? Please call us.
d1 M12 l1 125 l2 90 l3 150 l4 44.75 d2 10.5 l5 160 l6
min. 321 l6
max. 401 w 15.5 Weight
kg 0.40 | |||||||||||||||||||||||||||||||||
| R3848.016-ZP | M16 | 170 | 102 | 172 | 45.25 | 12.5 | 186 | 372 | 482 | 20.0 | 0.64 | ||||||||||||||||||||||
£ 31.23 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M16 l1 170 l2 102 l3 172 l4 45.25 d2 12.5 l5 186 l6
min. 372 l6
max. 482 w 20.0 Weight
kg 0.64 | |||||||||||||||||||||||||||||||||
| R3848.020-ZP | M20 | 200 | 115 | 185 | 59.50 | 17.5 | 205 | 410 | 540 | 23.5 | 1.30 | ||||||||||||||||||||||
£ 48.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M20 l1 200 l2 115 l3 185 l4 59.50 d2 17.5 l5 205 l6
min. 410 l6
max. 540 w 23.5 Weight
kg 1.30 | |||||||||||||||||||||||||||||||||
| R3848.024-ZP | M24 | 255 | 125 | 215 | 62.75 | 20.5 | 240 | 481 | 651 | 29.0 | 2.28 | ||||||||||||||||||||||
£ 69.48 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M24 l1 255 l2 125 l3 215 l4 62.75 d2 20.5 l5 240 l6
min. 481 l6
max. 651 w 29.0 Weight
kg 2.28 | |||||||||||||||||||||||||||||||||
| R3848.030-ZP | M30 | 255 | 150 | 255 | 89.50 | 25.5 | 290 | 581 | 741 | 34.0 | 4.02 | ||||||||||||||||||||||
Ready to despatch 13 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M30 l1 255 l2 150 l3 255 l4 89.50 d2 25.5 l5 290 l6
min. 581 l6
max. 741 w 34.0 Weight
kg 4.02 | |||||||||||||||||||||||||||||||||
Technical & Application
Material
Steel body (1.0037), jaws (1.0503), zinc-plated.
Hot dip galvanized body, available on request providing increased protection against corrosion. Please add -FZ for hot dip galvanized, e.g. R3804.006-FZ.
Technical Notes
To DIN 1480 jaw to jaw.
Tips
Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end. Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.
Important Notes
Turnbuckles are not to be used for lifting.
Only suitable for use in tension.
