Turnbuckles Open Body only
steel

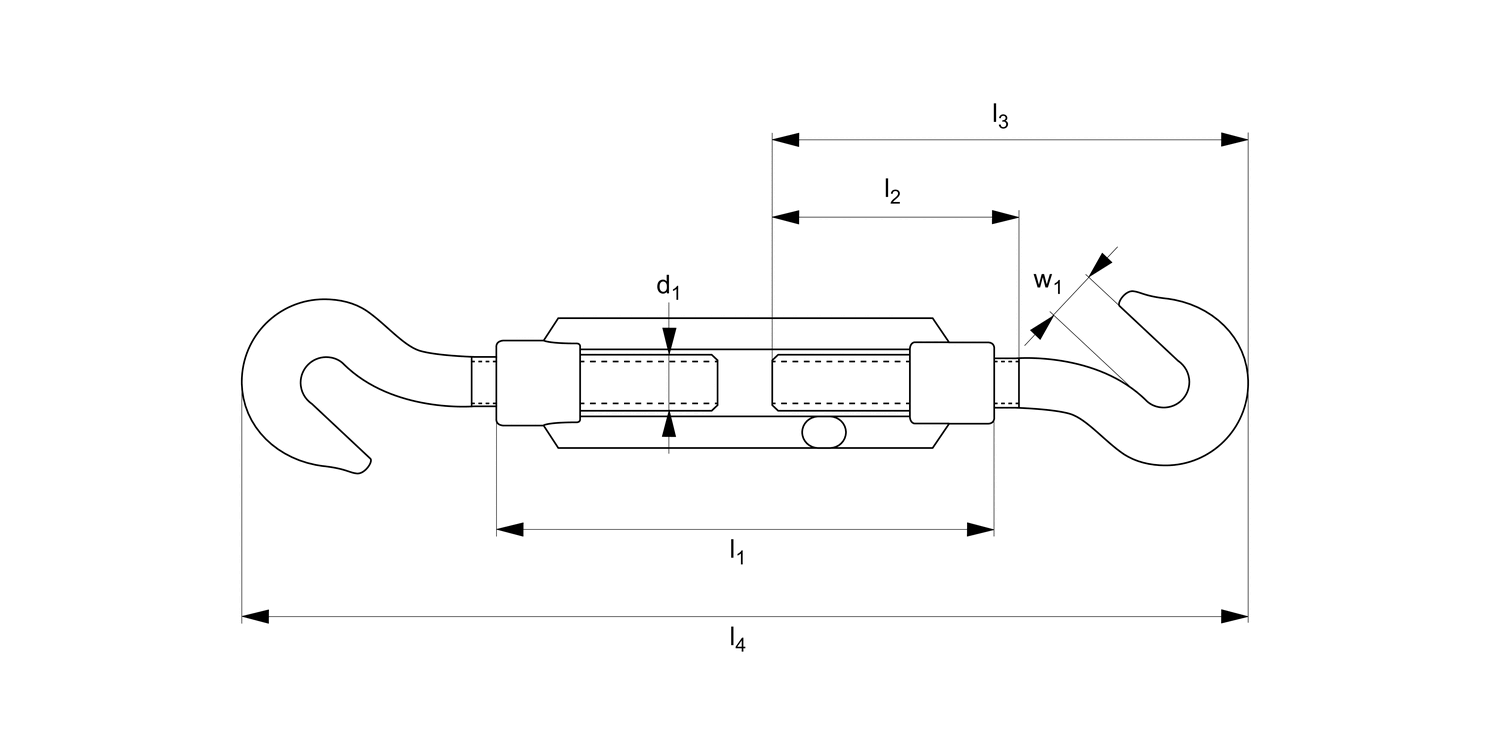

R3844 Hook End Turnbuckles
steel, material: Steel
Alternative products you may wish to consider
d1
M 6
l1
110
l2
50
l3
77.0
l4
min.
154
l4
max.
234
w1
8.0
Weight
kg
0.09
£ 5.35 per unit (click for quantity discounts)
d1
M 8
l1
110
l2
60
l3
98.0
l4
min.
196
l4
max.
271
w1
10.0
Weight
kg
0.16
£ 6.58 per unit (click for quantity discounts)
d1
M10
l1
125
l2
73
l3
116.5
l4
min.
233
l4
max.
318
w1
12.5
Weight
kg
0.27
£ 11.56 per unit (click for quantity discounts)
d1
M12
l1
125
l2
90
l3
146.0
l4
min.
293
l4
max.
373
w1
16.0
Weight
kg
0.42
£ 11.60 per unit (click for quantity discounts)
d1
M16
l1
170
l2
100
l3
165.0
l4
min.
330
l4
max.
440
w1
16.0
Weight
kg
1.00
£ 15.78 per unit (click for quantity discounts)
d1
M20
l1
200
l2
105
l3
180.0
l4
min.
360
l4
max.
490
w1
18.0
Weight
kg
1.66
d1
M24
l1
255
l2
135
l3
225.0
l4
min.
451
l4
max.
621
w1
30.0
Weight
kg
2.98
d1
M30
l1
255
l2
140
l3
255.0
l4
min.
451
l4
max.
611
w1
30.0
Weight
kg
4.28
d1
M36
l1
295
l2
170
l3
300.0
l4
min.
601
l4
max.
781
w1
32.0
Weight
kg
7.70
d1
l1
l2
l3
l4
min.
l4
max.
w1
Weight
kg
| Price & Availability | Article | d1 | l1 | l2 | l3 | l4 min. | l4 max. | w1 | Weight kg | |||||||||||||||||||||
| R3844.006-ZP | M 6 | 110 | 50 | 77.0 | 154 | 234 | 8.0 | 0.09 | ||||||||||||||||||||||
£ 5.35 per unit (click for quantity discounts) Ready to despatch 407 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 6 l1 110 l2 50 l3 77.0 l4
min. 154 l4
max. 234 w1 8.0 Weight
kg 0.09 | ||||||||||||||||||||||||||||||
| R3844.008-ZP | M 8 | 110 | 60 | 98.0 | 196 | 271 | 10.0 | 0.16 | ||||||||||||||||||||||
£ 6.58 per unit (click for quantity discounts) Ready to despatch 50 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 8 l1 110 l2 60 l3 98.0 l4
min. 196 l4
max. 271 w1 10.0 Weight
kg 0.16 | ||||||||||||||||||||||||||||||
| R3844.010-ZP | M10 | 125 | 73 | 116.5 | 233 | 318 | 12.5 | 0.27 | ||||||||||||||||||||||
£ 11.56 per unit (click for quantity discounts) Ready to despatch 445 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M10 l1 125 l2 73 l3 116.5 l4
min. 233 l4
max. 318 w1 12.5 Weight
kg 0.27 | ||||||||||||||||||||||||||||||
| R3844.012-ZP | M12 | 125 | 90 | 146.0 | 293 | 373 | 16.0 | 0.42 | ||||||||||||||||||||||
£ 11.60 per unit (click for quantity discounts) Ready to despatch 222 Need more? Please call us.
d1 M12 l1 125 l2 90 l3 146.0 l4
min. 293 l4
max. 373 w1 16.0 Weight
kg 0.42 | ||||||||||||||||||||||||||||||
| R3844.016-ZP | M16 | 170 | 100 | 165.0 | 330 | 440 | 16.0 | 1.00 | ||||||||||||||||||||||
£ 15.78 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M16 l1 170 l2 100 l3 165.0 l4
min. 330 l4
max. 440 w1 16.0 Weight
kg 1.00 | ||||||||||||||||||||||||||||||
| R3844.020-ZP | M20 | 200 | 105 | 180.0 | 360 | 490 | 18.0 | 1.66 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M20 l1 200 l2 105 l3 180.0 l4
min. 360 l4
max. 490 w1 18.0 Weight
kg 1.66 | ||||||||||||||||||||||||||||||
| R3844.024-ZP | M24 | 255 | 135 | 225.0 | 451 | 621 | 30.0 | 2.98 | ||||||||||||||||||||||
Ready to despatch 16 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M24 l1 255 l2 135 l3 225.0 l4
min. 451 l4
max. 621 w1 30.0 Weight
kg 2.98 | ||||||||||||||||||||||||||||||
| R3844.030-ZP | M30 | 255 | 140 | 255.0 | 451 | 611 | 30.0 | 4.28 | ||||||||||||||||||||||
Ready to despatch 12 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M30 l1 255 l2 140 l3 255.0 l4
min. 451 l4
max. 611 w1 30.0 Weight
kg 4.28 | ||||||||||||||||||||||||||||||
| R3844.036-ZP | M36 | 295 | 170 | 300.0 | 601 | 781 | 32.0 | 7.70 | ||||||||||||||||||||||
Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M36 l1 295 l2 170 l3 300.0 l4
min. 601 l4
max. 781 w1 32.0 Weight
kg 7.70 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Steel (1.0037), zinc-plated.
Hot dip galvanized body, available on request providing increased protection against corrosion. Please add -FZ for hot dip galvanized, e.g. R3804.006-FZ.
Technical Notes
To DIN 1480 hook to hook.
Tips
Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end. Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.
Important Notes
Turnbuckles are not to be used for lifting.
Only suitable for use in tension.
