Miniature Dovetail Stages
X axis
L3305 Dovetail Stages - Rack & Pinion
long stroke, X axis, material: Aluminium

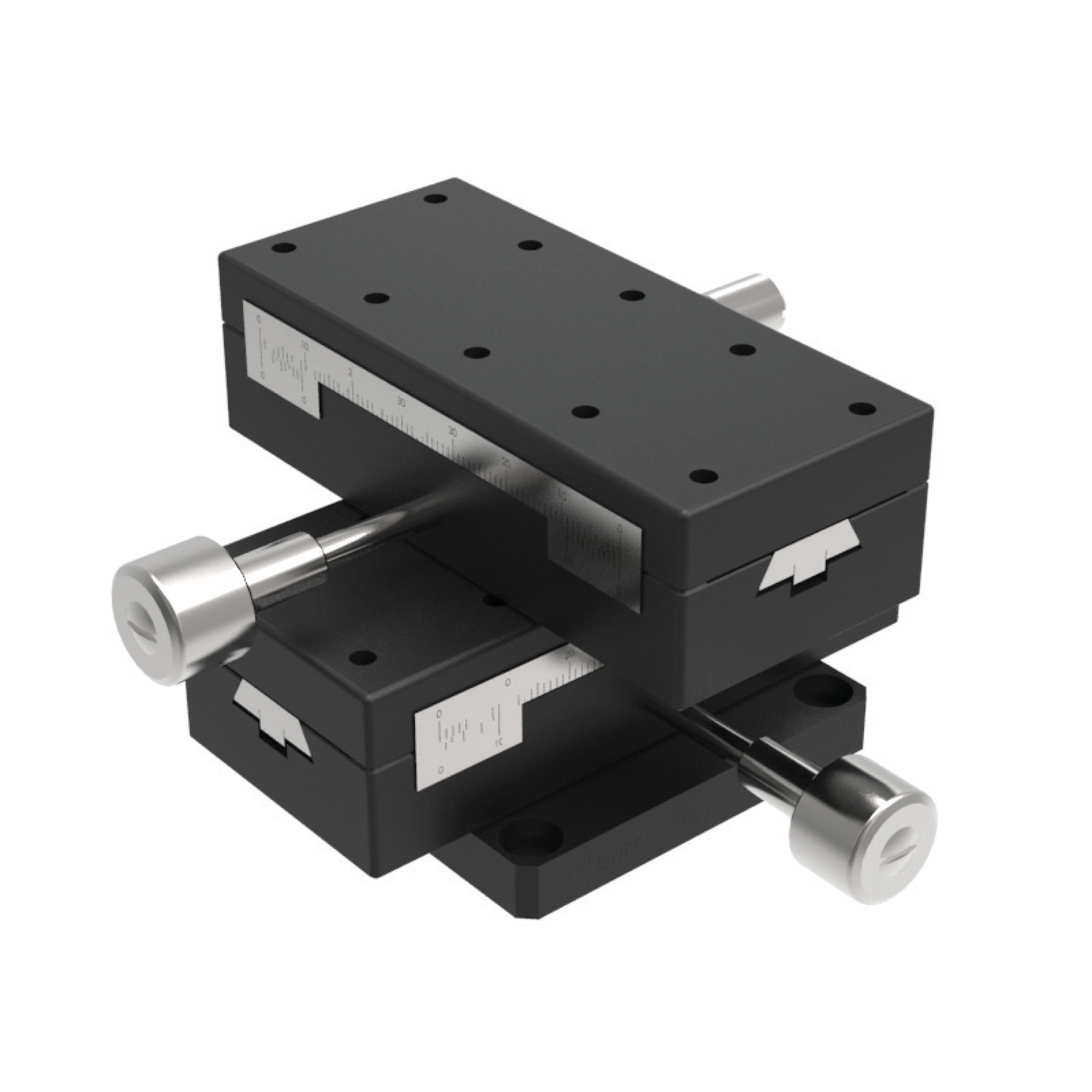

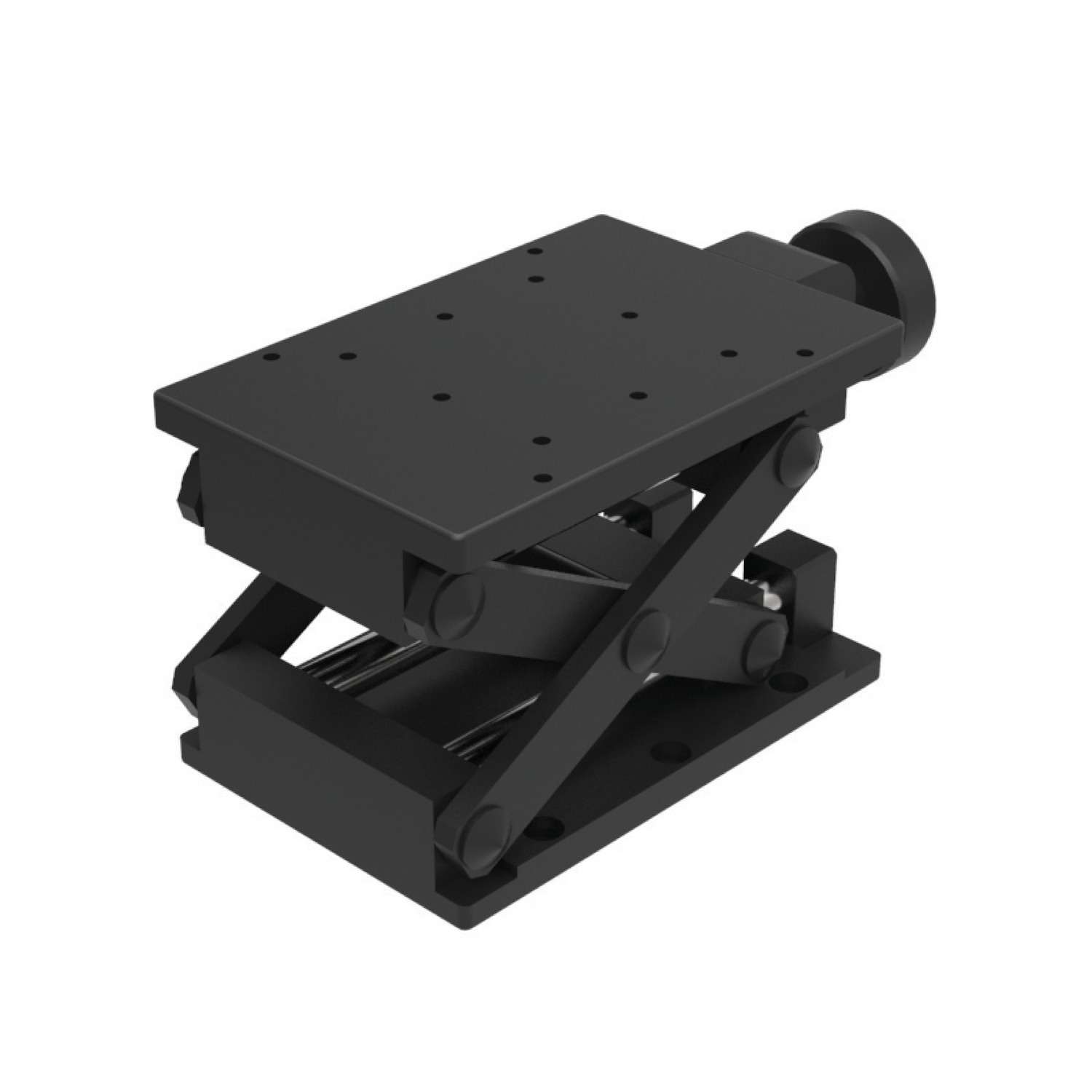

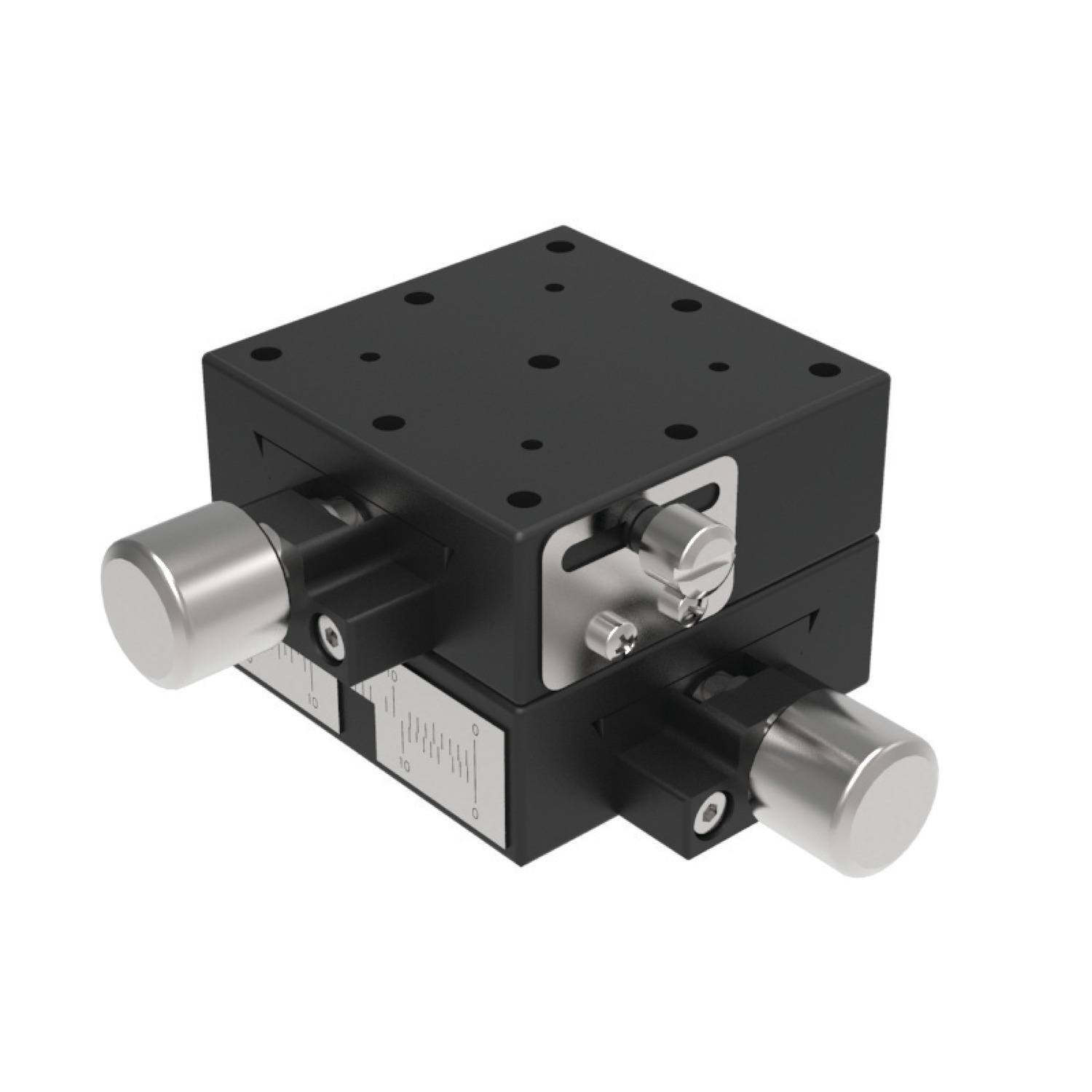

Alternative products you may wish to consider
h1
Travel
Load
max.
kg
w1
Accuracy
d1
d2
| Price & Availability | Article | h1 | Travel | Load max. kg | w1 | Accuracy | d1 | d2 | ||||||
| L3305.100 | 25 | ±40 | 3.0 | 25 | 30µ | M2 | M2 | |||||||
£ 291.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1 25 Travel ±40 Load
max.
kg 3.0 w1 25 Accuracy 30µ d1 M2 d2 M2 | ||||||||||||||
| L3305.150 | 25 | ±60 | 3.0 | 25 | 40µ | M4 | M2 | |||||||
£ 380.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1 25 Travel ±60 Load
max.
kg 3.0 w1 25 Accuracy 40µ d1 M4 d2 M2 | ||||||||||||||
| L3305.200 | 25 | ±95 | 3.0 | 25 | 50µ | M4 | M2 | |||||||
£ 456.20 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1 25 Travel ±95 Load
max.
kg 3.0 w1 25 Accuracy 50µ d1 M4 d2 M2 | ||||||||||||||
d3 for
d4
d5
h2
h3
h4
l1
l2
l3
l4
l5
w2
w3
w4
| Price & Availability | Article | d3 for | d4 | d5 | h2 | h3 | h4 | l1 | l2 | l3 | l4 | l5 | w2 | w3 | w4 | ||||||
| L3305.100 | M3 | 15 | 8 | 17.1 | 14.8 | 6 | 100 | 42 | 30 | 25 | 15 | 15 | 40.2 | 24.5 | |||||||
£ 291.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d3 for M3 d4 15 d5 8 h2 17.1 h3 14.8 h4 6 l1 100 l2 42 l3 30 l4 25 l5 15 w2 15 w3 40.2 w4 24.5 | |||||||||||||||||||||
| L3305.150 | M3 | 15 | 8 | 17.1 | 14.8 | 6 | 150 | 42 | 30 | 25 | 15 | 15 | 40.2 | 24.5 | |||||||
£ 380.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d3 for M3 d4 15 d5 8 h2 17.1 h3 14.8 h4 6 l1 150 l2 42 l3 30 l4 25 l5 15 w2 15 w3 40.2 w4 24.5 | |||||||||||||||||||||
| L3305.200 | M3 | 15 | 8 | 17.1 | 14.8 | 6 | 200 | 42 | 30 | 25 | 15 | 15 | 40.2 | 24.5 | |||||||
£ 456.20 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d3 for M3 d4 15 d5 8 h2 17.1 h3 14.8 h4 6 l1 200 l2 42 l3 30 l4 25 l5 15 w2 15 w3 40.2 w4 24.5 | |||||||||||||||||||||
Technical & Application
Material
Aluminium body blackened, steel knob.
Technical Notes
Travel 18mm for one revolution.
Minimum vernier reading 0,1mm.
Straightness accuracy 30µ.
Use screwdriver to adjust knob to allow coarse or fine adjustment.
