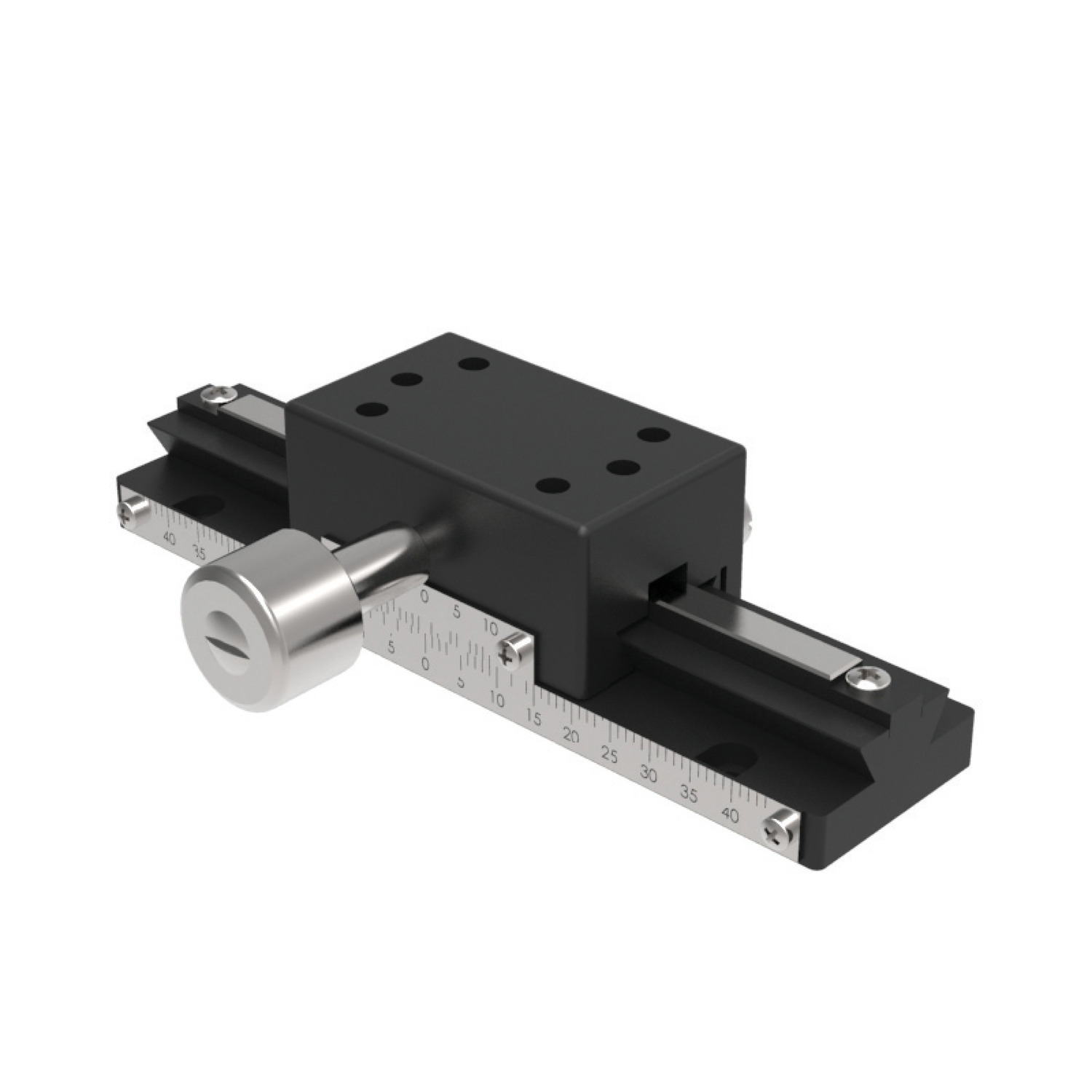

L3305 Dovetail Stages - Rack & Pinion

Name: L3305.150
Brand: WC
SKU: L3305.150
Price: 380.16 EUR
Availability: OutOfStock

long stroke, X axis, material: Aluminium

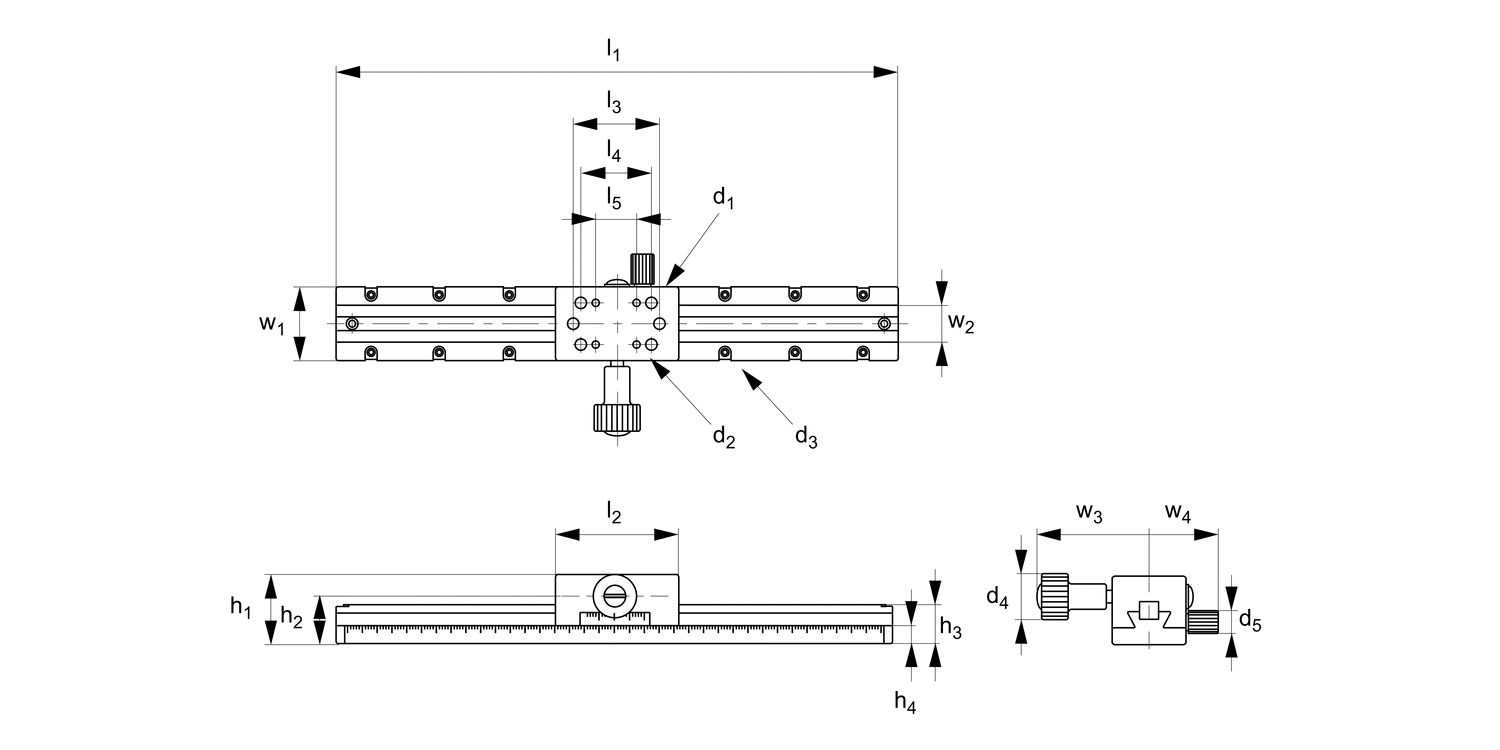

Article properties

Order No.

L3305.150

h₁

Travel

±60

Load max. kg

3.0

w₁

Accuracy

40µ

d₁

d₂

d₃ for

d₄

d₅

h₂

17.1

h₃

14.8

h₄

l₁

150

l₂

l₃

l₄

l₅

w₂

w₃

40.2

w₄

24.5

See full product selection

£ 380.16 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	£ 380.16

Download product datasheet

Technical & Application

Material

Aluminium body blackened, steel knob.

Technical Notes

Travel 18mm for one revolution.
Minimum vernier reading 0,1mm.
Straightness accuracy 30µ.
Use screwdriver to adjust knob to allow coarse or fine adjustment.
