L3300.XY Miniature Dovetail Stages

XY axis, material: Brass

Download product datasheet

Alternative products you may wish to consider

Miniature Dovetail Stages
X axis

Miniature Dovetail Stages
XY axis

Dovetail Stages - Rack & Pinion
X axis

Dovetail Stages - Rack & Pinion
XY axis

Dovetail Stages - Rack & Pinion
long stroke, X axis

Laboratory Jacks
Z axis



Select all

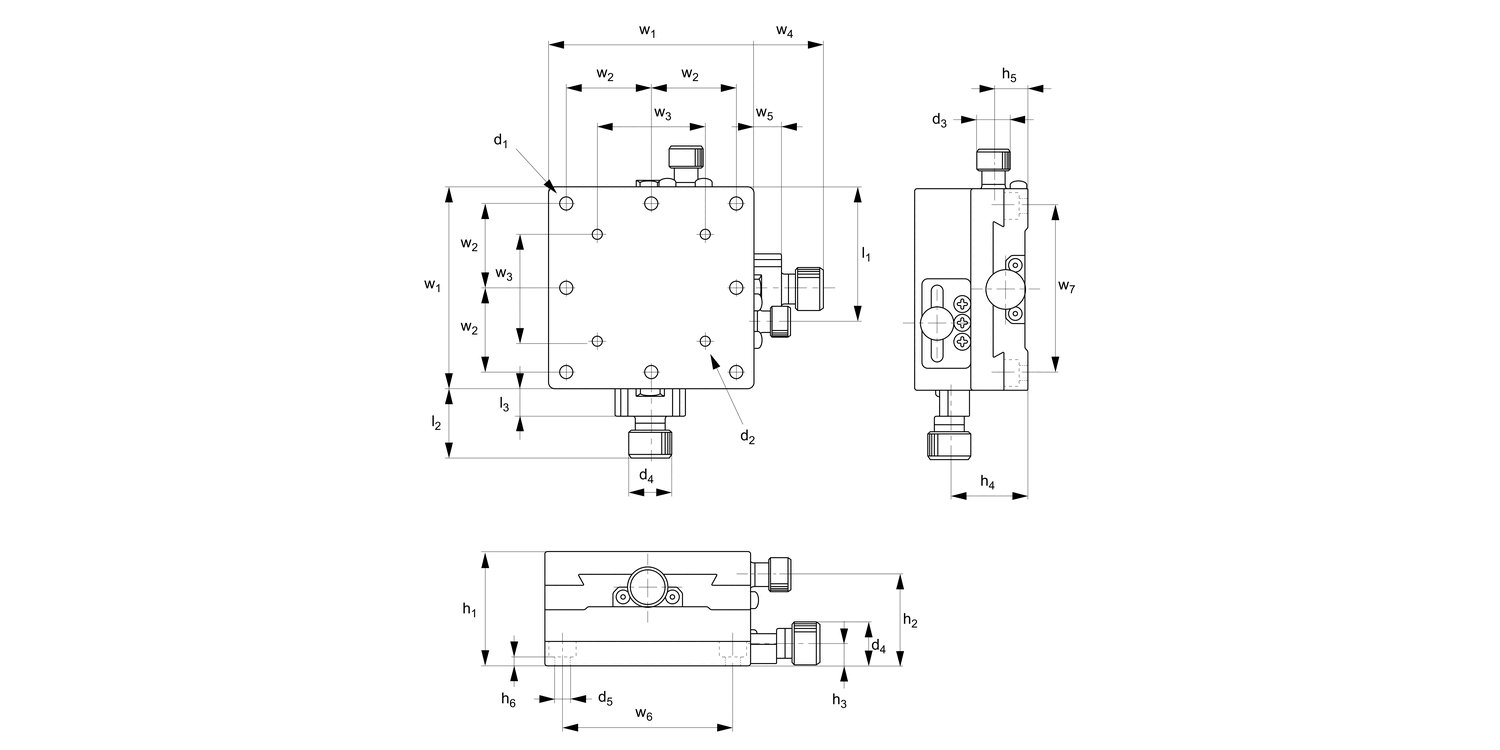

h₁

Travel

Load max. kg

w₁

d₁

d₂

d₃

Price & Availability	Article	h1	Travel	Load max. kg	w1	d1	d2	d3
	L3300.025-XY	30	±3	2.9	25	M2	-	6
£ 329.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ £ 329.48   h1 30 Travel ±3 Load max. kg 2.9 w1 25 d1 M2 d2 - d3 6 more info »
	L3300.040-XY	30	±7	2.8	40	M3	M2	6
£ 351.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ £ 351.44   h1 30 Travel ±7 Load max. kg 2.8 w1 40 d1 M3 d2 M2 d3 6 more info »
	L3300.060-XY	34	±9	3.4	60	M4	M3	10
£ 380.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ £ 380.16   h1 34 Travel ±9 Load max. kg 3.4 w1 60 d1 M4 d2 M3 d3 10 more info »



Select all

d₄

d₅

h₂

h₃

h₄

h₅

h₆

l₁

l₂

l₃

w₂

w₃

w₄

w₅

w₆

w₇

Price & Availability	Article	d4	d5	h2	h3	h4	h5	h6	l1	l2	l3	w2	w3	w4	w5	w6	w7
	L3300.025-XY	12	2.5	26.5	7.0	22.0	11.5	4.5	15	20	8	10	-	20	8.0	8	20
£ 329.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ £ 329.48   d4 12 d5 2.5 h2 26.5 h3 7.0 h4 22.0 h5 11.5 h6 4.5 l1 15 l2 20 l3 8 w2 10 w3 - w4 20 w5 8.0 w6 8 w7 20 more info »
	L3300.040-XY	12	3.5	26.5	7.0	22.0	11.5	3.5	28	20	8	20	20	20	8.0	8	32
£ 351.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ £ 351.44   d4 12 d5 3.5 h2 26.5 h3 7.0 h4 22.0 h5 11.5 h6 3.5 l1 28 l2 20 l3 8 w2 20 w3 20 w4 20 w5 8.0 w6 8 w7 32 more info »
	L3300.060-XY	12	4.5	27.5	6.5	23.5	10.5	2.5	40	20	8	25	32	20	11.5	8	50
£ 380.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ £ 380.16   d4 12 d5 4.5 h2 27.5 h3 6.5 h4 23.5 h5 10.5 h6 2.5 l1 40 l2 20 l3 8 w2 25 w3 32 w4 20 w5 11.5 w6 8 w7 50 more info »
