R3202 Rigid Shaft Coupling - One Piece

Name: R3202.32-12-14
Brand: WC
SKU: R3202.32-12-14
Price: 36.93 EUR
Availability: OutOfStock

Aluminium, long, material: Aluminium

Article properties

Order No.

R3202.32-12-14

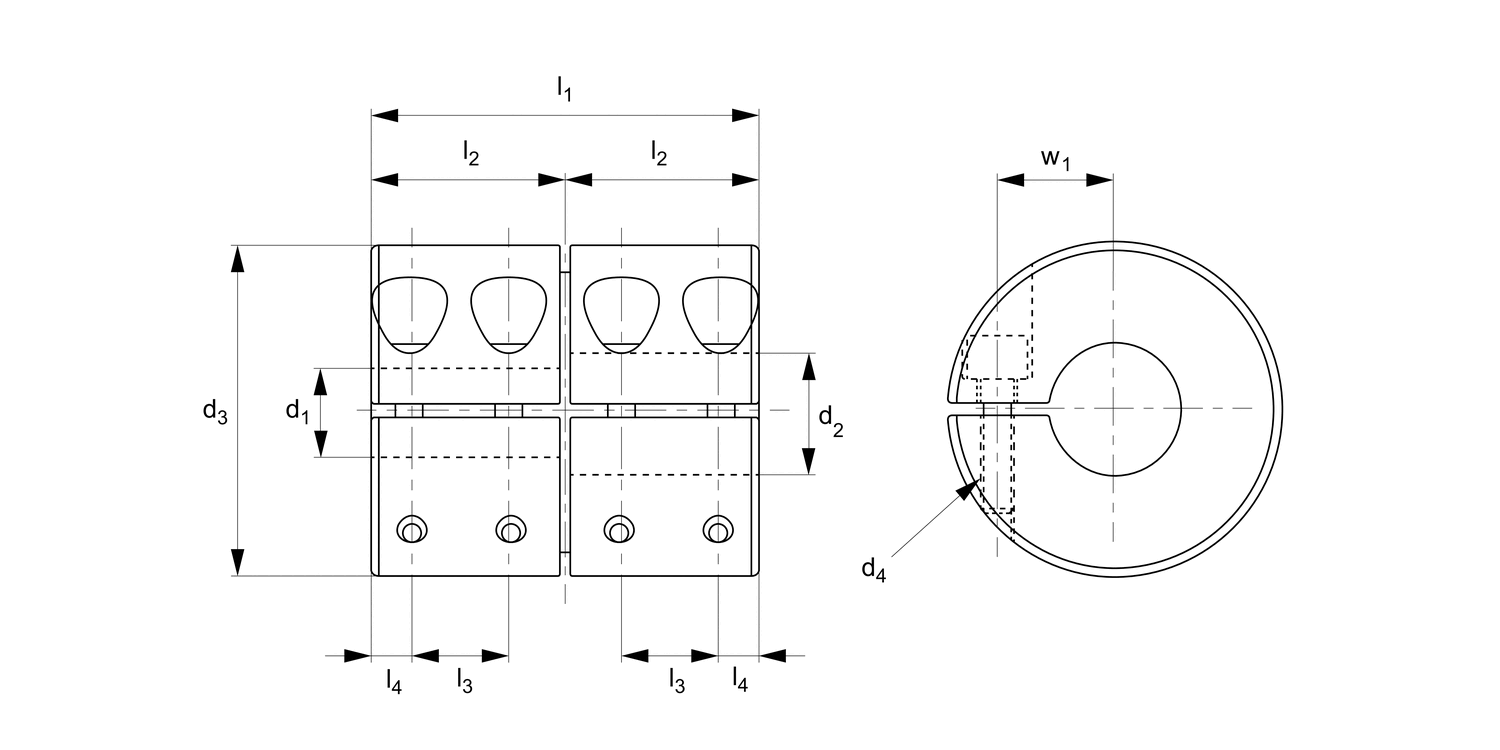

d₁ tol. H7/H8

d₂ tol. H7/H8

d₃

d₄

M 3

l₁

l₂

4.0

l₃

10.0

Static torque Nm

rpm max.

4500

Moment of inertia kg·m²

1,0x10^-5

Torque screw to Nm

1.5

Weight g

See full product selection

£ 36.93 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	£ 36.93

Download product datasheet

Technical & Application

Material

Aluminium alloy, anodized.

Technical Notes

To fit h7 or h8 tolerance shafts.
Very light with low moment of inertia. Maintenance free, excellent anti-oil and corrosion resistance.
Reciprocating torque is quarter static torque.
Rotational torque is half static torque.
