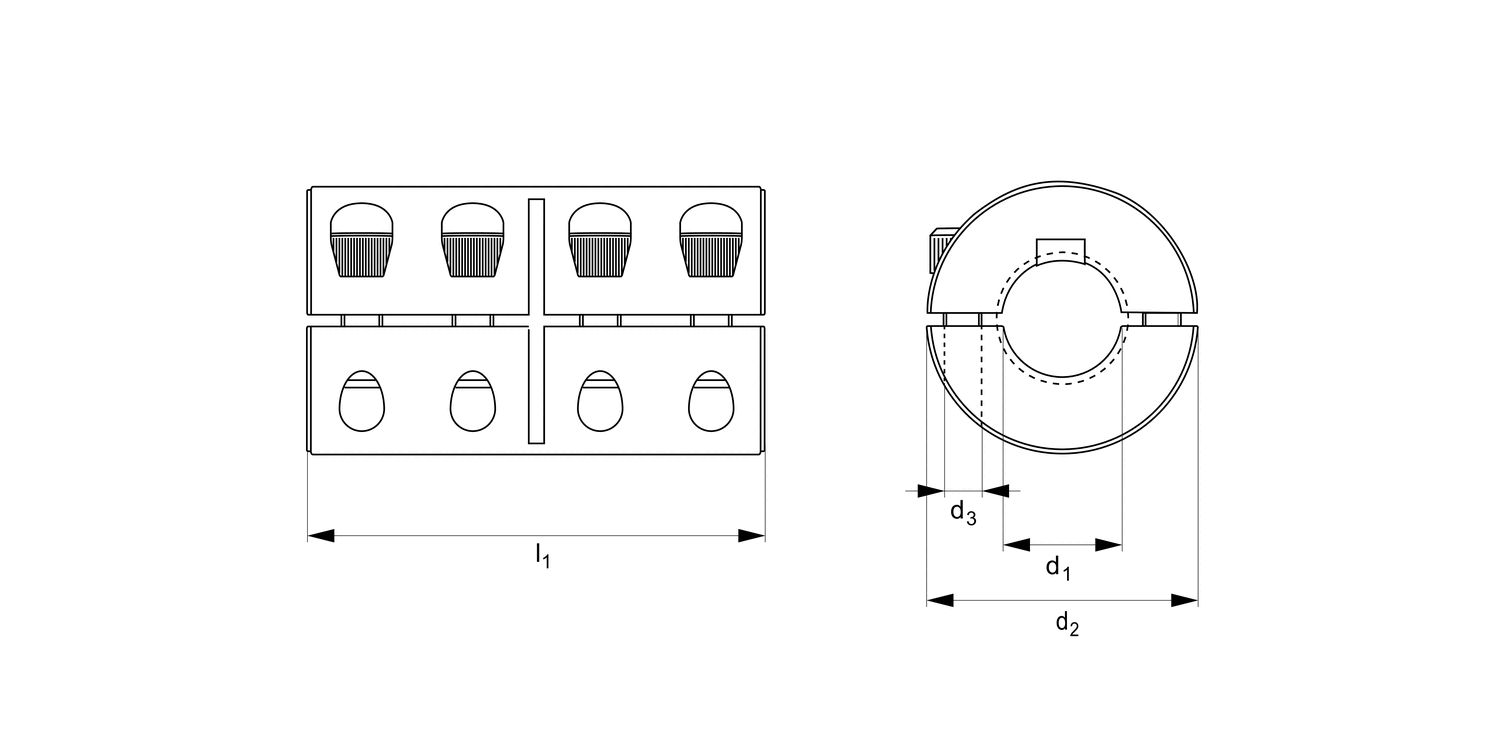

R3205 Rigid Shaft Couplings - Two Piece

steel & stainless, clamping, long, material: Steel or stainless steel

Download product datasheet

Alternative products you may wish to consider

One Piece Rigid Shaft Couplings
Aluminium

Two Piece Rigid Shaft Coupling
Aluminium

Two Piece Rigid Shaft Coupling
Stainless

Rigid Coupling
Aluminium

One Piece Rigid Shaft Coupling
Stainless

One Piece Rigid Shaft Couplings
Stainless

One Piece Rigid Coupling
steel & stainless

Two Piece Rigid Coupling
steel & stainless

One Piece Rigid Shaft Coupling
Aluminium

One Piece Rigid Shaft Coupling
Stainless

Rigid Shaft Couplings - Two Piece

R3205.060-BL

d₁ tol. H7/H8

6

d₂ tol. H7/H8

18

d₃

M 3

l₁

30

Static torque Nm

34

Material

Steel

Type

standard

Torque screw to Nm

2.0

Weight g

40

Weight g

40

Rigid Shaft Couplings - Two Piece

R3205.080-BL

d₁ tol. H7/H8

8

d₂ tol. H7/H8

24

d₃

M 3

l₁

35

Static torque Nm

50

Material

Steel

Type

standard

Torque screw to Nm

2.0

Weight g

80

Weight g

80

Rigid Shaft Couplings - Two Piece - Blac

R3205.100-BL

d₁ tol. H7/H8

10

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

105

Material

Steel

Type

standard

Torque screw to Nm

4.5

Weight g

190

Weight g

190

£ 78.22 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece - Blac

R3205.120-BL

d₁ tol. H7/H8

12

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

105

Material

Steel

Type

standard

Torque screw to Nm

4.5

Weight g

180

Weight g

180

£ 83.93 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.140-BL

d₁ tol. H7/H8

14

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

200

Material

Steel

Type

standard

Torque screw to Nm

9.5

Weight g

250

Weight g

250

Rigid Shaft Couplings - Two Piece - Blac

R3205.150-BL

d₁ tol. H7/H8

15

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

200

Material

Steel

Type

standard

Torque screw to Nm

9.5

Weight g

240

Weight g

240

£ 98.72 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.160-BL

d₁ tol. H7/H8

16

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

200

Material

Steel

Type

standard

Torque screw to Nm

9.5

Weight g

230

Weight g

230

Rigid Shaft Couplings - Two Piece

R3205.200-BL

d₁ tol. H7/H8

20

d₂ tol. H7/H8

42

d₃

M 6

l₁

65

Static torque Nm

350

Material

Steel

Type

standard

Torque screw to Nm

16.5

Weight g

500

Weight g

500

£ 122.54 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece - Blac

R3205.250-BL

d₁ tol. H7/H8

25

d₂ tol. H7/H8

45

d₃

M 6

l₁

75

Static torque Nm

400

Material

Steel

Type

standard

Torque screw to Nm

16.5

Weight g

620

Weight g

620

£ 153.44 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece - Blac

R3205.300-BL

d₁ tol. H7/H8

30

d₂ tol. H7/H8

53

d₃

M 6

l₁

83

Static torque Nm

475

Material

Steel

Type

standard

Torque screw to Nm

16.5

Weight g

1000

Weight g

1000

£ 163.71 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece - Blac

R3205.350-BL

d₁ tol. H7/H8

35

d₂ tol. H7/H8

67

d₃

M 8

l₁

95

Static torque Nm

1100

Material

Steel

Type

standard

Torque screw to Nm

39.0

Weight g

1100

Weight g

1100

£ 226.40 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece - Blac

R3205.400-BL

d₁ tol. H7/H8

40

d₂ tol. H7/H8

77

d₃

M 8

l₁

108

Static torque Nm

1325

Material

Steel

Type

standard

Torque screw to Nm

39.0

Weight g

2500

Weight g

2500

£ 381.26 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece - Blac

R3205.500-BL

d₁ tol. H7/H8

50

d₂ tol. H7/H8

85

d₃

M10

l₁

124

Static torque Nm

2250

Material

Steel

Type

standard

Torque screw to Nm

78.0

Weight g

3100

Weight g

3100

£ 327.24 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.080-BL-K

d₁ tol. H7/H8

8

d₂ tol. H7/H8

24

d₃

M 3

l₁

35

Static torque Nm

50

Material

Steel

Type

with keyway

Torque screw to Nm

2.0

Weight g

80

Weight g

80

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.100-BL-K

d₁ tol. H7/H8

10

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

105

Material

Steel

Type

with keyway

Torque screw to Nm

4.5

Weight g

190

Weight g

190

£ 92.60 per unit (click for quantity discounts)

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.120-BL-K

d₁ tol. H7/H8

12

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

105

Material

Steel

Type

with keyway

Torque screw to Nm

4.5

Weight g

180

Weight g

180

£ 101.19 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.140-BL-K

d₁ tol. H7/H8

14

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

200

Material

Steel

Type

with keyway

Torque screw to Nm

9.5

Weight g

240

Weight g

240

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.150-BL-K

d₁ tol. H7/H8

15

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

200

Material

Steel

Type

with keyway

Torque screw to Nm

9.5

Weight g

240

Weight g

240

£ 114.63 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.160-BL-K

d₁ tol. H7/H8

16

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

200

Material

Steel

Type

with keyway

Torque screw to Nm

9.5

Weight g

230

Weight g

230

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.200-BL-K

d₁ tol. H7/H8

20

d₂ tol. H7/H8

42

d₃

M 6

l₁

65

Static torque Nm

350

Material

Steel

Type

with keyway

Torque screw to Nm

16.5

Weight g

500

Weight g

500

£ 144.90 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece Steel With keyway

R3205.250-BL-K

d₁ tol. H7/H8

25

d₂ tol. H7/H8

45

d₃

M 6

l₁

75

Static torque Nm

400

Material

Steel

Type

with keyway

Torque screw to Nm

16.5

Weight g

620

Weight g

620

£ 233.25 per unit (click for quantity discounts)

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.300-BL-K

d₁ tol. H7/H8

30

d₂ tol. H7/H8

53

d₃

M 6

l₁

83

Static torque Nm

475

Material

Steel

Type

with keyway

Torque screw to Nm

16.5

Weight g

1000

Weight g

1000

£ 218.47 per unit (click for quantity discounts)

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.350-BL-K

d₁ tol. H7/H8

35

d₂ tol. H7/H8

67

d₃

M 8

l₁

95

Static torque Nm

1100

Material

Steel

Type

with keyway

Torque screw to Nm

39.0

Weight g

1100

Weight g

1100

£ 475.95 per unit (click for quantity discounts)

Rigid Shaft Coupling 2 piece Black Oxide

R3205.400-BL-K

d₁ tol. H7/H8

40

d₂ tol. H7/H8

77

d₃

M 8

l₁

108

Static torque Nm

1325

Material

Steel

Type

with keyway

Torque screw to Nm

39.0

Weight g

2500

Weight g

2500

£ 360.78 per unit (click for quantity discounts)

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.500-BL-K

d₁ tol. H7/H8

50

d₂ tol. H7/H8

85

d₃

M10

l₁

124

Static torque Nm

2250

Material

Steel

Type

with keyway

Torque screw to Nm

78.0

Weight g

3100

Weight g

3100

£ 417.17 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.060-A2

d₁ tol. H7/H8

6

d₂ tol. H7/H8

18

d₃

M 3

l₁

30

Static torque Nm

10

Material

Stainless

Type

standard

Torque screw to Nm

1.0

Weight g

40

Weight g

40

Rigid Shaft Couplings - Two Piece

R3205.080-A2

d₁ tol. H7/H8

8

d₂ tol. H7/H8

24

d₃

M 3

l₁

35

Static torque Nm

16

Material

Stainless

Type

standard

Torque screw to Nm

1.0

Weight g

80

Weight g

80

Rigid Shaft Couplings - Two Piece - Stai

R3205.100-A2

d₁ tol. H7/H8

10

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

32

Material

Stainless

Type

standard

Torque screw to Nm

2.5

Weight g

190

Weight g

190

£ 125.16 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.120-A2

d₁ tol. H7/H8

12

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

32

Material

Stainless

Type

standard

Torque screw to Nm

2.5

Weight g

180

Weight g

180

Rigid Shaft Couplings - Two Piece

R3205.140-A2

d₁ tol. H7/H8

14

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

60

Material

Stainless

Type

standard

Torque screw to Nm

5.0

Weight g

250

Weight g

250

Rigid Shaft Couplings - Two Piece

R3205.150-A2

d₁ tol. H7/H8

15

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

60

Material

Stainless

Type

standard

Torque screw to Nm

5.0

Weight g

240

Weight g

240

Rigid Shaft Couplings - Two Piece

R3205.160-A2

d₁ tol. H7/H8

16

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

60

Material

Stainless

Type

standard

Torque screw to Nm

5.0

Weight g

230

Weight g

230

Rigid Shaft Couplings - Two Piece

R3205.200-A2

d₁ tol. H7/H8

20

d₂ tol. H7/H8

42

d₃

M 6

l₁

65

Static torque Nm

110

Material

Stainless

Type

standard

Torque screw to Nm

8.5

Weight g

500

Weight g

500

Rigid Shaft Couplings - Two Piece

R3205.250-A2

d₁ tol. H7/H8

25

d₂ tol. H7/H8

45

d₃

M 6

l₁

75

Static torque Nm

120

Material

Stainless

Type

standard

Torque screw to Nm

8.5

Weight g

620

Weight g

620

Rigid Shaft Couplings - Two Piece

R3205.300-A2

d₁ tol. H7/H8

30

d₂ tol. H7/H8

53

d₃

M 6

l₁

83

Static torque Nm

150

Material

Stainless

Type

standard

Torque screw to Nm

8.5

Weight g

1000

Weight g

1000

Rigid Shaft Coupling - Two piece S/S

R3205.350-A2

d₁ tol. H7/H8

35

d₂ tol. H7/H8

67

d₃

M 8

l₁

95

Static torque Nm

330

Material

Stainless

Type

standard

Torque screw to Nm

20.5

Weight g

1100

Weight g

1100

£ 686.45 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.400-A2

d₁ tol. H7/H8

40

d₂ tol. H7/H8

77

d₃

M 8

l₁

108

Static torque Nm

400

Material

Stainless

Type

standard

Torque screw to Nm

20.5

Weight g

2500

Weight g

2500

Rigid Shaft Couplings - Two Piece

R3205.500-A2

d₁ tol. H7/H8

50

d₂ tol. H7/H8

85

d₃

M10

l₁

124

Static torque Nm

675

Material

Stainless

Type

standard

Torque screw to Nm

41.5

Weight g

3100

Weight g

3100

£ 1,002.74 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.080-A2-K

d₁ tol. H7/H8

8

d₂ tol. H7/H8

24

d₃

M 3

l₁

35

Static torque Nm

16

Material

Stainless

Type

with keyway

Torque screw to Nm

1.0

Weight g

80

Weight g

80

Rigid Shaft Couplings - Two Piece

R3205.100-A2-K

d₁ tol. H7/H8

10

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

32

Material

Stainless

Type

with keyway

Torque screw to Nm

2.5

Weight g

190

Weight g

190

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.120-A2-K

d₁ tol. H7/H8

12

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

32

Material

Stainless

Type

with keyway

Torque screw to Nm

2.5

Weight g

180

Weight g

180

£ 178.92 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.140-A2-K

d₁ tol. H7/H8

14

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

60

Material

Stainless

Type

with keyway

Torque screw to Nm

5.0

Weight g

240

Weight g

240

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.150-A2-K

d₁ tol. H7/H8

15

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

60

Material

Stainless

Type

with keyway

Torque screw to Nm

5.0

Weight g

240

Weight g

240

£ 256.80 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.160-A2-K

d₁ tol. H7/H8

16

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

60

Material

Stainless

Type

with keyway

Torque screw to Nm

5.0

Weight g

230

Weight g

230

Rigid Shaft Couplings - Two Piece

R3205.200-A2-K

d₁ tol. H7/H8

20

d₂ tol. H7/H8

42

d₃

M 6

l₁

65

Static torque Nm

110

Material

Stainless

Type

with keyway

Torque screw to Nm

8.5

Weight g

500

Weight g

500

Rigid Shaft Couplings - Two Piece

R3205.250-A2-K

d₁ tol. H7/H8

25

d₂ tol. H7/H8

45

d₃

M 6

l₁

75

Static torque Nm

120

Material

Stainless

Type

with keyway

Torque screw to Nm

8.5

Weight g

620

Weight g

620

Rigid Shaft Couplings - Two Piece

R3205.300-A2-K

d₁ tol. H7/H8

30

d₂ tol. H7/H8

53

d₃

M 6

l₁

83

Static torque Nm

150

Material

Stainless

Type

with keyway

Torque screw to Nm

8.5

Weight g

1000

Weight g

1000

Rigid Shaft Couplings - Two Piece

R3205.350-A2-K

d₁ tol. H7/H8

35

d₂ tol. H7/H8

67

d₃

M 8

l₁

95

Static torque Nm

330

Material

Stainless

Type

with keyway

Torque screw to Nm

20.5

Weight g

1100

Weight g

1100

Rigid Shaft Couplings - Two Piece

R3205.400-A2-K

d₁ tol. H7/H8

40

d₂ tol. H7/H8

77

d₃

M 8

l₁

108

Static torque Nm

400

Material

Stainless

Type

with keyway

Torque screw to Nm

20.5

Weight g

2500

Weight g

2500

Rigid Shaft Couplings - Two Piece

R3205.500-A2-K

d₁ tol. H7/H8

50

d₂ tol. H7/H8

85

d₃

M10

l₁

124

Static torque Nm

675

Material

Stainless

Type

with keyway

Torque screw to Nm

41.5

Weight g

3100

Weight g

3100

Rigid Shaft Couplings - Two Piece

R3205.060-BL

d₁ tol. H7/H8

6

d₂ tol. H7/H8

18

d₃

M 3

l₁

30

Static torque Nm

34

Material

Steel

Type

standard

Torque screw to Nm

2.0

Weight g

40

Weight g

40

Rigid Shaft Couplings - Two Piece

R3205.080-BL

d₁ tol. H7/H8

8

d₂ tol. H7/H8

24

d₃

M 3

l₁

35

Static torque Nm

50

Material

Steel

Type

standard

Torque screw to Nm

2.0

Weight g

80

Weight g

80

Rigid Shaft Couplings - Two Piece - Blac

R3205.100-BL

d₁ tol. H7/H8

10

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

105

Material

Steel

Type

standard

Torque screw to Nm

4.5

Weight g

190

Weight g

190

£ 78.22 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece - Blac

R3205.120-BL

d₁ tol. H7/H8

12

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

105

Material

Steel

Type

standard

Torque screw to Nm

4.5

Weight g

180

Weight g

180

£ 83.93 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.140-BL

d₁ tol. H7/H8

14

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

200

Material

Steel

Type

standard

Torque screw to Nm

9.5

Weight g

250

Weight g

250

Rigid Shaft Couplings - Two Piece - Blac

R3205.150-BL

d₁ tol. H7/H8

15

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

200

Material

Steel

Type

standard

Torque screw to Nm

9.5

Weight g

240

Weight g

240

£ 98.72 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.160-BL

d₁ tol. H7/H8

16

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

200

Material

Steel

Type

standard

Torque screw to Nm

9.5

Weight g

230

Weight g

230

Rigid Shaft Couplings - Two Piece

R3205.200-BL

d₁ tol. H7/H8

20

d₂ tol. H7/H8

42

d₃

M 6

l₁

65

Static torque Nm

350

Material

Steel

Type

standard

Torque screw to Nm

16.5

Weight g

500

Weight g

500

£ 122.54 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece - Blac

R3205.250-BL

d₁ tol. H7/H8

25

d₂ tol. H7/H8

45

d₃

M 6

l₁

75

Static torque Nm

400

Material

Steel

Type

standard

Torque screw to Nm

16.5

Weight g

620

Weight g

620

£ 153.44 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece - Blac

R3205.300-BL

d₁ tol. H7/H8

30

d₂ tol. H7/H8

53

d₃

M 6

l₁

83

Static torque Nm

475

Material

Steel

Type

standard

Torque screw to Nm

16.5

Weight g

1000

Weight g

1000

£ 163.71 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece - Blac

R3205.350-BL

d₁ tol. H7/H8

35

d₂ tol. H7/H8

67

d₃

M 8

l₁

95

Static torque Nm

1100

Material

Steel

Type

standard

Torque screw to Nm

39.0

Weight g

1100

Weight g

1100

£ 226.40 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece - Blac

R3205.400-BL

d₁ tol. H7/H8

40

d₂ tol. H7/H8

77

d₃

M 8

l₁

108

Static torque Nm

1325

Material

Steel

Type

standard

Torque screw to Nm

39.0

Weight g

2500

Weight g

2500

£ 381.26 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece - Blac

R3205.500-BL

d₁ tol. H7/H8

50

d₂ tol. H7/H8

85

d₃

M10

l₁

124

Static torque Nm

2250

Material

Steel

Type

standard

Torque screw to Nm

78.0

Weight g

3100

Weight g

3100

£ 327.24 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.080-BL-K

d₁ tol. H7/H8

8

d₂ tol. H7/H8

24

d₃

M 3

l₁

35

Static torque Nm

50

Material

Steel

Type

with keyway

Torque screw to Nm

2.0

Weight g

80

Weight g

80

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.100-BL-K

d₁ tol. H7/H8

10

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

105

Material

Steel

Type

with keyway

Torque screw to Nm

4.5

Weight g

190

Weight g

190

£ 92.60 per unit (click for quantity discounts)

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.120-BL-K

d₁ tol. H7/H8

12

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

105

Material

Steel

Type

with keyway

Torque screw to Nm

4.5

Weight g

180

Weight g

180

£ 101.19 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.140-BL-K

d₁ tol. H7/H8

14

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

200

Material

Steel

Type

with keyway

Torque screw to Nm

9.5

Weight g

240

Weight g

240

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.150-BL-K

d₁ tol. H7/H8

15

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

200

Material

Steel

Type

with keyway

Torque screw to Nm

9.5

Weight g

240

Weight g

240

£ 114.63 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.160-BL-K

d₁ tol. H7/H8

16

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

200

Material

Steel

Type

with keyway

Torque screw to Nm

9.5

Weight g

230

Weight g

230

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.200-BL-K

d₁ tol. H7/H8

20

d₂ tol. H7/H8

42

d₃

M 6

l₁

65

Static torque Nm

350

Material

Steel

Type

with keyway

Torque screw to Nm

16.5

Weight g

500

Weight g

500

£ 144.90 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece Steel With keyway

R3205.250-BL-K

d₁ tol. H7/H8

25

d₂ tol. H7/H8

45

d₃

M 6

l₁

75

Static torque Nm

400

Material

Steel

Type

with keyway

Torque screw to Nm

16.5

Weight g

620

Weight g

620

£ 233.25 per unit (click for quantity discounts)

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.300-BL-K

d₁ tol. H7/H8

30

d₂ tol. H7/H8

53

d₃

M 6

l₁

83

Static torque Nm

475

Material

Steel

Type

with keyway

Torque screw to Nm

16.5

Weight g

1000

Weight g

1000

£ 218.47 per unit (click for quantity discounts)

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.350-BL-K

d₁ tol. H7/H8

35

d₂ tol. H7/H8

67

d₃

M 8

l₁

95

Static torque Nm

1100

Material

Steel

Type

with keyway

Torque screw to Nm

39.0

Weight g

1100

Weight g

1100

£ 475.95 per unit (click for quantity discounts)

Rigid Shaft Coupling 2 piece Black Oxide

R3205.400-BL-K

d₁ tol. H7/H8

40

d₂ tol. H7/H8

77

d₃

M 8

l₁

108

Static torque Nm

1325

Material

Steel

Type

with keyway

Torque screw to Nm

39.0

Weight g

2500

Weight g

2500

£ 360.78 per unit (click for quantity discounts)

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.500-BL-K

d₁ tol. H7/H8

50

d₂ tol. H7/H8

85

d₃

M10

l₁

124

Static torque Nm

2250

Material

Steel

Type

with keyway

Torque screw to Nm

78.0

Weight g

3100

Weight g

3100

£ 417.17 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.060-A2

d₁ tol. H7/H8

6

d₂ tol. H7/H8

18

d₃

M 3

l₁

30

Static torque Nm

10

Material

Stainless

Type

standard

Torque screw to Nm

1.0

Weight g

40

Weight g

40

Rigid Shaft Couplings - Two Piece

R3205.080-A2

d₁ tol. H7/H8

8

d₂ tol. H7/H8

24

d₃

M 3

l₁

35

Static torque Nm

16

Material

Stainless

Type

standard

Torque screw to Nm

1.0

Weight g

80

Weight g

80

Rigid Shaft Couplings - Two Piece - Stai

R3205.100-A2

d₁ tol. H7/H8

10

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

32

Material

Stainless

Type

standard

Torque screw to Nm

2.5

Weight g

190

Weight g

190

£ 125.16 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.120-A2

d₁ tol. H7/H8

12

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

32

Material

Stainless

Type

standard

Torque screw to Nm

2.5

Weight g

180

Weight g

180

Rigid Shaft Couplings - Two Piece

R3205.140-A2

d₁ tol. H7/H8

14

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

60

Material

Stainless

Type

standard

Torque screw to Nm

5.0

Weight g

250

Weight g

250

Rigid Shaft Couplings - Two Piece

R3205.150-A2

d₁ tol. H7/H8

15

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

60

Material

Stainless

Type

standard

Torque screw to Nm

5.0

Weight g

240

Weight g

240

Rigid Shaft Couplings - Two Piece

R3205.160-A2

d₁ tol. H7/H8

16

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

60

Material

Stainless

Type

standard

Torque screw to Nm

5.0

Weight g

230

Weight g

230

Rigid Shaft Couplings - Two Piece

R3205.200-A2

d₁ tol. H7/H8

20

d₂ tol. H7/H8

42

d₃

M 6

l₁

65

Static torque Nm

110

Material

Stainless

Type

standard

Torque screw to Nm

8.5

Weight g

500

Weight g

500

Rigid Shaft Couplings - Two Piece

R3205.250-A2

d₁ tol. H7/H8

25

d₂ tol. H7/H8

45

d₃

M 6

l₁

75

Static torque Nm

120

Material

Stainless

Type

standard

Torque screw to Nm

8.5

Weight g

620

Weight g

620

Rigid Shaft Couplings - Two Piece

R3205.300-A2

d₁ tol. H7/H8

30

d₂ tol. H7/H8

53

d₃

M 6

l₁

83

Static torque Nm

150

Material

Stainless

Type

standard

Torque screw to Nm

8.5

Weight g

1000

Weight g

1000

Rigid Shaft Coupling - Two piece S/S

R3205.350-A2

d₁ tol. H7/H8

35

d₂ tol. H7/H8

67

d₃

M 8

l₁

95

Static torque Nm

330

Material

Stainless

Type

standard

Torque screw to Nm

20.5

Weight g

1100

Weight g

1100

£ 686.45 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.400-A2

d₁ tol. H7/H8

40

d₂ tol. H7/H8

77

d₃

M 8

l₁

108

Static torque Nm

400

Material

Stainless

Type

standard

Torque screw to Nm

20.5

Weight g

2500

Weight g

2500

Rigid Shaft Couplings - Two Piece

R3205.500-A2

d₁ tol. H7/H8

50

d₂ tol. H7/H8

85

d₃

M10

l₁

124

Static torque Nm

675

Material

Stainless

Type

standard

Torque screw to Nm

41.5

Weight g

3100

Weight g

3100

£ 1,002.74 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.080-A2-K

d₁ tol. H7/H8

8

d₂ tol. H7/H8

24

d₃

M 3

l₁

35

Static torque Nm

16

Material

Stainless

Type

with keyway

Torque screw to Nm

1.0

Weight g

80

Weight g

80

Rigid Shaft Couplings - Two Piece

R3205.100-A2-K

d₁ tol. H7/H8

10

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

32

Material

Stainless

Type

with keyway

Torque screw to Nm

2.5

Weight g

190

Weight g

190

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.120-A2-K

d₁ tol. H7/H8

12

d₂ tol. H7/H8

29

d₃

M 4

l₁

45

Static torque Nm

32

Material

Stainless

Type

with keyway

Torque screw to Nm

2.5

Weight g

180

Weight g

180

£ 178.92 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.140-A2-K

d₁ tol. H7/H8

14

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

60

Material

Stainless

Type

with keyway

Torque screw to Nm

5.0

Weight g

240

Weight g

240

Rigid Shaft Couplings W/Keyway - Two Pie

R3205.150-A2-K

d₁ tol. H7/H8

15

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

60

Material

Stainless

Type

with keyway

Torque screw to Nm

5.0

Weight g

240

Weight g

240

£ 256.80 per unit (click for quantity discounts)

Rigid Shaft Couplings - Two Piece

R3205.160-A2-K

d₁ tol. H7/H8

16

d₂ tol. H7/H8

34

d₃

M 5

l₁

50

Static torque Nm

60

Material

Stainless

Type

with keyway

Torque screw to Nm

5.0

Weight g

230

Weight g

230

Rigid Shaft Couplings - Two Piece

R3205.200-A2-K

d₁ tol. H7/H8

20

d₂ tol. H7/H8

42

d₃

M 6

l₁

65

Static torque Nm

110

Material

Stainless

Type

with keyway

Torque screw to Nm

8.5

Weight g

500

Weight g

500

Rigid Shaft Couplings - Two Piece

R3205.250-A2-K

d₁ tol. H7/H8

25

d₂ tol. H7/H8

45

d₃

M 6

l₁

75

Static torque Nm

120

Material

Stainless

Type

with keyway

Torque screw to Nm

8.5

Weight g

620

Weight g

620

Rigid Shaft Couplings - Two Piece

R3205.300-A2-K

d₁ tol. H7/H8

30

d₂ tol. H7/H8

53

d₃

M 6

l₁

83

Static torque Nm

150

Material

Stainless

Type

with keyway

Torque screw to Nm

8.5

Weight g

1000

Weight g

1000

Rigid Shaft Couplings - Two Piece

R3205.350-A2-K

d₁ tol. H7/H8

35

d₂ tol. H7/H8

67

d₃

M 8

l₁

95

Static torque Nm

330

Material

Stainless

Type

with keyway

Torque screw to Nm

20.5

Weight g

1100

Weight g

1100

Rigid Shaft Couplings - Two Piece

R3205.400-A2-K

d₁ tol. H7/H8

40

d₂ tol. H7/H8

77

d₃

M 8

l₁

108

Static torque Nm

400

Material

Stainless

Type

with keyway

Torque screw to Nm

20.5

Weight g

2500

Weight g

2500

Rigid Shaft Couplings - Two Piece

R3205.500-A2-K

d₁ tol. H7/H8

50

d₂ tol. H7/H8

85

d₃

M10

l₁

124

Static torque Nm

675

Material

Stainless

Type

with keyway

Torque screw to Nm

41.5

Weight g

3100

Weight g

3100



Select all

d₁ tol. H7/H8

d₂ tol. H7/H8

d₃

l₁

Static torque Nm

Material

Type

Torque screw to Nm

Weight g

Weight g

Price & Availability	Article	d1 tol. H7/H8	d2 tol. H7/H8	d3	l1	Static torque Nm	Material	Type	Torque screw to Nm	Weight g	Weight g
	R3205.060-BL	6	18	M 3	30	34	Steel	standard	2.0	40	40
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 6 d2 tol. H7/H8 18 d3 M 3 l1 30 Static torque Nm 34 Material Steel Type standard Torque screw to Nm 2.0 Weight g 40 Weight g 40 more info »
	R3205.080-BL	8	24	M 3	35	50	Steel	standard	2.0	80	80
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 8 d2 tol. H7/H8 24 d3 M 3 l1 35 Static torque Nm 50 Material Steel Type standard Torque screw to Nm 2.0 Weight g 80 Weight g 80 more info »
	R3205.100-BL	10	29	M 4	45	105	Steel	standard	4.5	190	190
£ 78.22 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 78.22 0% 5-9 £ 70.40 10% 10-19 £ 66.49 15% 20-49 £ 58.67 25% 50+ £ 50.84 35% d1 tol. H7/H8 10 d2 tol. H7/H8 29 d3 M 4 l1 45 Static torque Nm 105 Material Steel Type standard Torque screw to Nm 4.5 Weight g 190 Weight g 190 more info »
	R3205.120-BL	12	29	M 4	45	105	Steel	standard	4.5	180	180
£ 83.93 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 83.93 0% 5-9 £ 75.54 10% 10-19 £ 71.34 15% 20-49 £ 62.95 25% 50+ £ 54.55 35% d1 tol. H7/H8 12 d2 tol. H7/H8 29 d3 M 4 l1 45 Static torque Nm 105 Material Steel Type standard Torque screw to Nm 4.5 Weight g 180 Weight g 180 more info »
	R3205.140-BL	14	34	M 5	50	200	Steel	standard	9.5	250	250
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 14 d2 tol. H7/H8 34 d3 M 5 l1 50 Static torque Nm 200 Material Steel Type standard Torque screw to Nm 9.5 Weight g 250 Weight g 250 more info »
	R3205.150-BL	15	34	M 5	50	200	Steel	standard	9.5	240	240
£ 98.72 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 98.72 0% 5-9 £ 88.85 10% 10-19 £ 83.91 15% 20-49 £ 74.04 25% 50+ £ 64.17 35% d1 tol. H7/H8 15 d2 tol. H7/H8 34 d3 M 5 l1 50 Static torque Nm 200 Material Steel Type standard Torque screw to Nm 9.5 Weight g 240 Weight g 240 more info »
	R3205.160-BL	16	34	M 5	50	200	Steel	standard	9.5	230	230
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 16 d2 tol. H7/H8 34 d3 M 5 l1 50 Static torque Nm 200 Material Steel Type standard Torque screw to Nm 9.5 Weight g 230 Weight g 230 more info »
	R3205.200-BL	20	42	M 6	65	350	Steel	standard	16.5	500	500
£ 122.54 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 122.54 0% 5-9 £ 110.29 10% 10-19 £ 104.16 15% 20-49 £ 91.91 25% 50+ £ 79.65 35% d1 tol. H7/H8 20 d2 tol. H7/H8 42 d3 M 6 l1 65 Static torque Nm 350 Material Steel Type standard Torque screw to Nm 16.5 Weight g 500 Weight g 500 more info »
	R3205.250-BL	25	45	M 6	75	400	Steel	standard	16.5	620	620
£ 153.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 153.44 0% 5-9 £ 138.10 10% 10-19 £ 130.42 15% 20-49 £ 115.08 25% 50+ £ 99.74 35% d1 tol. H7/H8 25 d2 tol. H7/H8 45 d3 M 6 l1 75 Static torque Nm 400 Material Steel Type standard Torque screw to Nm 16.5 Weight g 620 Weight g 620 more info »
	R3205.300-BL	30	53	M 6	83	475	Steel	standard	16.5	1000	1000
£ 163.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 163.71 0% 5-9 £ 147.34 10% 10-19 £ 139.15 15% 20-49 £ 122.78 25% 50+ £ 106.41 35% d1 tol. H7/H8 30 d2 tol. H7/H8 53 d3 M 6 l1 83 Static torque Nm 475 Material Steel Type standard Torque screw to Nm 16.5 Weight g 1000 Weight g 1000 more info »
	R3205.350-BL	35	67	M 8	95	1100	Steel	standard	39.0	1100	1100
£ 226.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 226.40 0% 5-9 £ 203.76 10% 10-19 £ 192.44 15% 20-49 £ 169.80 25% 50+ £ 147.16 35% d1 tol. H7/H8 35 d2 tol. H7/H8 67 d3 M 8 l1 95 Static torque Nm 1100 Material Steel Type standard Torque screw to Nm 39.0 Weight g 1100 Weight g 1100 more info »
	R3205.400-BL	40	77	M 8	108	1325	Steel	standard	39.0	2500	2500
£ 381.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 381.26 0% 5-9 £ 343.13 10% 10-19 £ 324.07 15% 20-49 £ 285.95 25% 50+ £ 247.82 35% d1 tol. H7/H8 40 d2 tol. H7/H8 77 d3 M 8 l1 108 Static torque Nm 1325 Material Steel Type standard Torque screw to Nm 39.0 Weight g 2500 Weight g 2500 more info »
	R3205.500-BL	50	85	M10	124	2250	Steel	standard	78.0	3100	3100
£ 327.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 327.24 0% 5-9 £ 294.52 10% 10-19 £ 278.15 15% 20-49 £ 245.43 25% 50+ £ 212.71 35% d1 tol. H7/H8 50 d2 tol. H7/H8 85 d3 M10 l1 124 Static torque Nm 2250 Material Steel Type standard Torque screw to Nm 78.0 Weight g 3100 Weight g 3100 more info »
	R3205.080-BL-K	8	24	M 3	35	50	Steel	with keyway	2.0	80	80
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 8 d2 tol. H7/H8 24 d3 M 3 l1 35 Static torque Nm 50 Material Steel Type with keyway Torque screw to Nm 2.0 Weight g 80 Weight g 80 more info »
	R3205.100-BL-K	10	29	M 4	45	105	Steel	with keyway	4.5	190	190
£ 92.60 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 92.60 0% 5-9 £ 83.34 10% 10-19 £ 78.71 15% 20-49 £ 69.45 25% 50+ £ 60.19 35% d1 tol. H7/H8 10 d2 tol. H7/H8 29 d3 M 4 l1 45 Static torque Nm 105 Material Steel Type with keyway Torque screw to Nm 4.5 Weight g 190 Weight g 190 more info »
	R3205.120-BL-K	12	29	M 4	45	105	Steel	with keyway	4.5	180	180
£ 101.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 101.19 0% 5-9 £ 91.07 10% 10-19 £ 86.01 15% 20-49 £ 75.89 25% 50+ £ 65.77 35% d1 tol. H7/H8 12 d2 tol. H7/H8 29 d3 M 4 l1 45 Static torque Nm 105 Material Steel Type with keyway Torque screw to Nm 4.5 Weight g 180 Weight g 180 more info »
	R3205.140-BL-K	14	34	M 5	50	200	Steel	with keyway	9.5	240	240
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 14 d2 tol. H7/H8 34 d3 M 5 l1 50 Static torque Nm 200 Material Steel Type with keyway Torque screw to Nm 9.5 Weight g 240 Weight g 240 more info »
	R3205.150-BL-K	15	34	M 5	50	200	Steel	with keyway	9.5	240	240
£ 114.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 114.63 0% 5-9 £ 103.17 10% 10-19 £ 97.44 15% 20-49 £ 85.97 25% 50+ £ 74.51 35% d1 tol. H7/H8 15 d2 tol. H7/H8 34 d3 M 5 l1 50 Static torque Nm 200 Material Steel Type with keyway Torque screw to Nm 9.5 Weight g 240 Weight g 240 more info »
	R3205.160-BL-K	16	34	M 5	50	200	Steel	with keyway	9.5	230	230
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 16 d2 tol. H7/H8 34 d3 M 5 l1 50 Static torque Nm 200 Material Steel Type with keyway Torque screw to Nm 9.5 Weight g 230 Weight g 230 more info »
	R3205.200-BL-K	20	42	M 6	65	350	Steel	with keyway	16.5	500	500
£ 144.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 144.90 0% 5-9 £ 130.41 10% 10-19 £ 123.17 15% 20-49 £ 108.68 25% 50+ £ 94.19 35% d1 tol. H7/H8 20 d2 tol. H7/H8 42 d3 M 6 l1 65 Static torque Nm 350 Material Steel Type with keyway Torque screw to Nm 16.5 Weight g 500 Weight g 500 more info »
	R3205.250-BL-K	25	45	M 6	75	400	Steel	with keyway	16.5	620	620
£ 233.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 233.25 0% 5-9 £ 209.93 10% 10-19 £ 198.26 15% 20-49 £ 174.94 25% 50+ £ 151.61 35% d1 tol. H7/H8 25 d2 tol. H7/H8 45 d3 M 6 l1 75 Static torque Nm 400 Material Steel Type with keyway Torque screw to Nm 16.5 Weight g 620 Weight g 620 more info »
	R3205.300-BL-K	30	53	M 6	83	475	Steel	with keyway	16.5	1000	1000
£ 218.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 218.47 0% 5-9 £ 196.62 10% 10-19 £ 185.70 15% 20-49 £ 163.85 25% 50+ £ 142.01 35% d1 tol. H7/H8 30 d2 tol. H7/H8 53 d3 M 6 l1 83 Static torque Nm 475 Material Steel Type with keyway Torque screw to Nm 16.5 Weight g 1000 Weight g 1000 more info »
	R3205.350-BL-K	35	67	M 8	95	1100	Steel	with keyway	39.0	1100	1100
£ 475.95 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 475.95 0% 5-9 £ 428.36 10% 10-19 £ 404.56 15% 20-49 £ 356.96 25% 50+ £ 309.37 35% d1 tol. H7/H8 35 d2 tol. H7/H8 67 d3 M 8 l1 95 Static torque Nm 1100 Material Steel Type with keyway Torque screw to Nm 39.0 Weight g 1100 Weight g 1100 more info »
	R3205.400-BL-K	40	77	M 8	108	1325	Steel	with keyway	39.0	2500	2500
£ 360.78 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 360.78 0% 5-9 £ 324.70 10% 10-19 £ 306.66 15% 20-49 £ 270.59 25% 50+ £ 234.51 35% d1 tol. H7/H8 40 d2 tol. H7/H8 77 d3 M 8 l1 108 Static torque Nm 1325 Material Steel Type with keyway Torque screw to Nm 39.0 Weight g 2500 Weight g 2500 more info »
	R3205.500-BL-K	50	85	M10	124	2250	Steel	with keyway	78.0	3100	3100
£ 417.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 417.17 0% 5-9 £ 375.45 10% 10-19 £ 354.59 15% 20-49 £ 312.88 25% 50+ £ 271.16 35% d1 tol. H7/H8 50 d2 tol. H7/H8 85 d3 M10 l1 124 Static torque Nm 2250 Material Steel Type with keyway Torque screw to Nm 78.0 Weight g 3100 Weight g 3100 more info »
	R3205.060-A2	6	18	M 3	30	10	Stainless	standard	1.0	40	40
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 6 d2 tol. H7/H8 18 d3 M 3 l1 30 Static torque Nm 10 Material Stainless Type standard Torque screw to Nm 1.0 Weight g 40 Weight g 40 more info »
	R3205.080-A2	8	24	M 3	35	16	Stainless	standard	1.0	80	80
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 8 d2 tol. H7/H8 24 d3 M 3 l1 35 Static torque Nm 16 Material Stainless Type standard Torque screw to Nm 1.0 Weight g 80 Weight g 80 more info »
	R3205.100-A2	10	29	M 4	45	32	Stainless	standard	2.5	190	190
£ 125.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 125.16 0% 5-9 £ 112.64 10% 10-19 £ 106.39 15% 20-49 £ 93.87 25% 50+ £ 81.35 35% d1 tol. H7/H8 10 d2 tol. H7/H8 29 d3 M 4 l1 45 Static torque Nm 32 Material Stainless Type standard Torque screw to Nm 2.5 Weight g 190 Weight g 190 more info »
	R3205.120-A2	12	29	M 4	45	32	Stainless	standard	2.5	180	180
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 12 d2 tol. H7/H8 29 d3 M 4 l1 45 Static torque Nm 32 Material Stainless Type standard Torque screw to Nm 2.5 Weight g 180 Weight g 180 more info »
	R3205.140-A2	14	34	M 5	50	60	Stainless	standard	5.0	250	250
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 14 d2 tol. H7/H8 34 d3 M 5 l1 50 Static torque Nm 60 Material Stainless Type standard Torque screw to Nm 5.0 Weight g 250 Weight g 250 more info »
	R3205.150-A2	15	34	M 5	50	60	Stainless	standard	5.0	240	240
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 15 d2 tol. H7/H8 34 d3 M 5 l1 50 Static torque Nm 60 Material Stainless Type standard Torque screw to Nm 5.0 Weight g 240 Weight g 240 more info »
	R3205.160-A2	16	34	M 5	50	60	Stainless	standard	5.0	230	230
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 16 d2 tol. H7/H8 34 d3 M 5 l1 50 Static torque Nm 60 Material Stainless Type standard Torque screw to Nm 5.0 Weight g 230 Weight g 230 more info »
	R3205.200-A2	20	42	M 6	65	110	Stainless	standard	8.5	500	500
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 20 d2 tol. H7/H8 42 d3 M 6 l1 65 Static torque Nm 110 Material Stainless Type standard Torque screw to Nm 8.5 Weight g 500 Weight g 500 more info »
	R3205.250-A2	25	45	M 6	75	120	Stainless	standard	8.5	620	620
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 25 d2 tol. H7/H8 45 d3 M 6 l1 75 Static torque Nm 120 Material Stainless Type standard Torque screw to Nm 8.5 Weight g 620 Weight g 620 more info »
	R3205.300-A2	30	53	M 6	83	150	Stainless	standard	8.5	1000	1000
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 30 d2 tol. H7/H8 53 d3 M 6 l1 83 Static torque Nm 150 Material Stainless Type standard Torque screw to Nm 8.5 Weight g 1000 Weight g 1000 more info »
	R3205.350-A2	35	67	M 8	95	330	Stainless	standard	20.5	1100	1100
£ 686.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 686.45 0% 5-9 £ 617.81 10% 10-19 £ 583.48 15% 20-49 £ 514.84 25% 50+ £ 446.19 35% d1 tol. H7/H8 35 d2 tol. H7/H8 67 d3 M 8 l1 95 Static torque Nm 330 Material Stainless Type standard Torque screw to Nm 20.5 Weight g 1100 Weight g 1100 more info »
	R3205.400-A2	40	77	M 8	108	400	Stainless	standard	20.5	2500	2500
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 40 d2 tol. H7/H8 77 d3 M 8 l1 108 Static torque Nm 400 Material Stainless Type standard Torque screw to Nm 20.5 Weight g 2500 Weight g 2500 more info »
	R3205.500-A2	50	85	M10	124	675	Stainless	standard	41.5	3100	3100
£ 1,002.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 1,002.74 0% 5-9 £ 902.47 10% 10-19 £ 852.33 15% 20-49 £ 752.06 25% 50+ £ 651.78 35% d1 tol. H7/H8 50 d2 tol. H7/H8 85 d3 M10 l1 124 Static torque Nm 675 Material Stainless Type standard Torque screw to Nm 41.5 Weight g 3100 Weight g 3100 more info »
	R3205.080-A2-K	8	24	M 3	35	16	Stainless	with keyway	1.0	80	80
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 8 d2 tol. H7/H8 24 d3 M 3 l1 35 Static torque Nm 16 Material Stainless Type with keyway Torque screw to Nm 1.0 Weight g 80 Weight g 80 more info »
	R3205.100-A2-K	10	29	M 4	45	32	Stainless	with keyway	2.5	190	190
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 10 d2 tol. H7/H8 29 d3 M 4 l1 45 Static torque Nm 32 Material Stainless Type with keyway Torque screw to Nm 2.5 Weight g 190 Weight g 190 more info »
	R3205.120-A2-K	12	29	M 4	45	32	Stainless	with keyway	2.5	180	180
£ 178.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ £ 178.92   d1 tol. H7/H8 12 d2 tol. H7/H8 29 d3 M 4 l1 45 Static torque Nm 32 Material Stainless Type with keyway Torque screw to Nm 2.5 Weight g 180 Weight g 180 more info »
	R3205.140-A2-K	14	34	M 5	50	60	Stainless	with keyway	5.0	240	240
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 14 d2 tol. H7/H8 34 d3 M 5 l1 50 Static torque Nm 60 Material Stainless Type with keyway Torque screw to Nm 5.0 Weight g 240 Weight g 240 more info »
	R3205.150-A2-K	15	34	M 5	50	60	Stainless	with keyway	5.0	240	240
£ 256.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 256.80 0% 5-9 £ 231.12 10% 10-19 £ 218.28 15% 20-49 £ 192.60 25% 50+ £ 166.92 35% d1 tol. H7/H8 15 d2 tol. H7/H8 34 d3 M 5 l1 50 Static torque Nm 60 Material Stainless Type with keyway Torque screw to Nm 5.0 Weight g 240 Weight g 240 more info »
	R3205.160-A2-K	16	34	M 5	50	60	Stainless	with keyway	5.0	230	230
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 16 d2 tol. H7/H8 34 d3 M 5 l1 50 Static torque Nm 60 Material Stainless Type with keyway Torque screw to Nm 5.0 Weight g 230 Weight g 230 more info »
	R3205.200-A2-K	20	42	M 6	65	110	Stainless	with keyway	8.5	500	500
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 20 d2 tol. H7/H8 42 d3 M 6 l1 65 Static torque Nm 110 Material Stainless Type with keyway Torque screw to Nm 8.5 Weight g 500 Weight g 500 more info »
	R3205.250-A2-K	25	45	M 6	75	120	Stainless	with keyway	8.5	620	620
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 25 d2 tol. H7/H8 45 d3 M 6 l1 75 Static torque Nm 120 Material Stainless Type with keyway Torque screw to Nm 8.5 Weight g 620 Weight g 620 more info »
	R3205.300-A2-K	30	53	M 6	83	150	Stainless	with keyway	8.5	1000	1000
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 30 d2 tol. H7/H8 53 d3 M 6 l1 83 Static torque Nm 150 Material Stainless Type with keyway Torque screw to Nm 8.5 Weight g 1000 Weight g 1000 more info »
	R3205.350-A2-K	35	67	M 8	95	330	Stainless	with keyway	20.5	1100	1100
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 35 d2 tol. H7/H8 67 d3 M 8 l1 95 Static torque Nm 330 Material Stainless Type with keyway Torque screw to Nm 20.5 Weight g 1100 Weight g 1100 more info »
	R3205.400-A2-K	40	77	M 8	108	400	Stainless	with keyway	20.5	2500	2500
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 40 d2 tol. H7/H8 77 d3 M 8 l1 108 Static torque Nm 400 Material Stainless Type with keyway Torque screw to Nm 20.5 Weight g 2500 Weight g 2500 more info »
	R3205.500-A2-K	50	85	M10	124	675	Stainless	with keyway	41.5	3100	3100
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H7/H8 50 d2 tol. H7/H8 85 d3 M10 l1 124 Static torque Nm 675 Material Stainless Type with keyway Torque screw to Nm 41.5 Weight g 3100 Weight g 3100 more info »
