P0087.1 Threaded Insert - Solid - Metric
carbon steel, material: carbon steel
Order No.
P0087.100-125-CS
d1
tol. 6g
M10x1,25
Thread type d1
Fine
l1
10
.W0220
Inst. tap drill size
8.80
Inst. c'sink dia.
+0.25|-0.00
10.3
Inst. thread tap
tol. 6H
M10x1,25
Inst. thread tap depth
min.
12.5
Removal drill size
7.5
Removal drill depth
4.8
£ 13.70 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 13.70 | 0% |
| 10-19 | £ 12.33 | 10% |
| 20-49 | £ 11.65 | 15% |
| 50-99 | £ 10.96 | 20% |
| 100-499 | £ 8.91 | 35% |
| 500-999 | £ 8.22 | 40% |
| 1000+ | £ 6.17 | 55% |
Technical & Application
Material
Inserts: carbon steel (C1215) or equivalent. Zinc phosphate.
Keys: stainless steel (302 CRES) or equivalent. Passivated.
Technical Notes
General tolerances:
± 0,25" unless specified.
Tap drill hole tolerances:
6,9 to 10,8 = +0,10/-0,025".
12,8 and over = +0,13/-0,025".
Tips
Order installation tool separately, as identified by "Inst. tool ref." in table.
Important Notes

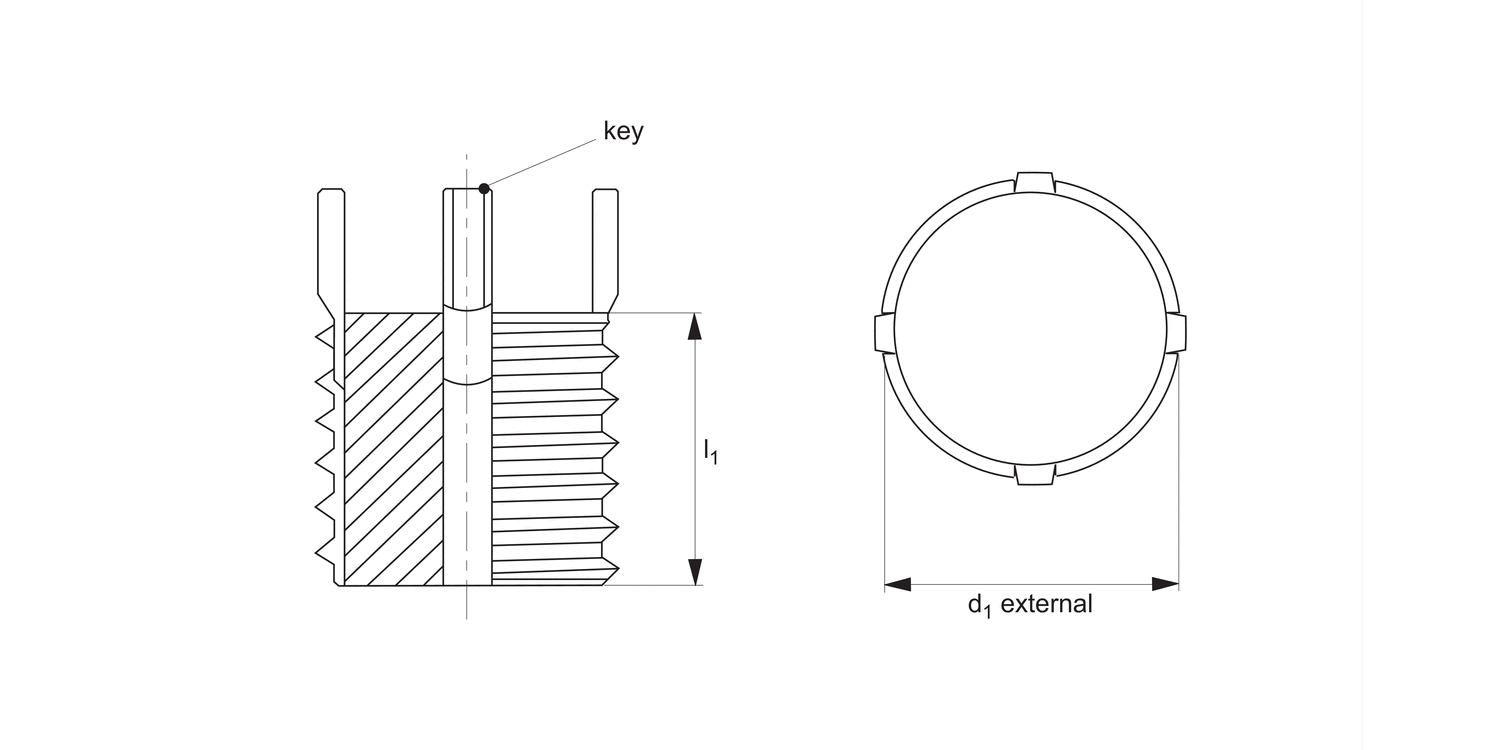

Four locking keys on external threads M12 and over. Two locking keys on external threads smaller than M12.
Installation (Inst.) drill size, countersink, thread tap and thread depth as specified in table.
Removal drill size and drill depth as specified in table.
External metric thread allows you to machine your internal thread.
